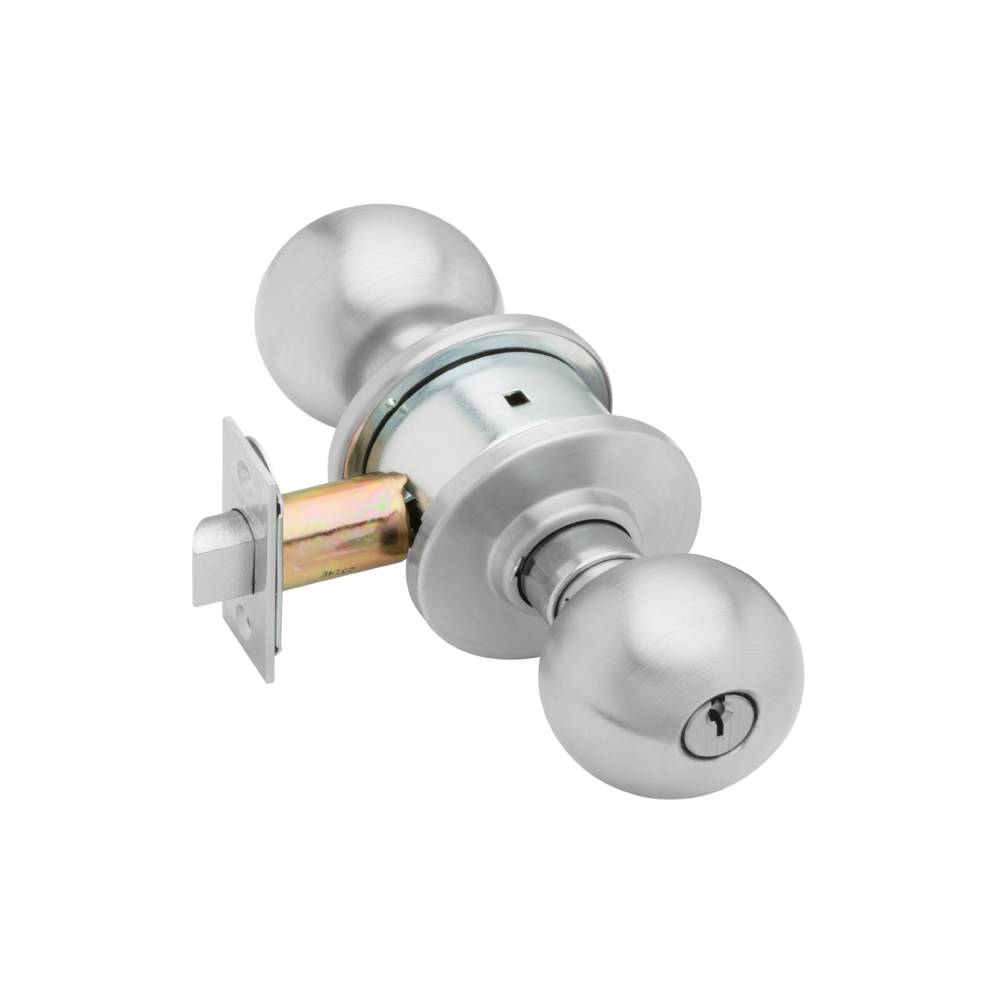

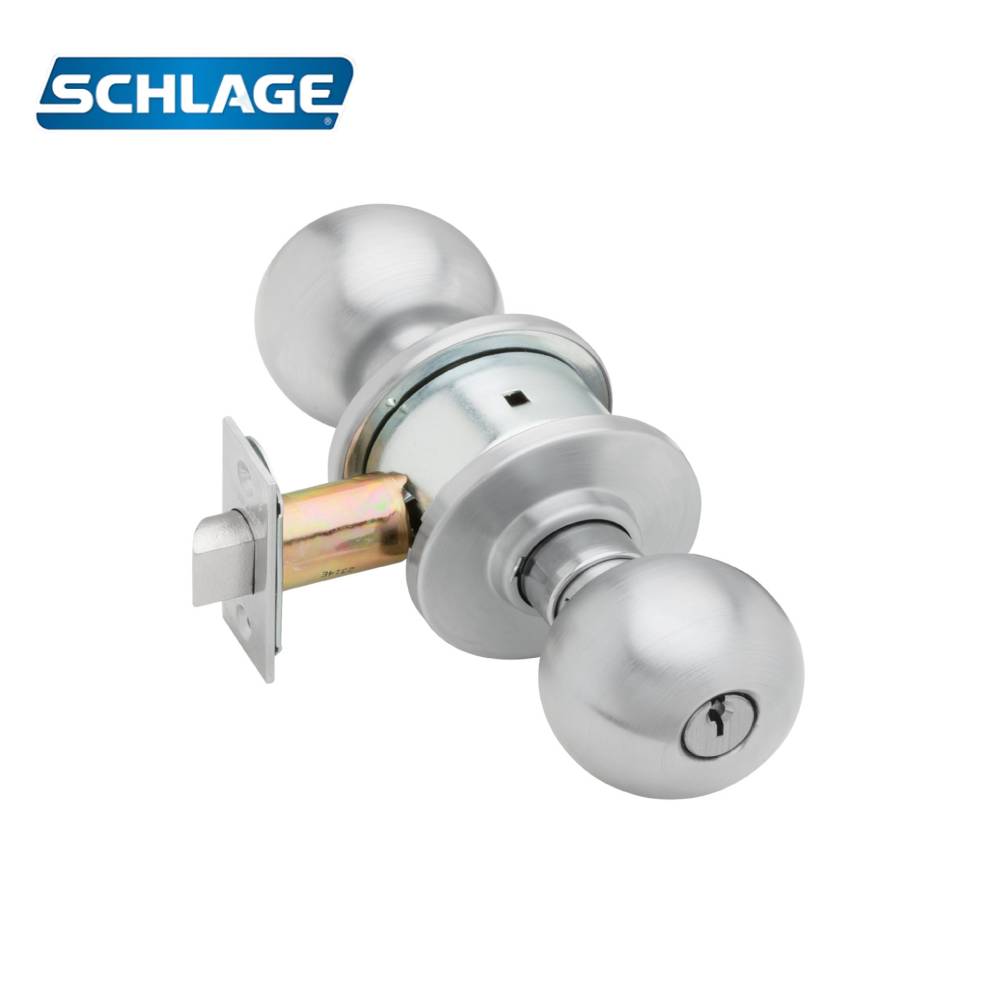

Schlage - A53PD - Entrance Cylindrical Lock with 2-3/8 Backset and 2-3/4 T-Strike - Orbit Knob - C Keyway - Grade 2 - 626 (Satin Chrome Finish)
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Schlage - A53PD - Entrance Cylindrical Lock with 2-3/8 Backset and ...
Description
Description
Schlage - A53PD - Entrance Cylindrical Lock with 2-3/8" Backset and 2-3/4" T-Strike - Orbit Knob - C Keyway - Grade 2 - 626 (Satin Chrome Finish)
Medium traffic commercial and heavy-duty residential locks. From military barracks and offices, to fine residential homes, Schlage A Series knobs easily stand up to constant use and abuse, while keeping people and property safe. Schlage A Series locks have an ANSI Grade 2 rating and come in a choice of styles and finishes that fit your building’s design.
Feature:
- Cold-rolled steel, and machined and threaded hubs prevent loosening of the lockset by bolting the chassis to the door
- Heavy-duty cast mounting plate with specially tapped holes, keeps lockset tight on the door
- Patented door range adjuster allows quick and easy adjustment for doors ranging from 1 3⁄8" to 1 7⁄8" (35 mm to 48 mm) thick
Function availability and compatibility:
- Eleven (11) standard functions
- A variety of strike and latch options to accommodate any opening
Aesthetics:
- Four (4) knob designs
- One (1) lever design
- Ten (10) available finishes
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| SKU | A53PD ORB 626 |
| UID | SCH100A53PDORB626 |
| Grade | Grade 2 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| Base Material | Brass, Bronze |
| UL Listing Type | ANSI A156.2-2011, Series 4000, Grade 2, UL Listed |
| ANSI Number | F109 |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | 53-Entrance Lock |
| Function Family | Entrance |
| ANSI Function | F109 - Entry/Office |
| Lever/Knob Design | ORB - Orbit Knob |
| Lever/Knob Design Family | Ball Knob |
| Rose/Escutcheon Design | 2-9/16" Rose Diameter |
| Rose/Escutcheon Dimensions | 2-9/16" |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-3/8" to 1-7/8" |
| Std. Latch Number | 11-085 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/8" |
| Latch Bore Diameter | 7/8" |
| Lock Face Size | 1" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 10-001 |
| Std. Strike Type | T-Strike |
| Std. Strike Height | 2-3/4" |
| Std. Strike Width | 1-1/8" |
| Dust Box | Plastic |
| Screws | Wood/Metal Screws |
| Product Type | Cylindrical Lock |
