Schlage B560P Single Cylinder Deadbolt C123 Keyway - Grade 2 ANSI E0152 - Satin Chrome
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
Description
Description

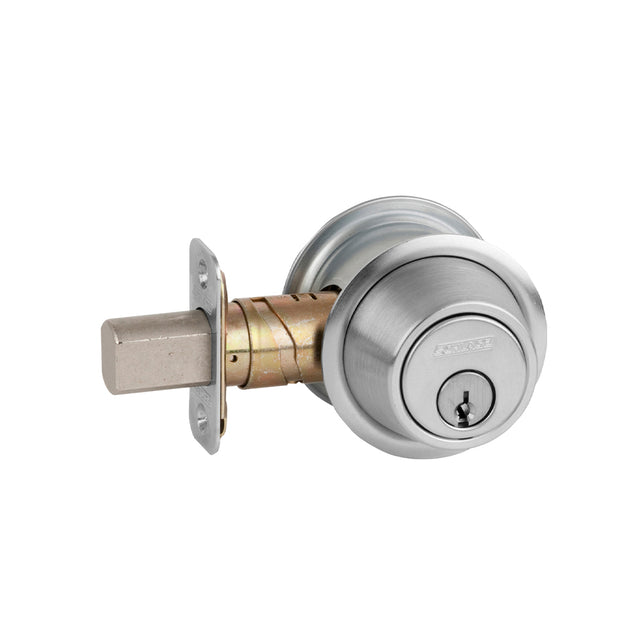

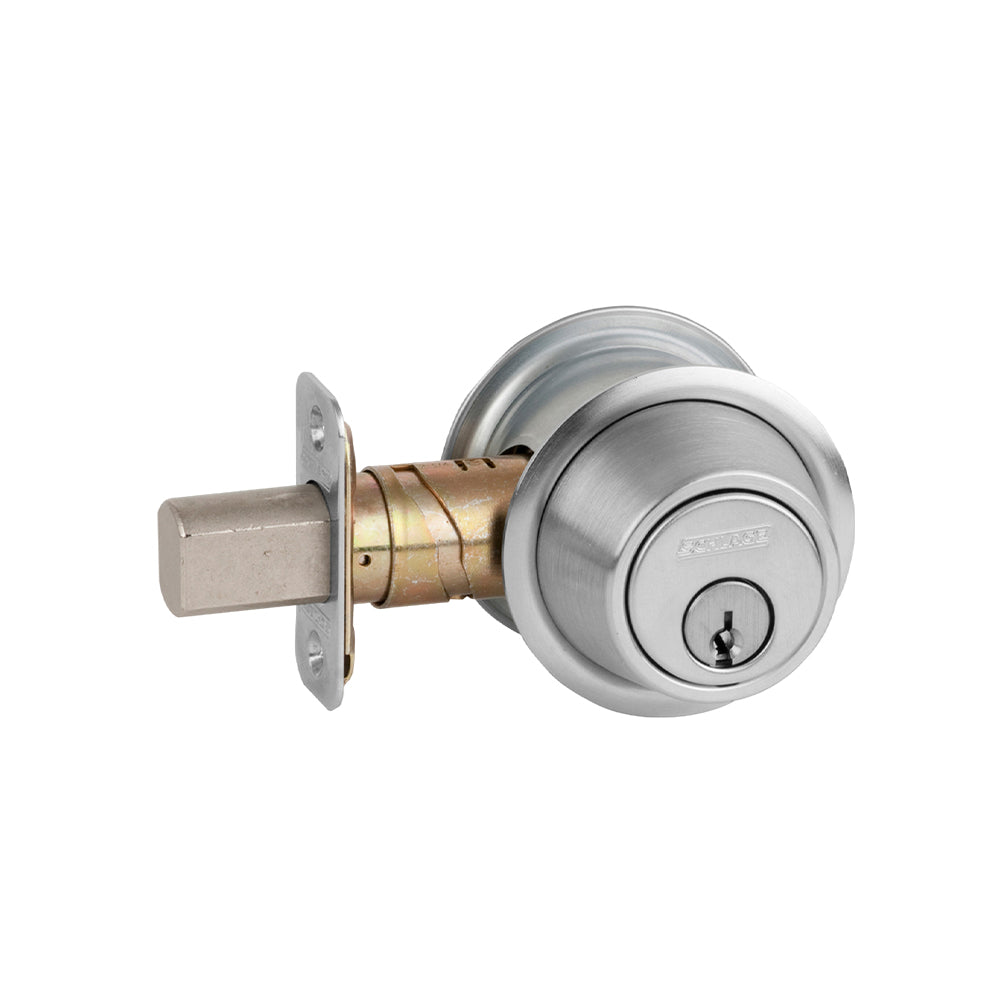

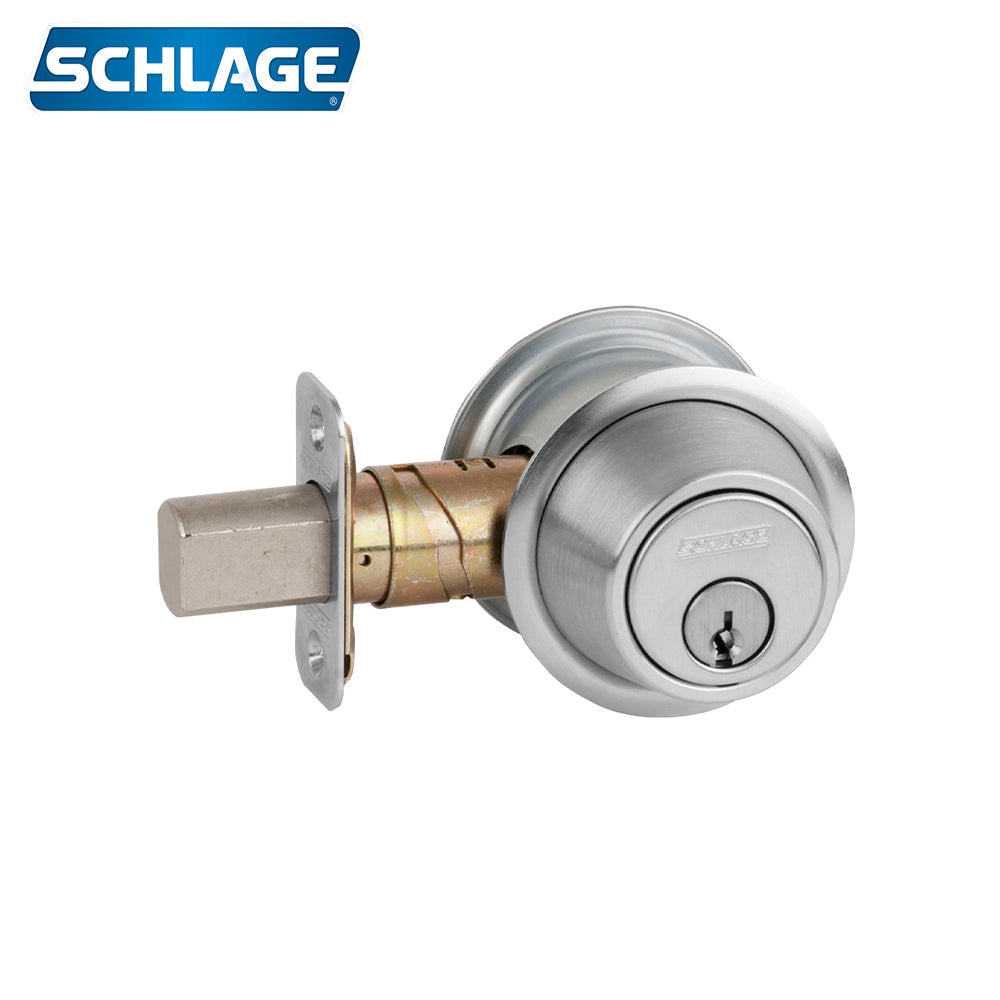

Schlage B560P Single Cylinder Deadbolt C123 Keyway - Grade 2 ANSI E0152 - Satin Chrome
The Schlage B560P-626-C123 Single Cylinder Deadbolt. The Schlage B500 Series deadbolt is a revolutionary new deadbolt that delivers higher security, tougher performance and the ultimate in installation versatility. Designed by locksmiths for locksmiths, the B500 Series deadbolt can be fitted with any Schlage cylinder, fits virtually every door you service, and enhances lock strength on the jamb side of the door.
Features:
- Grade 2 Single Cylinder Deadbolt
- Conventional Cylinder
- Adjustable 2-3/8" and 2-3/4" Backset
- C123 Keyway
- Satin Chrome Finish
Product Specifications:
| Manufacturer | Schlage |
| SKU | B560P 626 C123 |
| UID | SCH100B560P626C123 |
| Grade | Grade 2 |
| Unit of Measure | Each |
Technical Specifications:
| Function | 560-Single Cylinder Deadbolt Lock |
| ANSI Function | E0152 - Single Cylinder Deadbolt |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | C123 |
| Door Thickness | 1-3/8 In. - 1-7/8 In. |
| Std. Latch Number | 12-287 |
| Std. Latch Type | Deadbolt |
| Std. Latch Backset Dim | Adjustable 2-3/8 In. and 2-3/4 In. |
| Lock Face Size | 2-1/4 In. x 1 In. |
| Bolt Projection | 1 In. |
| Std. Strike Number | 10-094 |
| Std. Strike Type | Flat |
| Std. Strike Height | 2-3/4 In. |
| Std. Strike Width | 1-1/8 In. |
| Dust Box | None |
| Product Type | Deadbolts |
Installation Instructions:
