Schlage - B563P Commercial Classroom Deadbolts - Grade 2 ANSI E0172...
Description
Description

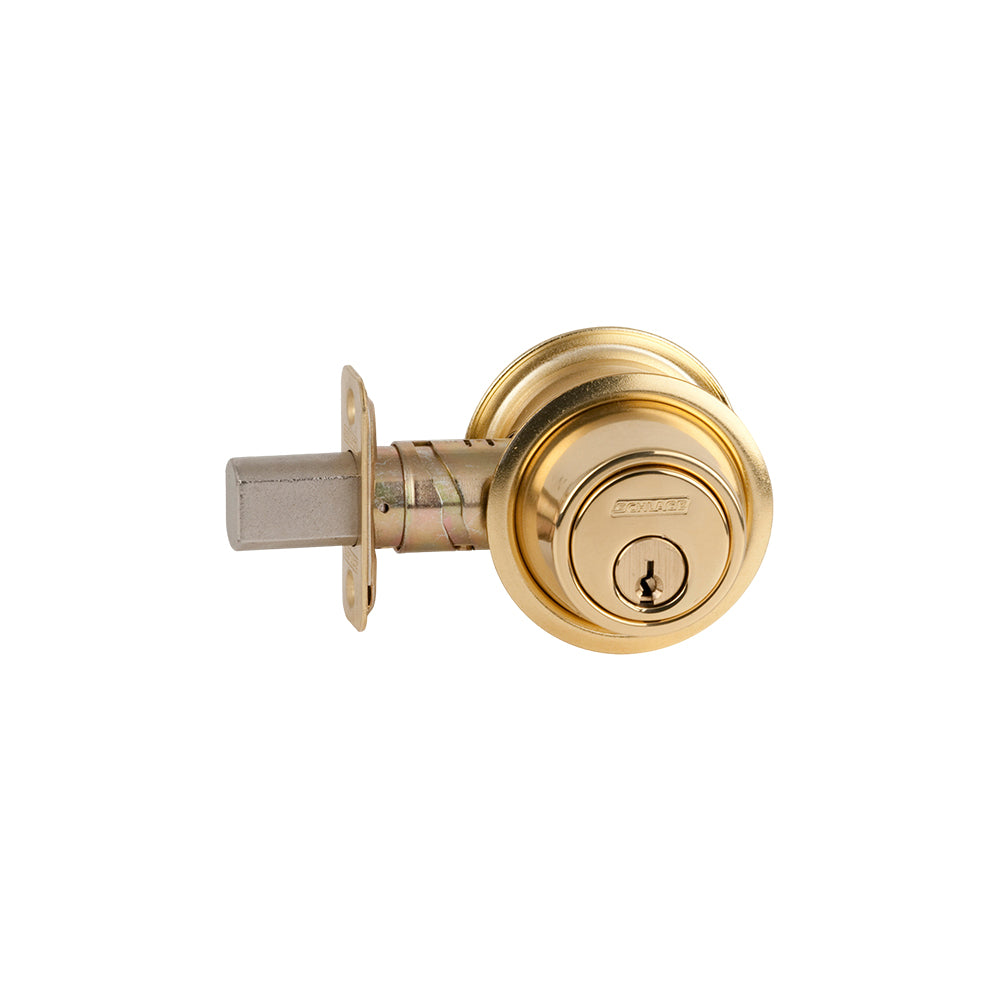

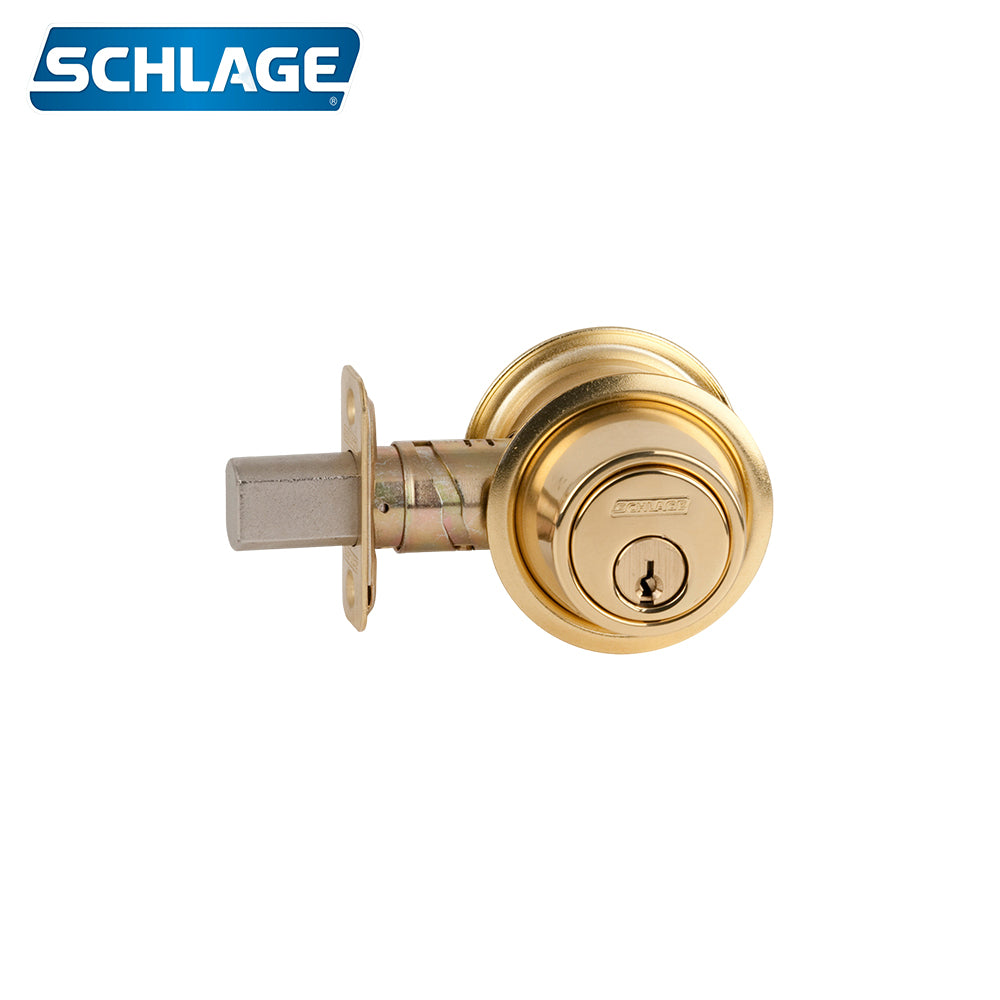

Schlage B563P Commercial Classroom Deadbolts - Grade 2 ANSI E0172 - Bright Brass
The Schlage B563P-626 Classroom Deadbolt, Grade 2 is a Classroom Deadbolt, 6-Pin Cylinder. The Schlage B500 Series deadbolt is a revolutionary new deadbolt that delivers higher security, tougher performance and the ultimate in installation versatility. Designed by locksmiths for locksmiths, the B500 Series deadbolt can be fitted with any Schlage cylinder, fits virtually every door you service, and enhances lock strength on the jamb side of the door.
Features:
- Classroom Deadbolt,Grade 2, 6-Pin Cylinder
- Security strike on jamb has third screw for stronger, deeper anchoring
- Classroom deadbolt - Deadbolt thrown or retracted by key outside. Inside units retracts bolt only.
- Satin Chrome Finish
- Adjustable backset with lock-in-place helix design
- Integrated anti-pry shield protects latch
- Thicker metal security strike back-up on jamb side
- Security strike on jamb has third screw for stronger, deeper anchoring
- Added space inside strike box for true deadlatch
- Seamless steel latch construction along the entire length of the bolt housing
- 10% larger diameter deadbolt
- Zinc bolt with spinning hardened steel pin inside
- Tapered front housing that can’t be unscrewed
- Integrated trim piece for fewer pieces out of the box
- Large, easy-to-use, ADA compliant thumbturn
- Meets UL 10B andd UL 10C requirements
Produt Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| SKU | B563P 605 |
| UID | SCH100B563P605 |
| Grade | Grade 2 |
| Installation | Commercial |
Technical Specifications:
| Function | 563-Classroom Deadbolt Lock |
| ANSI Function | E0172 - Classroom Deadbolt |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | S123 |
| Door Thickness | 1-3/8 In. - 1-7/8 In. |
| Std. Latch Number | 12-287 |
| Std. Latch Type | Deadbolt |
| Std. Latch Backset Dim | Adjustable 2-3/8 In. and 2-3/4 In. |
| Lock Face Size | 2-1/4 In. x 1 In. |
| Bolt Projection | 1 In. |
| Std. Strike Number | 10-094 |
| Std. Strike Type | Flat |
| Std. Strike Height | 2-3/4 In. |
| Std. Strike Width | 1-1/8 In. |
| Dust Box | None |
| Product Type | Deadbolts |
Installation Instructions:
