Schlage B563P Double Cylinder Classroom Deadbolt - Grade 2 ANSI Function E0172 - Satin Chrome
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Description
Description

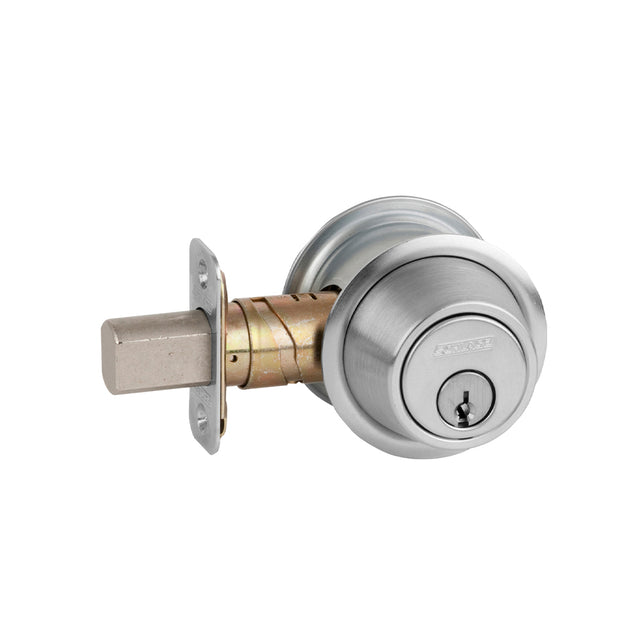

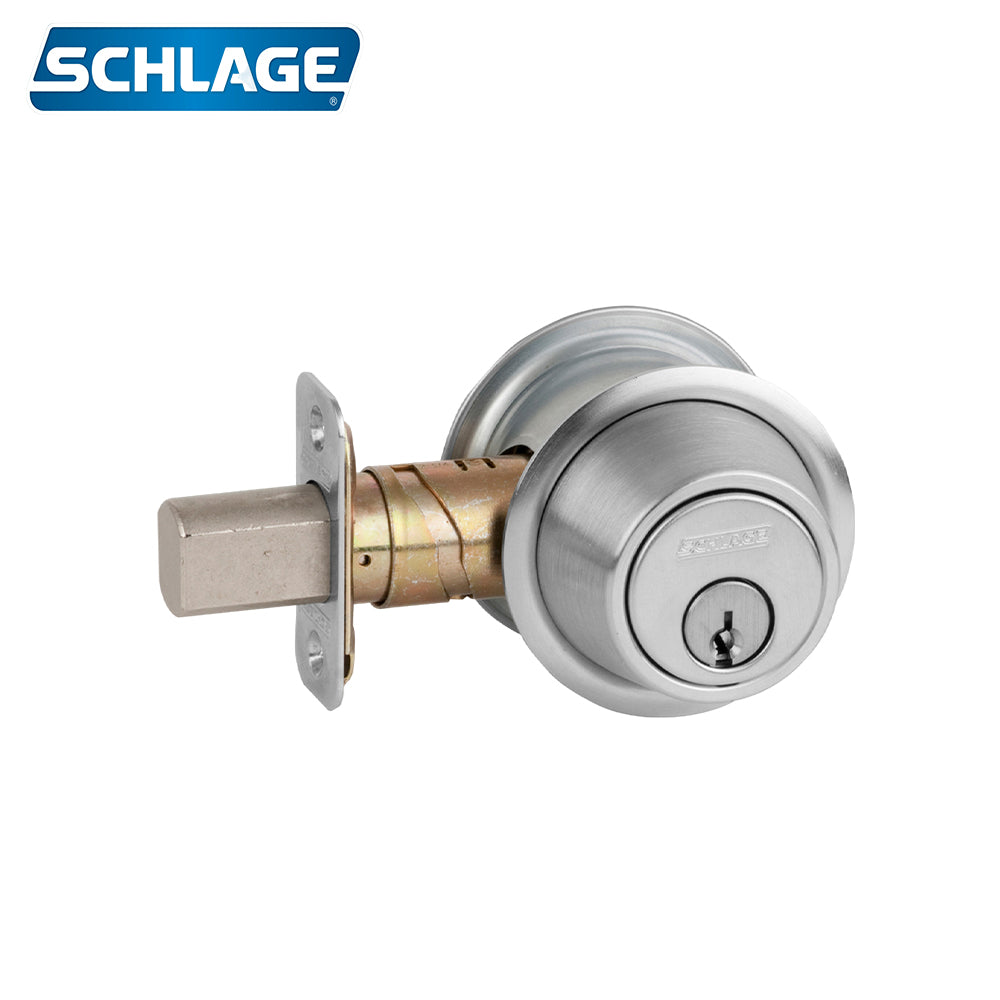

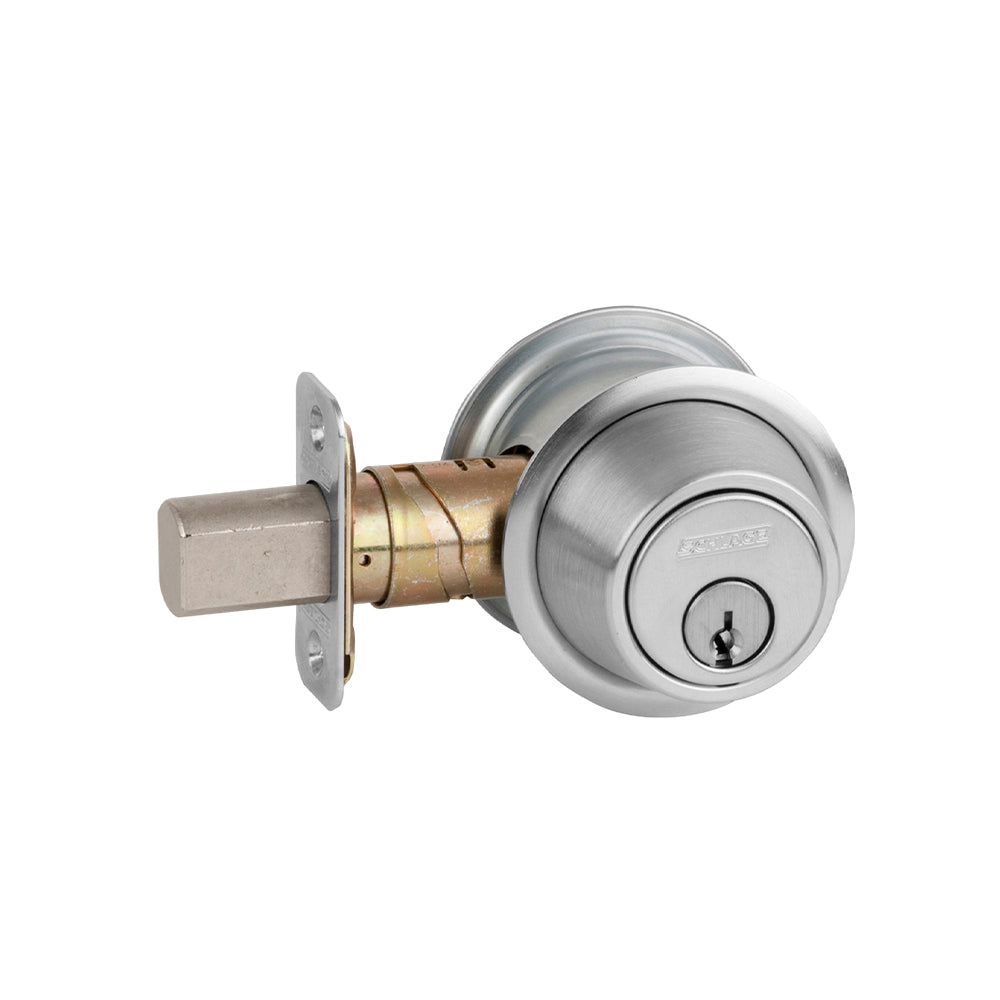

Schlage B563P Double Cylinder Classroom Deadbolt - Grade 2 ANSI Function E0172 - Satin Chrome
The Schlage B563P-626 Classroom Deadbolt, Grade 2 is a Classroom Deadbolt, 6-Pin Cylinder. The Schlage B500 Series deadbolt is revolutionary new deadbolt that delivers higher security and tougher performance. Designed by locksmiths for locksmiths, the B500 Series deadbolt can be fitted with any Schlage cylinder, fits virtually every door you service, enhances lock strength on the jamb side of the door and will change forever the way you look at deadbolts.
Features:
- Adjustable backset with lock-in-place helix design
- Integrated anti-pry shield protects latch
- Thicker metal security strike back-up on jamb side
- Security strike on jamb has third screw for stronger, deeper anchoring
- Added space inside strike box for true deadlatch
- Seamless steel latch construction along the entire length of the bolt housing
- 10% larger diameter deadbolt
- Zinc bolt with spinning hardened steel pin inside
- Tapered front housing that can’t be unscrewed
- Integrated trim piece for fewer pieces out of the box
- Large, easy-to-use, ADA compliant thumbturn
- Meets UL 10B andd UL 10C requirements
Produt Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| SKU | B563P 626 |
| UID | SCH100B563P626 |
| Grade | Grade 2 |
| Installation | Commercial |
| Unit of Measure | Each |
Technial Specifications:
| Function | 563-Classroom Deadbolt Lock |
| ANSI Function | E0172 - Classroom Deadbolt |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | S123 |
| Door Thickness | 1-3/8 In. - 1-7/8 In. |
| Std. Latch Number | 12-287 |
| Std. Latch Type | Deadbolt |
| Std. Latch Backset Dim | Adjustable 2-3/8 In. and 2-3/4 In. |
| Lock Face Size | 2-1/4 In. x 1 In. |
| Bolt Projection | 1 In. |
| Std. Strike Number | 10-094 |
| Std. Strike Type | Flat |
| Std. Strike Height | 2-3/4 In. |
| Std. Strike Width | 1-1/8 In. |
| Dust Box | None |
| Product Type | Deadbolts |
Installation Instructions:
