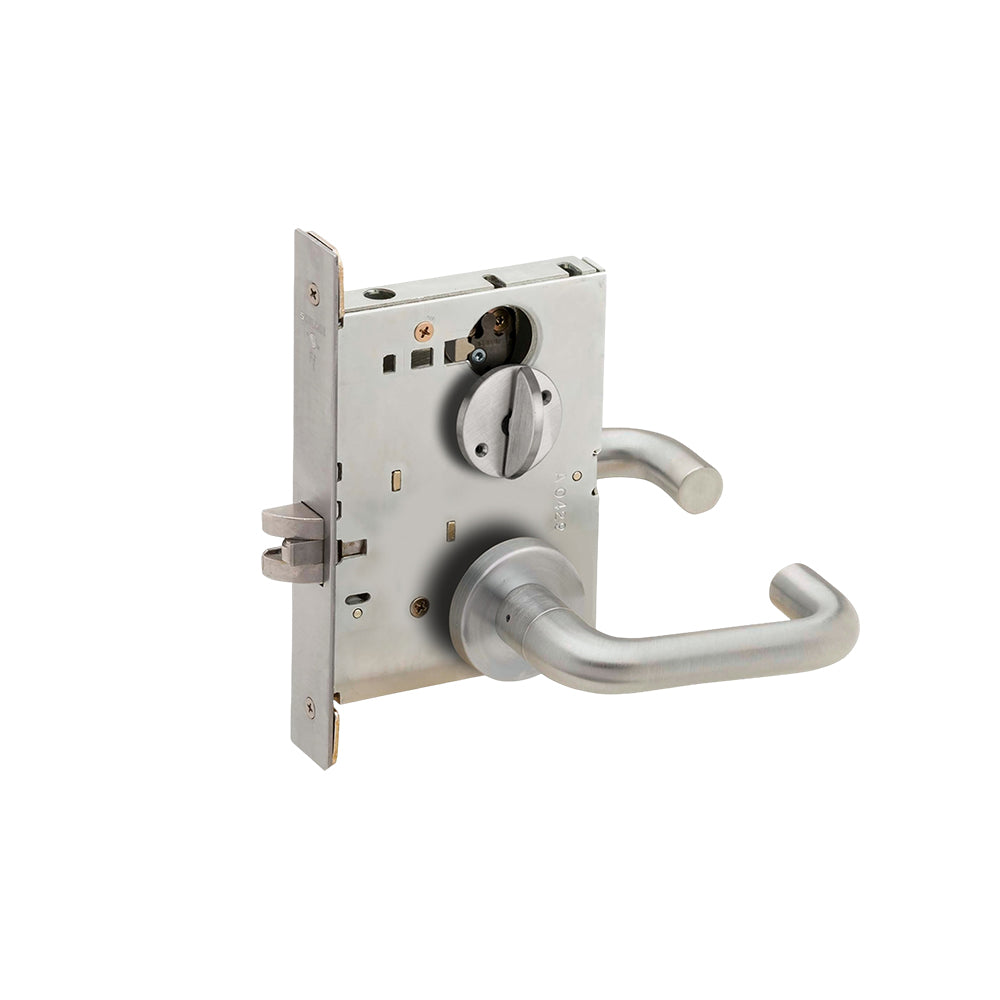

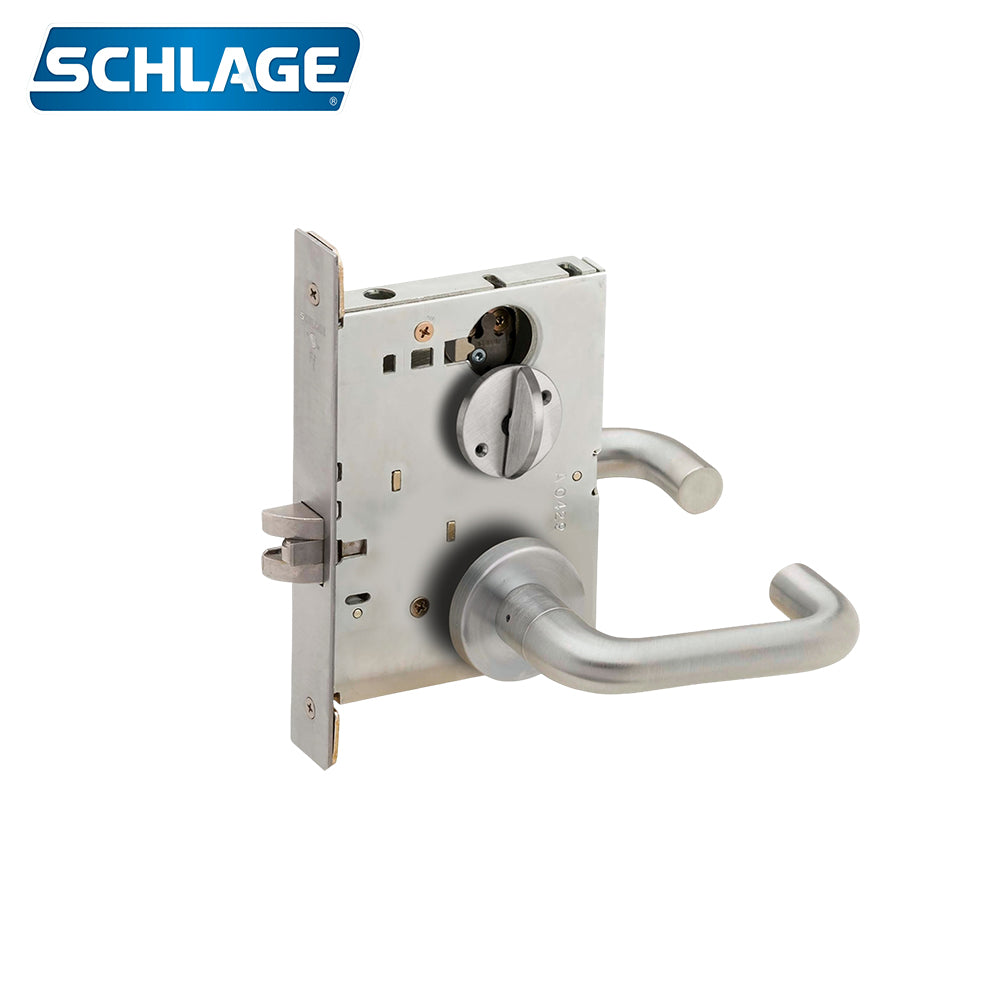

Schlage L9040 Fire Rated L Series Mortise Lock - Right Handed Body Only - Grade 1 - Satin Chrome
The Schlage L9040-03A-626 Privacy Mortise Lock is a Privacy Mortise Lock. The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application.
Features:
- Grade 1 Bed Bathroom Privacy Mortise Lock
- Rose A - 2-1/8" Diameter
- Lever Style - 03
- Privacy (Non- Keyed Function) Mortise Lock
- Satin Chrome Finish
Specifications:
| Lock Function |
9040-Privacy - Latchbolt retracted by lever/knob from either side unless outside lever is locked by inside thumbturn. |
| Handing | Non-Hand |
| Door Thickness | 1-3/4" (44 mm) |
| Cylinder | Non-Keyed |
| Backset | 2-3/4" (70 mm) only |
| Bolt | 1" (25 mm) throw stainless steel deadbolt |
| Latch |
3/4" (19 mm) throw stainless steel latch with anti-friction tongue |
| Strike | ANSI curved lip strike 1 1⁄4" x 4 7⁄8" (32 mm x 124 mm) x 1 3⁄16" (30 mm) lip to center with dust box |
| Lever | 03 Lever |
| Rose | A Rose -2 1⁄8" (54 mm) diameter |
| Material | Stainless Steel / Zinc |
| Case size | 4 7⁄16" x 6 1⁄16" x 1" (113 mm x 154 mm x 25 mm) |
| Spacing | Knob or lever to cylinder: 3 7/8" (98 mm); knob or lever to thumbturn hub: 2 11/16" (68 mm) |
| Strike | 1-1/8" x 3-1/2" (29 mm x 89 mm) with dust box |
| Fire Rated | 3 Hour Fire Door |
| Certifications |
ANSI/BHMA A156.13-2017 Series 1000, Grade 1 Operational and Security UL/cUL Listed, UL 10C |
| Manufacturer Warranty | 3 year limited mechanical |
Installation Instructions:
