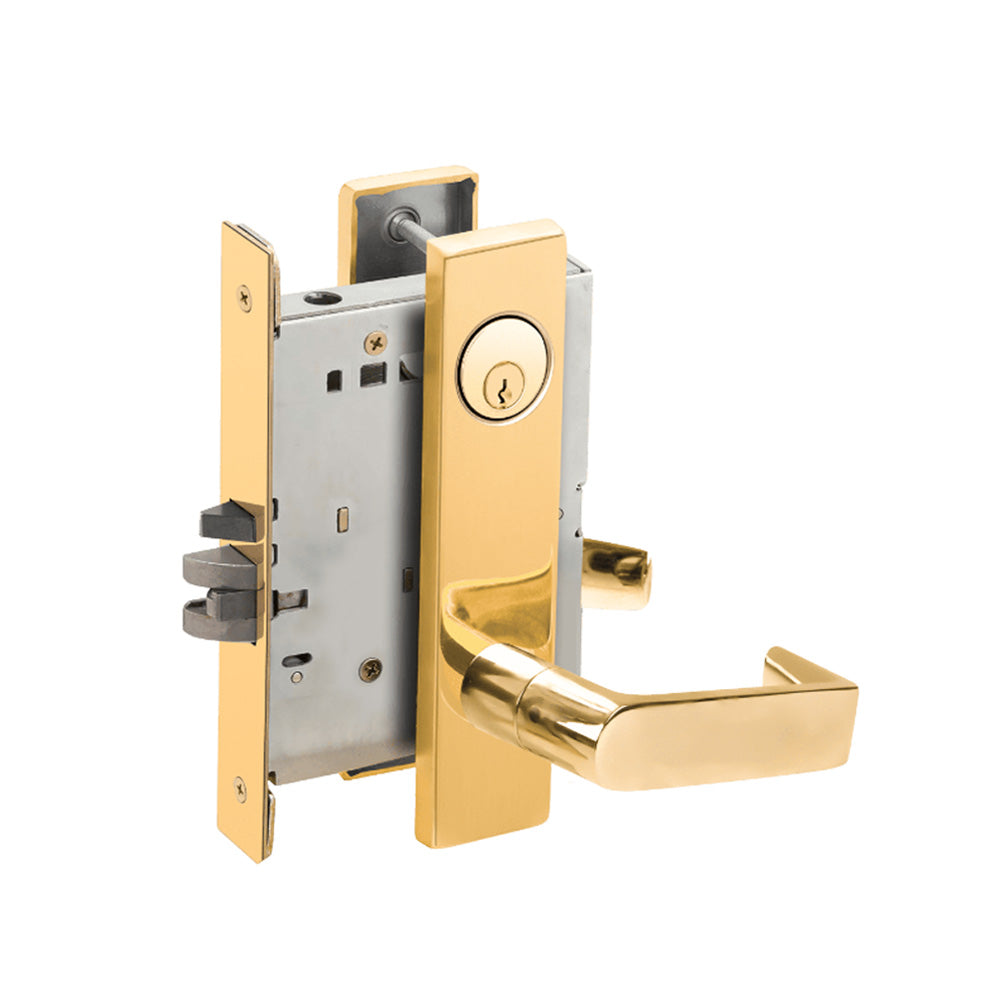

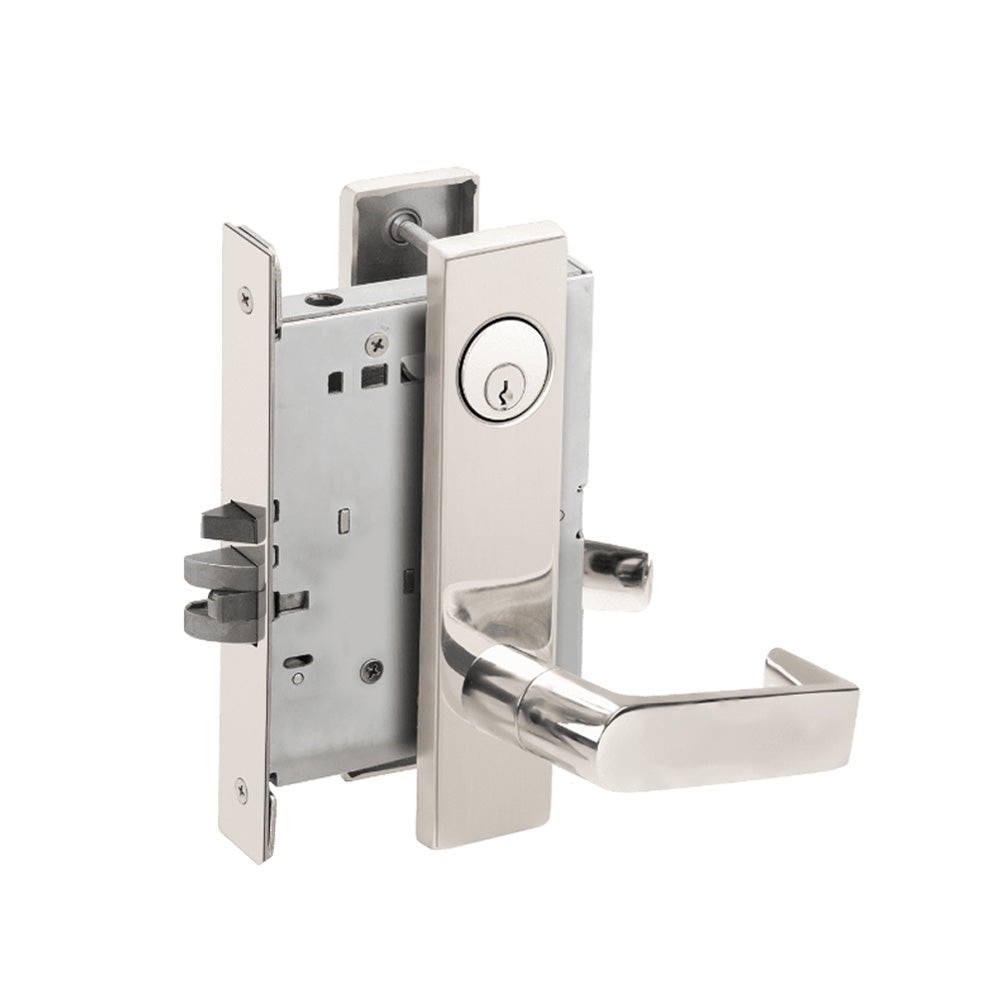

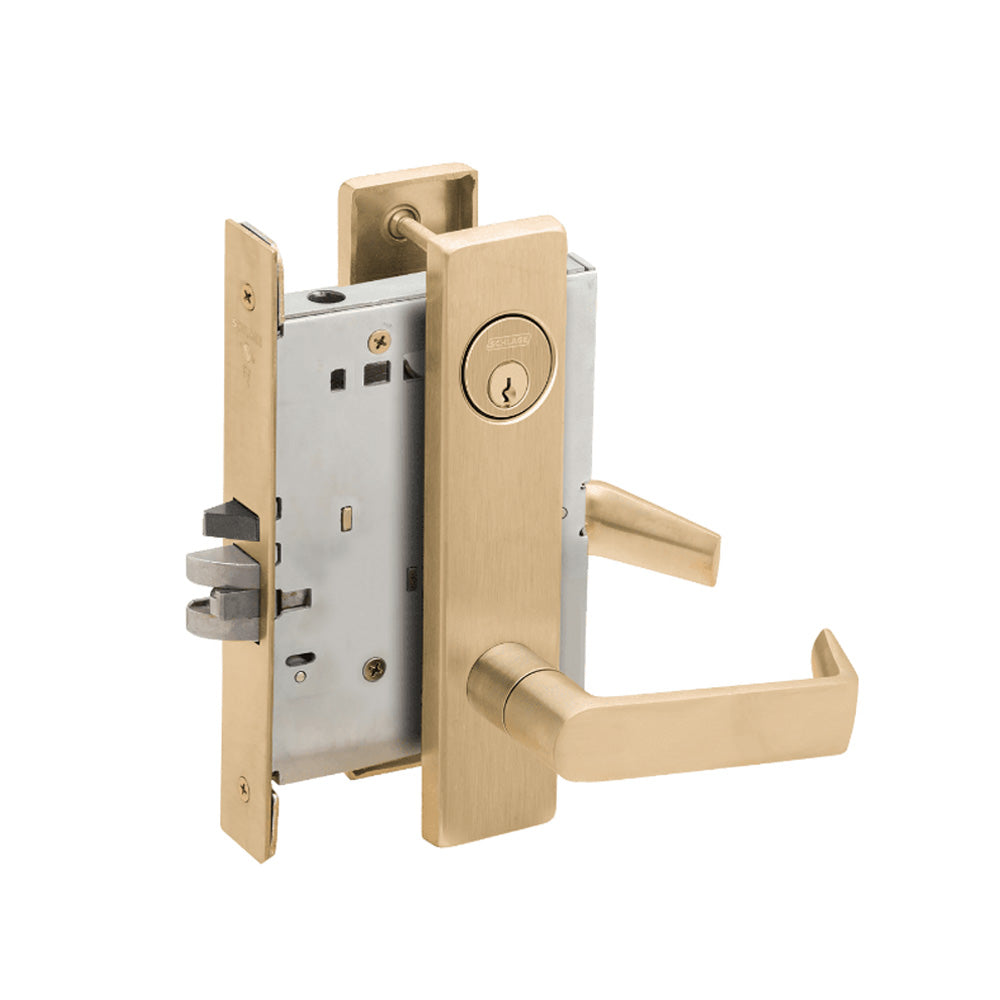

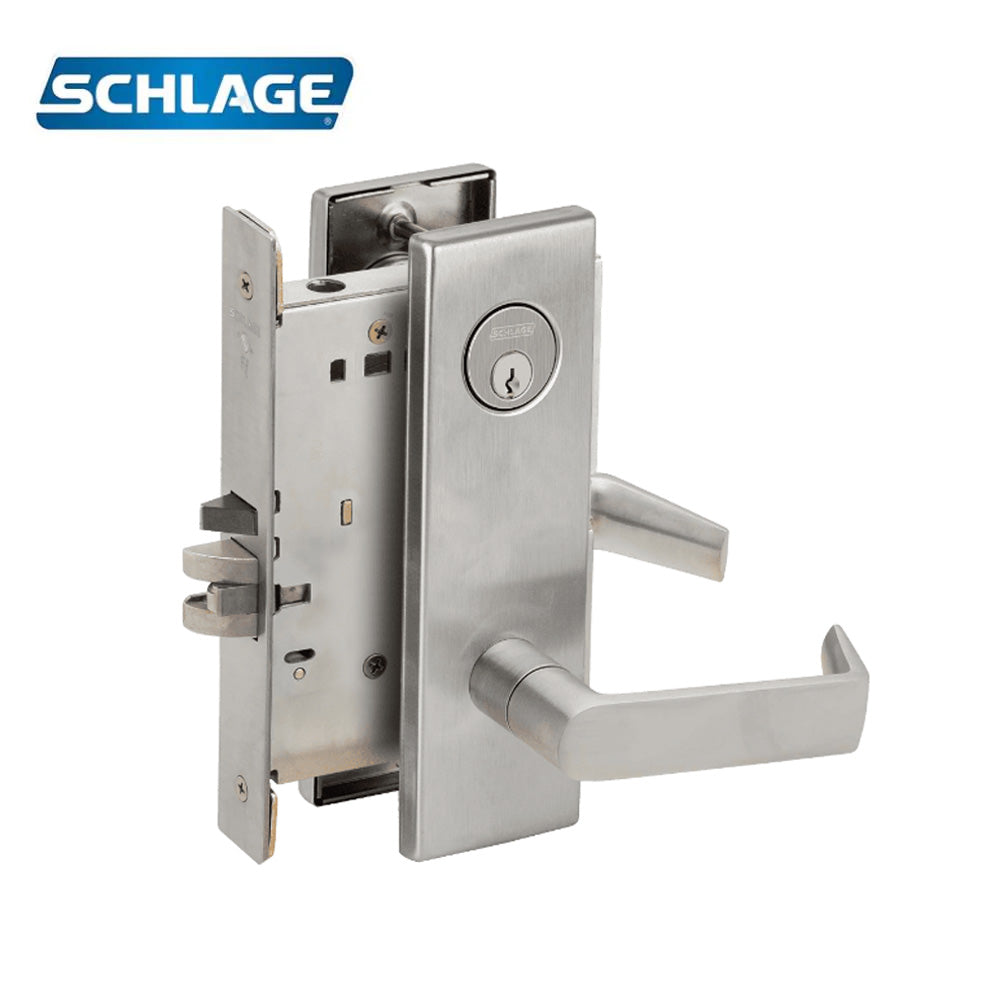

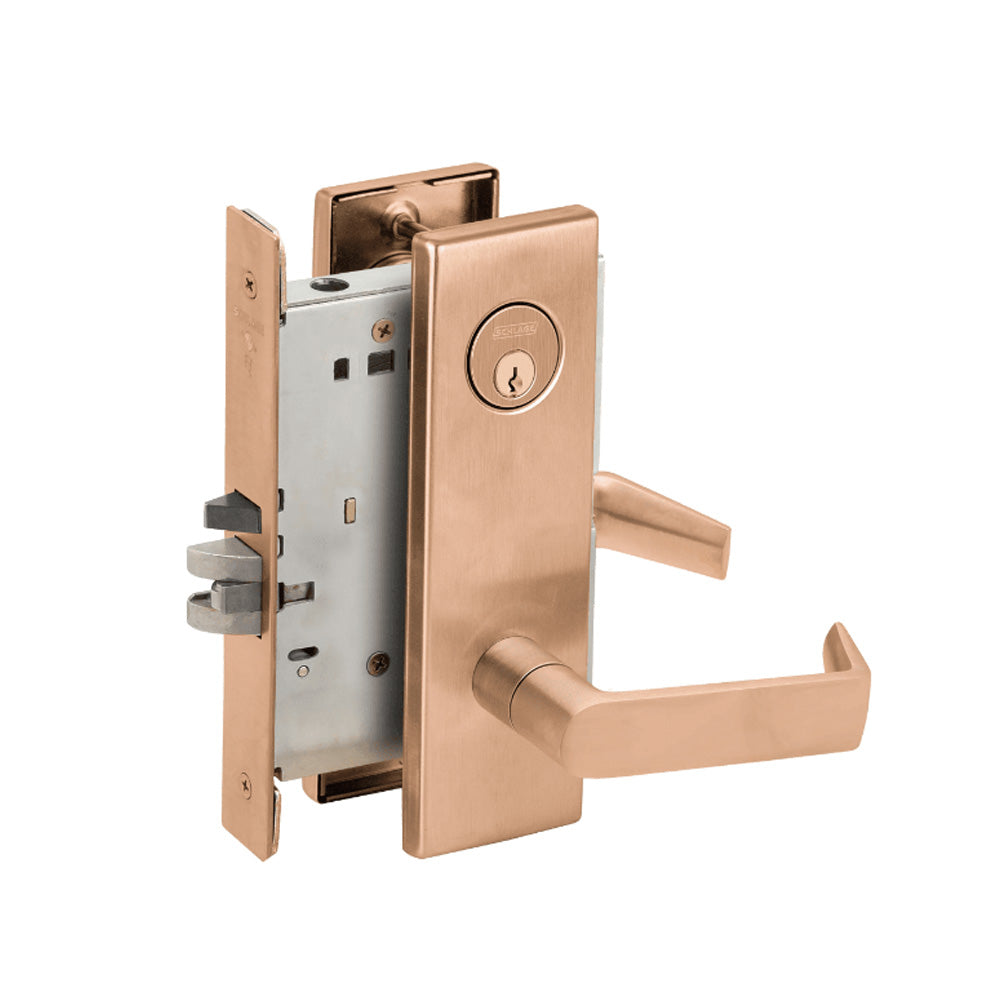

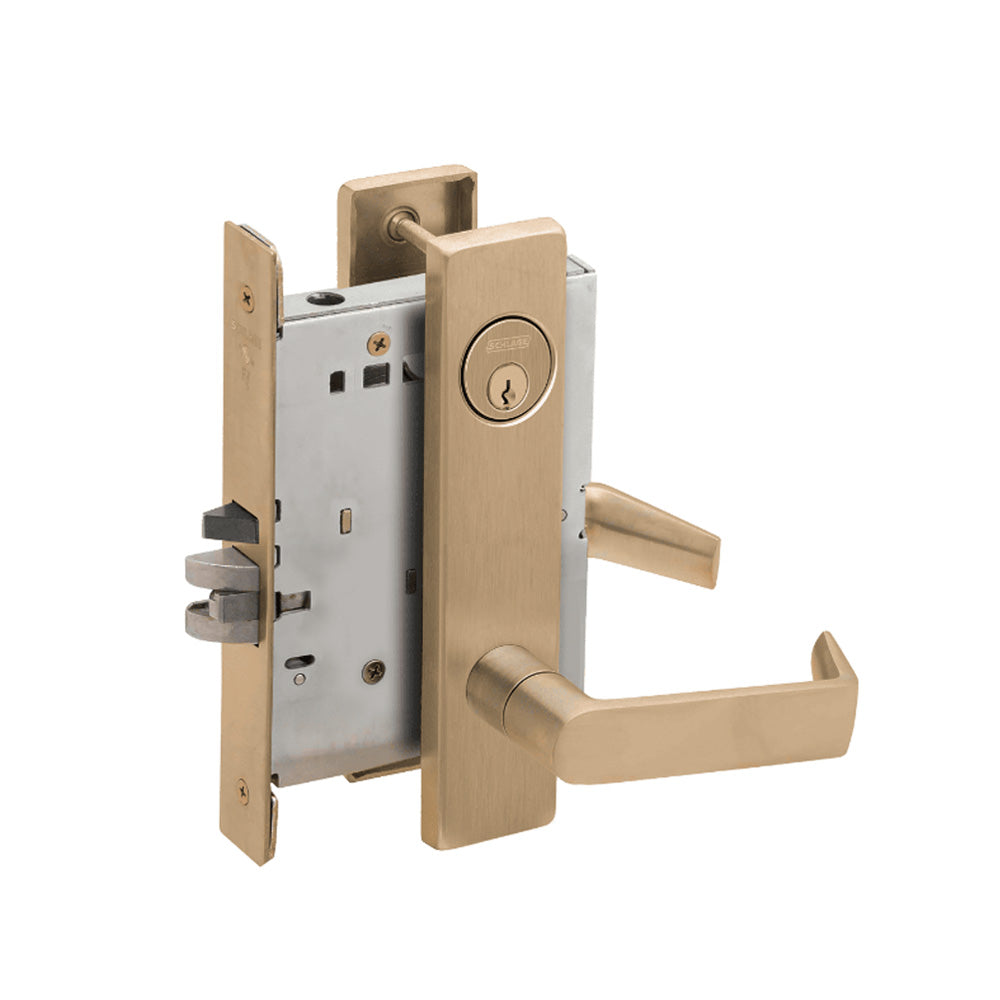

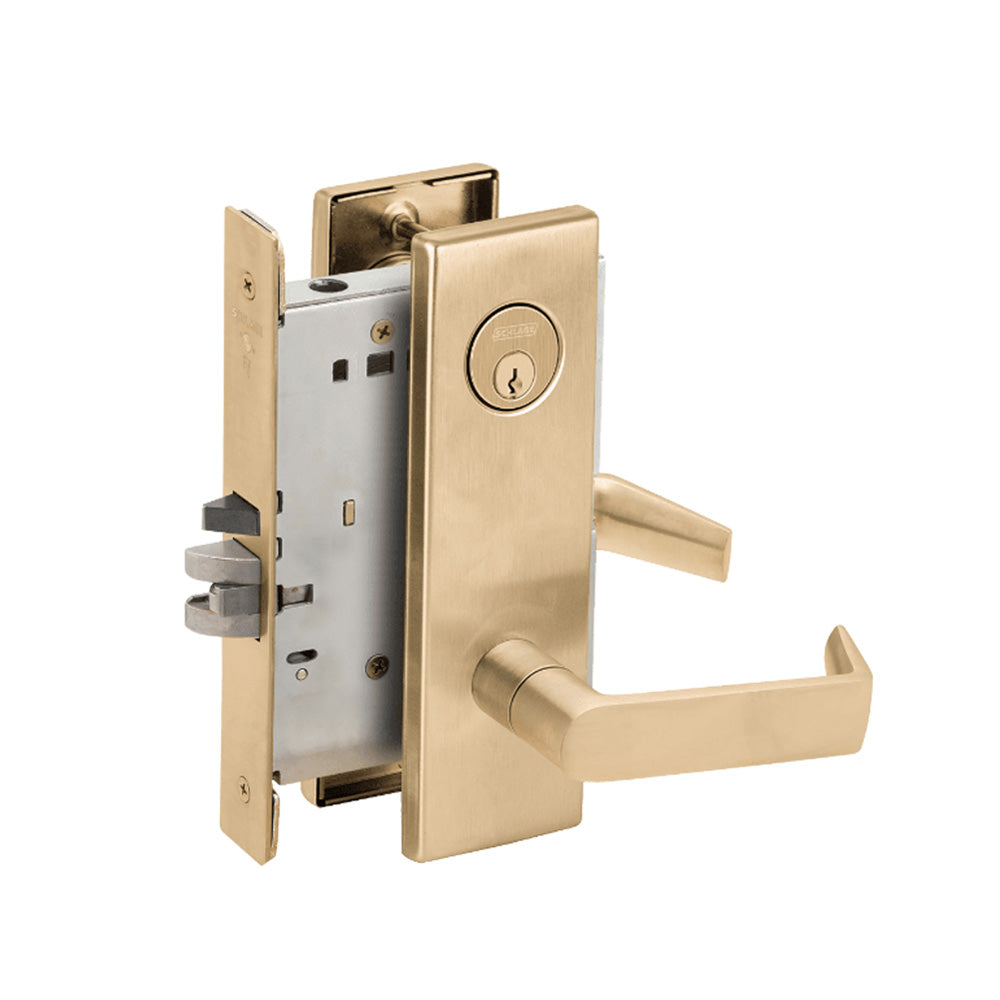

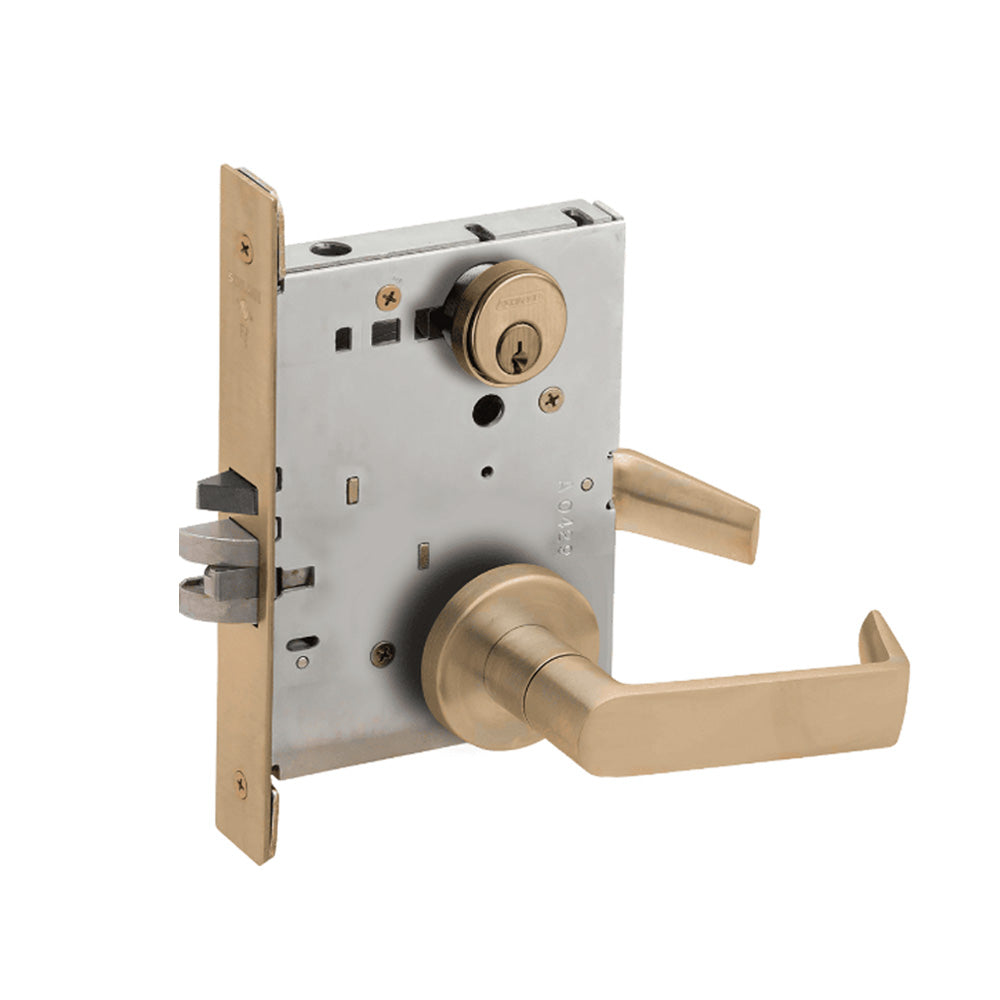

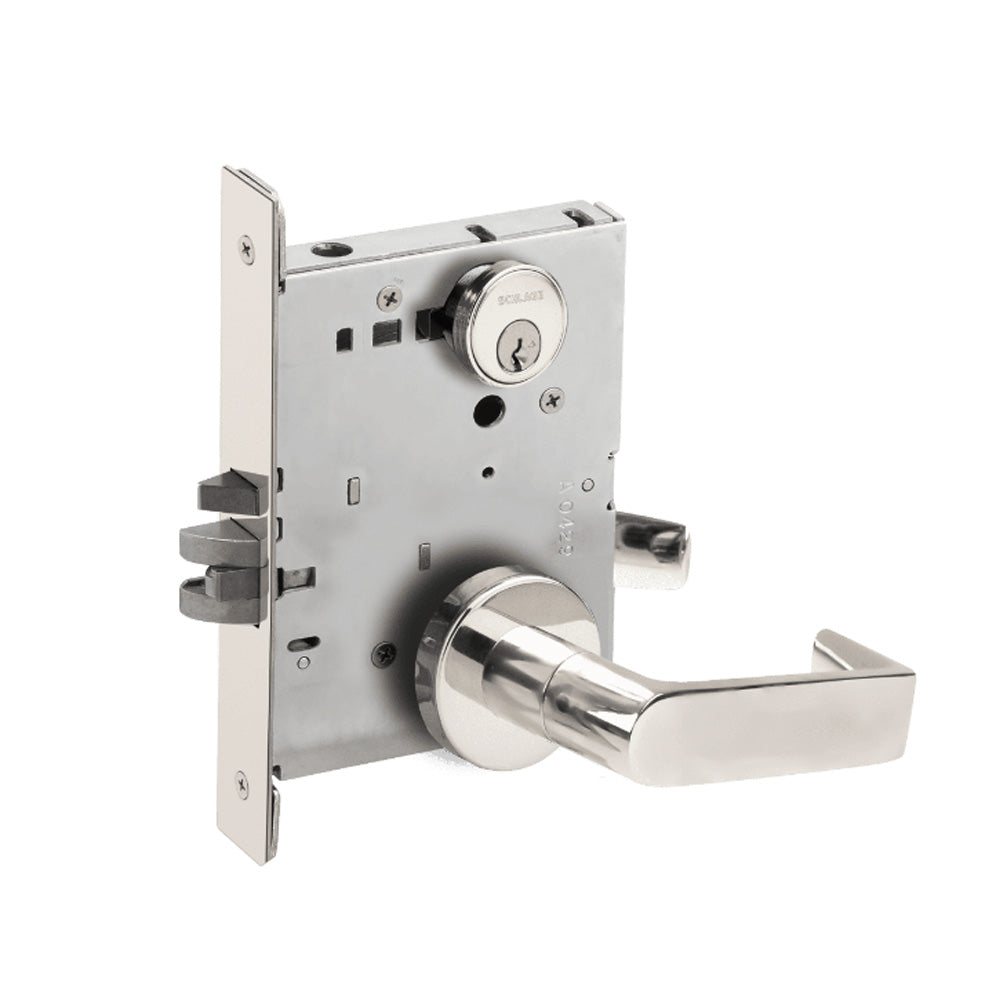

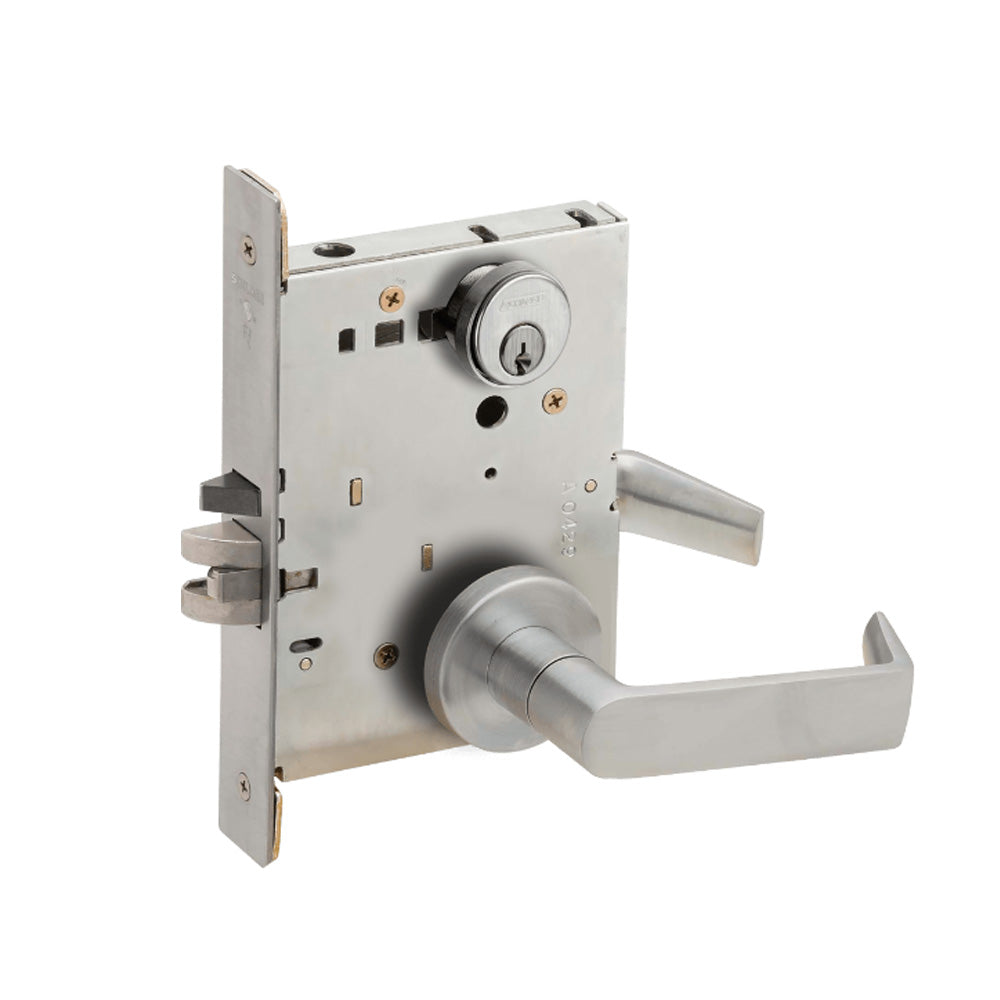

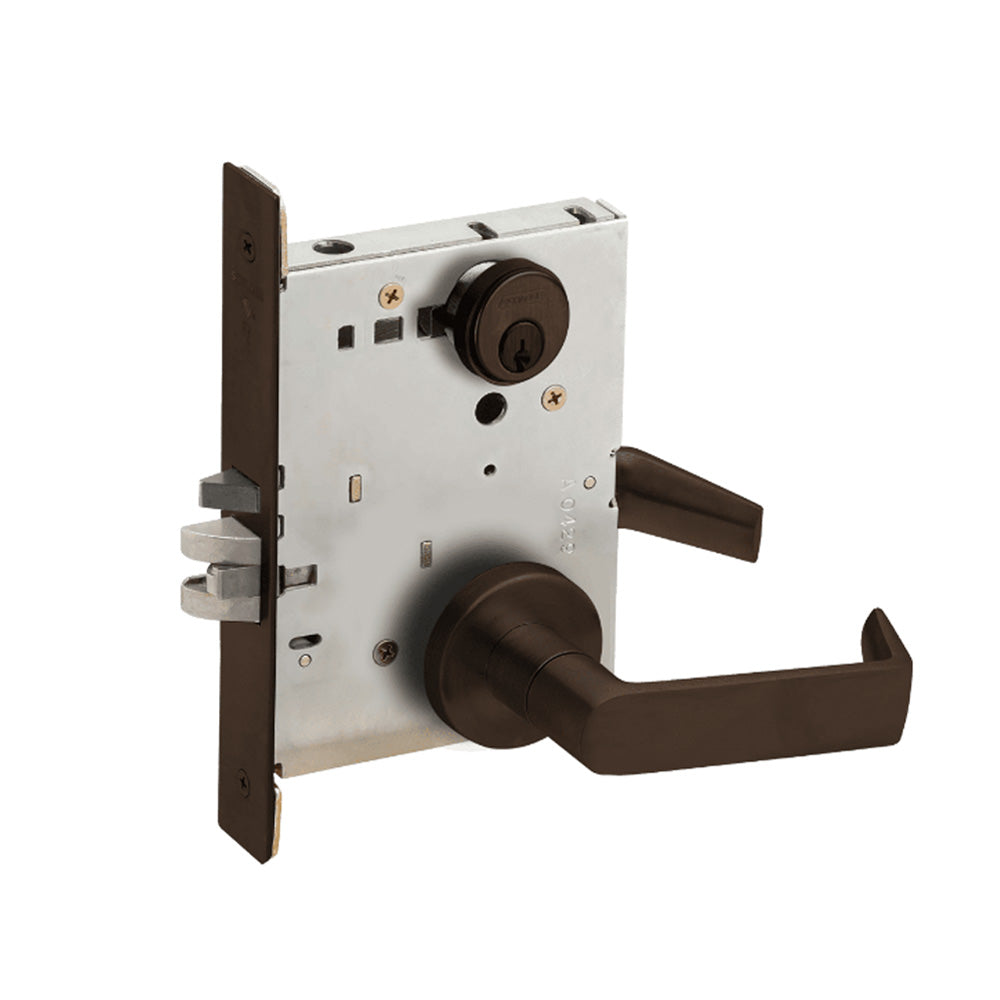

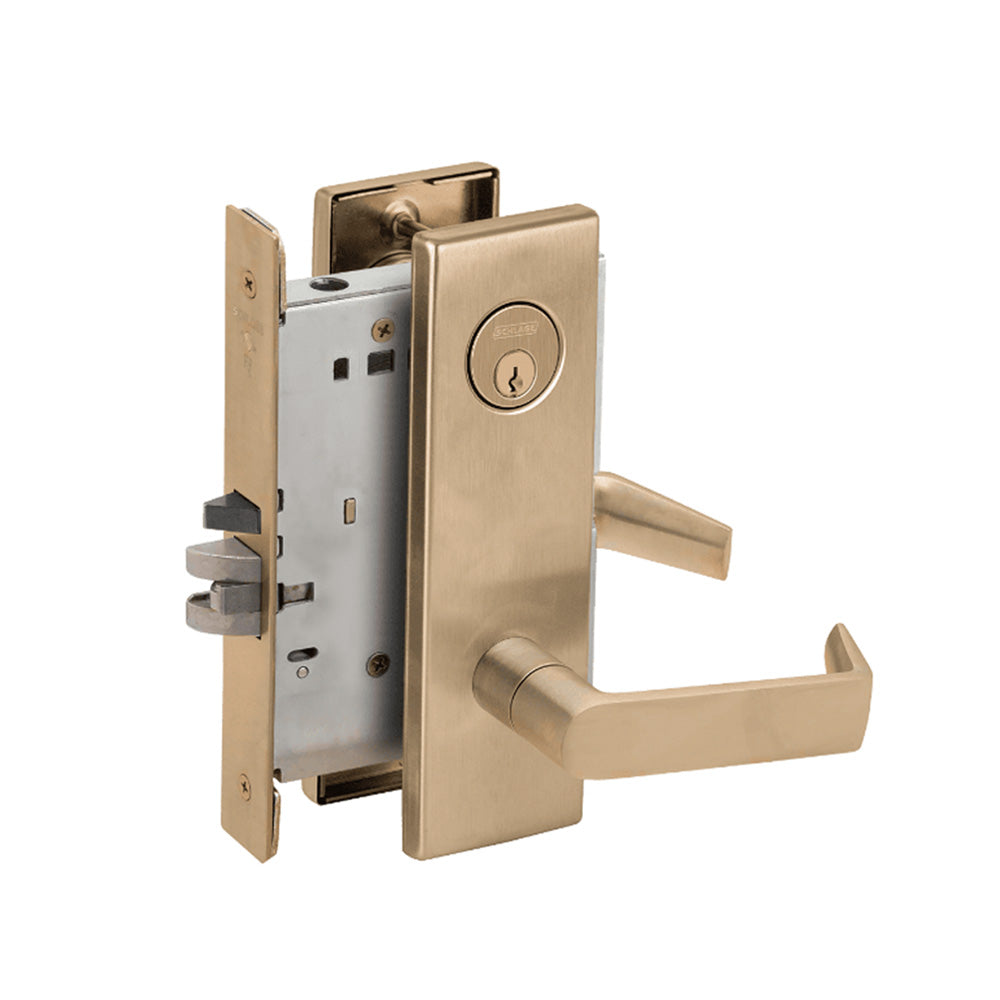

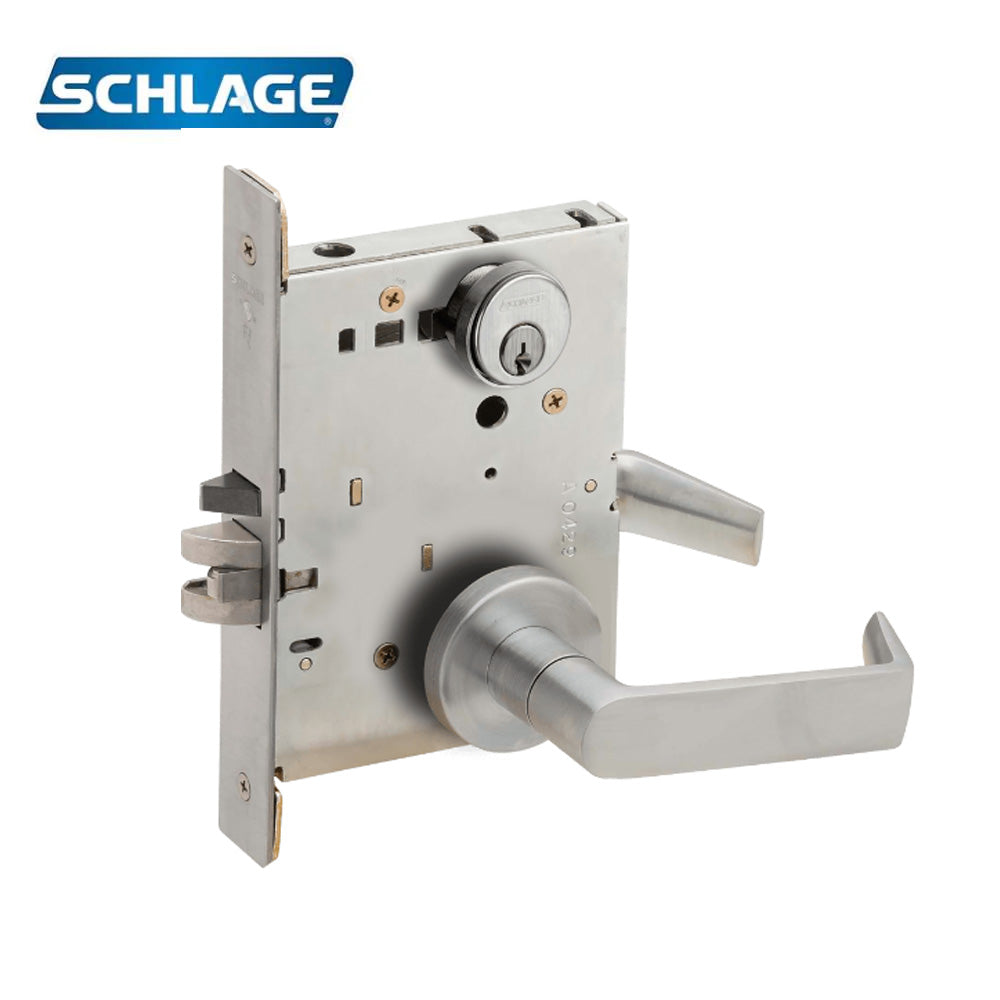

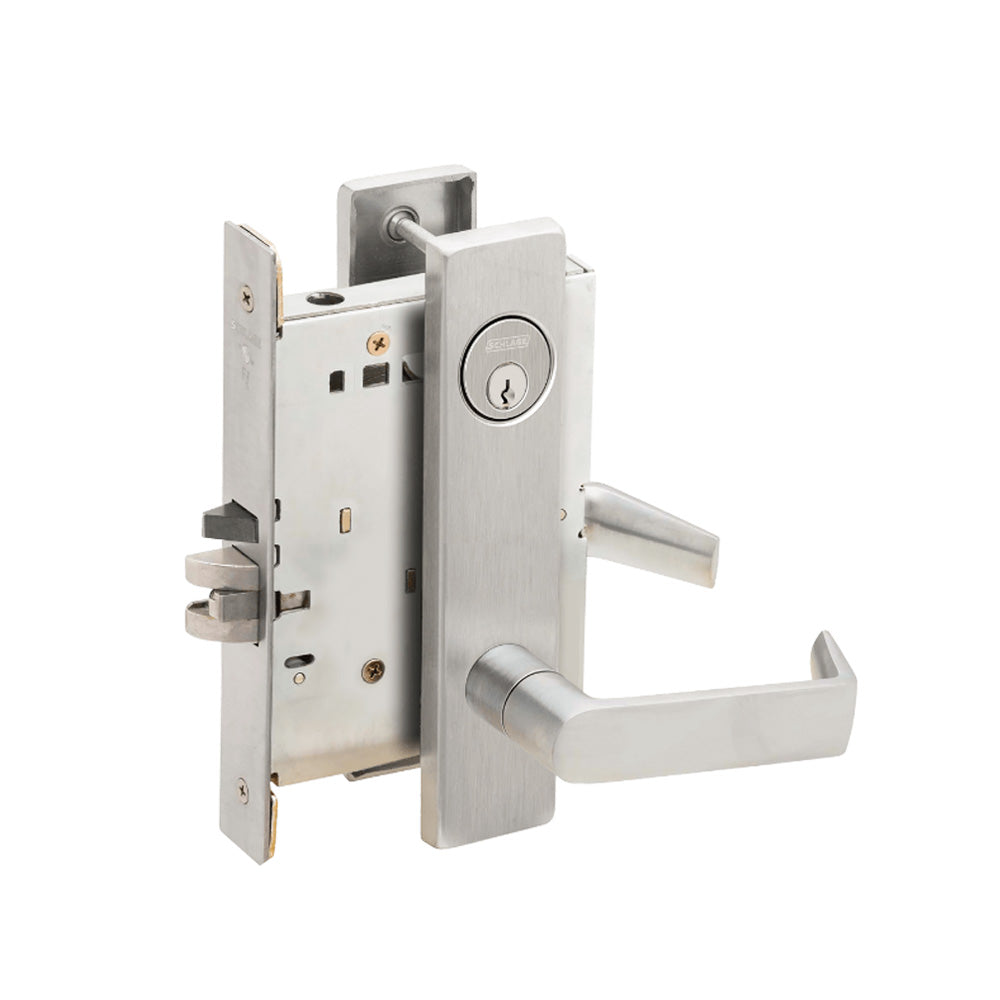

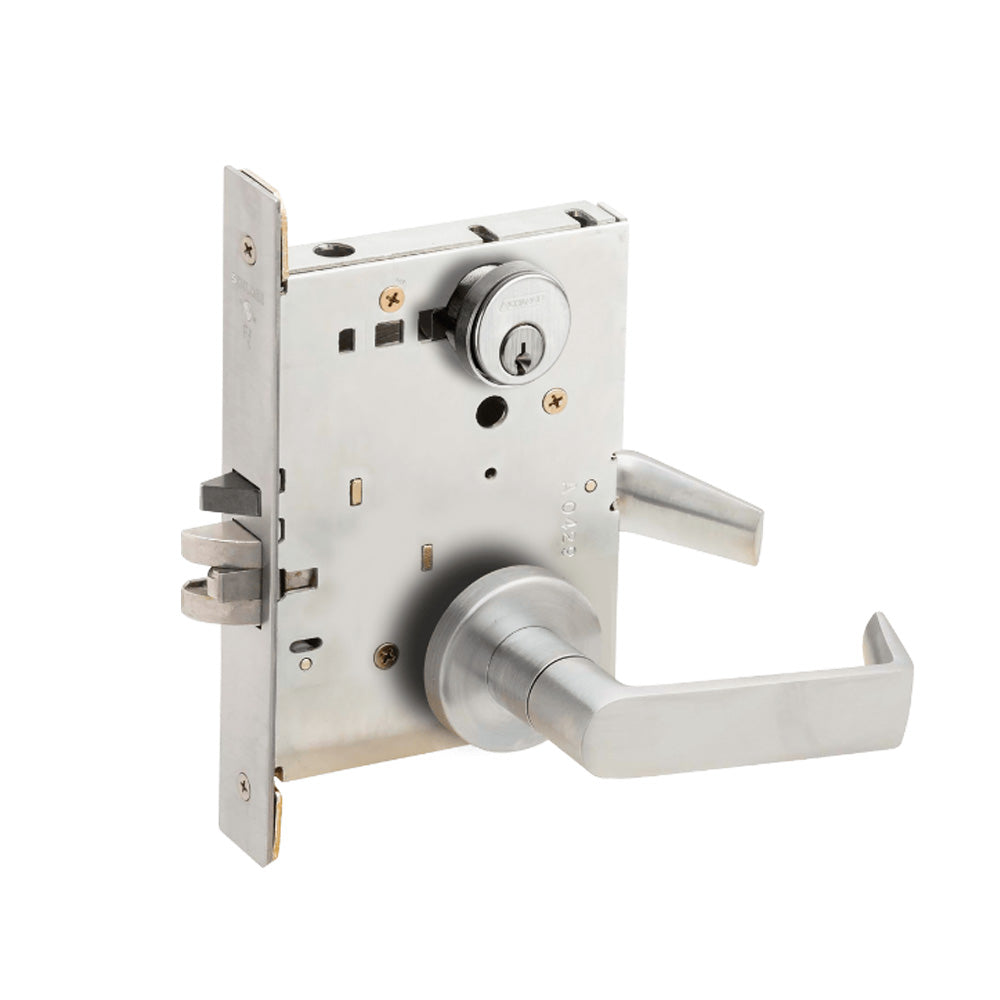

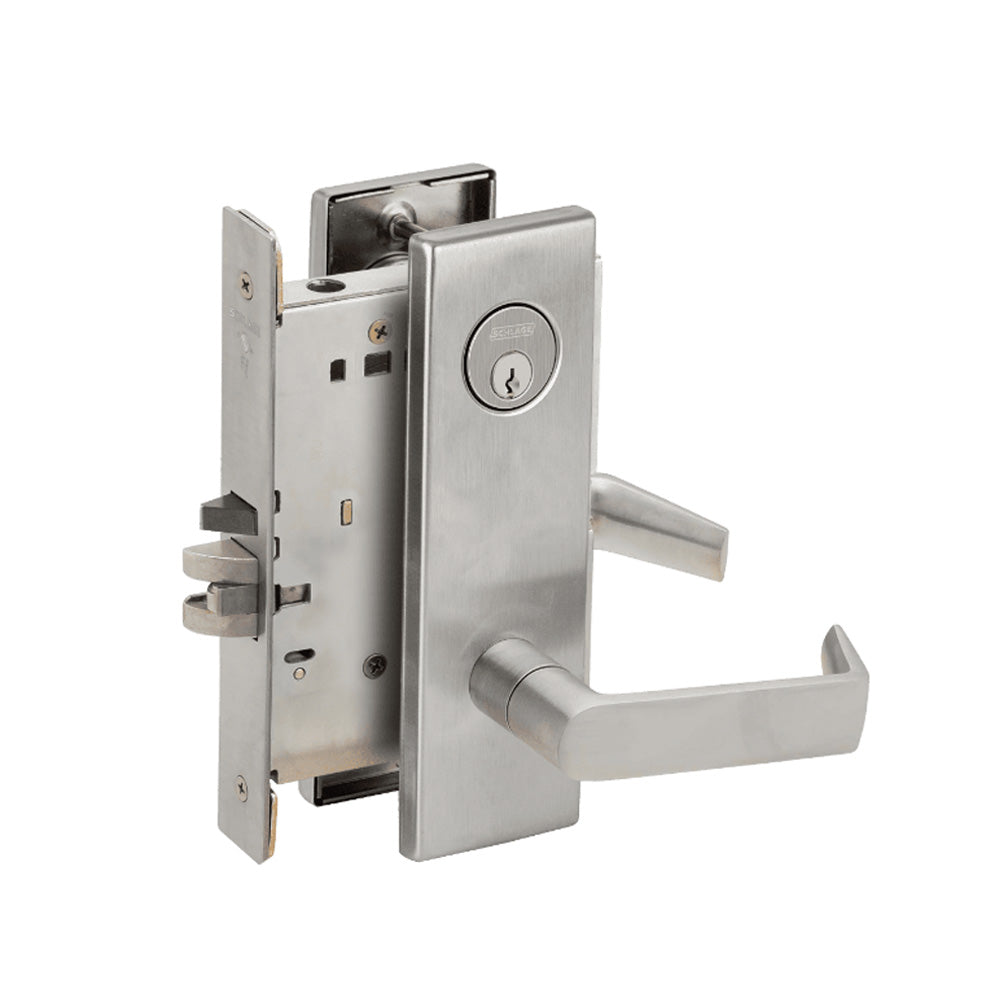

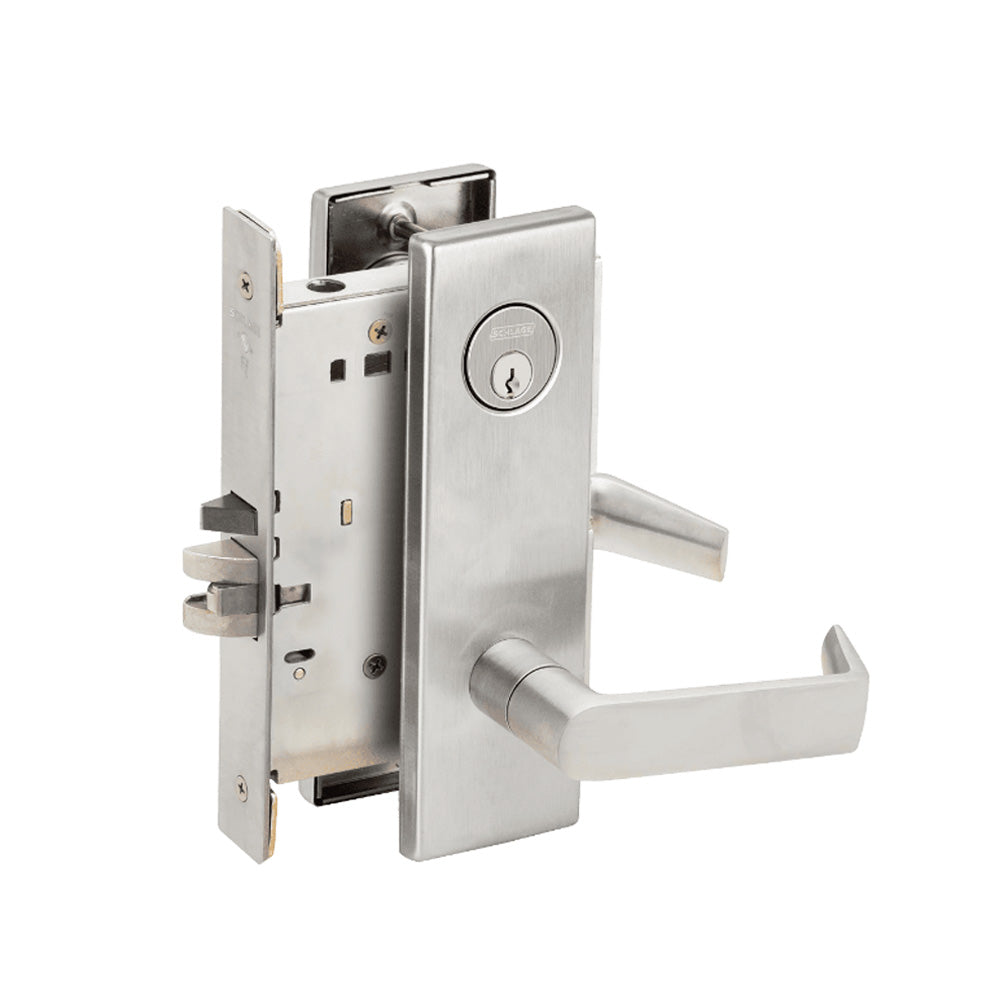

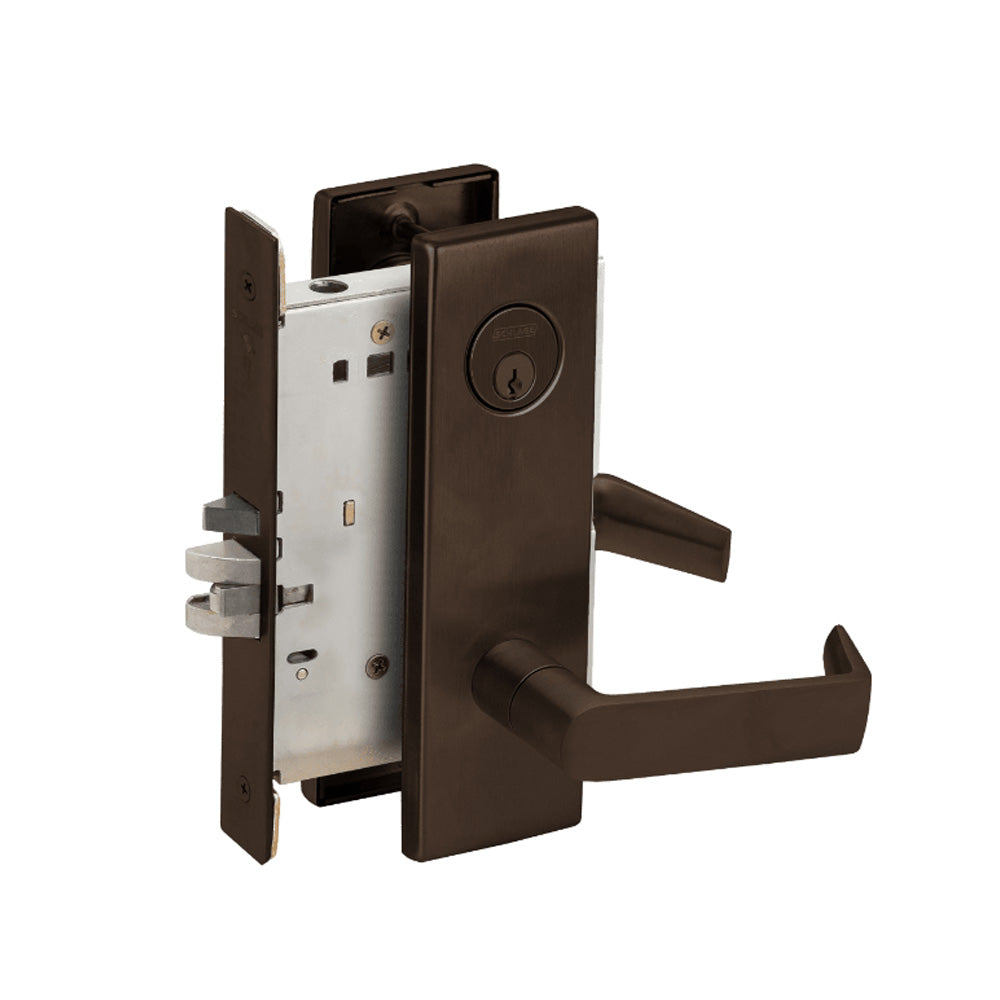

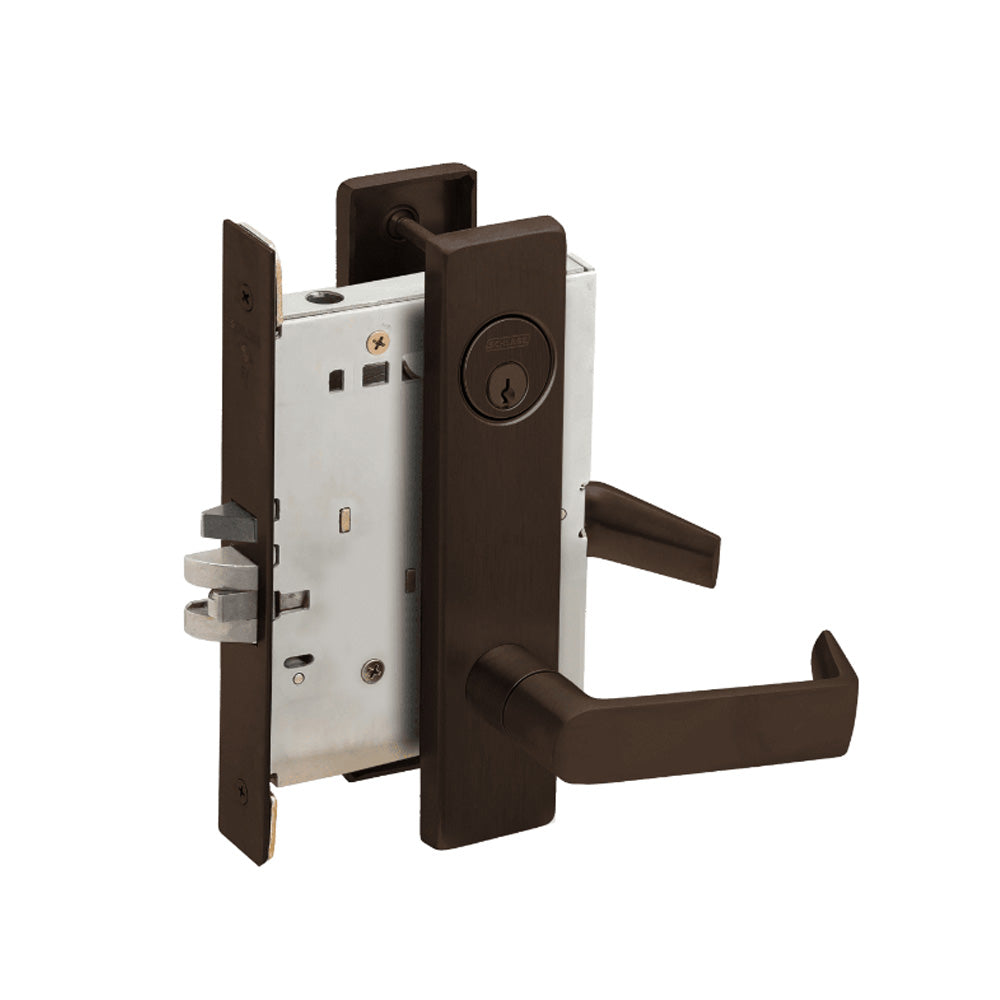

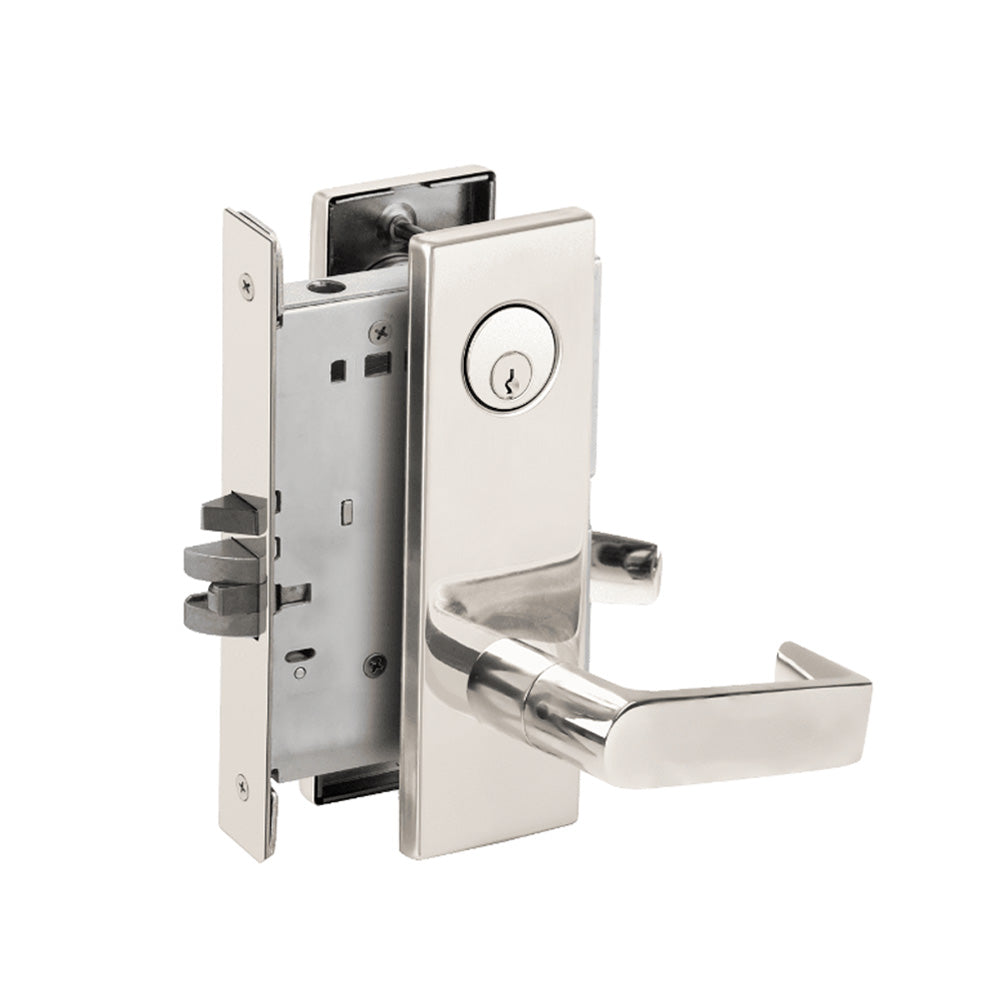

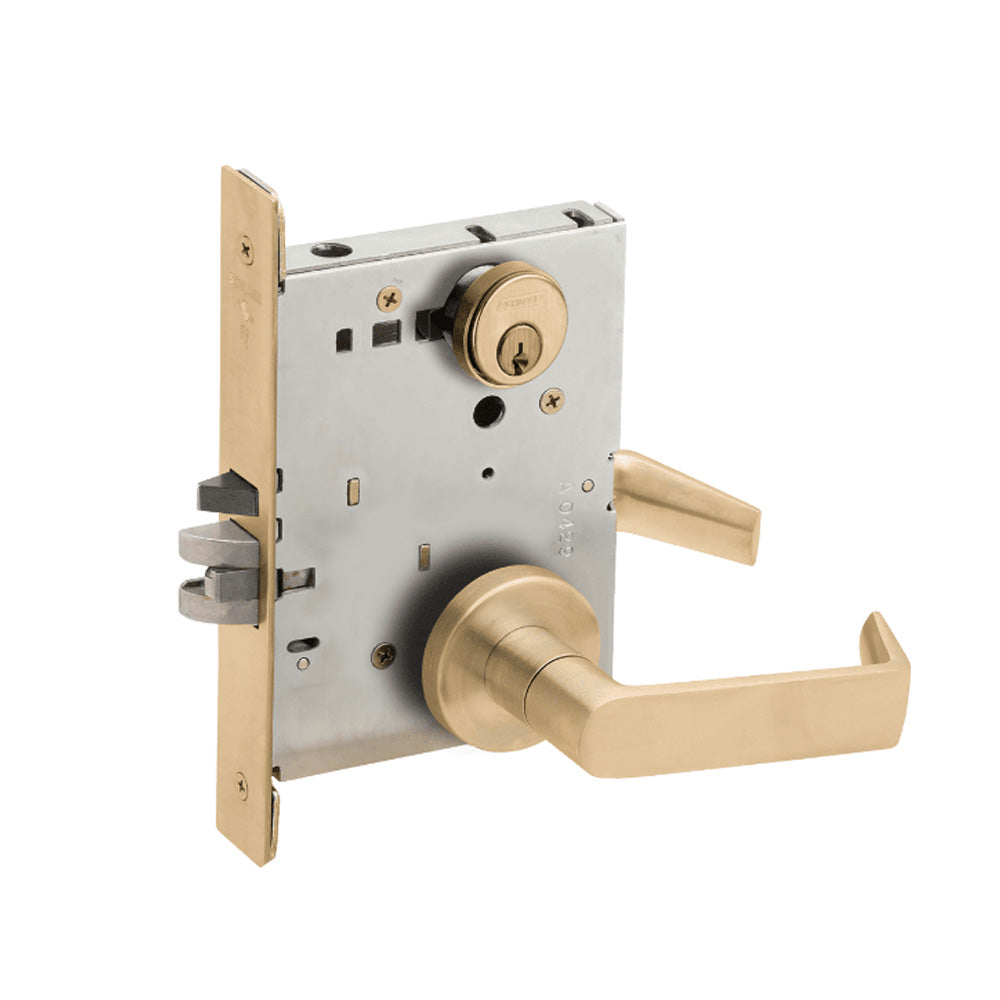

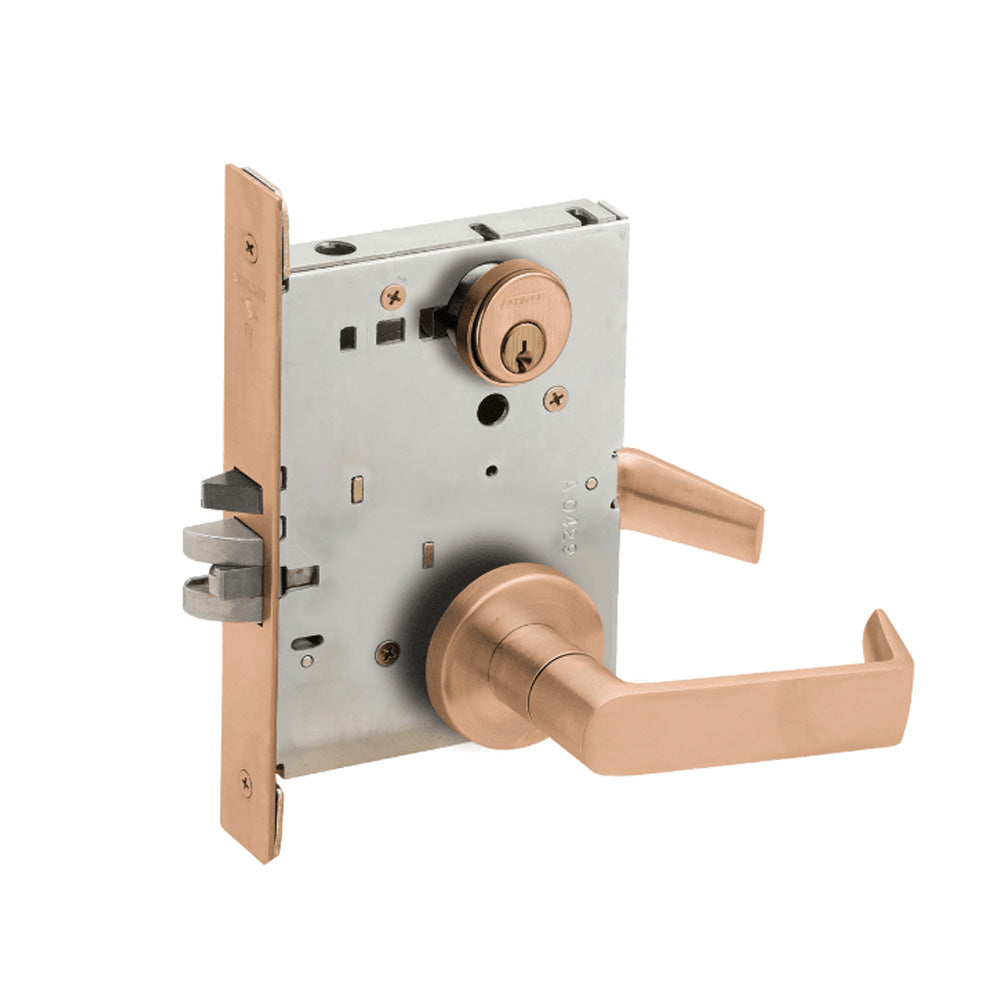

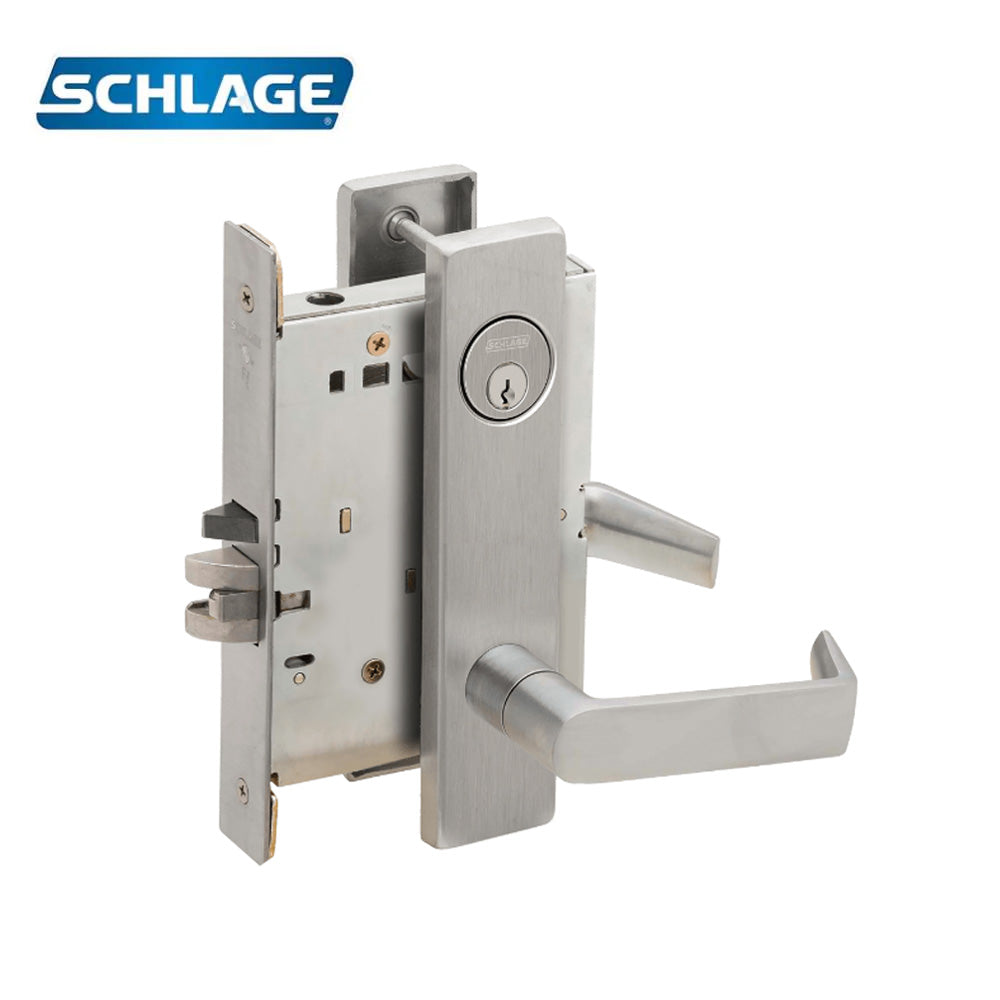

Schlage - L9080 - Storeroom Mortise Lock with Conventional Cylinder 6-pin and 06 Lever - Grade 1

Schlage - L9080 - Storeroom Mortise Lock with Conventional Cylinder 6-pin and 06 Lever - Grade 1

The Schlage L Series has long been the benchmark for mortise locks. The L Series is more than strength and security – it offers tremendous flexibility to allow it to meet the needs of most every application. Over 55 functions, 35 lever and knob designs, eight different roses and escutcheons, and a multitude of prep options are just the beginning.

180 degree visibility indicators, advanced motor-driven electrified functions, a universal lock case that supports 10 different functions, and the ability to suite across tubular, exit device, and multipoint locks allow the Schlage L Series to integrate seamlessly into any environment.

Factory Default Attributes:

• Style: Same lever, rose and finish for both sides of the door with coordinating latch and strike.
• Latch: ANSI/BHMA Certified A156.13-2012, Series 1000, Grade 1 Operational.
• Case Size: 4-7/16" x 6-1/16" x 1";
• Armor Front: 1-1/4" x 8";
• Strike: 1-1/4" x 4-7/8" Square corner, 1-3/16" lip, box;
• Backset: 2-3/4";
• Door Thickness: 1-3/4".

L9080 - Storeroom Non-Deadbolt Function Lock:

• Latchbolt retracted by lever/knob inside or key outside;
• Outside lever/knob is always inoperable;
• Auxiliary latch deadlocks latchbolt when door is closed;
• Inside lever always free for immediate egress;

Features and Benefits:

Security

• Exceeds ANSI/BHMA Grade 1 Security and Operational standards.
• Deadbolt functions include anti-saw pin in bolt to prevent cut-through.
• Security blocking hub prevents lock picking by removing levers.

Function availability and compatibility

• 55+ standard functions (custom functions are also available).
• Universal lock case allows 10 functions to be created from a single lock body.
• Electrified locks auto detect 12V/24V DC, have customer-selectable EL/EU, and offer advanced features like: RX, DPS, latchbolt monitor and deadbolt monitor for application flexibility while offering leading energy efficiency.

Options

• Exclusive 180° visibility indicator.
• Vandlgard® free-wheeling outside trim option is available on most functions, including electrified.
• Expansive options portfolio, including different door thickness, finish/trim combinations, tactile warning, anti-microbial coatings, etc.
• New Gold Standard ligature resistant trim for behavioral health applications.

Certifications

• Meets BAA (Buy American Act).
• L9000: tested and certified under ANSI/BHMA A156.13, Grade 1 Security and Operational.
• UL listed for 3-hour fire door (except L9076 and L9077).
• With interchangeable core cylinders: Grade 2 security.
• With concealed shell cylinder: A156.13 Grade 1 operational and security.
• ANSI/ASTM F476-76 Grade 40, UL listed.
• L400: tested and certified under ANSI/BHMA A156.36 Grade 1.
• California Referenced Standards Code: all levers with a return to door of 1/2" (64 mm) or less comply.
• UL/cUL listed for A label single doors, 4' x 10' and pairs 8' x 10'; letter F and UL symbol on latch front indicate listing.
• Electrified functions are UL19X listed for single-point locking applications.
• UL437 listed locking cylinder optional: specify Primus 20-500 Series cylinder.
• Miami-Dade NOA's and Florida Building Commission Listings.
• Meet ADA requirements.

Product Specifications:
