Schlage - L9080P - Storeroom Mortise Lock with 2-3/4 Backset and 4-...
Description
Description

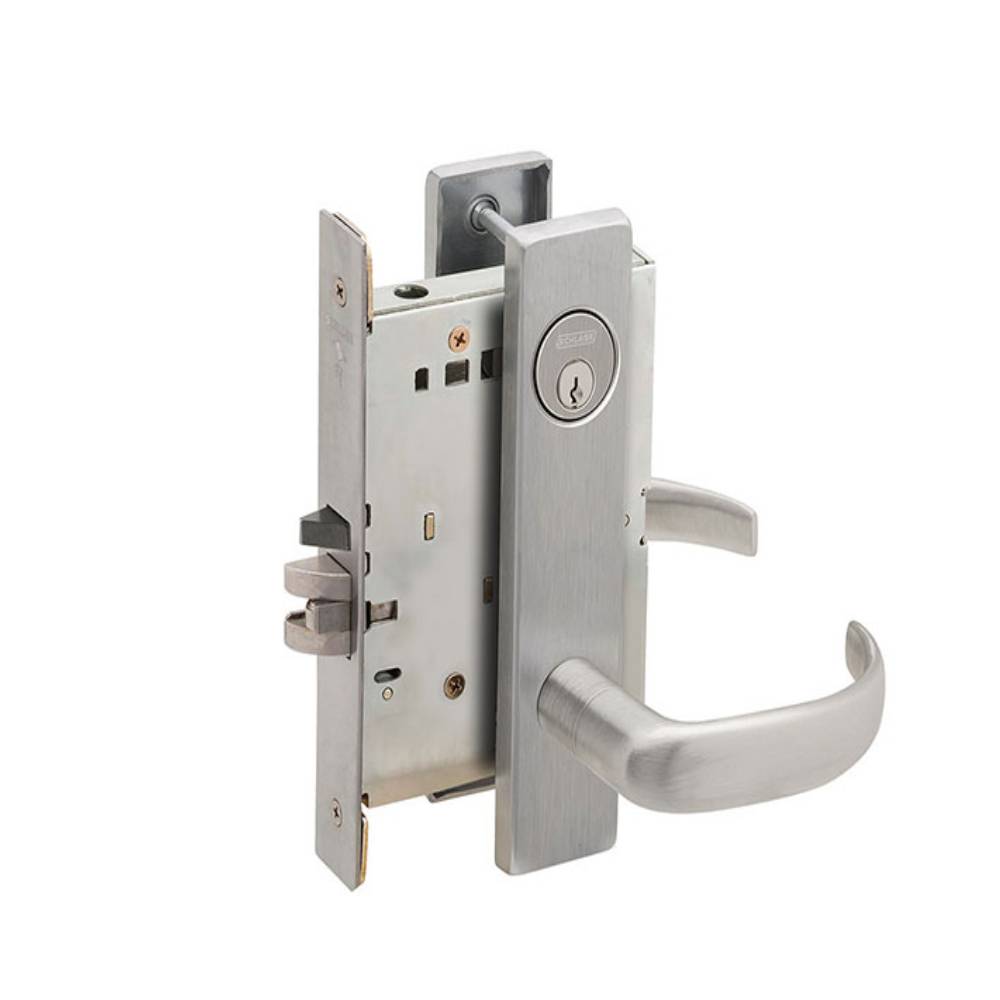

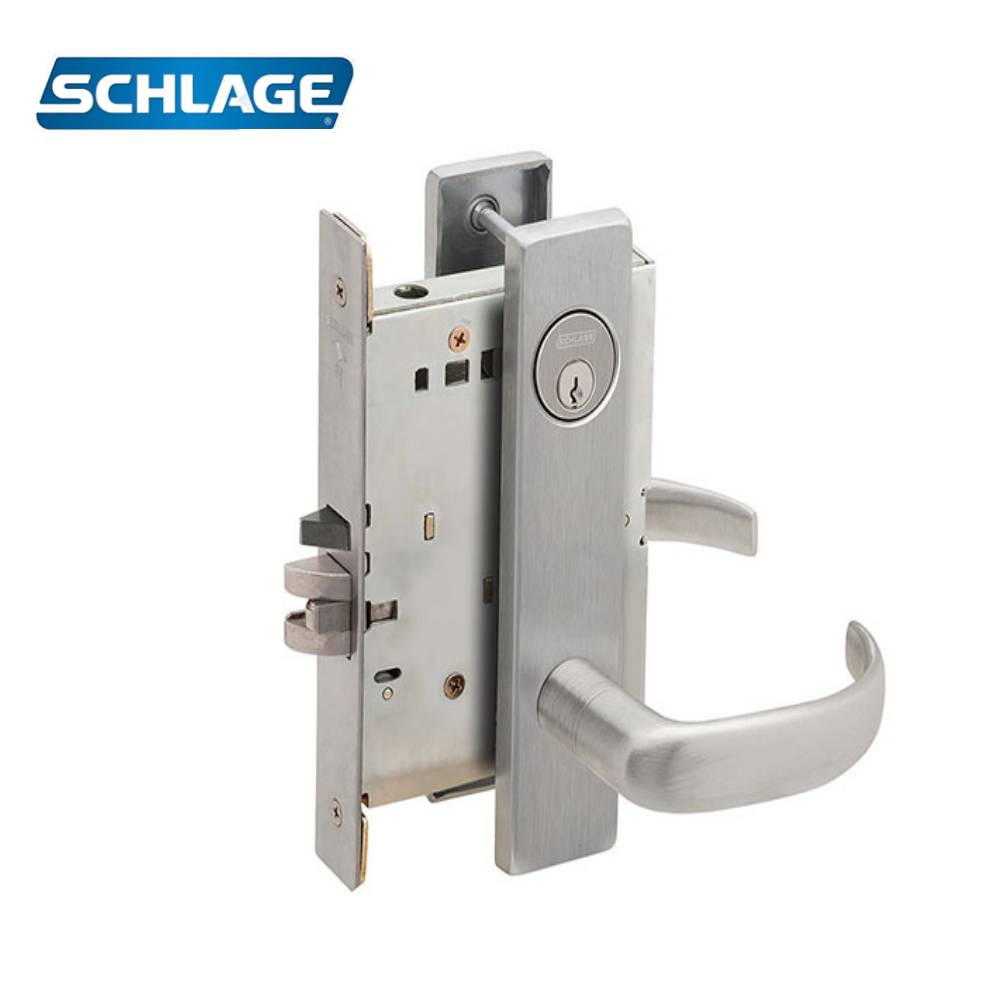

Schlage - L9080P - Storeroom Mortise Lock with 2-3/4" Backset and 4-7/8" ANSI Strike - 17 Lever - L Escutcheon - Grade 1 - 626 (Satin Chrome Finish)
The Schlage L Series has long been the benchmark for mortise locks. Beyond strength and security – it offers tremendous flexibility to allow it to meet the needs of almost every application.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| SKU | L9080P 17L 626 |
| UID | SCH100L9080P17L626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| UL Listing Type | UL Listed |
| ANSI Number | A156.13-2017 Series 1000 |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | 9080-Storeroom |
| Function Family | Storeroom |
| ANSI Function | F07 - Storeroom/Exit |
| Lever/Knob Design | 17 Lever |
| Lever/Knob Design Family | Curved Return Lever |
| Rose/Escutcheon Design | L Escutcheon |
| Rose/Escutcheon Dimensions | 8" x 1-3/4" x 7/16" |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | S123 |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Cylinder Length | 1-1/8" |
| Cam Type | Schlage L |
| Cam Number | L583-254 |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Dead Latch (Guarded) |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch |
| Std. Strike Number | 10-072 1316 626 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-3/16" |
| Dust Box | Plastic |
| Screws | Combination |
| Product Type | Mortise Lock |
