Schlage L9456P-07A Corridor with Deadbolt Commercial Mortise Lock - L Series with 07 Cast Lever Design -Bright Chrome
The Schlage L9456P-07A-625 commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9456P series meets ANSI/BHMA A156.13 series 1000 Grade 1.
Corridor lock with deadbolt - Latchbolt retracted by lever from either side. Deadbolt thrown or retracted by key outside or inside thumbturn. Throwing deadbolt locks outside lever. Turning inside lever simultaneously retracts deadbolt and latchbolt and unlocks outside lever. Inside lever is always free for immediate egress.
Features:
- Bright Chrome finish

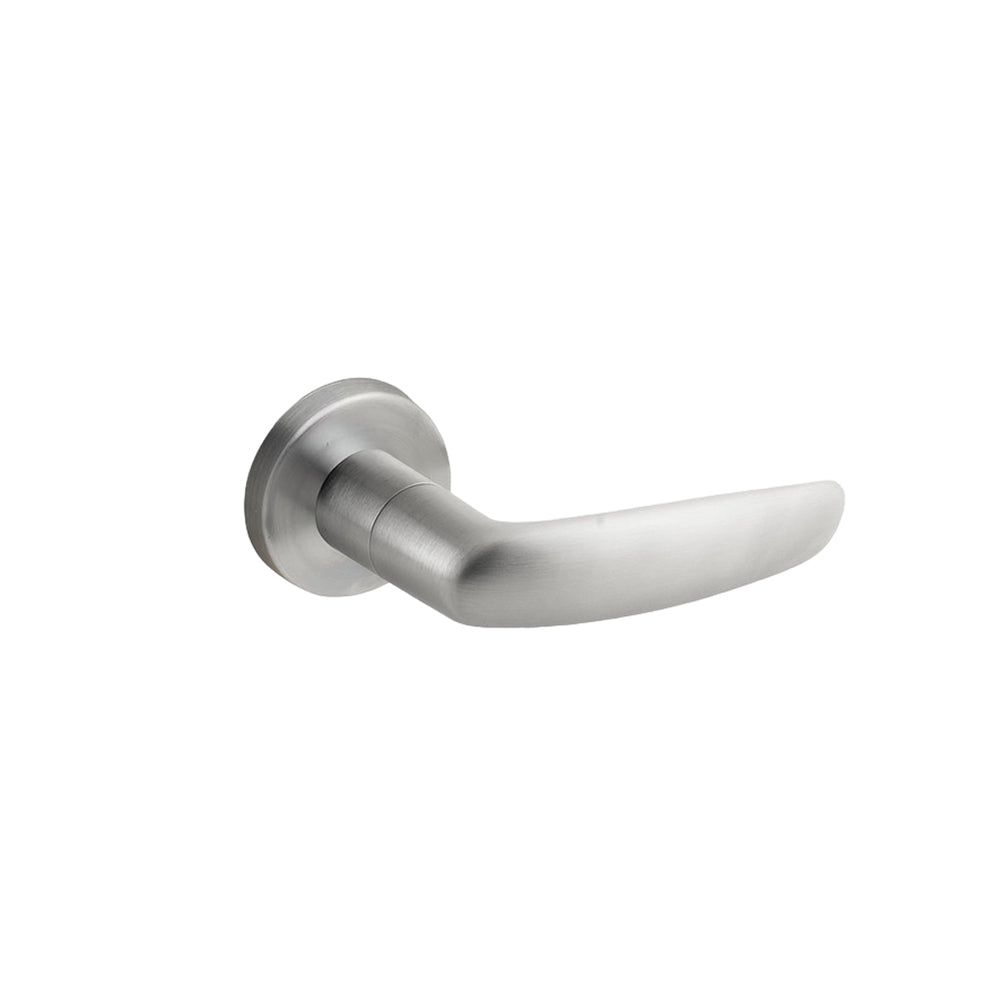

- 07 Cast lever style
- A wrought rose, 2-1/8" (54 mm) diameter
- Single keyed function with deadbolt
- Handing: Field-reversible
- Door range: 1-3/4"
- Backset: 2-3/4"
- Keys: Two nickel silver cut keys per lock
- Cylinder: 6-pin full-face mortise cylinder with Schlage logo
- Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
- Case size: 4-7/16" x 6-1/16" x 1"
- Armor front: 1-1/4" x 8"
- Floating mounting tabs automatically adjust to fit a beveled door edge.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| SKU | 09-456 07A 625 |
| UID | SCH1000945607A625 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| Limited Warranty | 3 Years |
Technical Specification:
| Technical Specs | |
| Function | Trim Pack, L/LV9050, L/LV9056, L/LV9456, L9473, L/LV9480, L/LV9485 |
| Lever/Knob Design | 07 Lever |
| Lever/Knob Design Family | Curved Lever |
| Rose/Escutcheon Design | A Rose |
| Rose/Escutcheon Dimensions | 2-1/8" |
| For Use With | Schlage L Series Mortise Locks |
| Handing | Field Reversible |
| Door Thickness | 1-3/4" |
| Lock Face Size | 1-1/4" |
| Dust Box | K510-066 |
| Screws | C203-736 |
| Product Type | Trim Kits Packs |
