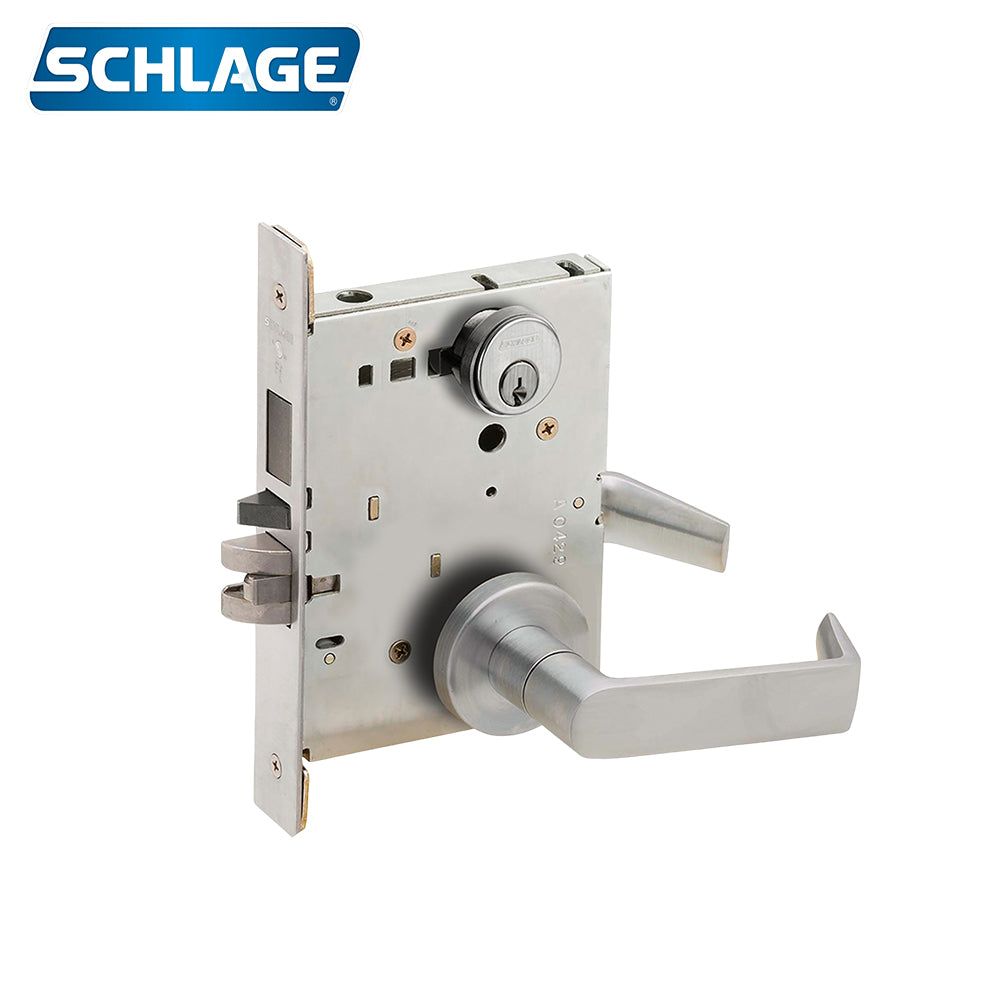

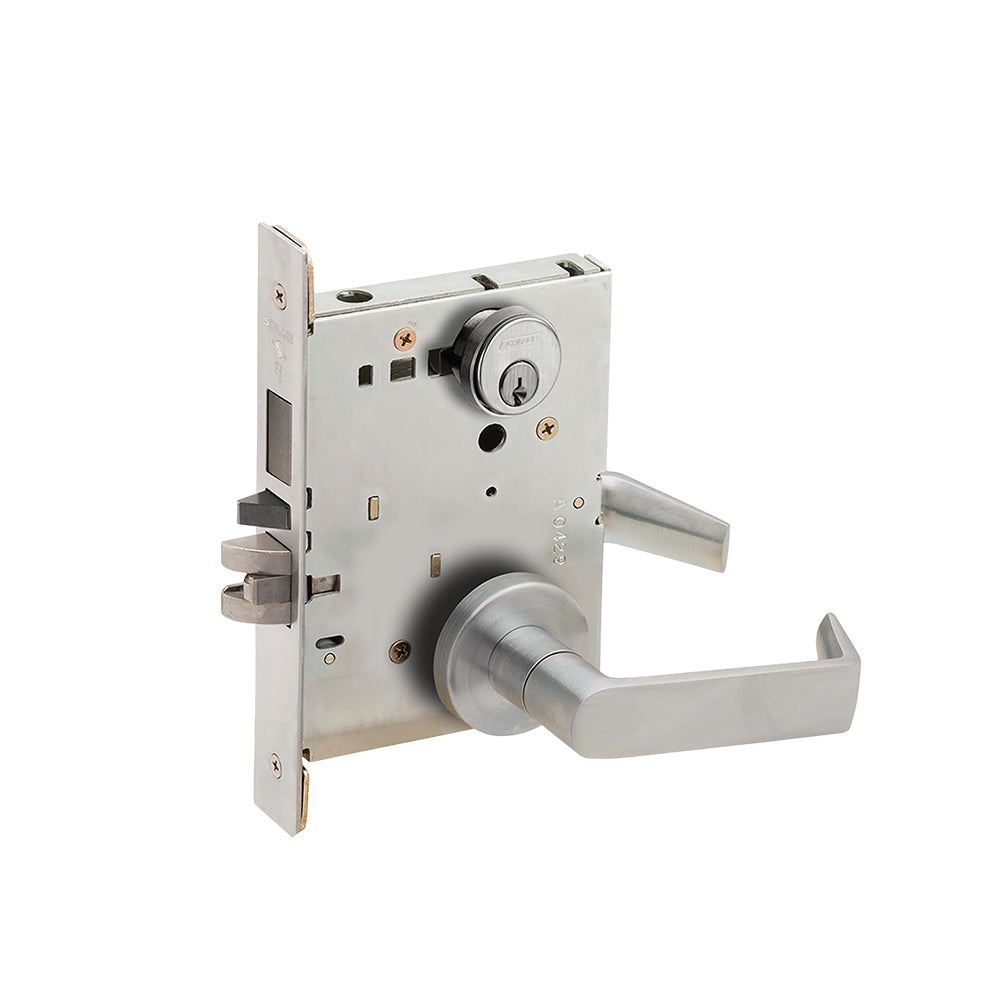

Schlage L9480P-06A Storeroom with Deadbolt Commercial Mortise Lock - L Series with 06 Cast Lever Design - Satin Chrome
The Schlage L9480P-06A-626 commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9480P series meets ANSI/BHMA A156.13 series 1000 Grade 1. Storeroom lock with deadbolt - Latchbolt retracted by key outside or by lever inside. Outside lever always fixed. Deadbolt thrown or retracted by key outside or thumbturn inside. Turning inside lever simultaneously retracts both deadbolt and latchbolt. Auxiliary latch deadlocks latchbolt when door is closed. Inside lever is always free for immediate egress.
Features:
- Satin Chrome finish
- 06 Cast lever style
- A wrought rose, 2-1/8"" (54 mm) diameter
- Single keyed function with deadbolt
- Handing: Field-reversible
- Door range: 1-3/4""
- Backset: 2-3/4""
- Keys: Two nickel silver cut keys per lock
- Cylinder: 6-pin full-face mortise cylinder with Schlage logo
- Strike plate: 1/4"" x 4-7/8"" Square corner, 1-3/16"" lip, box
- Case size: 4-7/16"" x 6-1/16"" x 1""
- Armor front: 1-1/4"" x 8""
- Floating mounting tabs automatically adjust to fit a beveled door edge.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| SKU | L9480P 06A 626 |
| UID | SCH100L9480P06A626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
| BAA Qualified | Yes |
| Limited Warranty | 3 Years |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | 9480-Storeroom Lock w Deadbolt |
| Lever/Knob Design | 06 Lever |
| Rose/Escutcheon Design | A Rose |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | S123 |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Field Reversible |
| Door Thickness | 1-3/4"" |
| Lock Face Size | 8"" x 1-1/4"" |
| Bolt Projection | 3/4"" Latch, 1"" Deadbolt |
| Std. Strike Number | 10-072 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8"" |
| Std. Strike Width | 1-1/4"" |
| Dust Box | Plastic |
| Screws | Combination |
| Product Type | Mortise Lock |
