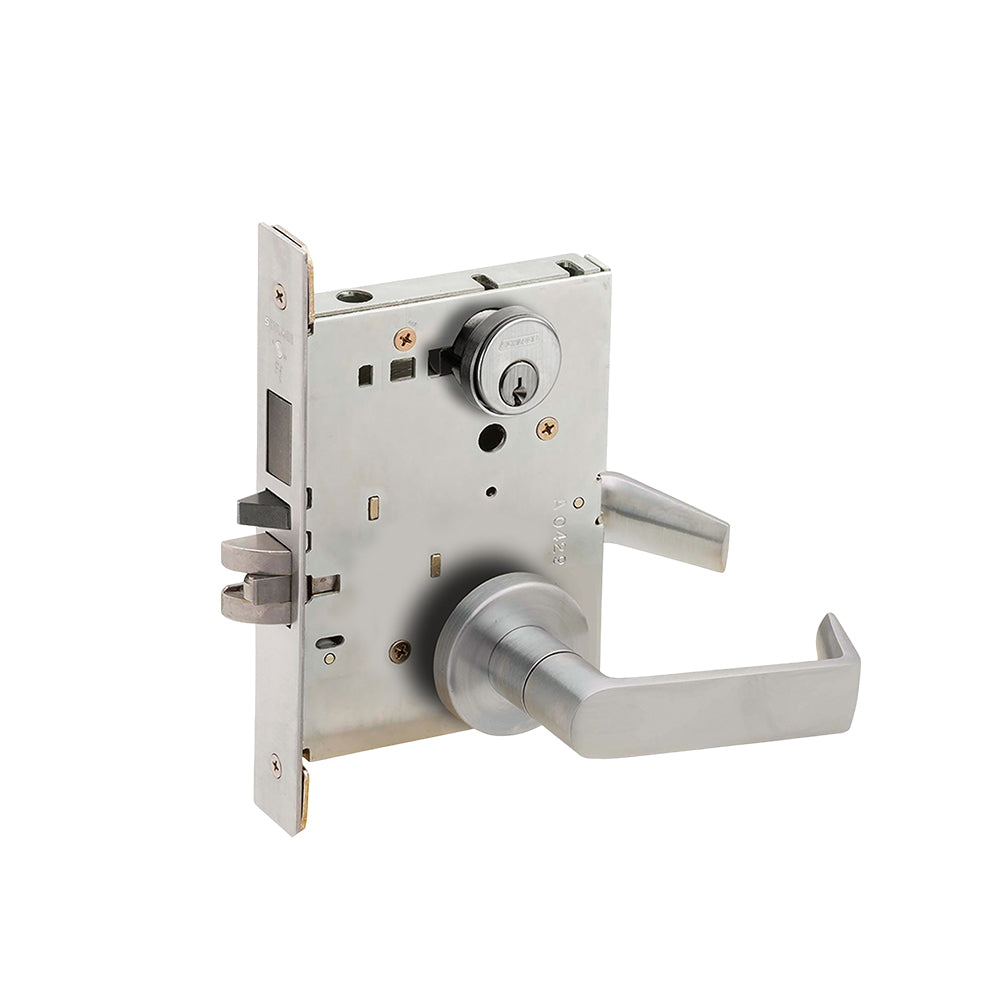

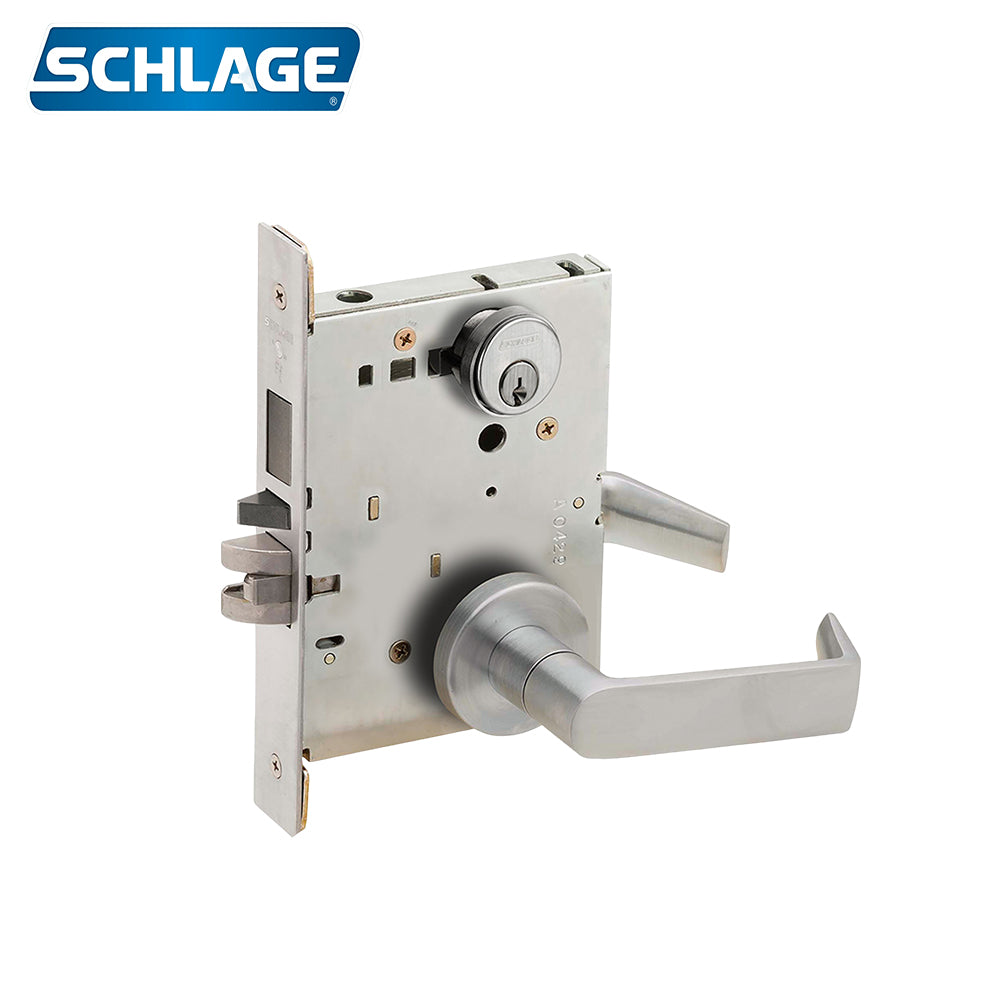

Schlage L9485P-06A-LH Faculty Restroom Commercial Mortise Lock - L Series with 06 Cast Lever Design - Satin Chrome
The Schlage L9485P-06A-626-LH commercial mortise lock series is used for the interior and exterior door applications. This lock is designed to withstand the rigors of daily use, in extra heavy duty applications, without fail. The L series locks are ideal where the finest hardware with a long life of dependable operation must be combined with a high degree of resistance to physical abuse. The L9485P series meets ANSI/BHMA A156.13 series 1000 Grade 1. Faculty Restroom: Latchbolt retracted by key outside or by knob/lever inside. Outside knob/ lever always fixed. Deadbolt thrown or retracted by inside thumbturn. When deadbolt is thrown, all keys become inoperative except emergency or display keys. Turning inside knob/lever retracts both deadbolt and latchbolt simultaneously. Auxiliary latch deadlocks latchbolt when door is locked. Inside knob/lever is always free for immediate egress.
Features:
- Satin Chrome finish
- 06 Cast lever style
- A wrought rose, 2-1/8" (54 mm) diameter
- Single keyed function without deadbolt
- Handing: Left handed
- Door range: 1-3/4"
- Backset: 2-3/4"
- Keys: Two nickel silver cut keys per lock
- Cylinder: 6-pin full-face mortise cylinder with Schlage logo
- Strike plate: 1/4" x 4-7/8" Square corner, 1-3/16" lip, box
- Case size: 4-7/16" x 6-1/16" x 1"
- Armor front: 1-1/4" x 8"
- Floating mounting tabs automatically adjust to fit a beveled door edge.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| SKU | L9485P 06A 626 LH |
| UID | SCH100L9485P06A626LH |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Mexico |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Limited Warranty | 3 Years |
| Fire Rated | 3 Hours {A} |
Technical Specifications:
| Function | 9485-Faculty Restroom Lock |
| Lever/Knob Design | 06 Lever |
| Rose/Escutcheon Design | A Rose |
| Cylinder Type | Conventional Cylinder |
| Num Pins | 6 |
| Std. Keyway | S123 |
| Keying | Keyed Different |
| Key(s) | Cut |
| Num of Keys | 2 |
| Cylinder Length | 1-1/2" |
| Cam Type | Schlage L |
| Cam Number | L583-255 |
| Handing | Left Hand |
| Door Thickness | 1-3/4" |
| Std. Latch Type | Combination Latch and Bolt |
| Std. Latch Backset Dim | 2-3/4" |
| Lock Face Size | 8" x 1-1/4" |
| Bolt Projection | 3/4" Latch, 1" Deadbolt |
| Std. Strike Number | 10-072 |
| Std. Strike Type | ASA |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Dust Box | Plastic |
| Screws | Combination |
| Product Type | Mortise Lock |
