Schlage - ND53PD - Entrance Lock with 4-7/8 ANSI Strike and Standar...
Description
Description

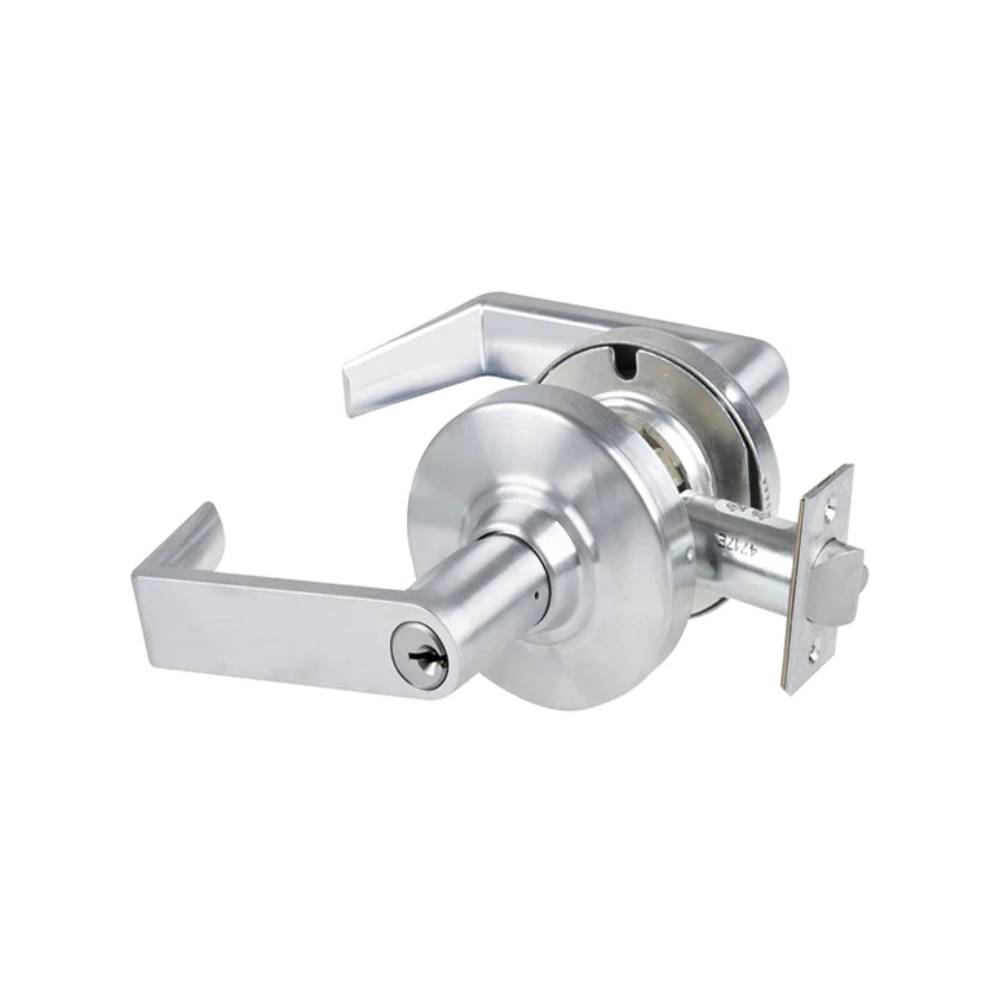

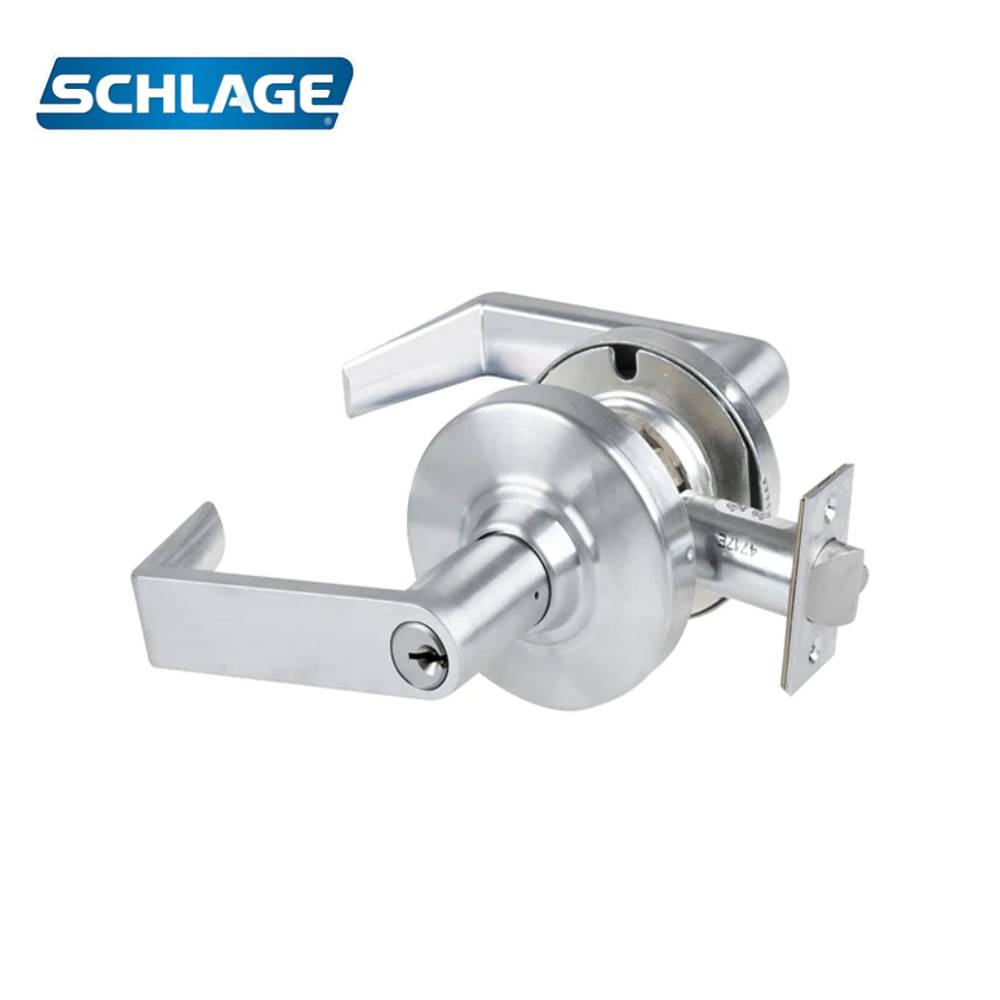

Schlage - ND53PD - Entrance Lock with 4-7/8" ANSI Strike and Standard Cylinder - Rhodes Lever - Grade 1 - 626 (Satin Chrome Finish)
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
Feature:
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- 31 mechanical functions
- Nine lever designs, two rose designs
- Supports standard, SFIC and FSIC cylinder formats
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cores
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| SKU | ND53PD RHO 626 |
| UID | SCH100ND53PDRHO626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed |
| ANSI Number | ANSI A156.2 Series 4000, Grade 1 |
| BAA Qualified | Yes |
| UPC Code | 43156569007 |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
Technical Specifications:
| Function | 53-Entrance Lock |
| Function Family | Entrance |
| ANSI Function | F109 - Entry/Office |
| Lever/Knob Design | RHO - Rhodes Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design | 3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-7/16" |
| Cylinder Type | Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-handed |
| Door Thickness | 1-5/8 In. to 2-1/8 In. |
| Std. Latch Number | 13-247 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4 In. |
| Latch Bore Diameter | 1 In. |
| Lock Face Size | 1-1/8 In. x 2-1/4 In. |
| Bolt Projection | 1/2 In. |
| Bore Hole Diameter | 2-1/8 In. |
| Std. Strike Number | 10-025 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8 In. |
| Std. Strike Width | 1-1/4 In. |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
