Schlage | SKU:
SLG-ND80PD-RHO-626-C
17% off

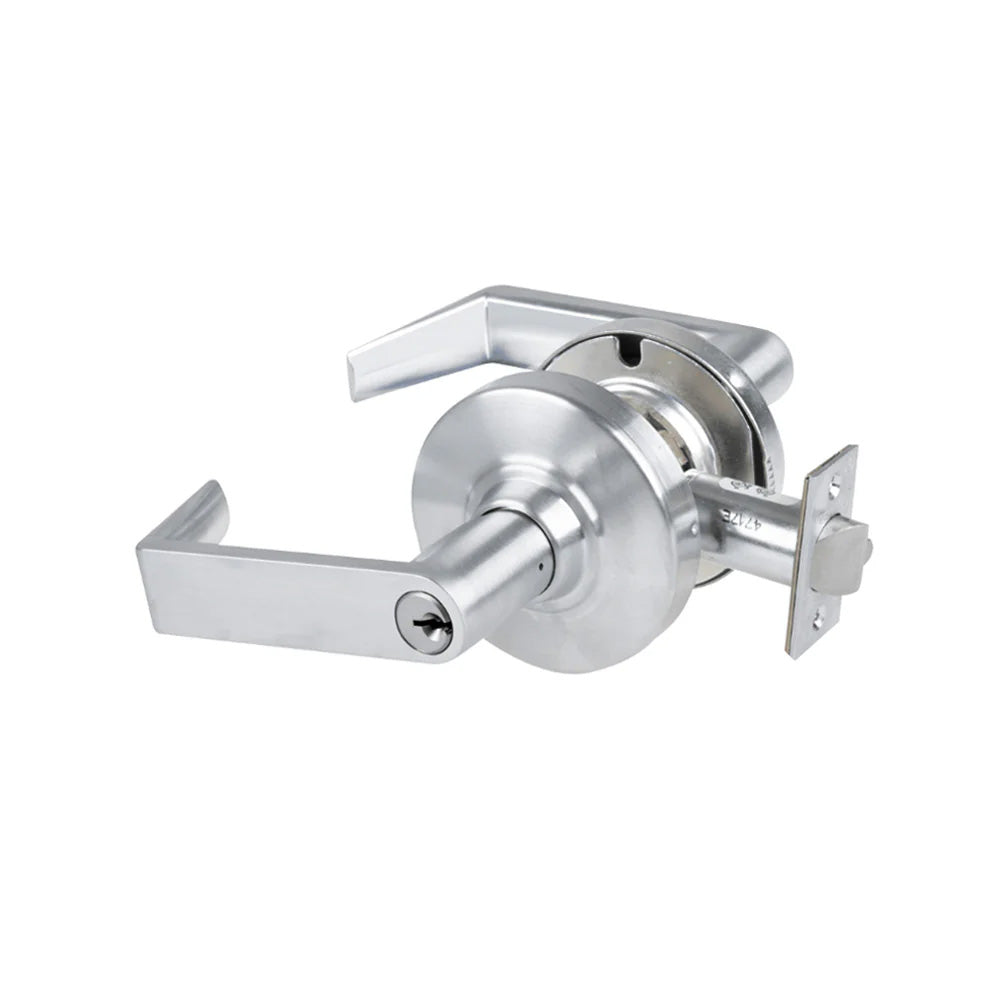

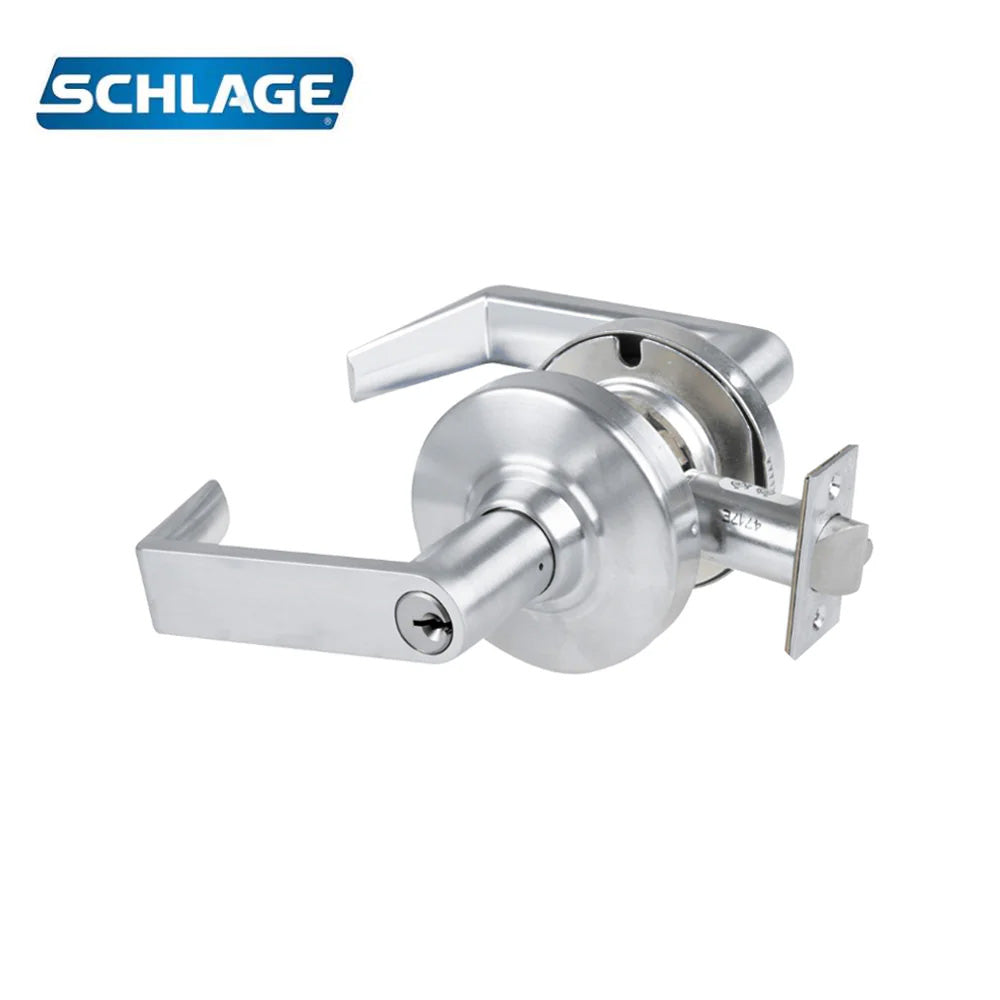

Schlage - ND80PD - Storeroom Lock with Rhodes Lever and Standard Cylinder C Keyway - Satin Chrome
$46120
$55344
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Description
Description
Schlage - ND80PD - Storeroom Lock with Rhodes Lever and Standard Cylinder C Keyway - Satin Chrome
The 4050 Series is a cast aluminum closer that is durable and built tough. The 4050 Series is ideal for commercial building applications and competitive specification situations that demand a combination of quality, reliability and value.
Features:
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks.
- 31 mechanical functions.
- Nine lever designs, two rose designs.
- Supports standard, SFIC and FSIC cylinder formats.
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437.
- Support for 10 non-Schlage cores.
Product Specifications:
| Vendor | Allegion |
| Manufacturer | Schlage |
| Grade | Grade 1 |
| Installation | Commercial |
| Unit of Measure | Each |
| UL Listing Type | UL/cUL Listed |
| ANSI Number | ANSI A156.2 Series 4000, Grade 1 |
| BAA Qualified | Yes |
| UPC Code | 43156569212 |
| Limited Warranty | 10 Years |
| Fire Rated | 3 Hours {A} |
| ADA Compliance | Yes |
Technical Specifications:
| Function | 80-Storeroom Lock |
| Function Family | Storeroom |
| ANSI Function | F86 - Storeroom |
| Lever/Knob Design | RHO - Rhodes Lever |
| Lever/Knob Design Family | Straight Return Lever |
| Rose/Escutcheon Design | 3-7/16" Rose Diameter |
| Rose/Escutcheon Dimensions | 3-7/16" |
| Keyway | C |
| Cylinder Type | Cylinder |
| Num Pins | 6 |
| Key(s) | Cut |
| Num of Keys | 2 |
| Handing | Non-Handed |
| Door Thickness | 1-5/8" to 2-1/8" |
| Std. Latch Number | 13-247 |
| Std. Latch Type | Deadlatch |
| Std. Latch Backset Dim | 2-3/4" |
| Latch Bore Diameter | 1" |
| Lock Face Size | 1-1/8" x 2-1/4" |
| Bolt Projection | 1/2" |
| Bore Hole Diameter | 2-1/8" |
| Std. Strike Number | 10-025 |
| Std. Strike Type | ANSI Strike |
| Std. Strike Height | 4-7/8" |
| Std. Strike Width | 1-1/4" |
| Screws | Wood/Machine Screws |
| Product Type | Cylindrical Lock |
