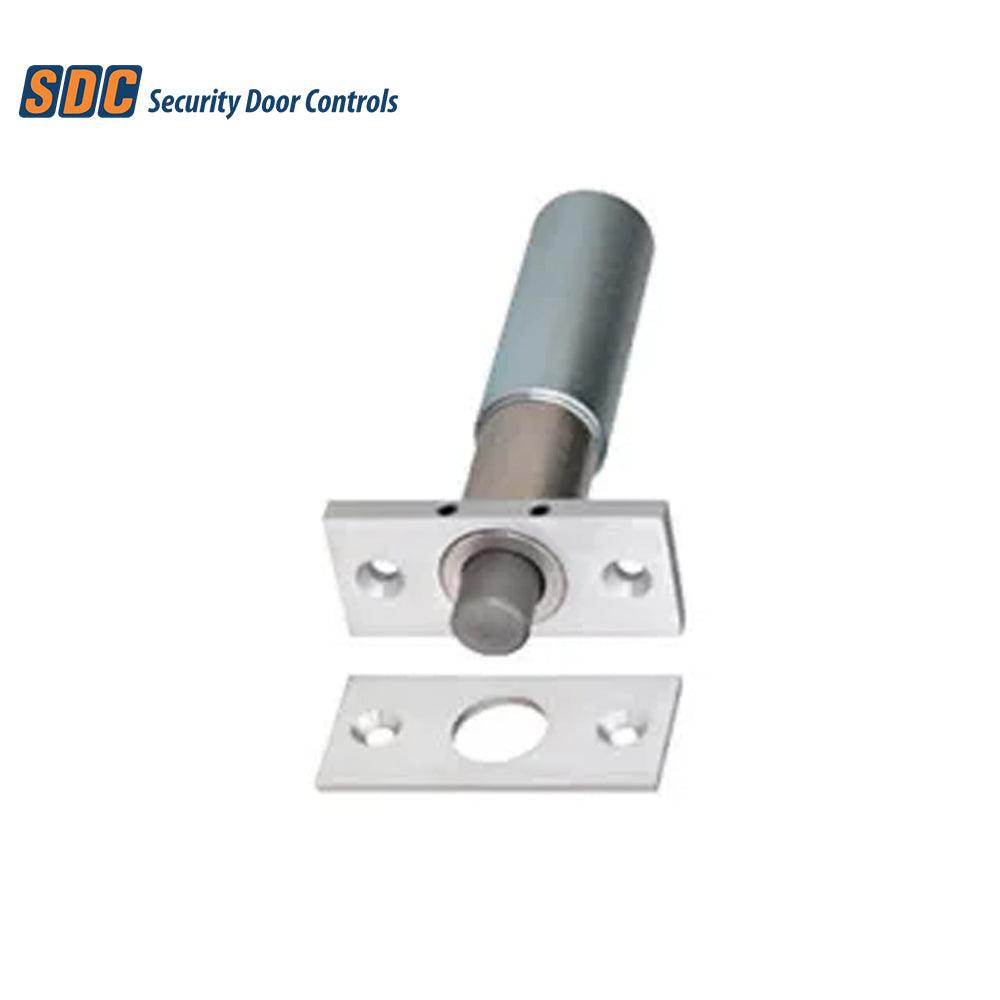

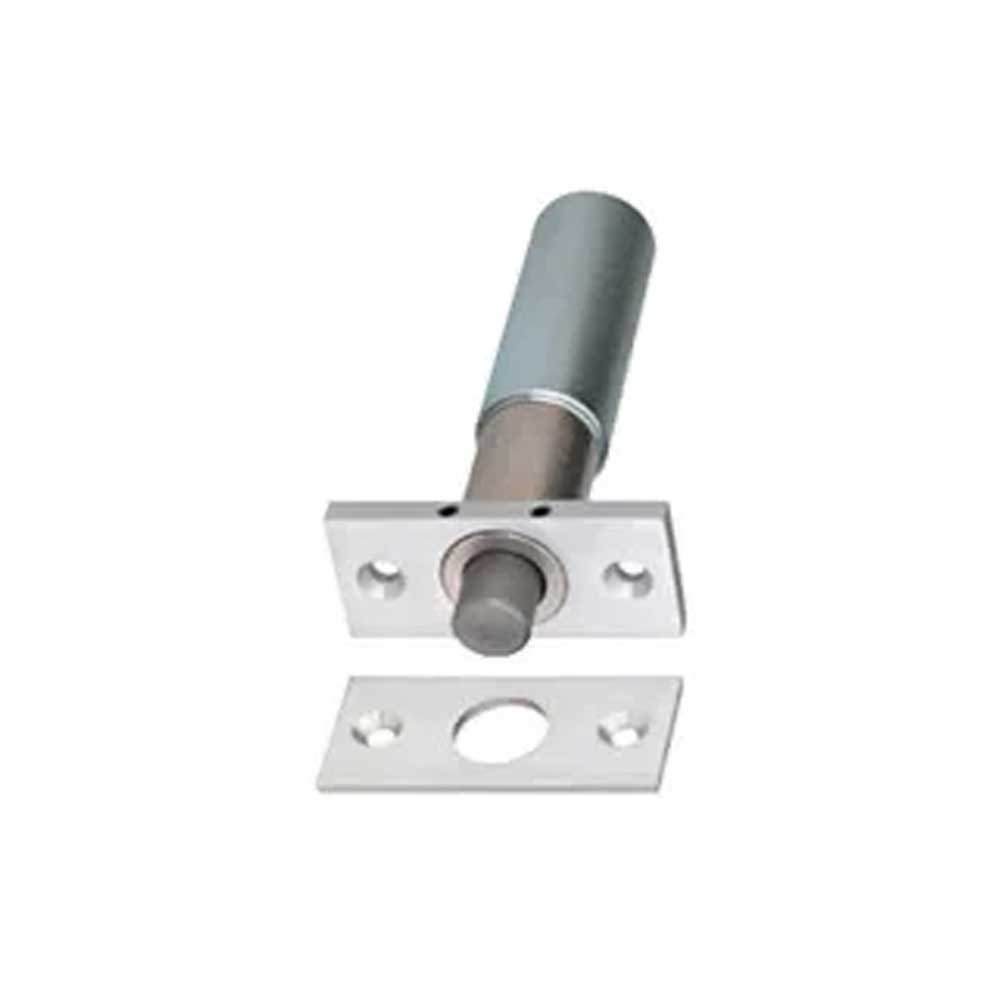

SDC - 110IV - Mortise Electric Bolt Lock with 2-3/4" by 1-1/4" Face Plate and Less Auto Relock Switch - 12/24VDC - 628 (Satin Aluminum Clear Anodized)
The SDC 110IV is the most basic bolt locks available. The bolt assembly is adjustable forward up to 1" (25.4mm) past the face plate to accommodate wide door gaps or special applications. The unit features failsafe operation.
Features:
- Failsafe 12/24VDC standard
- Optional finishes available
- SDC Electric Bolt Lock
- Mortise
- Failsafe
- Less Auto-Relock Switch
Specifications:
- Electrical Specifications Voltage: Dual 12/24VDC, 450mA @ 24VDC, 900mA@ 12VDC
- Mechanical Specifications Finish: 628 Anodized Aluminum
- Faceplate: 2-3/4H" x 1-1/4W" x 0.25"D (69.85 x 31.75 x 6.35mm)
- Strike: 2-3/4H" x 1-1/4W" x 0.125D (69.85 x 31.75 x 3.175mm)
- Bolt: 5/8" dia. x 1/2" throw (15.87mm x 12.7mm)
- Depth: 5" (127mm)
