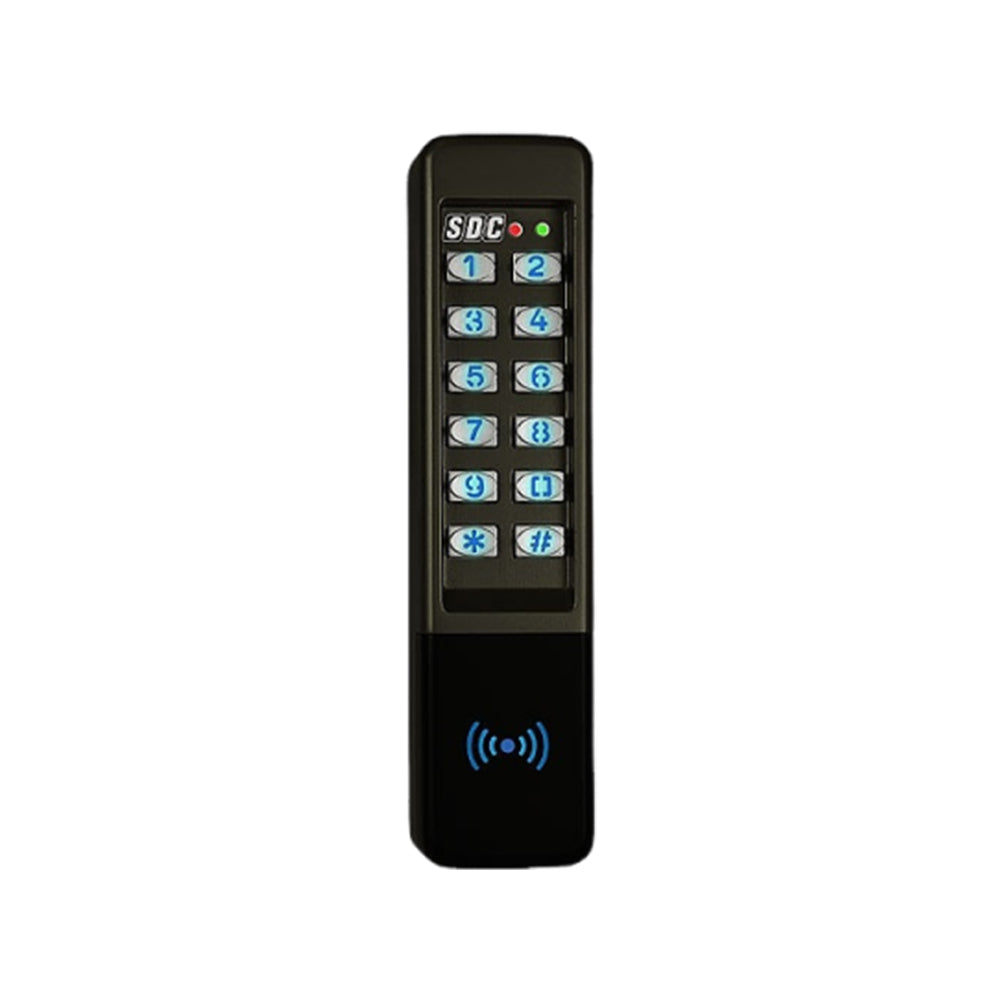

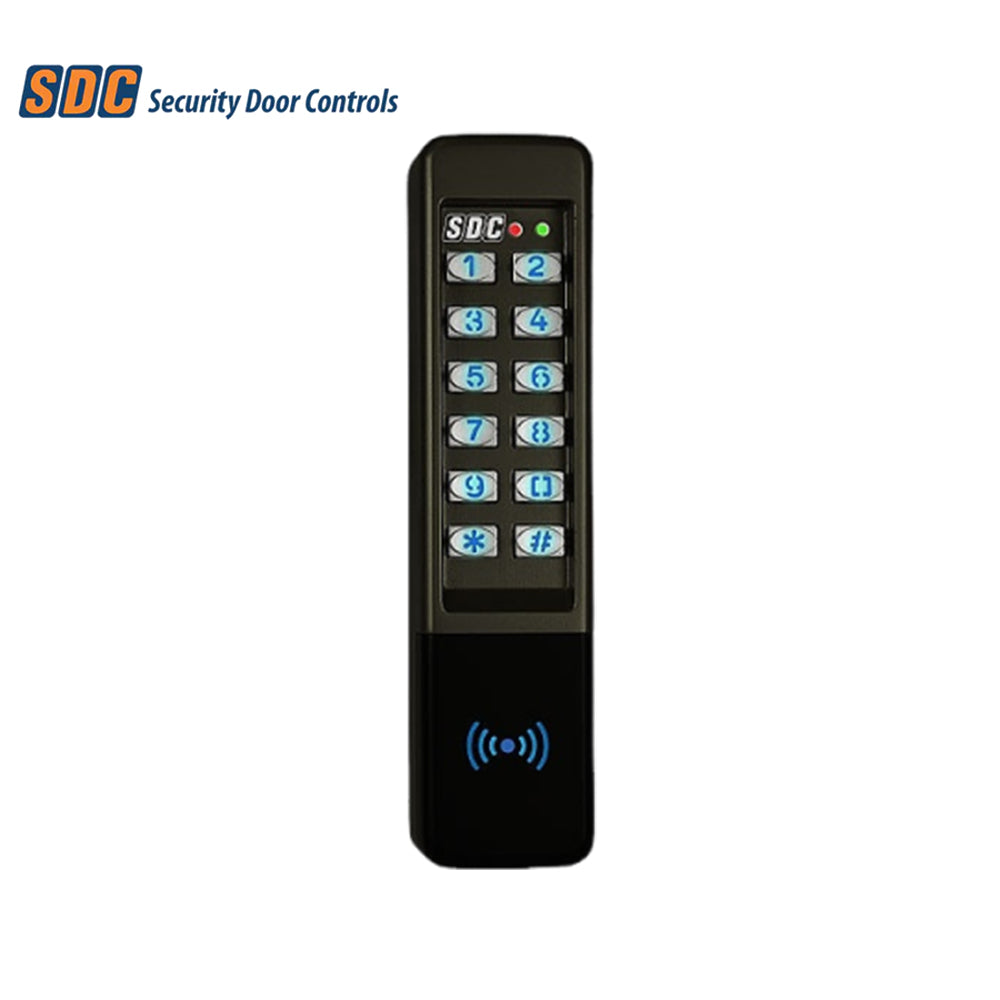

SDC - 923P - Indoor/Outdoor Narrow Self-Contained Digital Keypad with Integrated Proximity Reader - 12/24 VAC/DC
The SDC EntryCheck 923 Series is a narrow indoor/outdoor standalone keypad for single-door access, supporting up to 500 users with unique PIN codes. The 923P model adds HID proximity reader capability for enhanced access options.
Features:
- Weather-resistant design for indoor/outdoor use
- Heavy cast, vandal-resistant housing
- Blue backlit metal keys for easy visibility
- Fully programmable keypad
- Supports up to 500 users with 4-6 digit PIN codes
- Four outputs: 2 relay and 2 solid-state (timed or latching)
- Assign entry PINs to Relay 1 and/or 2
- LED status indicators: Access & Lockout
- Tactile keys with adjustable audible feedback
- Timed anti-passback and anti-tailgate functionality
Specifications:
| Voltage | 12/24 VAC/DC |
| Current | 30mA Typical, 150mA Maximum |
| Outputs | Relay 1 - SPDT 5 Amps @ 30VDC Relay 2 - SPDT 2 Amps @ 30VDC Switch to Common Outputs 3 & 4 - 100mA @ 30VDC |
| Finish | Powder-coated painted cast metal |
| Mount | Surface mount |
| Housing Dimensions | 1-3/4" W x 7-5/16" H x 1-3/8" D |
