SECO-LARM | SKU:
SECO-DH-151SQ
17% off
SECO-LARM DH-151SQ Magnetic Door Holder - Surface-Mount, UL Listed
$6085
$7302
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
SECO-LARM DH-151SQ Magnetic Door Holder - Surface-Mount, UL Listed
$6085
$7302
Unit price
/
Unavailable
Description
Description

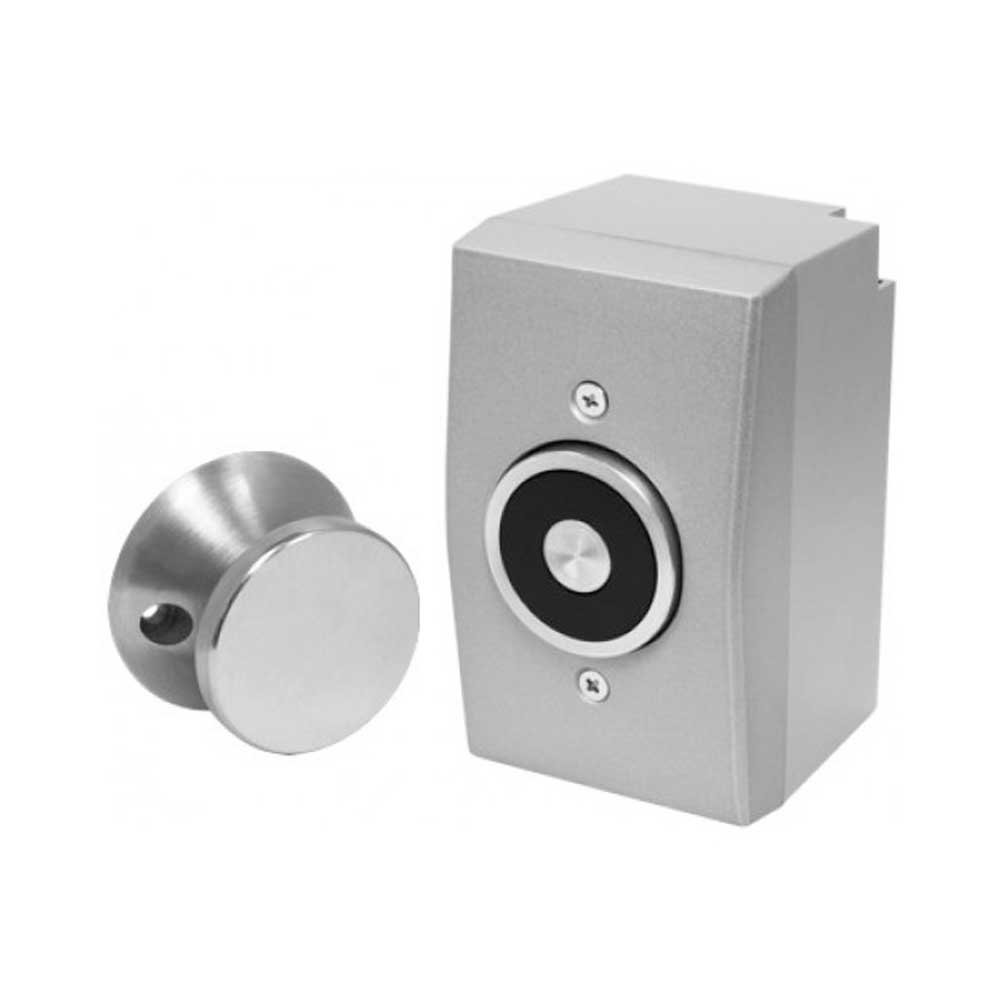

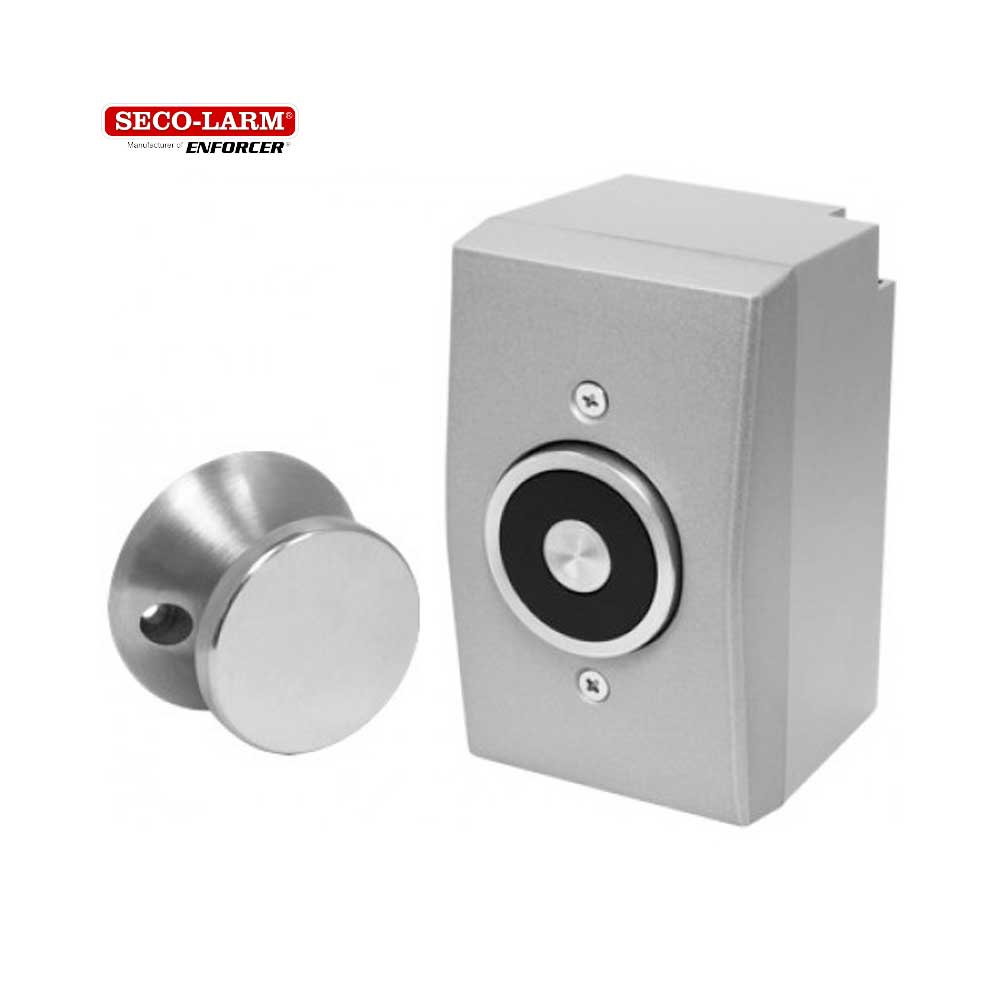

SECO-LARM DH-151SQ Magnetic Door Holder - Surface-Mount, UL Listed
The UL Listed SECO-LARM Magnetic Door Holders are designed for virtually any remote door release applications, whether residential or commercial. Fail-safe operation, tri-volt coils, and adjustable armature plate allows for easy and flexible installation.
Feature:
- For use with door closers to control the release and closing of residential, commercial, and public area doors
- Adjustable armature plate reduces installation time and adjusts to door alignment changes
- Low profile design
- Holding force – 33-lb (15kg)
- 3 voltages: 12/24 VAC/VDC, and 120VAC
- Cast aluminum faceplate
- No residual magnetism for easy release
- Built-in voltage spike suppressor
- Optional extension bars available: 3/4", 1", 4", 7" (19mm, 25mm, 102mm, 178mm)
- Use with SECO-LARM door closers SD-C121-S, SD-C131-SQ, SD-C101-SGQ, or SD-C101-SBAQ
Specifications:
| Holding Force | 33-lb (15kg) |
| Installation | Surface-mount |
| Operating Voltage | 12/24 VAC/VDC, 120VAC |
| Current Draw | 52mA@12VAC, 60mA@12VDC, 27mA@24VAC, 31mA@24VDC, 24mA@120VAC |
| Magnet Box Weight | 1-lb 6.4-oz (920g) |
| Door Armature Weight | 8.1-oz (230g) |
| Electromagnet Dimensions | 2-3/4" x 4-9/16" x 3" (70 x 116.5 x 76 mm) |
| Armature Dimensions | 2-9/16" x 2-9/16" x 1-9/16" (65 x 65 x 40 mm) |
