SECO-LARM | SKU: SECO-E-942FC-600SQ

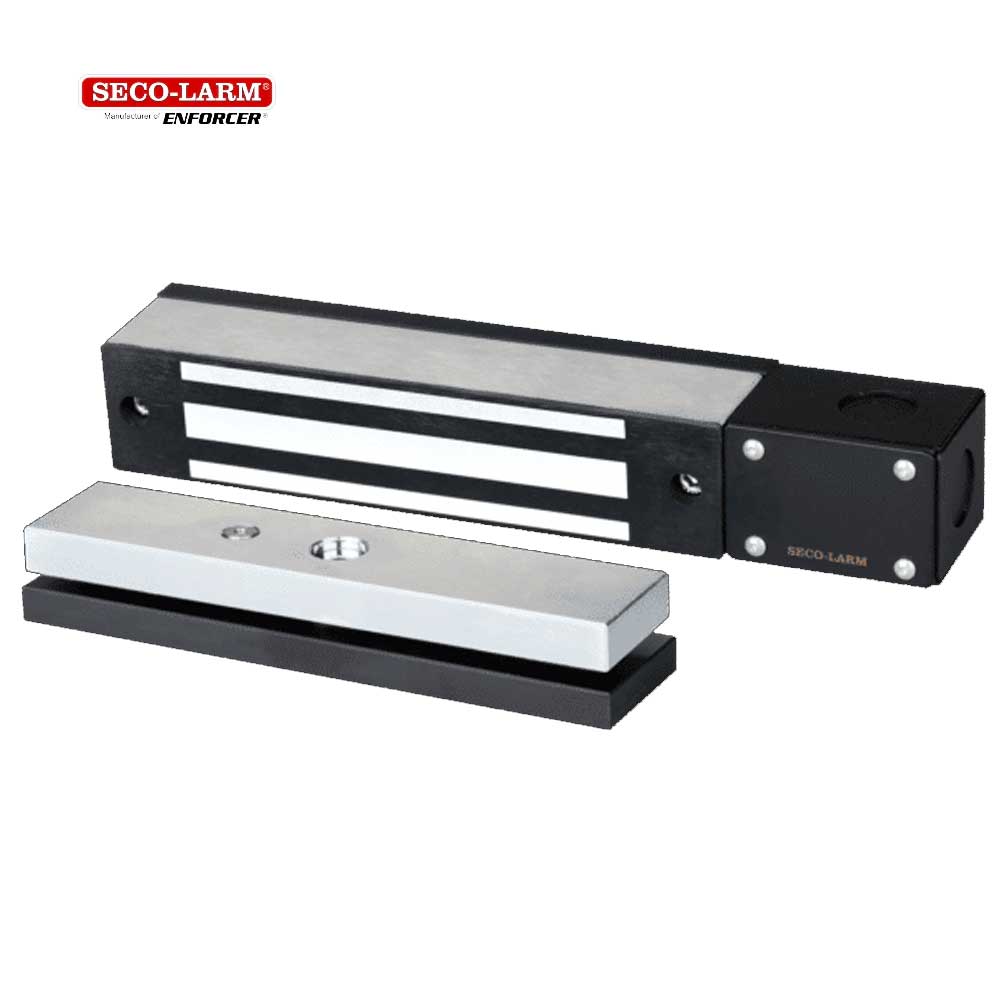

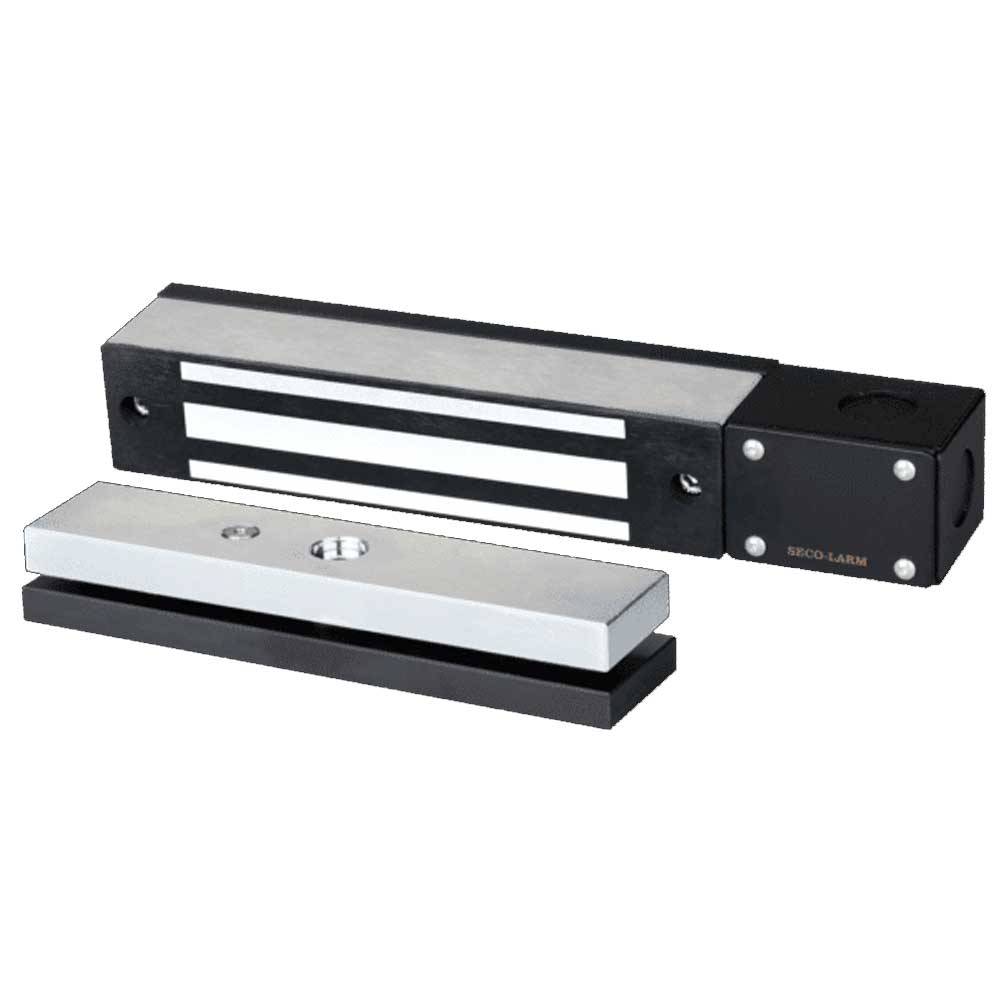

SECO-LARM E-942FC-600SQ 600-lb Electromagnetic, Face Mount, Weldable Gate Lock

$239⁶⁰ ~~$287⁵²~~

Shipping calculated at checkout.

Trust Guard Security Scanned

Trust Guard Security Scanned

Secure transaction

Found a better price? Call for Price Match!
Shop with confidence knowing you’re getting the best deal.

Delivery and Shipping

All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more

Description

SECO-LARM E-942FC-600SQ 600-lb Electromagnetic, Face Mount, Weldable Gate Lock

Electromagnetic Gate Lock with brackets for armature and magnet. The E-942FC-600SQ is primarily designed for swinging gates.

Feature:

600-lb (272 kg) Holding force
No residual magnetism
MOV Surge protection
Face mounting
For sliding or swinging gates
Weld or bolt brackets directly to the gate
Brackets are zinc-plated for corrosion resistance
Water- and vandal-resistant attractive stainless-steel black finish to match most gates
Maintenance-free, factory-sealed design
Fail-safe operation (releases if power is removed)
Waterproof (IP67) and vandal resistant for indoor and outdoor applications
Dual-threaded conduit fitting
Attractive stainless steel housing
Junction box with 4 knockouts
Complete mounting hardware for typical installations
Additional brackets available for easy mounting or atypical situations
12/24VDC Selectable
Lifetime limited warranty*

*Warranty applies in the USA and Canada only. Contact SECO-LARM for details.

Specifications:

Holding Force	600-lb (272kg)
Operating Voltage	12VDC or 24VDC
Current Draw	500mA@12VDC, 250mA@24VDC
IP Rating	IP67 Waterproof
Operating Temperature	14º~131º F (-10º~55º C)
Certification	RoHS, cUL, UL, CE
Weight	10.40-lb (4.75kg)
Maglock & Armature Weight (Approx.)	6.4-lb (2.9kg)
Bracket Weight (Approx.)	3.95-lb (1.8kg)
Type	Electromagnetic Gate Lock, 600-lb Holding Force, Face Mount, Weldable

Troubleshooting:

The gate does not lock	Check that the wires are secure Check that the power supply is connected and operational Check that the unit is wired correctly
The gate locks, but can easily be forced open	Check that the electromagnet and armature plate are properly aligned Check that the contact surfaces of the electromagnet and armature plate are clean and free from rust Check the power leads with a meter, and make sure the correct voltage is present
Delay in gate releasing	The electromagnet is fitted with a metal oxide varistor to prevent interference, so do not install a second diode.
