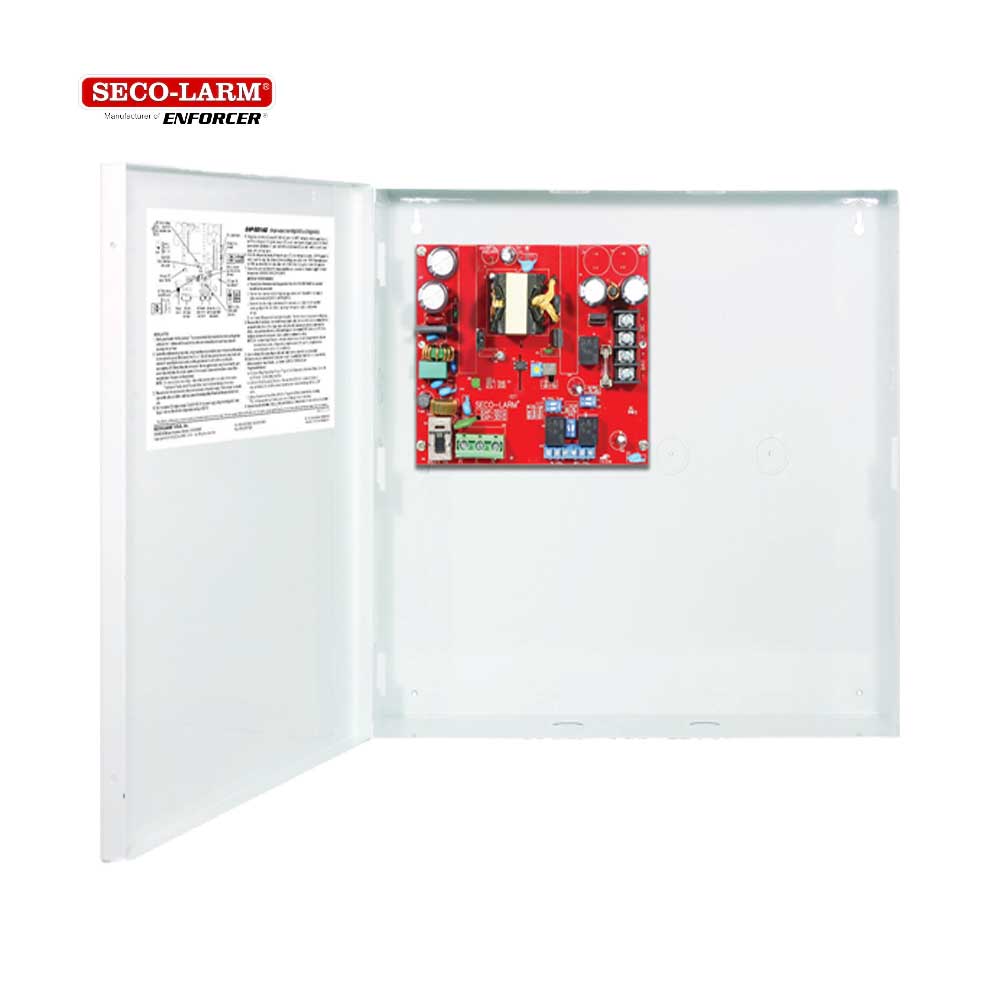

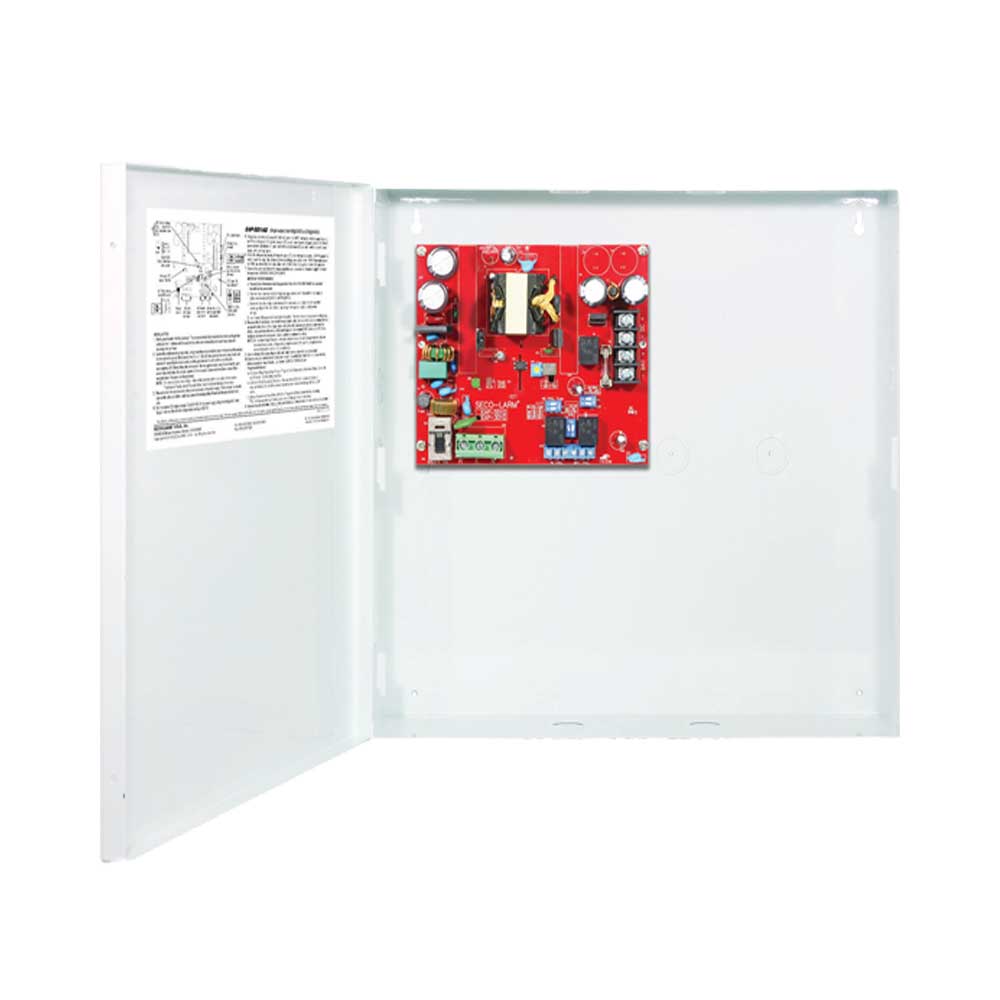

SECO-LARM EAP-3D1Q Access Control Power Supply
The SECO-LARM EAP-3D1Q and EAP-3D5Q power supplies are specifically designed for an access control system’s electronic locks and accessories. These power supplies centralize the power sources of access control equipment. They include two supervision relays that can be used to integrate with other systems such as an alarm control panel. Robust fault response and indication also includes gradual shutdown on output overload as well as immediate shutdown on output short, signalled by flashing red LED and with auto-recovery once output short or overload is removed.
Features:
- AC Power failure supervision relay
- Battery failure / low battery supervision relay
- Auxiliary output relay
- Relays rated 3A@24VDC
- Adjustable voltage range to compensate for voltage drop
- Built-in backup battery charger (battery not included)
- Selectable 2.2k Ω End-of-Line (EOL) resistor for AC failure and
- battery failure supervision relays via DIP switch
- Selectable delay timer (5 seconds, 5 minutes, 5 hours) for AC
- failure supervision relay via DIP switch
- LED Status indicator for AC input, DC output and channel outputs
Specifications:
| Input Voltage | 110~240VAC |
| Output Voltage | 12 or 24VDC selectable via DIP switch |
| Adjustable Output Voltage Range | 12~13 @ 12VDC setting, via VR switch, 23~25 @ 24VDC setting, via VR switch |
| Number of Outputs | 1 |
| Total Supply Current | 3A@12VDC/1.5A@24VDC |
| Input Fuse Rating | 3.15A ( glass fuse, AC) |
| LED Status Indicator | AC input ( Green ), DC Output ( Red ) |
| End-of-Line Resistor (EOL) | Selectable ON ( 2.2KΩ) or OFF via DIP switch |
| AC-Fail Relay Delay Timer | Selectable @ 5sec, 5min or 5hr via DIP switch |
| Supervision Relays | Contact Rating: 3A@24VDC Dry Relay Output |
