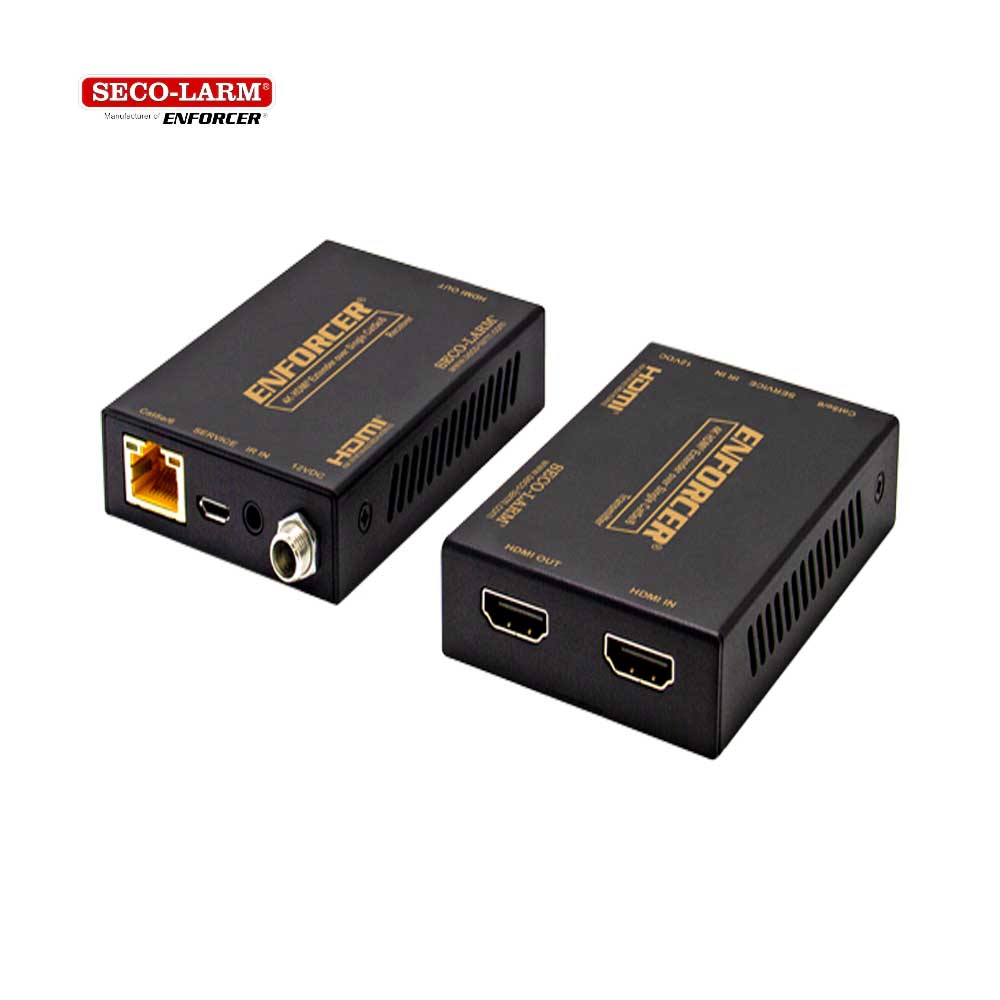

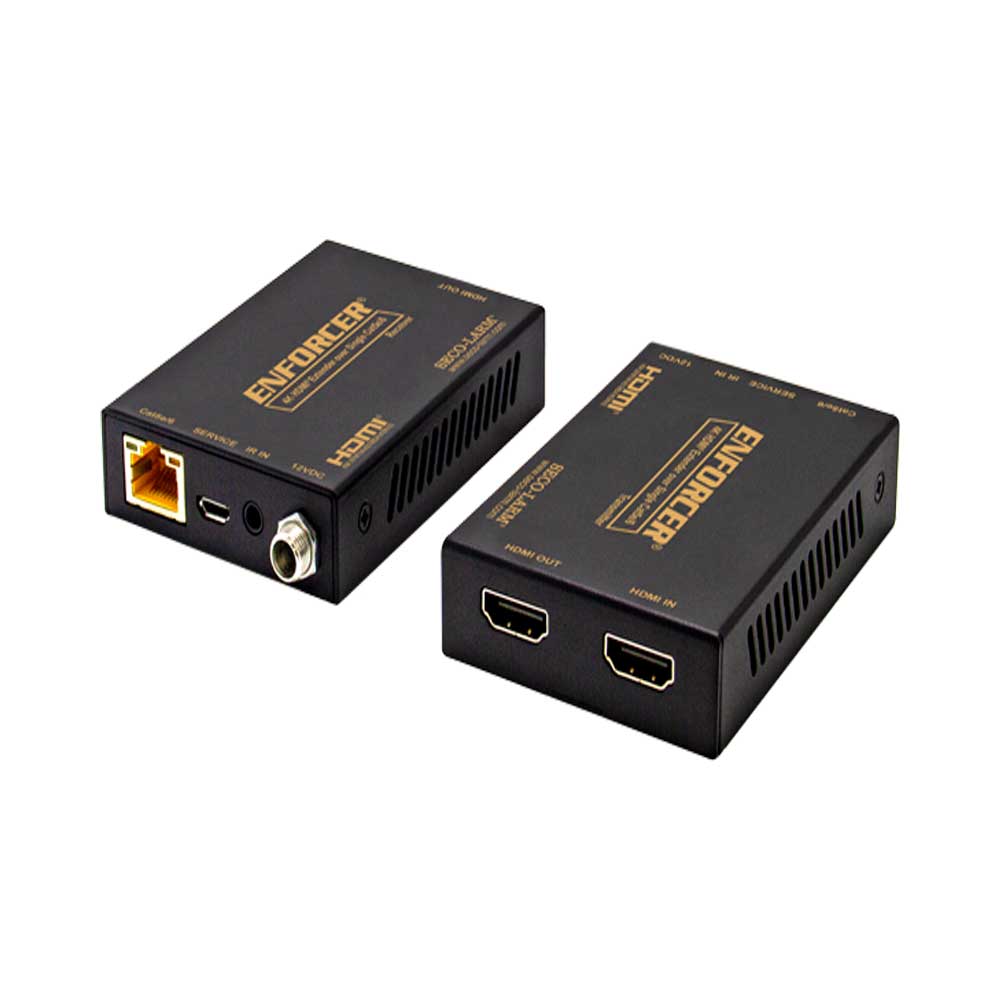

SECO-LARM MVE-AH1E1-42NQ 4K HDMI Extender over Single Cat5e/6
The ENFORCER 4K HDMI Extender over Single Cat5e/6 extends the range of traditional HDMI cabling methods by using an active transmitter and receiver to send video and audio over a single Cat5e/6. HDMI formats as large as 4K can be transmitted up to 197ft (60m) between the two units with zero signal loss by using integrated circuits in the receiver and transmitter.
Features:
- Extends HDMI over a single Cat5e/6 cable
- Supports resolutions from 480i to 4K with zero signal loss
- Transmits 4K@60Hz up to 197′ (60m) or 1080p@60Hz up to 230′ (70m) over Cat6 cable
- Plug and play operation
- Active operation ensures signal strength
- IR for remote control extension
- One (1) 12VDC power supply included – set can be powered at either end
Specification:
| Maximum Single Link Range | 4K@60Hz |
| Deep Color | 8bit |
| Video Format Supported | High-speed HDMI, HDCP 2.2 |
| Audio Formats Supported | LPCM 2/51/7.CH, Dolby Digital, DTS 5.1, Dolby Digital+, DolbyTrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| Output Video | 4K@60Hz |
| Resolutions Supported | 4K@60Hz/4K@30Hz/1080p/1080i/720p/576p/576i/480p/480i |
| Range | 1080p: Cat6: Up to 230′ (70m); Cat5e: Up to 164′ (50m) |
| Range – 4K | Cat6@60Hz: Up to 197′ (60m); Cat5e@60Hz: Up to 164′ (50m) |
| Video Amplifier Bandwidth | 18Gbps |
| Video Input Connector | HDMI Type A 19-pin female |
| Video Output Connector | HDMI Type A 19-pin female |
| IR Frequency | 30 ~ 60 kHz |
| Power Supply | 1A@12VDC (1 Adapter) (2.1mm plug) |
| ESD Protection (Human Body Model) | ±8kV (air-gap discharge), ±4kV (contact discharge) |
| Cat5e/6 Wiring Standard | T-568B |
| Operating Temperature | 32°~104° F (0°~40° C) |
| Operating Humidity | 20~90% RH (no condensation) |
| Dimensions | 3-7/16″x23 / 8″x11/16″ (88x61x17 mm) |
| Weight | 5.08-oz (144g) (each) |
Troubleshooting:
| HDMI device does not function correctly |
|
| Screen flickering or brief image loss |
|
Download:
