SECO-LARM PD-5PAQ 5 O/P Power Distribution Board for EAP-5D5Q
Description
Description
SECO-LARM PD-5PAQ 5 O/P Power Distribution Board for EAP-5D5Q

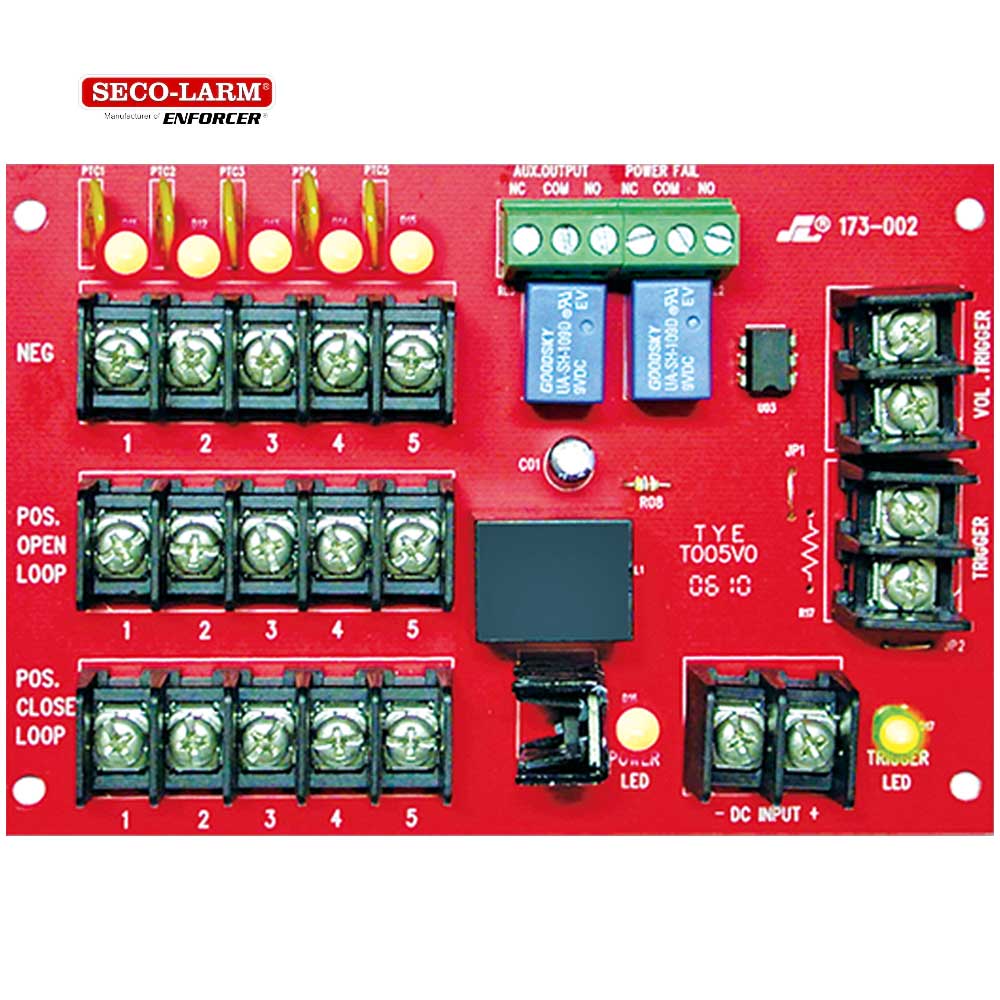

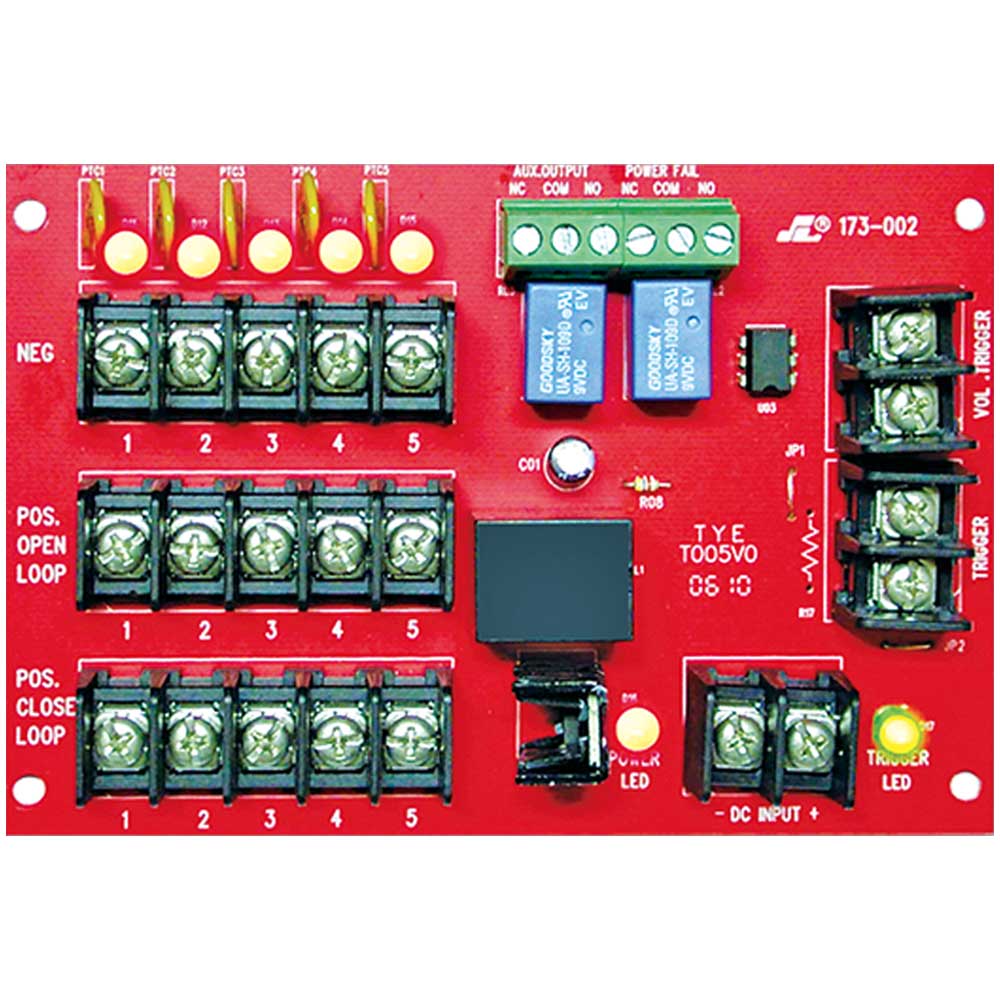

The PD-5PAQ 5-output power distribution board centralizes the power sources for access control electronic locking devices, such as electromagnetic locks, sheer locks, electric door strikes, deadbolt locks, and so on. It provides a separate fuse for each output so that problems with one device may be isolated from the other devices. Each output operates in both fail-safe and fail-secure modes. The board includes wet and dry trigger inputs for emergency door activation such as for releasing emergency exit doors. It is also equipped with power failure supervision relays and auxiliary supervision relays.
Feature:
- Five individually PTC-fused outputs
- Each output will operate in both fail-safe and fail secure modes
- Output fuses rated 1.1 Amps
- Individual LED status indicator for each output, power input, and trigger
- For 12VDC or 24VDC operation
- Power failure supervision relay (3 Amps @ 24VDC)
- Auxiliary supervision relay (3 Amps @ 24VDC)
- Equipped with dry and wet trigger inputs
- Dimensions – 3916“x5516“x1116” (90x135x27 mm)
Specifications:
| Input Voltage | 12/24 VDC |
| Fuse type | PTC |
| Output Voltage | 12 or 24VDC selectable via DIP switch |
| Adjustable Output Voltage Range | 11~15 @ 12VDC setting, via VR switch, 23~26 @ 24VDC setting, via VR switch |
| Number of Outputs | 5 |
| Total Supply Current | 5A@12VDC / 2.5A@24VDC |
| Output fuse rating | 1.1A |
| End-of-Line Resistor (EOL) | Selectable ON (2.2KΩ) or OFF via DIP switch |
| AC-Fail Relay Delay Timer | Selectable @ 5sec, 5min or 5hr via DIP switch |
| Supervision Relays | Contact Rating: 3A@24VDC Dry Relay Output |
