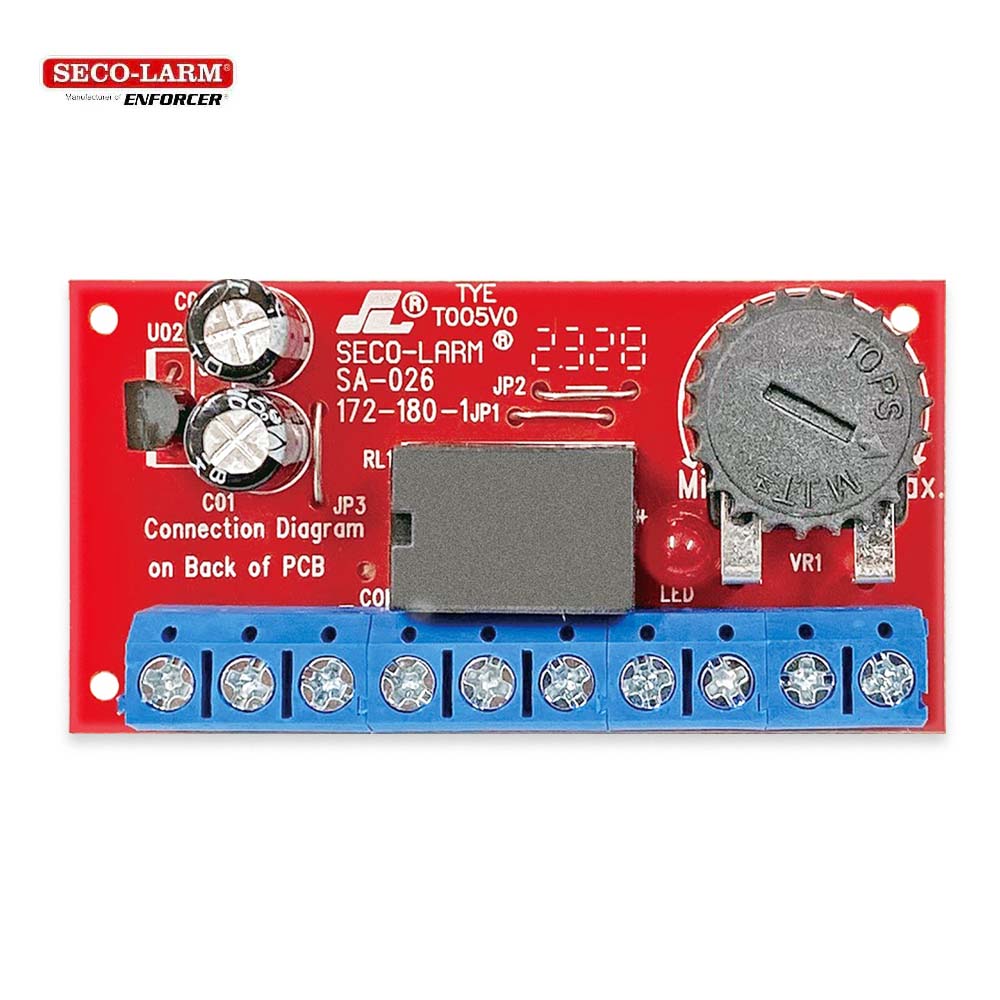

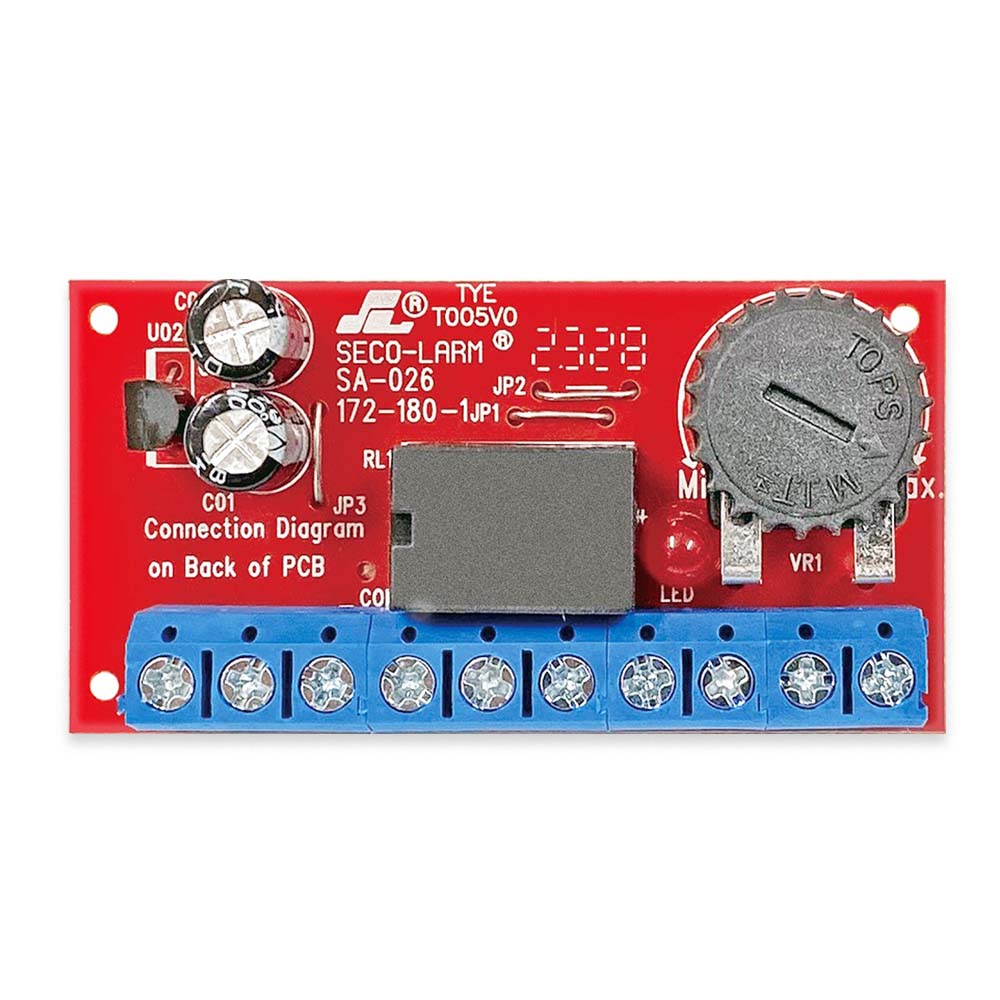

SECO-LARM SA-026Q Mini-Timer Module – Low-Voltage Miniature Delay Timer Module with Relay Output
The ENFORCER® SA-026Q is a low-voltage miniature delay timer module which operates on 12 to 24 volts AC or DC. This timer module will extend the activation time of a momentary contact switch for 1~180 seconds via a field-adjustable rotary pot. Use with electrical locks which do not have a built-in time delay function. Its compact size makes it small enough to fit in a single-gang box or inside a door frame cavity.
Features:
- Adjustable timer from 1~180 seconds via a pot on board
- NO/NC switch trigger
- Compact design: 13/16“x29/32“x5/8” (30x58x16 mm)
- Operating voltage: 12~24 volts AC or DC
- Current: 2mA (standby), 75mA (active)
- Relay output: Form-C (SPDT) via terminal blocks
- Contact rating: 3A@24VDC
- With built-in buzzer output (100mA@24VDC)
- Includes double-sided foam tape
Specifications:
| Operating Voltage | 12~24 VAC or VDC |
| Relay Rating | Form-C (SPDT) via terminal blocks, 3A@24VDC |
| Current Draw – Active | 75mA |
| Current Draw – Standby | 2mA |
| Dimensions | 1-3/16″ x 2-9/32″ x 5/8″ (30 x 58 x 16 mm) |
