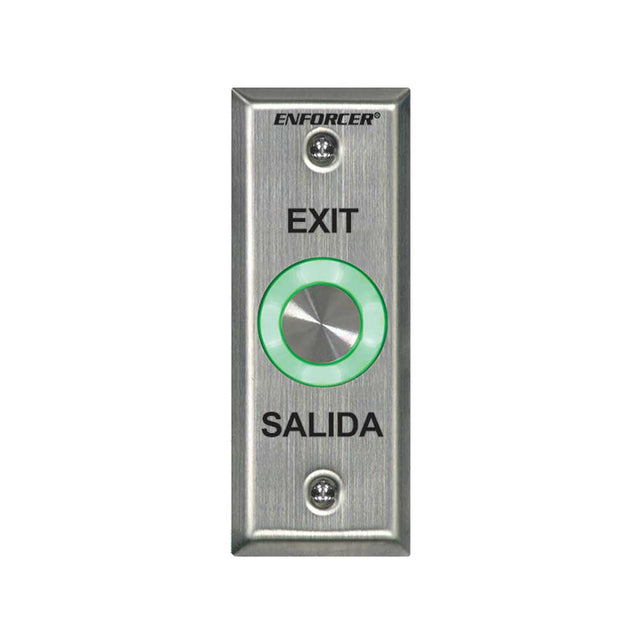

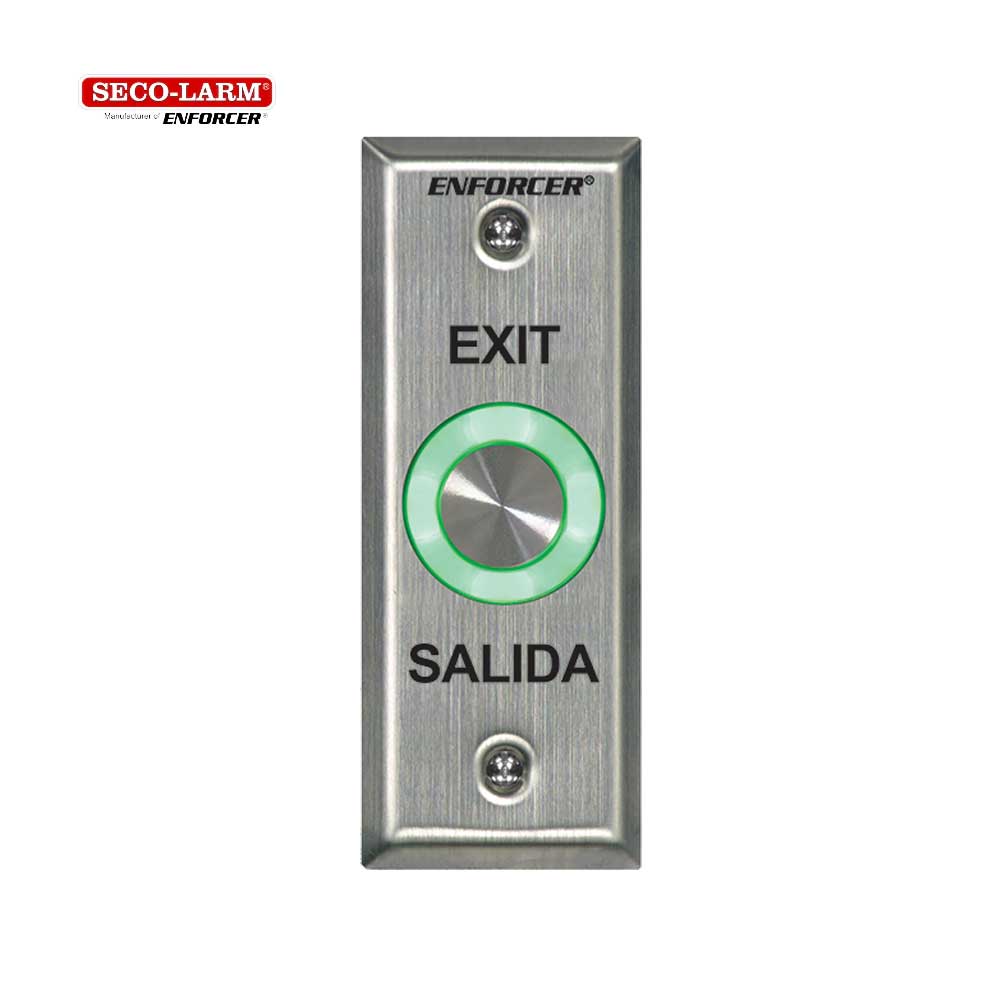

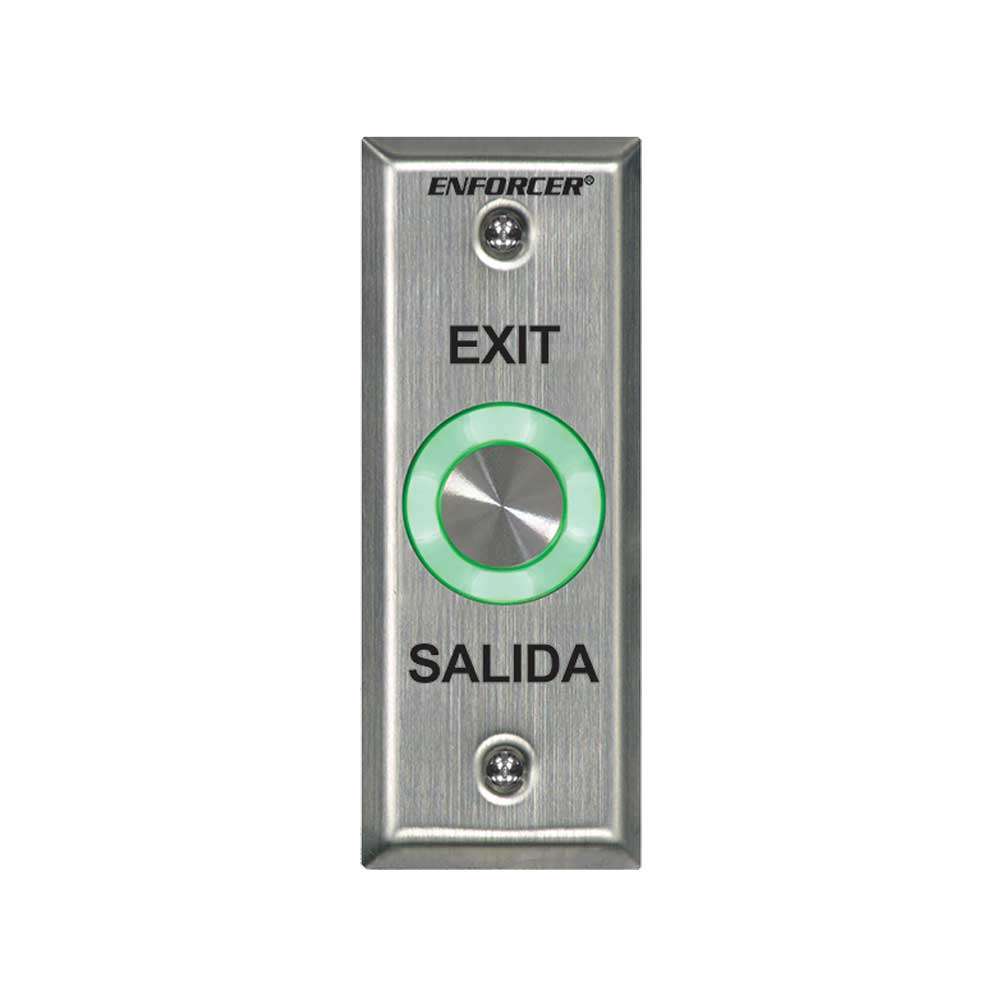

SECO-LARM SD-6176-SS1Q Piezoelectric Illuminated RTE Wall Plate with Timer, Slimline
Programmable Red/Green Round Button, with “EXIT” & “SALIDA”.
It offers a sophisticated and efficient solution for easy access control and regulated entry in various environments. Featuring a slimline design, these wall plates add a modern touch to any setting while providing seamless integration with request-to-exit (RTE) devices. The piezoelectric technology ensures reliable and responsive touch-sensitive operation, enabling users to request access effortlessly. The built-in timer functionality adds an extra layer of security and convenience, allowing users to set a specific time duration for the door to remain open after activation. The LED illumination enhances visibility in low-light conditions and acts as a clear indicator of the activated RTE device. With the SECO-LARM SD-6176-SS1Q Piezoelectric Illuminated RTE Wall Plate with Timer, enhancing access control becomes a streamlined and user-friendly experience, making them a valuable addition to access management systems in various applications.
Features:
- Piezoelectric request-to-exit plates for indoor or outdoor use, weatherproof (IP65)
- No moving parts for heavy duty use
- LED ring around button changes from green to red or red to green when the button is pressed
- Timed or toggle output
- Relay rated 2.5A@24VDC with two individually programmable outputs (NO/NC)
Specifications:
| Type | RTE Plates with piezoelectric pushbuttons |
| Operating Voltage | 12~24 VDC |
| Current Draw | 100mA@12VDC |
| Contact Rating | 2.5A@24VDC |
| Ring LED Default- Standby | Red |
| Ring LED Default- Active | Green |
| Output Time | 1~30 s, Toggle |
| IP Rating | Weatherproof IP65 |
| Operating Temperature | 32º~158º F (0º~70º C) |
| Material | Stainless steel |
| Weight | 2.6-oz (74g) |
