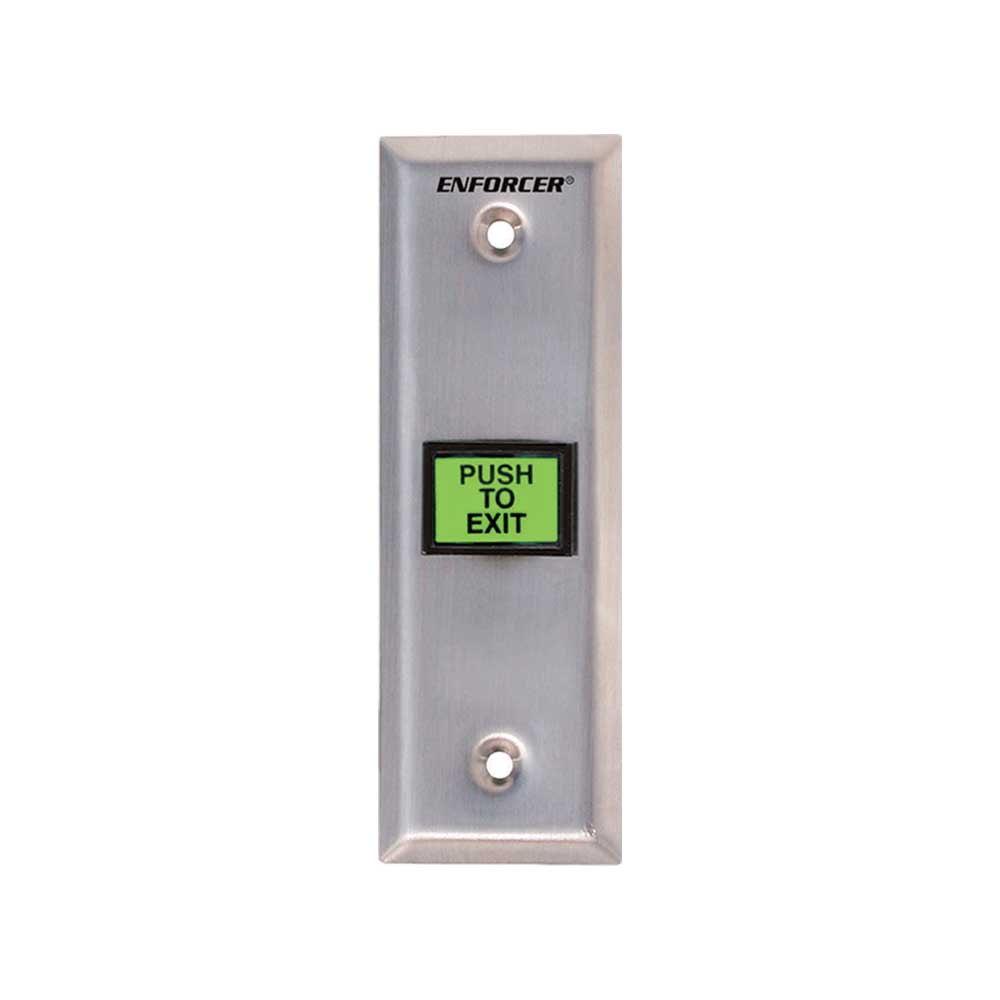

SECO-LARM SD-7103GC-PEQ Slimline LED-Illuminated RTE Wall Plates

SECO-LARM SD-7103GC-PEQ Slimline LED-Illuminated RTE Wall Plates

The SECO-LARM SD-7103GC-PEQ Slimline LED-Illuminated RTE Wall Plates are an innovative and practical solution for facilitating easy access and egress in controlled entry environments. These wall plates feature a slimline design with built-in LED illumination, enhancing visibility and usability in low-light conditions. Designed for use with request-to-exit (RTE) devices, these wall plates enable users to conveniently request access to secured areas. The LED illumination not only adds a modern touch but also serves as a helpful indicator for users, providing visual feedback when the RTE device has been activated. With the SECO-LARM SD-7103GC-PEQ Slimline LED-Illuminated RTE Wall Plates, improving access control and ensuring a seamless entry/exit process becomes a seamless and user-friendly experience.

Features:

• Momentary switch, D.P.S.T., NO/NC contacts rated 5A@24VAC
• CE and UL approved switch
• Stainless-steel slimline plate
• Six plug-in terminals
• Six color-coded, 12″, AWG 18 wire leads with easy-to-attach spade lugs for fast installation
• Plastic terminal protector for dividing individual terminals
• Mechanical lifetime 2,000,000 operations
• LED (12V, 35,000-hour life)
• 680Ω, 0.5W resistor for 24V LED operation included

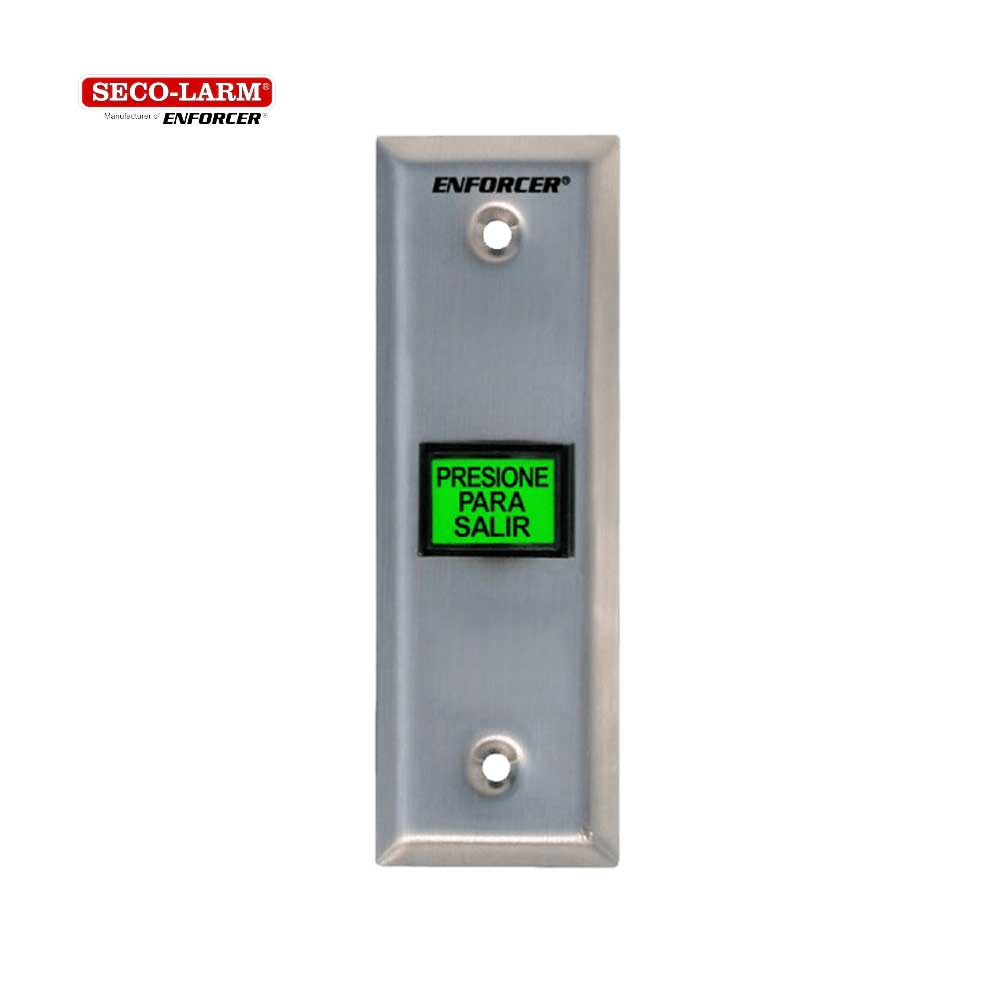

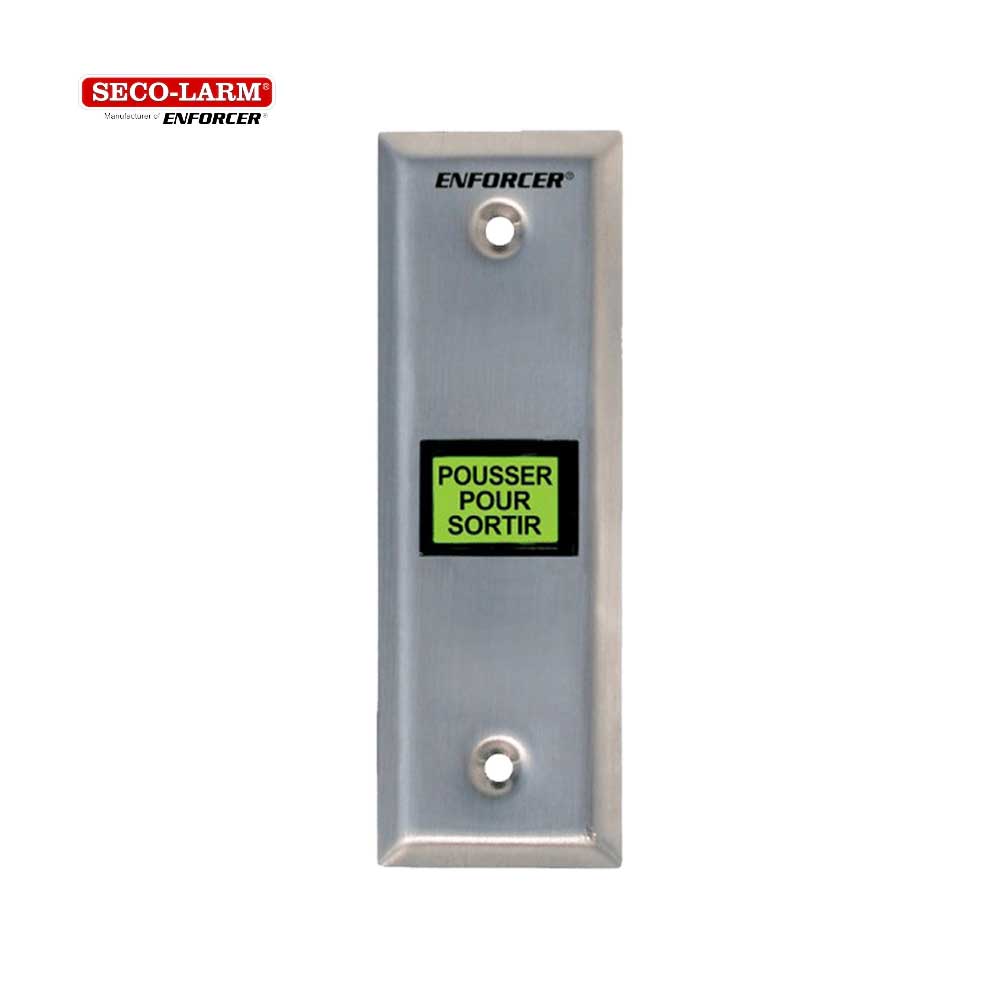

• Message language can be easily switched between English, Spanish, and French with 3 included interchangeable plates

Specifications:

Download:

• Product Information Sheet
• Manual
• Diagram
