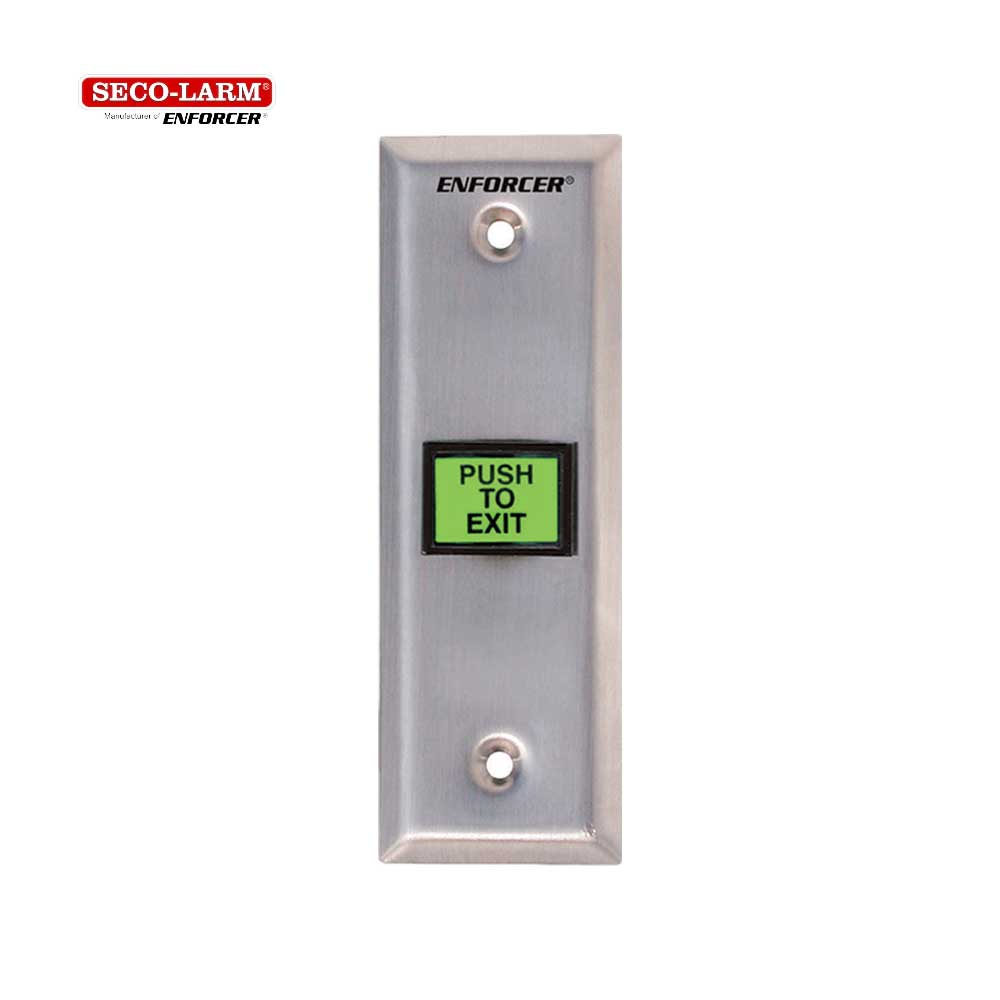

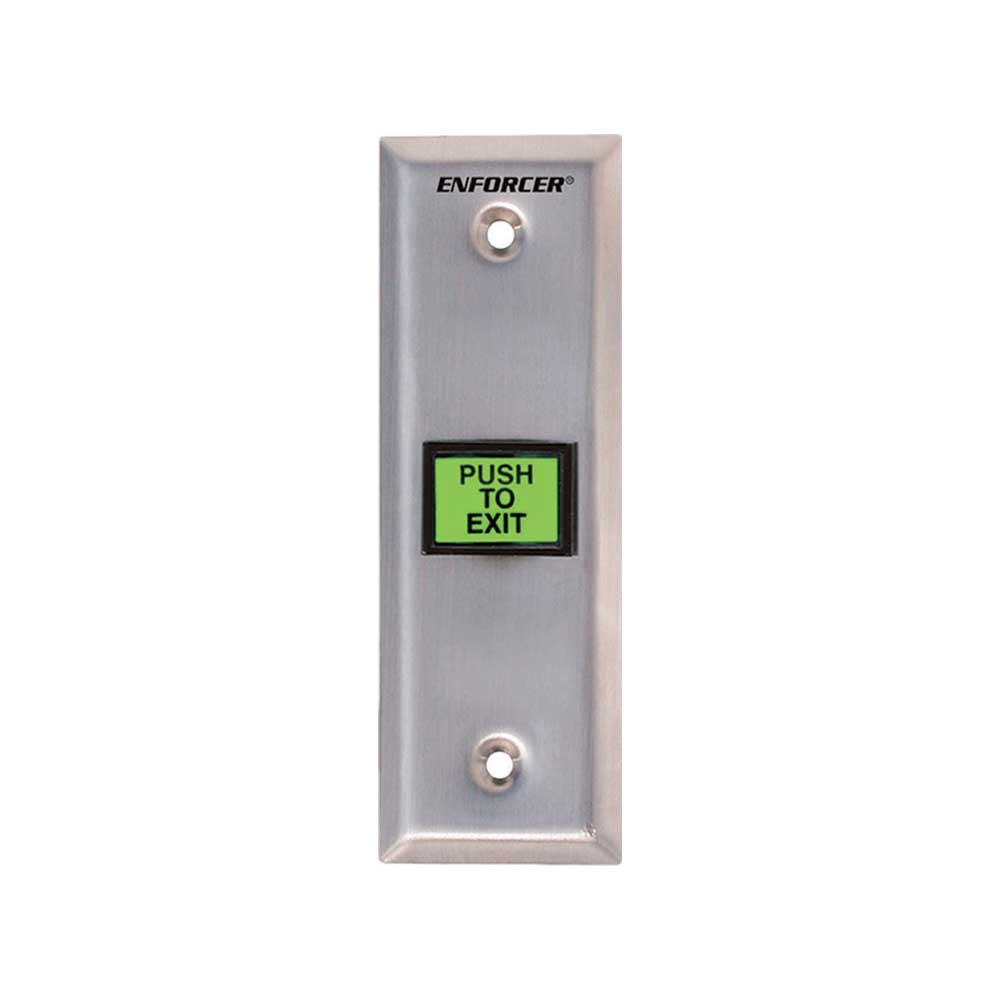

SECO-LARM SD-7103GC-PTQ Slimline LED-Illuminated RTE Wall Plate, Built-in Timer

SECO-LARM SD-7103GC-PTQ Slimline LED-Illuminated RTE Wall Plate, Built-in Timer

The SECO-LARM SD-7103GC-PTQ Slimline LED-Illuminated RTE Wall Plate with Built-in Timer is a feature-rich solution designed to enhance access control in various settings. This wall plate boasts a sleek and slimline design with integrated LED illumination, ensuring easy visibility and user-friendly operation, even in low-light conditions. What sets this model apart is the built-in timer functionality, allowing users to set a specific time duration for door access after activation. This timer feature adds an extra layer of security and control, ensuring that the door remains open for a predetermined period, and automatically closes afterwards. Ideal for high-traffic areas or scenarios where regulated access is necessary, it proves to be a valuable asset in optimizing access management and overall security measures.

Features:

• SPDT Switch rated 3A@24VDC
• CE and UL approved switch
• Stainless-steel slimline plate
• Six plug-in terminals
• Six color-coded, 12″, AWG 18 wire leads with easy-to-attach spade lugs for fast installation
• Plastic terminal protector for dividing individual terminals
• Mechanical lifetime 2,000,000 operations
• LED (12V, 35,000-hour life)
• 680Ω, 0.5W resistor for 24V LED operation included

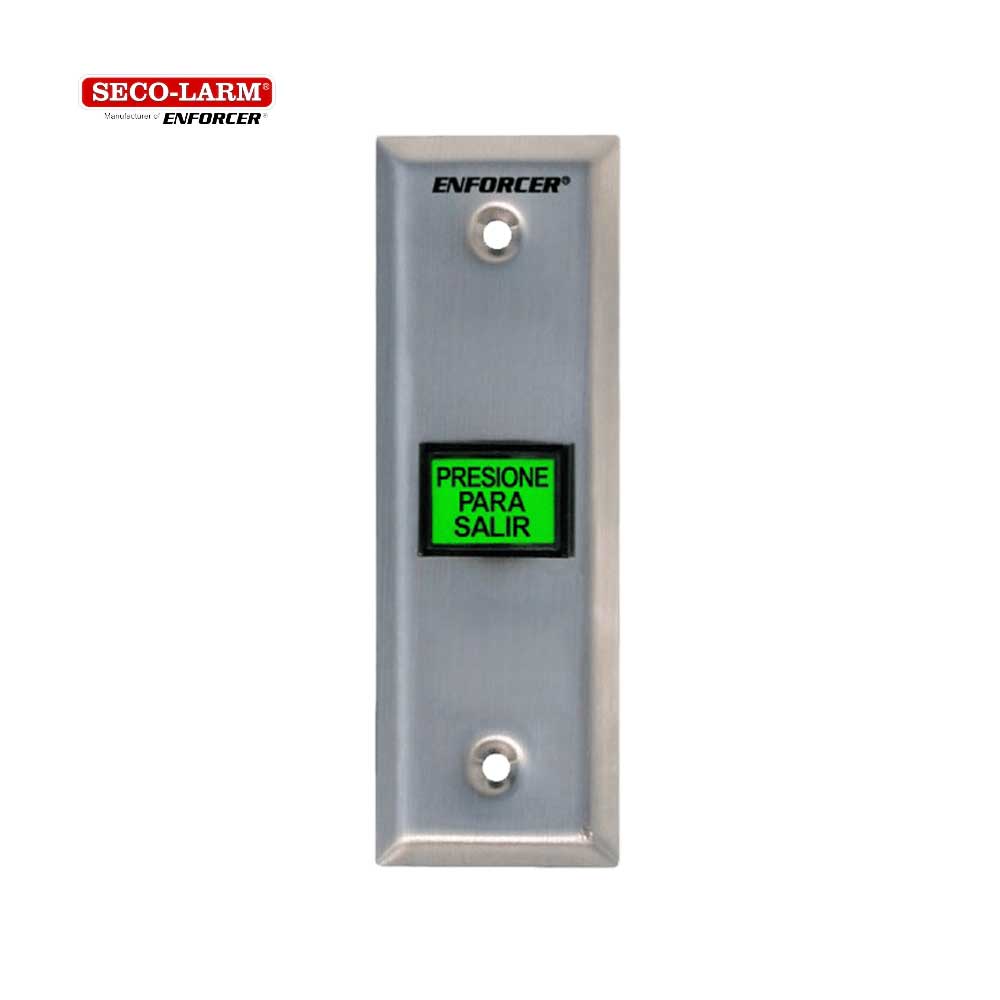

• Message language can be easily switched between English, Spanish, and French with 3 included interchangeable plates
• Built-in timer (1~180 sec.)
• Buzzer output for audio status

Specifications:

Download:

• Product Information Sheet
• Manual
• Diagram
