Description
Description

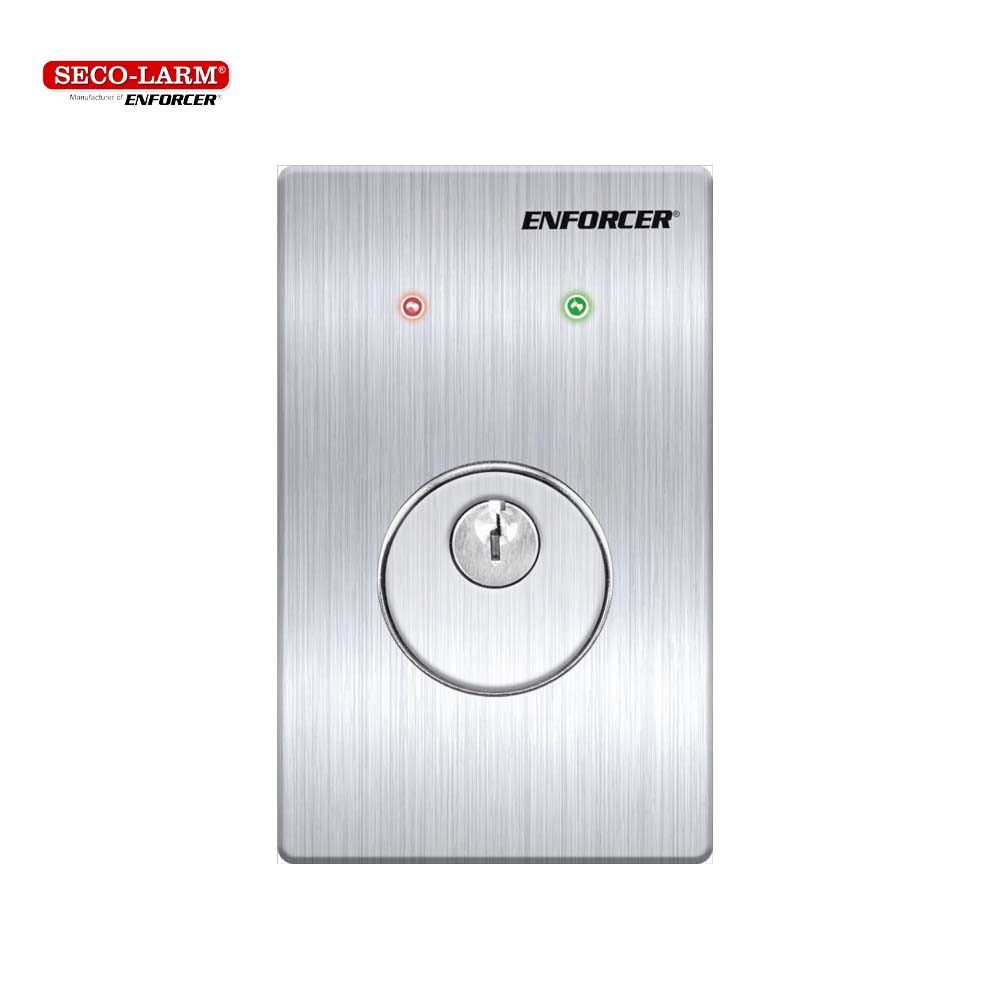

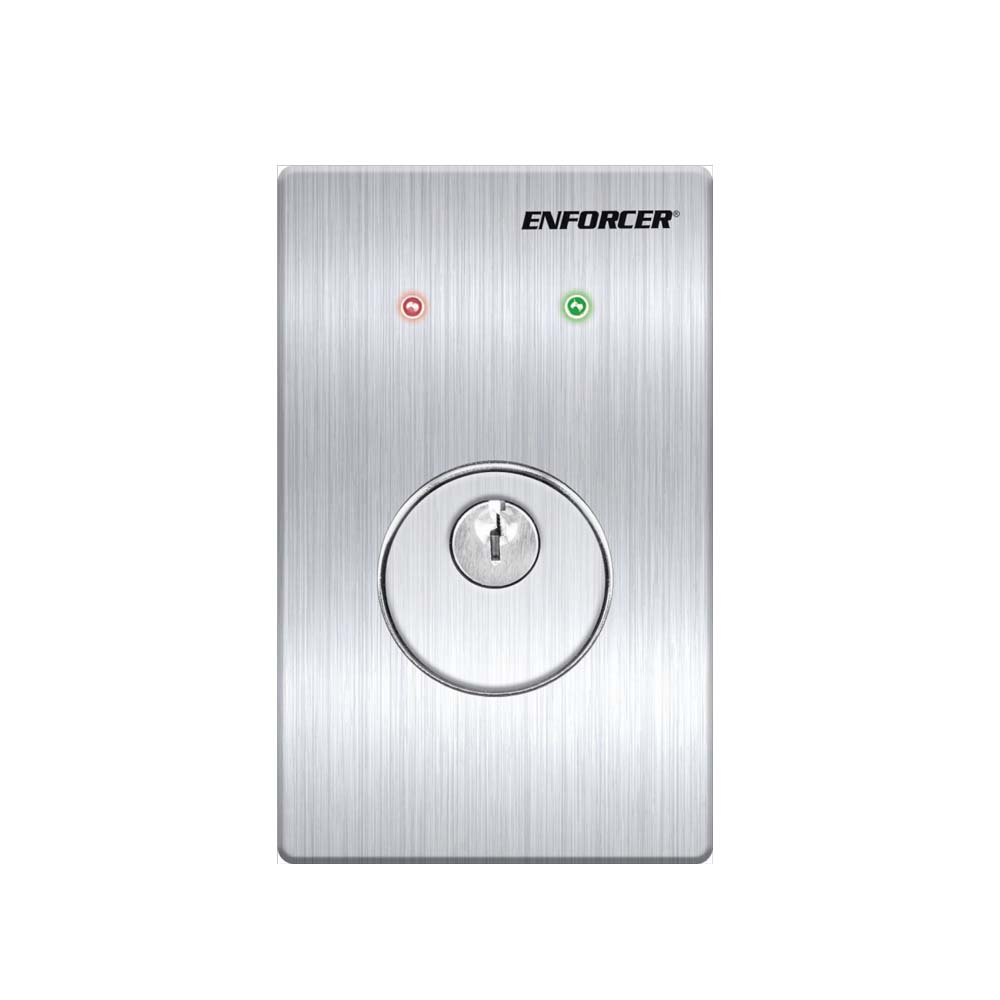

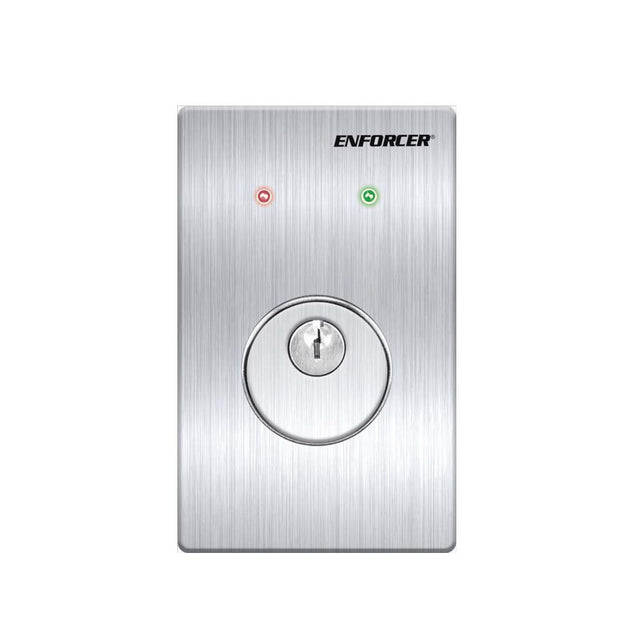

SECO-LARM SD-72281-6MQ Mortise Cylinder Key Switch with LEDs - Momentary
If a keypad or proximity card reader fails to activate an electronic lock, the user can switch between normally closed (N.C.) and normally open (N.O.) contacts using the ENFORCER Single-Gang Mortise Cylinder Key Switches with LED, forcing the door to open. This acts as a backup for access control systems, so that the system does not rely on the integrity of a single device.
Features:
- Keyed mortise cylinder (2 keys included)
- Mortise cylinder removable for ease of keying
- Red (standby) and green (triggered) LEDs
- Flush mount with vandal-resistant security screws
- Chrome-plated aluminum back plate fits to single-gang back box
- Stainless steel front cover conceals mounting screws
- DPDT, 25A@24VAC contact rating

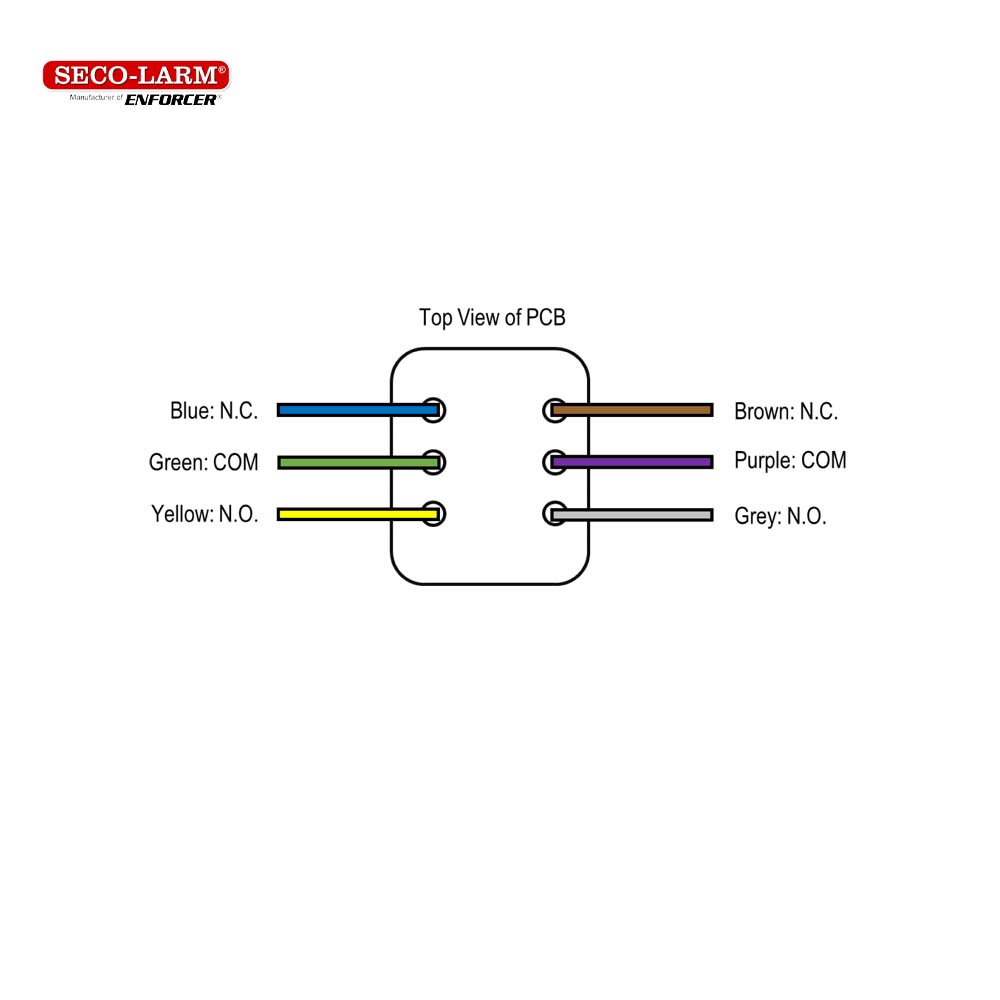

- Color-coded wires for easy wiring
- Momentary output
Specifications:
| Output | Momentary |
| Switch type | DPDT Switch |
| LED Indicators | Red (standby) and green (triggered) |
| Contact switch | 25A@24VAC, NO/NC |
| Dimensions | 2-3/4″x4-1/2″x1-7/16″ (69x114x37 mm) |
