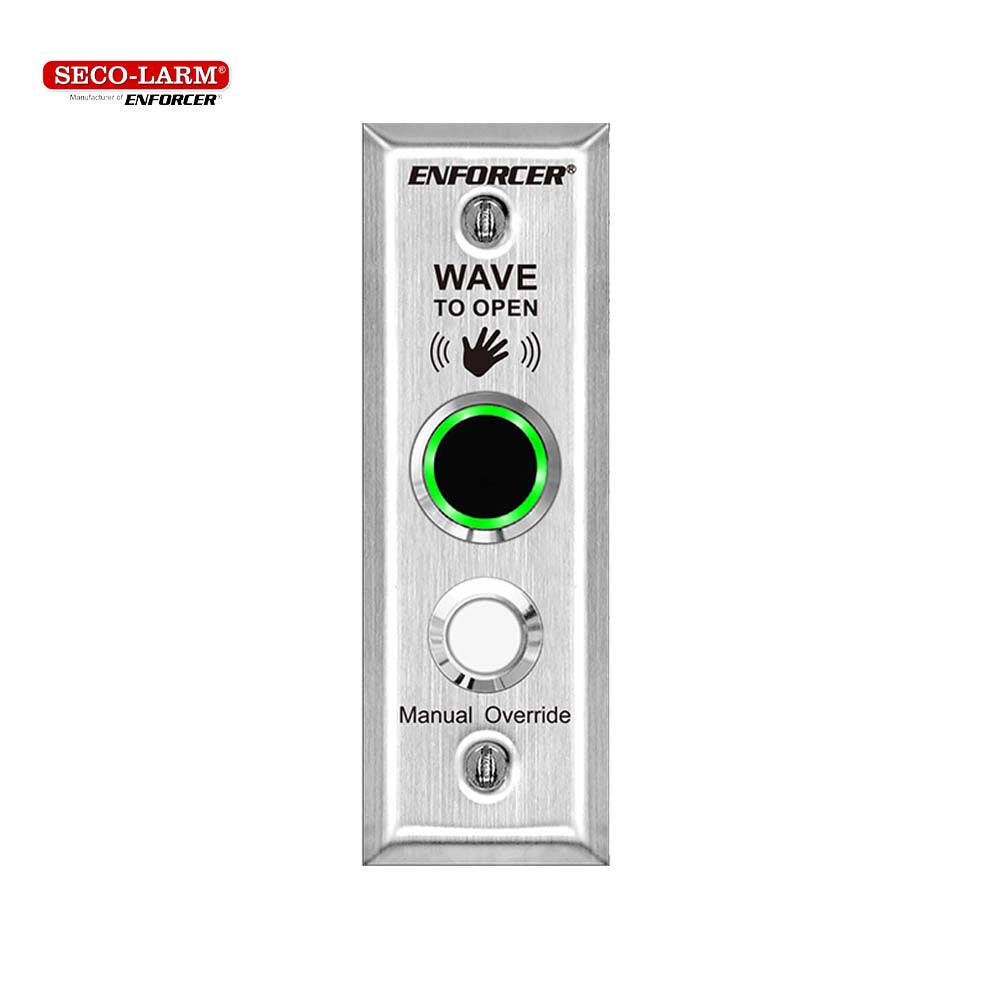

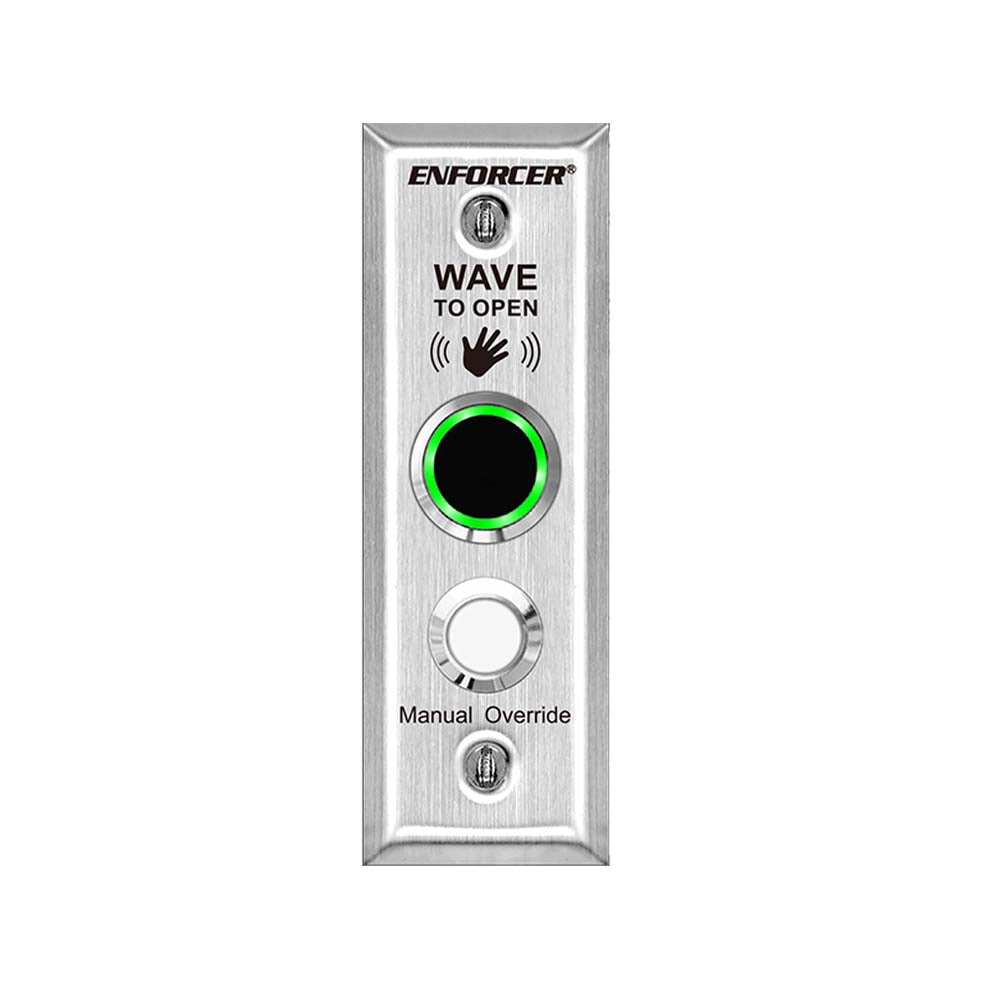

SECO-LARM SD-9163-KSVQ Outdoor Wave-to-Open Sensor with Manual Override – Slimline – English
The ENFORCER Outdoor Wave-to-Open Sensor is a full-featured exit plate which uses IR technology to allow egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is suitable for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices.
Features:
- ETL, Conforms to UL Std. 294
- Adjustable sensor range up to 7″ (18cm)
- 1.2A relay, adjustable trigger duration 0.5~30 seconds or toggle
- LED illuminated sensors are for easy identification
- Selectable LED colors turn from red to green (or green to red) when the sensor is activated
- Stainless steel plate
- IP65 Weather-resistant for outdoor use
- Power must be provided by low-voltage power-limited/Class 2 power supply
- Use only low-voltage field wiring and do not exceed 98.5 ft (30m) activated
Specifications:
| Operating temperature | 12~24 VDC |
| Current draw (max. ±10%) |
Standby red (12/24 VDC): 13mA / 15mA, Triggered green (12/24 VDC): 21mA / 25mA, Standby green (12/24 VDC): 12mA / 14mA, Triggered red (12/24 VDC): 23mA / 28mA |
| Relay type | SPDT dry contact, 1.2A@24VDC |
| Response time | 10ms |
| LED | Standby: Red*, Triggered: Green* |
| Range | 2″~7″ (5~18 cm) |
| Destructive attack level | Level I |
| Line security | Level I |
| Endurance level | Level IV |
| Standby power | Level I |
| IP Rating | Weatherproof, IP65 |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 1-1/2″ x4-1/2″(39 x115 mm) |
| Weight | 2.7-oz (77g) |
Download:
