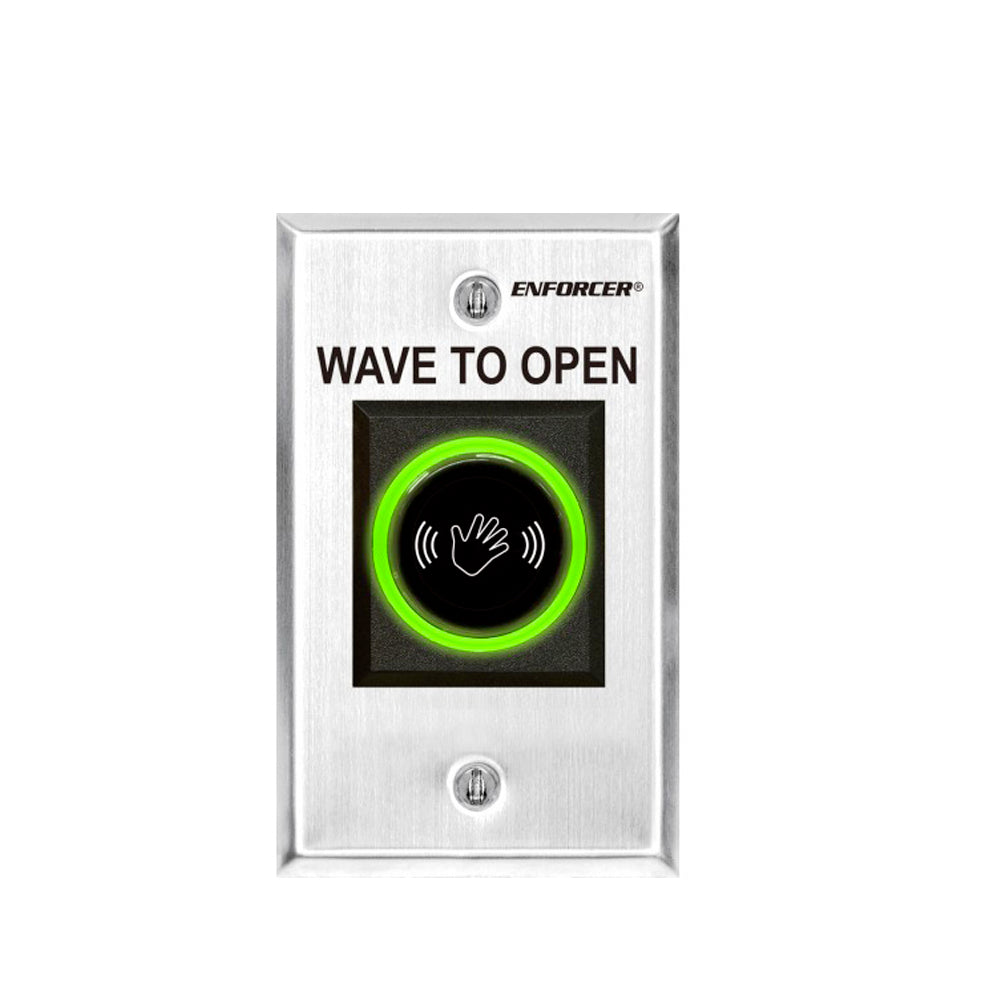

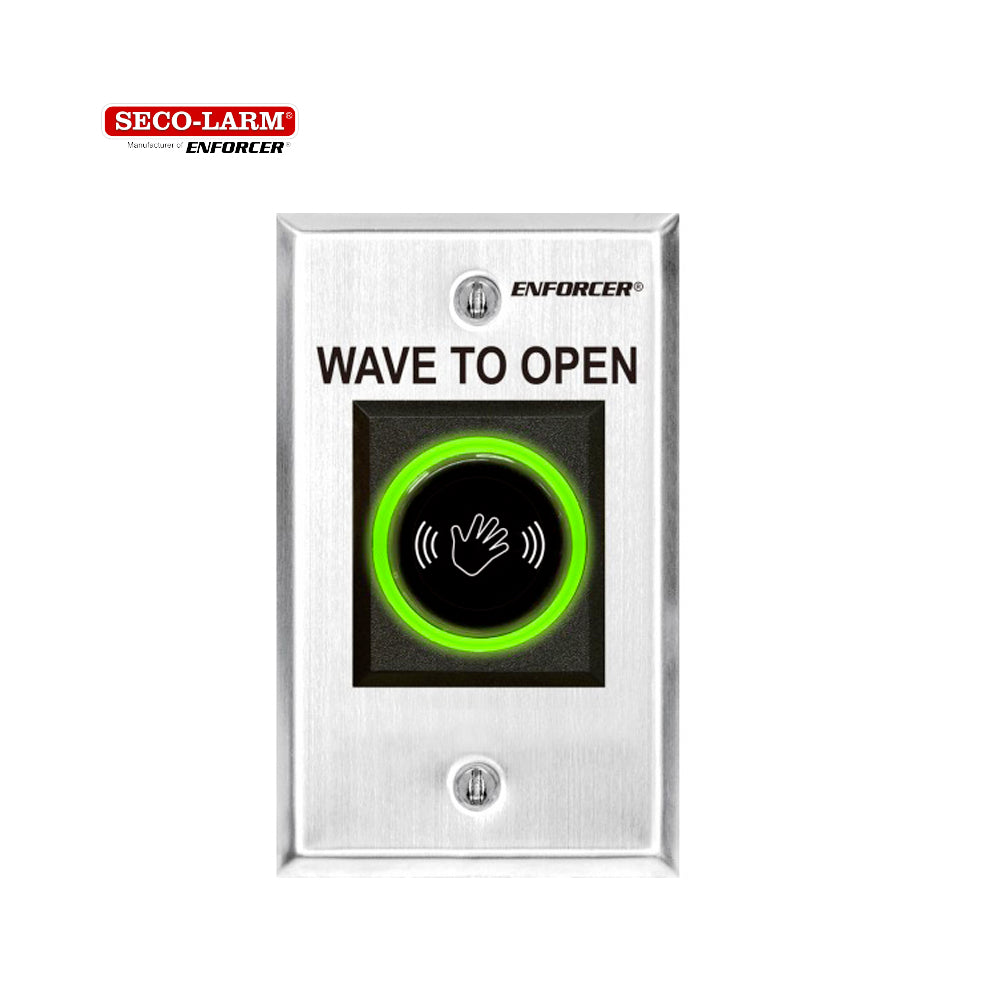

SECO-LARM SD-927PKC-NEQ Wave-To-Open Sensor - English
The ENFORCER Wave-To-Open Sensors use IR technology to request egress from a protected area or activate a device with the simple wave of a hand. Since no touch is required, this sensor is ideal for use in hospitals, clinics, labs, cleanrooms (to reduce the risk of contamination), schools, factories, or offices. The SD-927PKC-NEVQ adds a manual override button. Also available with Spanish (SD-927PKC-NSQ, SD-927PKC-NSVQ) or French (SD-927PKC-NFQ, SD-927PKC-NFVQ) faceplates.
Feature:
- Dual voltage, 12~24 VAC/VDC
- Range adjustable from 23/8"-8" (6~20 cm)
- Stainless steel single-gang plate
- 3A relay, adjustable from 0.5~30 sec, toggle, or as long as hand is near the sensor
- LED illuminated sensor area for easy identification
- Quick connect screw-less terminal block
- Selectable LED colors (turns from red to green or green to red) when activated ​
Specifications:
| Type | Wave-to-Open Request-to-Exit Sensor Wall Plates |
| Current Draw | 120mA@12VDC |
| Sensing Range | Adjustable, 2-3/8"~8" (6-20 cm) |
| Operating Voltage | 12~24 VAC/VDC |
| Reaction time | 10mS |
| LEDs - Red | Standby |
| LEDs - Green | Triggered |
| Relay Type | Form C (NO/NC/COM) 3A@24VDC |
| Output Time | Adjustable, 0.5~30sec., toggle, or as long as sensor is triggered |
| Operating Temperature | -4°~131° F (-20°~55° C) |
| Dimensions | 4-1/2" x 2-3/4" x 1-5/16" (115 x 70 x 33.5 mm) |
| Weight | 3oz (85g) |
Downloads:
