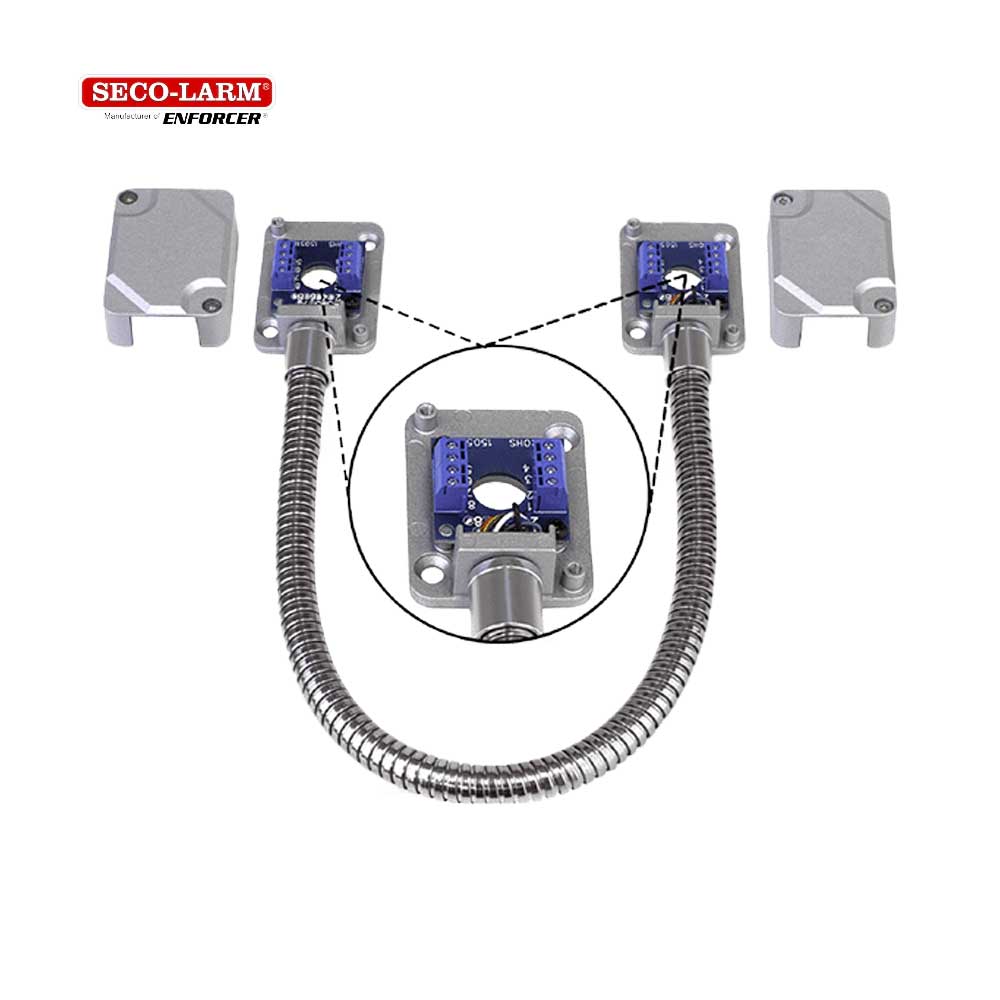

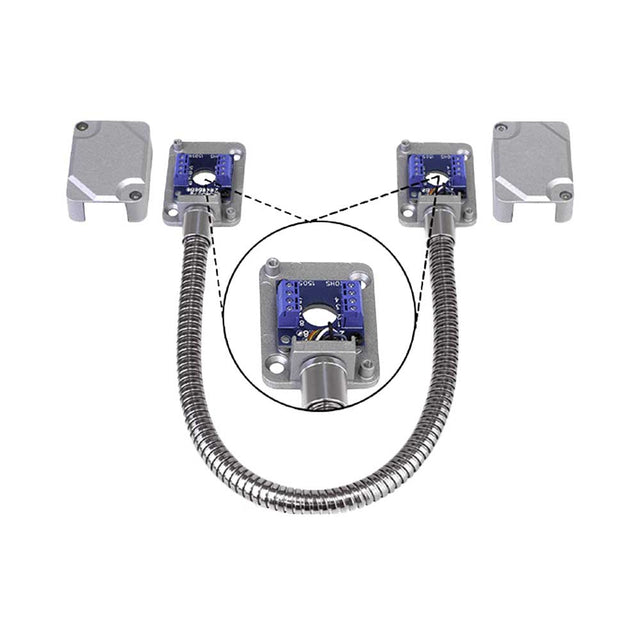

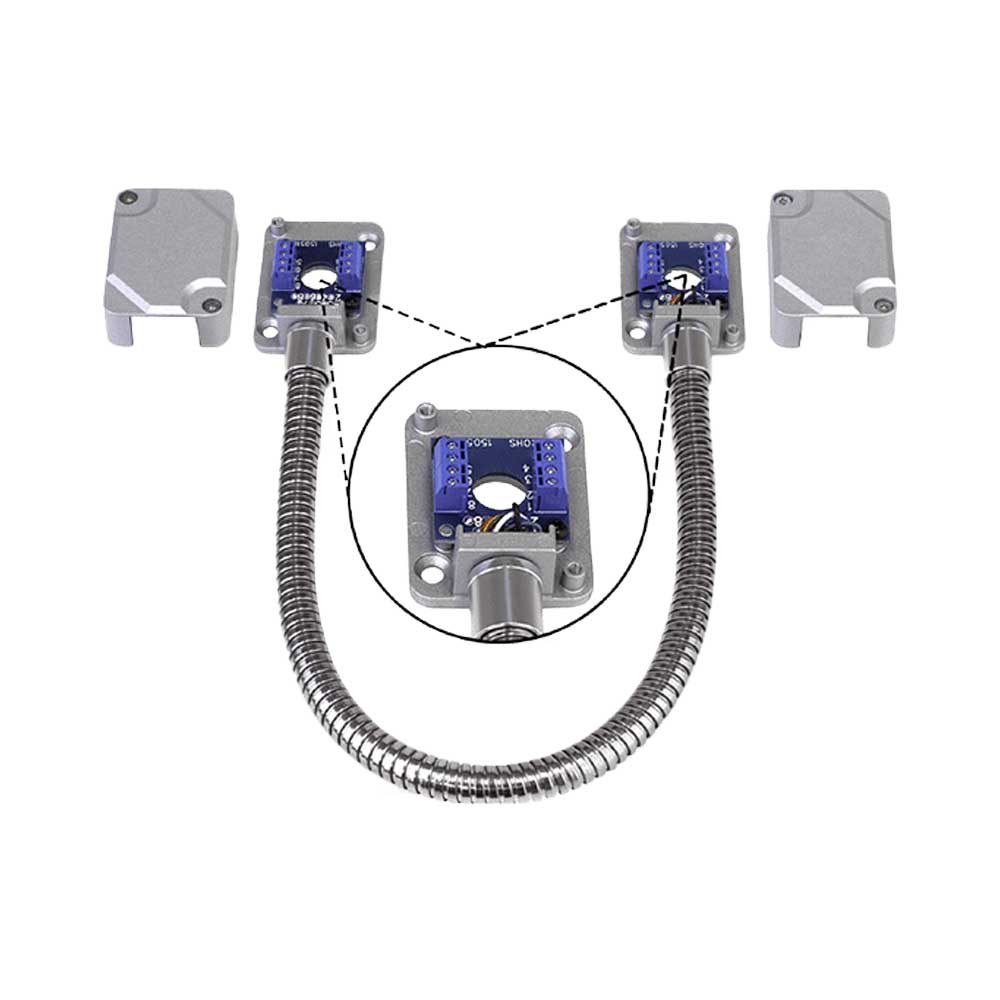

SECO-LARM SD-969-T15Q/S Armored Electric Door Cord – Removable Covers, Silver, 15 (39cm)

SECO-LARM SD-969-T15Q/S Armored Electric Door Cord - Removable Covers, Silver, 15” (39cm)

The SECO-LARM SD-969-T15Q/S Armored Electric Door Cord is a highly versatile and reliable solution designed to enhance the security and functionality of electric door systems. With its 15-inch (39cm) length and removable covers, this armored cord offers optimal protection for the wiring, safeguarding it from damage and tampering. The silver finish adds a sleek and professional look to the installation, complementing various door styles seamlessly. Whether used in commercial or residential settings, it ensures a safe and neat wiring arrangement, contributing to a more secure and aesthetically pleasing door setup.

Features:

• Designed to carry wiring to conduct power to electric locks or access systems
• Once mounted, simply remove cover to access. Door cord stays in place. No need to remove from the door. Prevents stripping of the screws and mounting points
• Surface-mounted
• Terminal blocks with pre-wired cables (8 connections) for quick, easy, and secure installation
• Maximum current – 3A@30VAC/VDC
• 15” (39cm) Stainless steel armored cord
• Inside door-cord diameter: 5/16” (8mm)
• Outside door-cord diameter: 7/16” (11mm)
• End cap dimensions: 2-3/16″x7/8″x1-9/16″
• Security screws (included) prevent tampering
• Available in bronze or silver finish

Specifications:

Download:

• Product Information Sheet
• Manual
