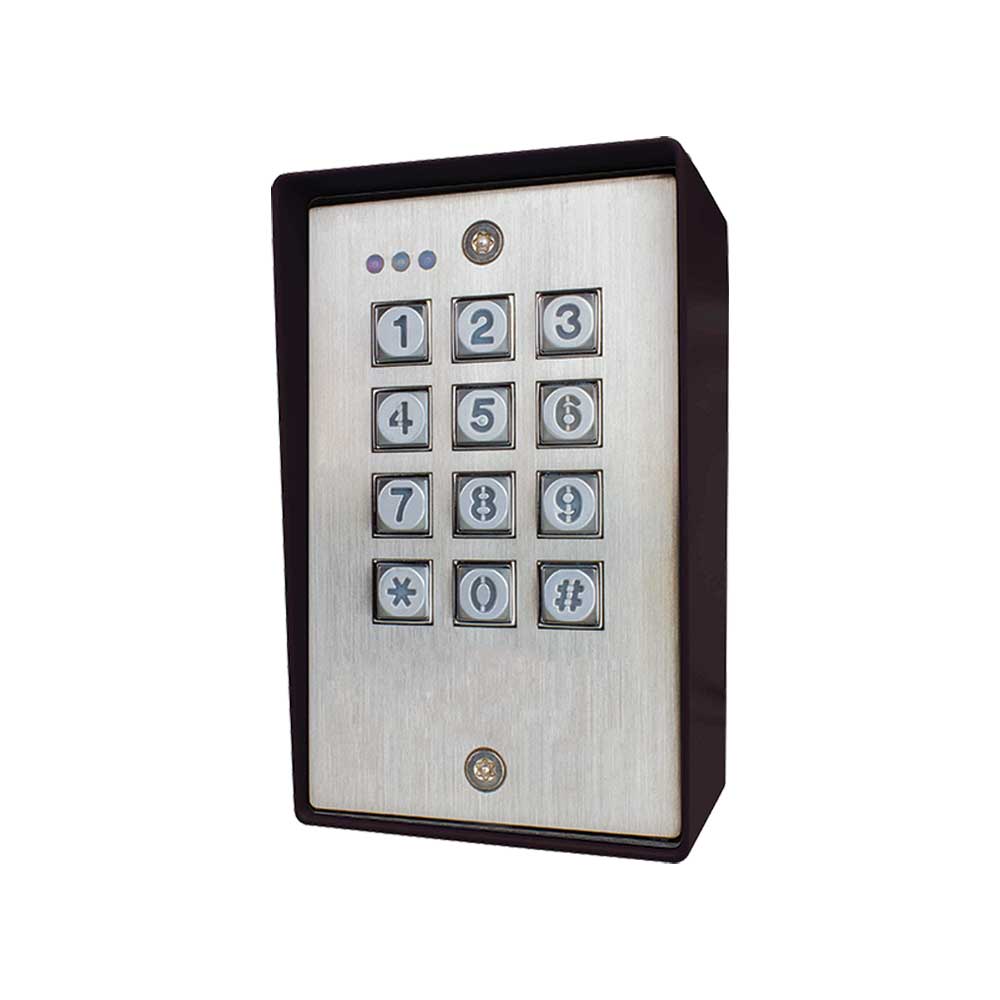

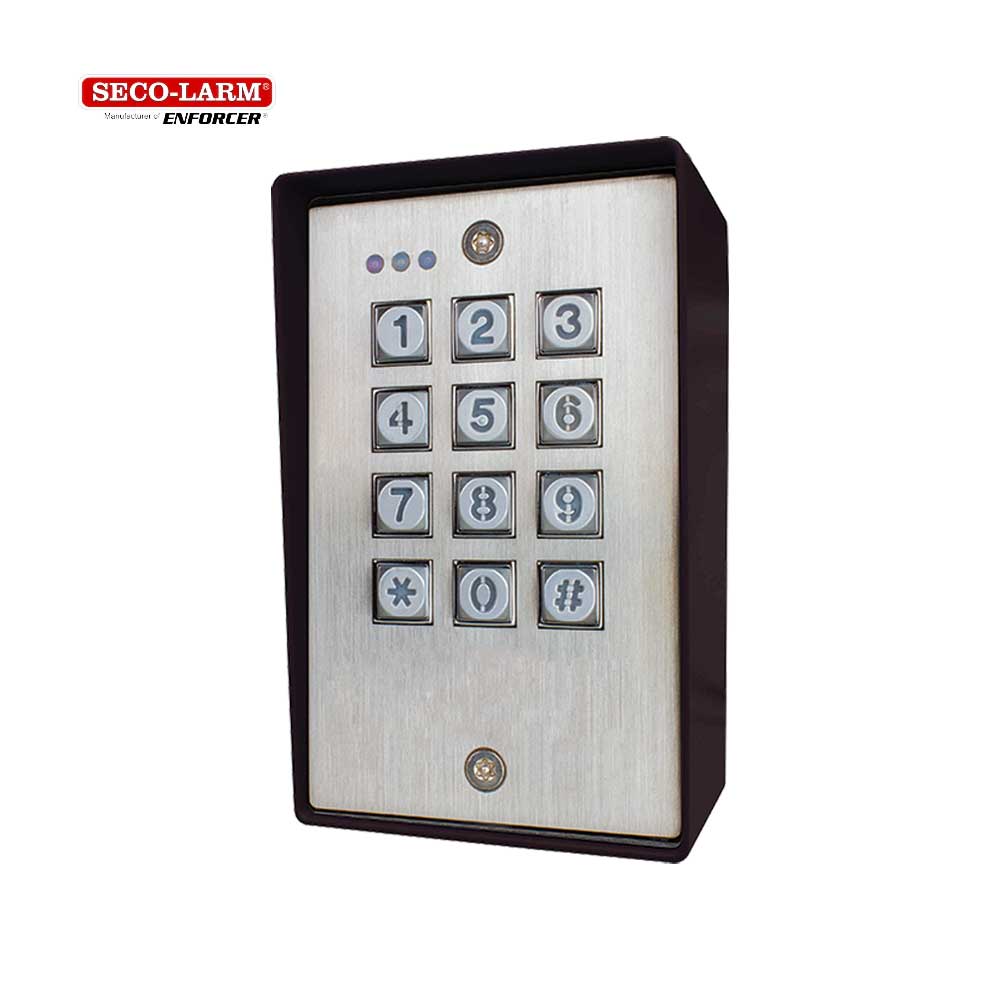

SECO-LARM SK-1123-SDQ Vandal Resistant Outdoor Access Control Keypad

SECO-LARM SK-1123-SDQ Vandal Resistant Outdoor Access Control Keypad

The SECO-LARM SK-1123-SDQ Vandal Resistant Outdoor Access Control Keypad is a rugged and reliable solution designed to provide secure access control in outdoor environments. This keypad is specifically engineered to withstand harsh weather conditions and resist tampering attempts, making it ideal for high-traffic areas where durability and security are crucial. With its weatherproof construction, the SK-1123-SDQ is built to endure exposure to rain, dust, and extreme temperatures, ensuring reliable performance year-round. The keypad's user-friendly design and illuminated keys make it easy to use, even in low-light conditions. Offering versatile programming options, this access control keypad is suitable for various applications, from residential and commercial properties to industrial facilities. This keypad provides a robust and dependable solution for controlling access to outdoor spaces, contributing to a safe and secure environment.

Features:

• 1,100 Users over 2 Outputs. Codes may be 4~8 digits: – Output #1 – Form C relay, 1A@30VDC, 1,000 users – Output #2 – Form C relay, 1A@30VDC, 100 users
• Outputs can be programmed to activate for up to 99,999 seconds (nearly 28 hours)
• Super user code gives admin access to keypad
• Up to 50 (01~50) possible temporary visitor codes, which can be programmed for one-time or limited-time use (1~99 hours)
• Programmable egress input with optional warning alarm and delayed egress
• Real-time clock to auto-disable access at specific times
• Up to 50 (01~50) duress codes for output #1 and 10 (01~10) for output #2
• Duress code signals a silent alarm if an authorized user is forced to open the door under duress
• 12~24 VDC/VAC Auto-adjusting operation
• All features are programmed directly from the keypad: No need for an external programmer
• IP66 Weatherproof Rating
• Mounts to a standard single-gang back box (surface-mount back box included)
• Durable and attractive stainless steel faceplate
• Tamper output: N.C. Dry contact, 50mA@24VDC max.
• Keypad illuminates when a button is pressed; backlight can be programmed for FULL, AUTO, or OFF in standby mode
• Mantrap: for a protected area with two doors, this feature allows only one door to be open at a time
• Door sensor input for anti-tailgating operation
• Door-propped-open warning
• Door-forced-open warning
• EEPROM Memory protects programmed information in case of power loss

Specifications:

Download:

• Product Information Sheet
• Manual
• User Control Guide
