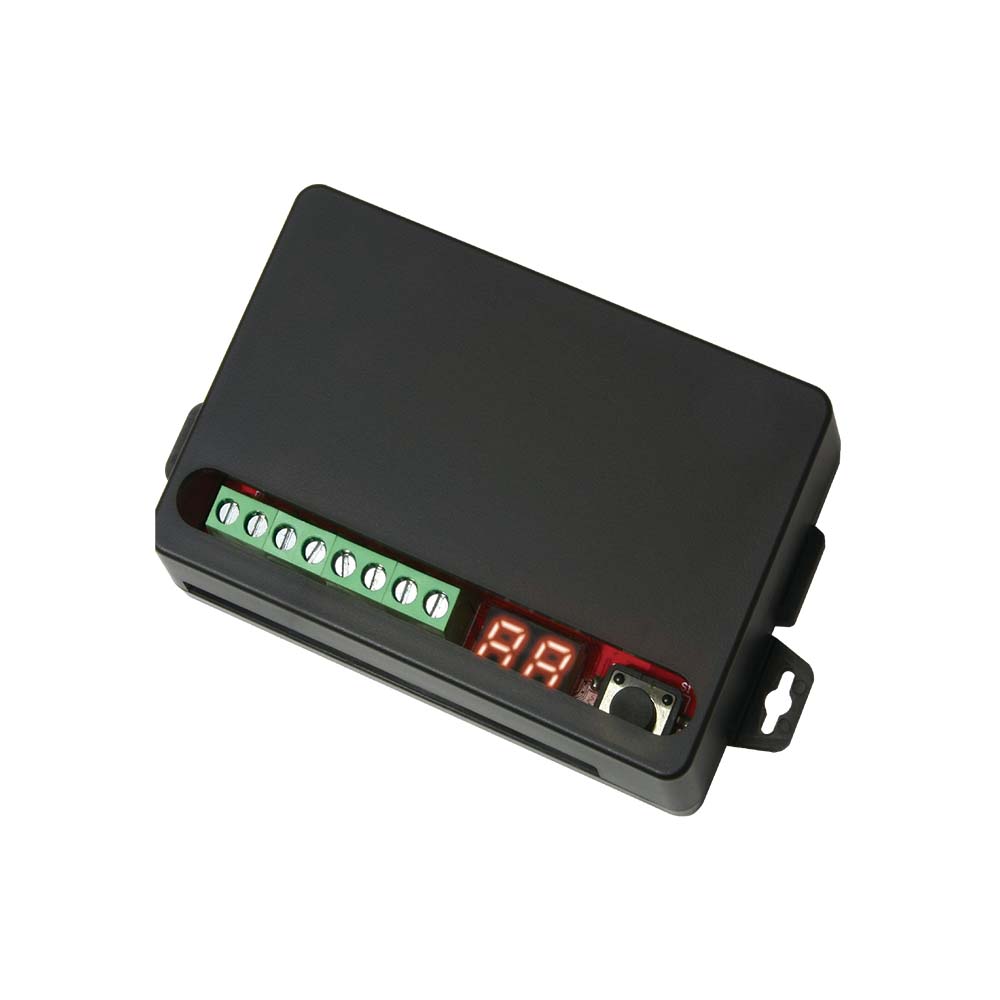

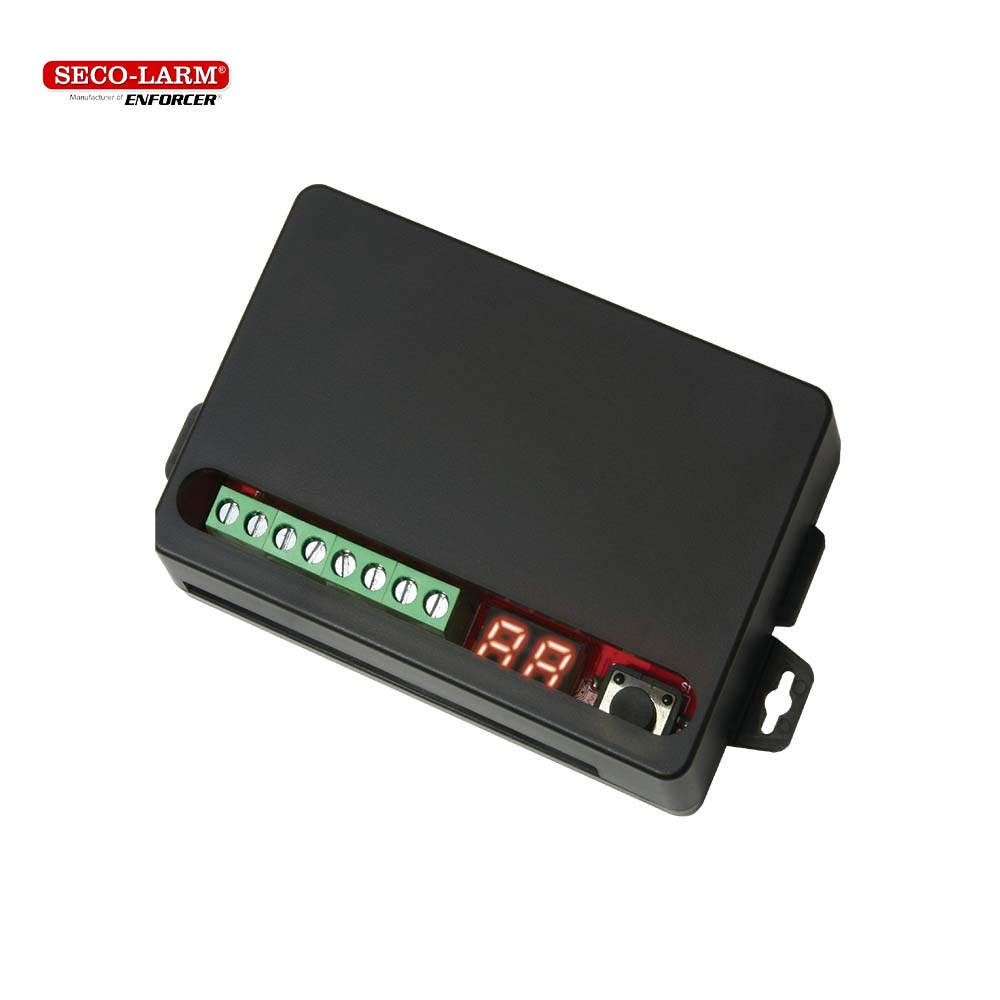

SECO-LARM SK-910RD1 - 1 Channel RF Receiver Compatible with All ENFORCER SK-Series and Dual Frequency Support
ENFORCER 2-Channel RF Receiver offers multiple independently controlled output modes to remotely control a variety of devices including garage doors, lights, motorized gates, lifts, and more. Now with dual-frequency support, it offers increased flexibility and compatibility with all ENFORCER 315 or 433.92MHz transmitters, both fixed and code-hopping CODEBUMP variants.
Features:
- Compatible with all ENFORCER SK-series transmitters of the receiver's base frequency and the optional Extended Range Antenna's frequency
- 5 Output modes/channel timed pulse (0.5~99sec), timed pulse (1~99min), toggle, latch, and follow (validity)
- Simultaneously receive 315 and 433.92MHz signals with optional Extended Range Antenna
- Range up to 500ft (150m) or up to 1,000ft (300m) with optional Extended Range Antenna
- Independently programmable channels and up to 15 transmitter button codes per channel
- Push-button programming, no jumpers to cut or switches to set
Specifications:
| Operating frequency | 315MHz* |
| Memory capacity | 15 per channel |
| Operating voltage | 10~24 VAC/VDC |
| Operating current | Standby: 16mA@12VDC, 12mA@24VDC, Active: 60mA@12VDC, 50mA@24VDC (both per channel) |
| Relay output modes | Type: Independent, sequence, access control, Modes: .05~99 sec momentary (default, 1s) 1~99 min momentary, toggle, latch, follow (validity) |
| Relay contacts | Number: 1, Rating: Form C 10A@14VDC |
| Connectors | Screw terminals, +, -, with NO/NC/COM per relay |
| Digital display | 2-digit, 7-segment LED |
| Operating humidity | 5~95%, non-condensing |
| Operating temperature | 32°~167° F (0°~75° C) |
| Dimensions | 4-3/16"x7/8"x2-3/8" (107x23x60 mm) |
*Can simultaneously receive 433.92MHz signals with optional SK-93ERSD Extended Range Antenna
