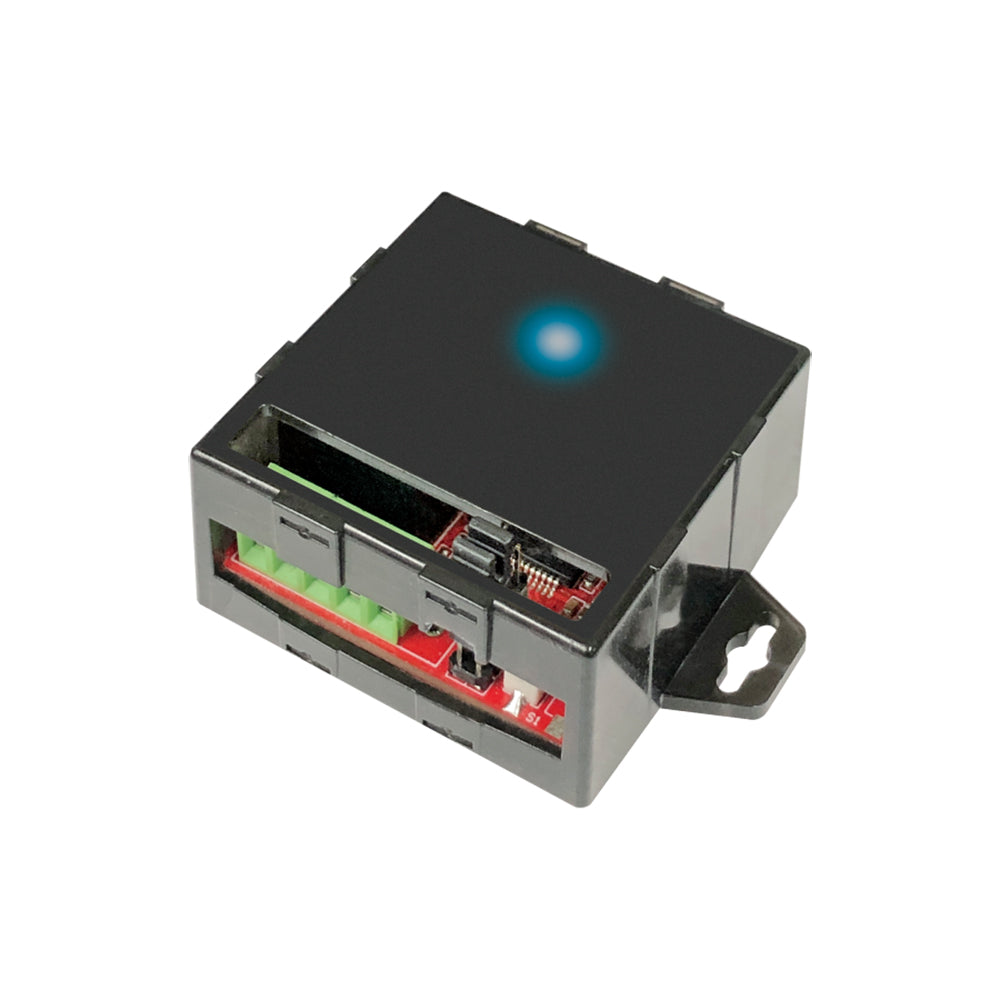

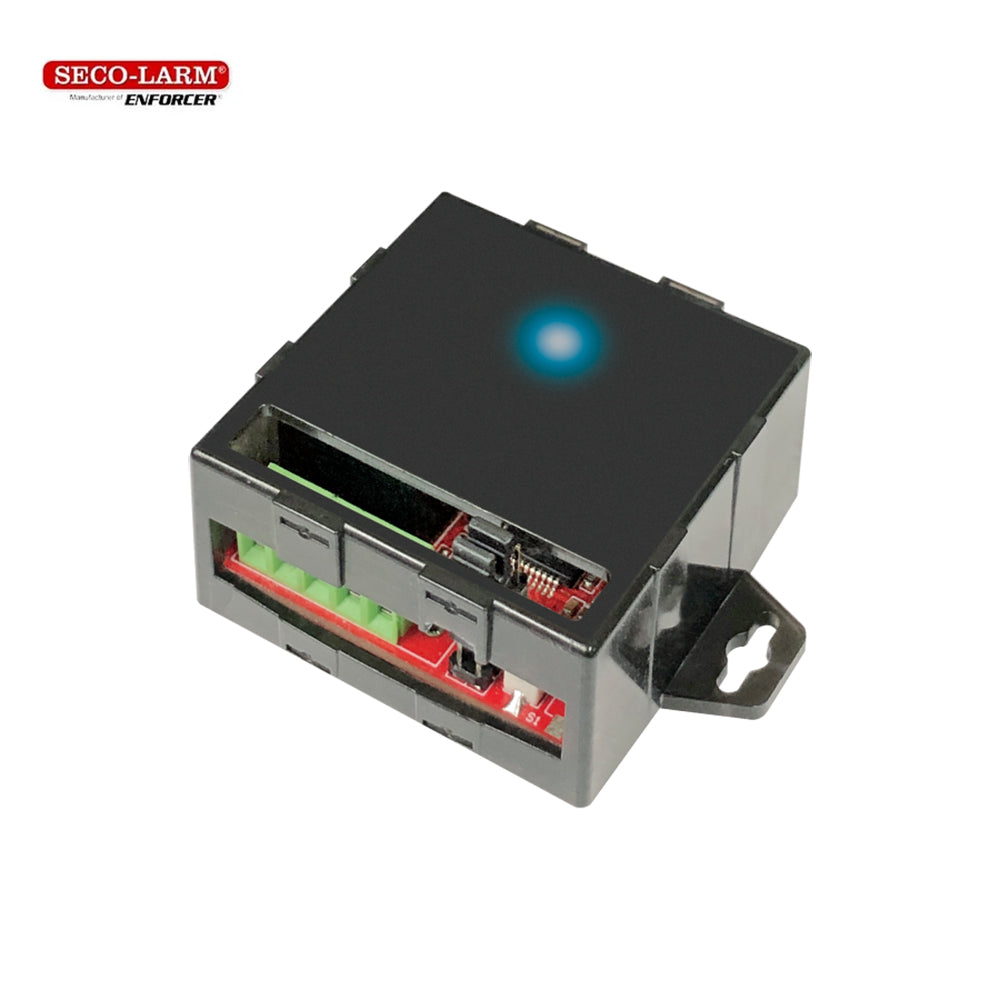

SECO-LARM SK-910RG1-L4 Miniature 1-Channel 433.92MHz RF Receiver with Transistor Ground Output
The ENFORCER Miniature 433.92MHz 1- Channel RF Receiver provides all the important features you need in a miniature housing, small enough to fit inside a standard conduit box. Includes 4 programmable output modes, a transistor ground output, and very low-voltage (3~13.8 VDC).
Features:
- Compact housing fits in a standard conduit box
- Mounting tabs scored for easy removal
- Low-voltage (3~13.8 VDC) models
- Learn up to 8 transmitter button codes per channel
- Range†: Up to 500ft (150m), or up to 800ft (240m) with optional Extended Range Antenna (SK-93ERSD)
- 4 Independently switchable output modes, programmable via jumpers - 1 second (default), 10 seconds, 30 seconds, or toggle
- Transistor ground relay (3A@12VDC)
- Compatible with all ENFORCER transmitters of the same frequency
Note: *Actual operating range will vary greatly depending on the installation and operating environment.
Specification:
| Operating frequency | 433.92MHz |
| Certifications | FCC, CE, IC, RoHS |
| Memory capacity | Up to 8 button codes per channel |
| Operating voltage | 3~13.8 VDC |
| Current draw (max.) | Standby: 7mA@12VDC Active: 8mA@12VDC per channel |
| Channels | 1 |
| Outputs | Number: 1 Type: Transistor GND Rating: 3A Modes:1 second (default), 10 seconds, 30 seconds, or toggle |
| Connectors | Screw terminal block |
| Connections | Exposed screw terminals |
| LED Indicator | Blue, channel activity |
| Range* | Up to 500ft (150m), or up to 800ft (240m) with optional Extended Range Antenna (SK-93ERSD) |
| Operating humidity | 5~95% non-condensing |
| Operating temperature | -40°~167° F (-40°~75° C) |
| Dimensions | 1-11/16" x 7/8" x 1-11/16" (43 x 23 x 43 mm) |
| Weight | 0.75-oz (21g) |
