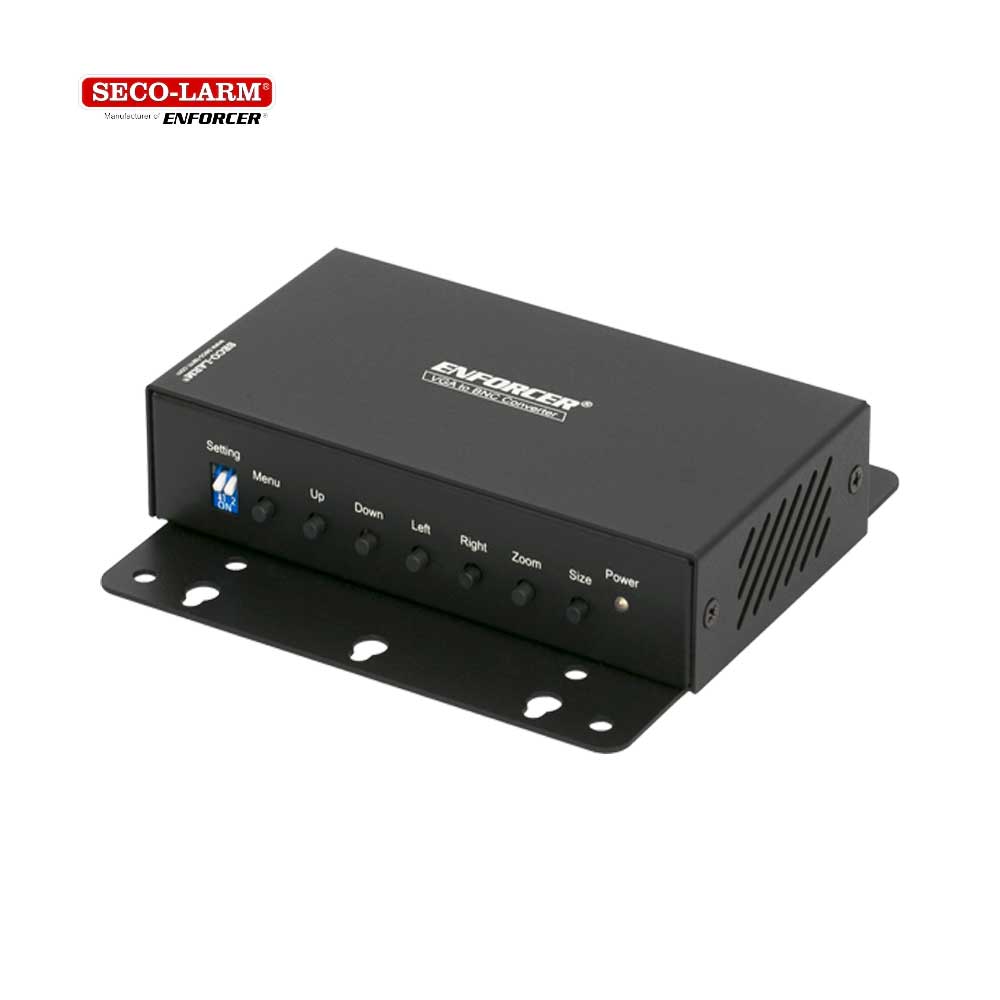

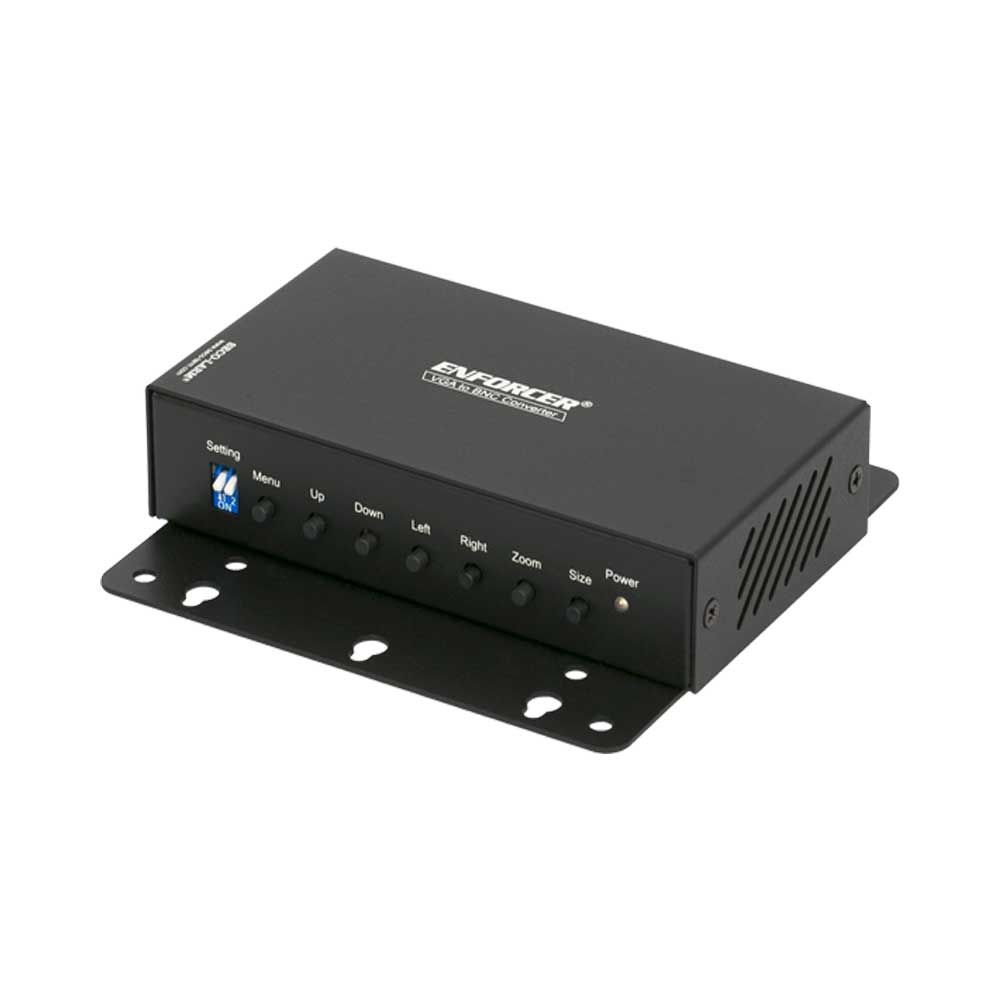

SECO-LARM VC-2VAQ VGA-to-BNC Converter

The VC-2VAQ converts your VGA signal to be viewed on any TV, projector, or other viewing device that uses a standard BNC connector. A VGA output allows simultaneous viewing on a VGA monitor. The converter is compact and can be mounted nearly anywhere. For example, use the included VESA bracket for mounting on most VGA monitors.

Features:
  • Connect a DVR with VGA output to an existing monitor with BNC input
  • Video standards: NTSC/PAL
  • Auto configure resolution: Up to 1024×768 (up to 75Hz)
  • Dual composite video (BNC) and VGA output ports
  • On-screen display (OSD) for image adjustments including size, brightness, contrast, hue, saturation, sharpness, and more
  • Quick installation – no driver or operating system requirements
  • Gold-plated BNC connector for longer life
  • Includes 5VDC power supply
Specification:
Type VGA to BNC
Input Signal VGA
Output Signal VGA: 0.7 Vp-p RGB, 15 pin female D-sub, Composite Video 1Vp-p 75ohm BNC
Maximum Resolution Up to 1024×768 NTSC: 720×480 PAL: 720×576
Current Draw 500mA@5VDC
Power supply 1A@5VDC, 2.5mm
Dimensions 4-13/16″x3-3/16″x1-1/16″ (122x81x27 mm)
Weight 9.3-oz (265g)
Troubleshooting:
VGA device does not function correctly
  • Make sure power, input, and output cables are firmly connected to the converter.
  • Make sure the video input device is turned on.
  • Make sure the video output device is turned on.
  • Test the coaxial cable between the video source and converter to ensure it is functional.
  • Test the VGA cable between the video monitor and converter to ensure it is functional.
  • Ensure that switches are set correctly for NTSC/PAL
Power LED indicator not lit
  • Make sure power is connected to the converter
