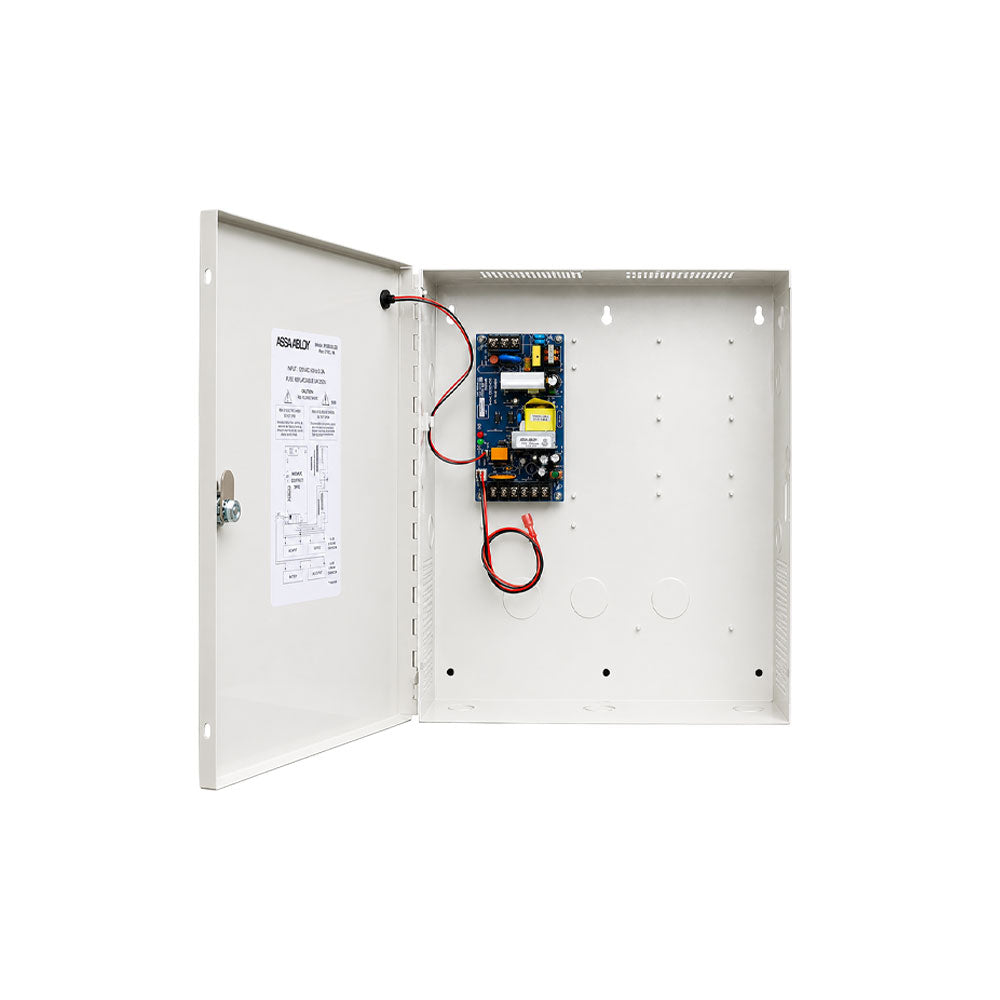

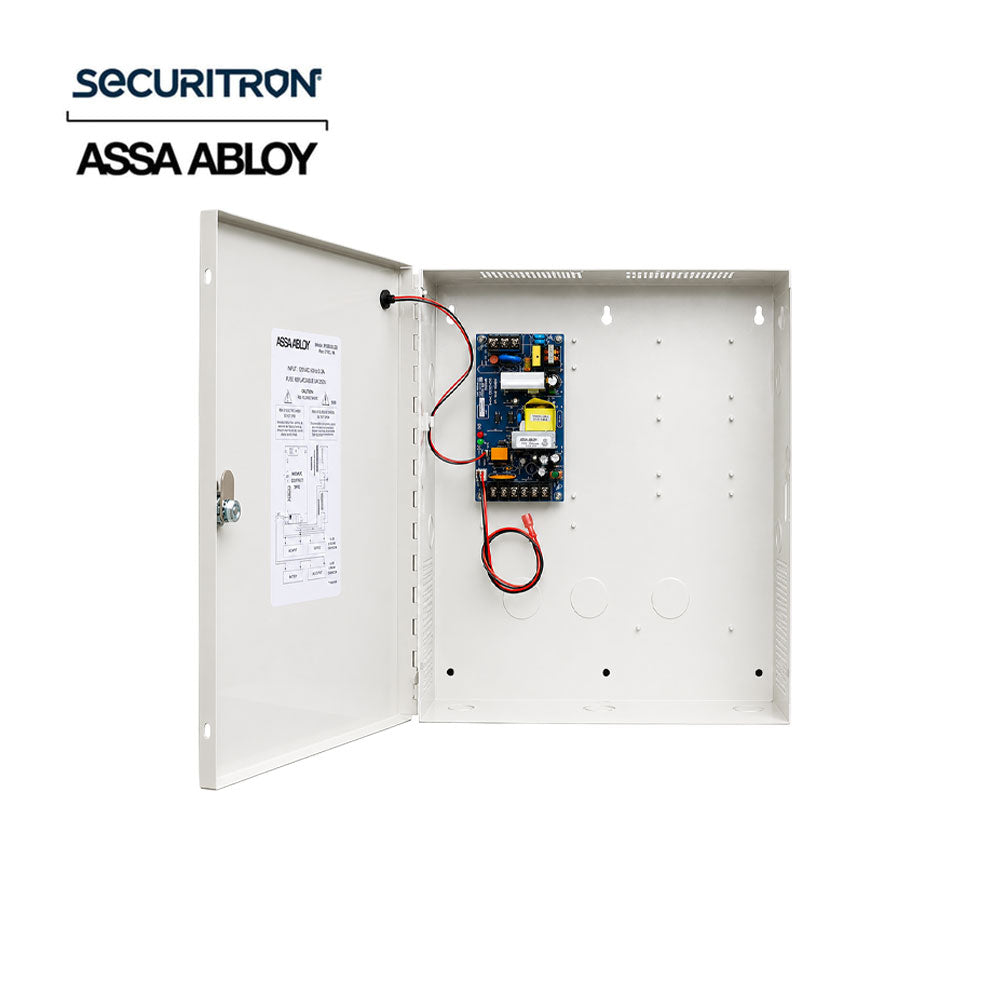

Securitron - AQD1 - Dual Voltage Power Supply with Enclosure 12-24 VDC, 1 Amp
The Securitron AQD1 Series of switching power supplies are dual voltage, UL listed, supervised units. These units are field selectable with an integrated battery charger. They provide 1 Amp at 12VDC or 24VDC continuous, with up to 16 independently controlled power limited outputs.
Features:
- All combinations of AQ power supplies and distribution boards are UL listed.
- Integrated battery charging circuit prevents overvoltage on locking devices.
- Dual voltage 12 or 24 VDC field selectable continuous output.
- Available with a single relay fire trigger or individually triggered relayed outputs.
- Up to 82% efficiency which results in decreased operating costs and lengthens the lifespan of electronics.
- Circuit breaker protects against overcurrent and reverse battery faults.
- Thermal shutdown protection with auto restart.
- Tolerates brownout or overvoltage input ± 15% of nominal voltage
Specifications:
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -4 |
| Power Supply Type | Switching |
| Voltage | 12/24 |
| Output Amps | 1 |
| Output Voltage | 13.7/27.4 |
| Monitoring Options | Yes |
| Shipping Weight (lbs) | 12-7/10 |
| Height | 14" |
| Width | 14" |
| Depth | 4-3/4" |
