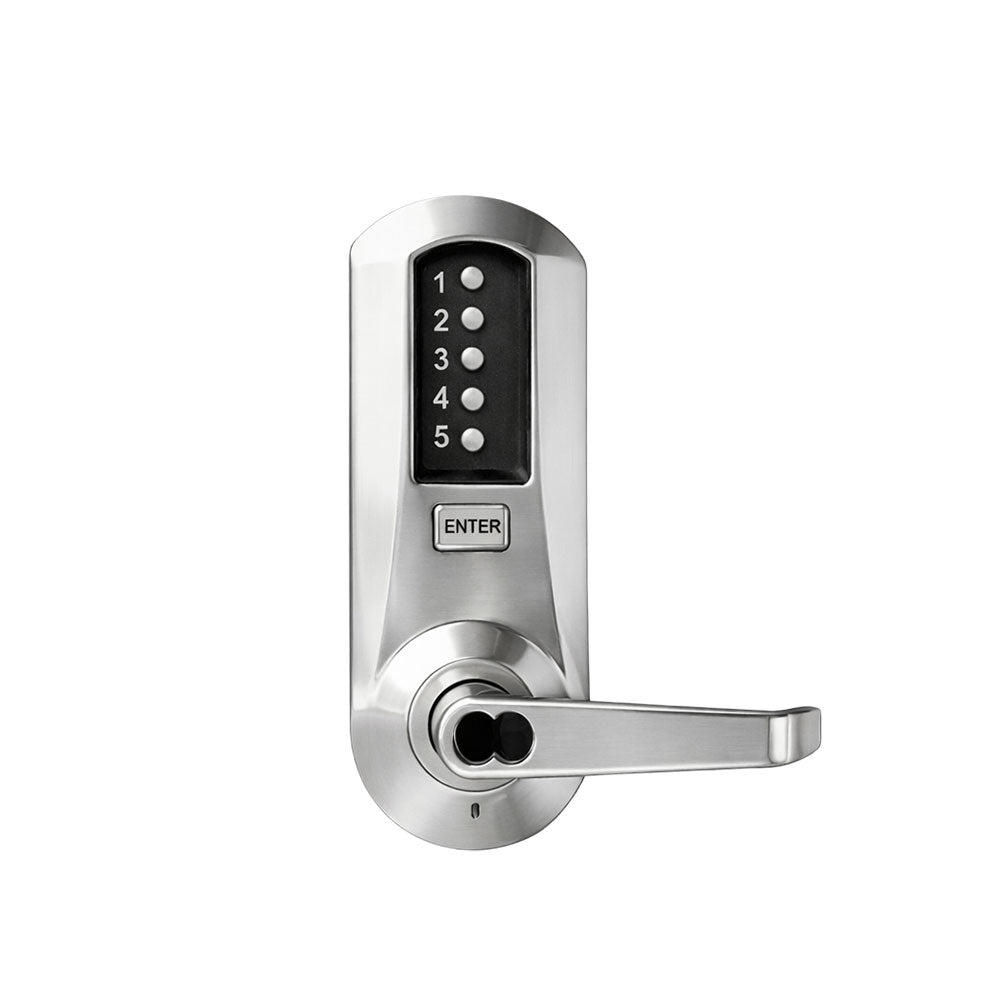

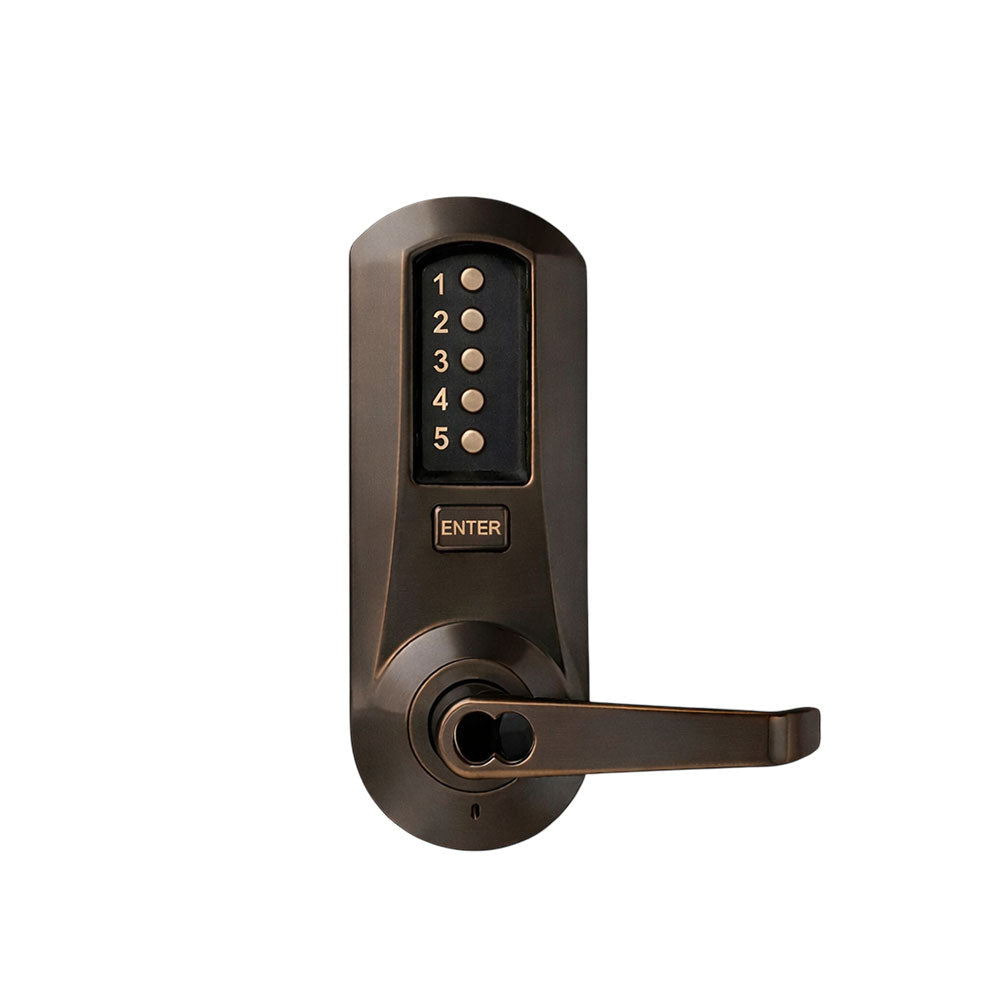

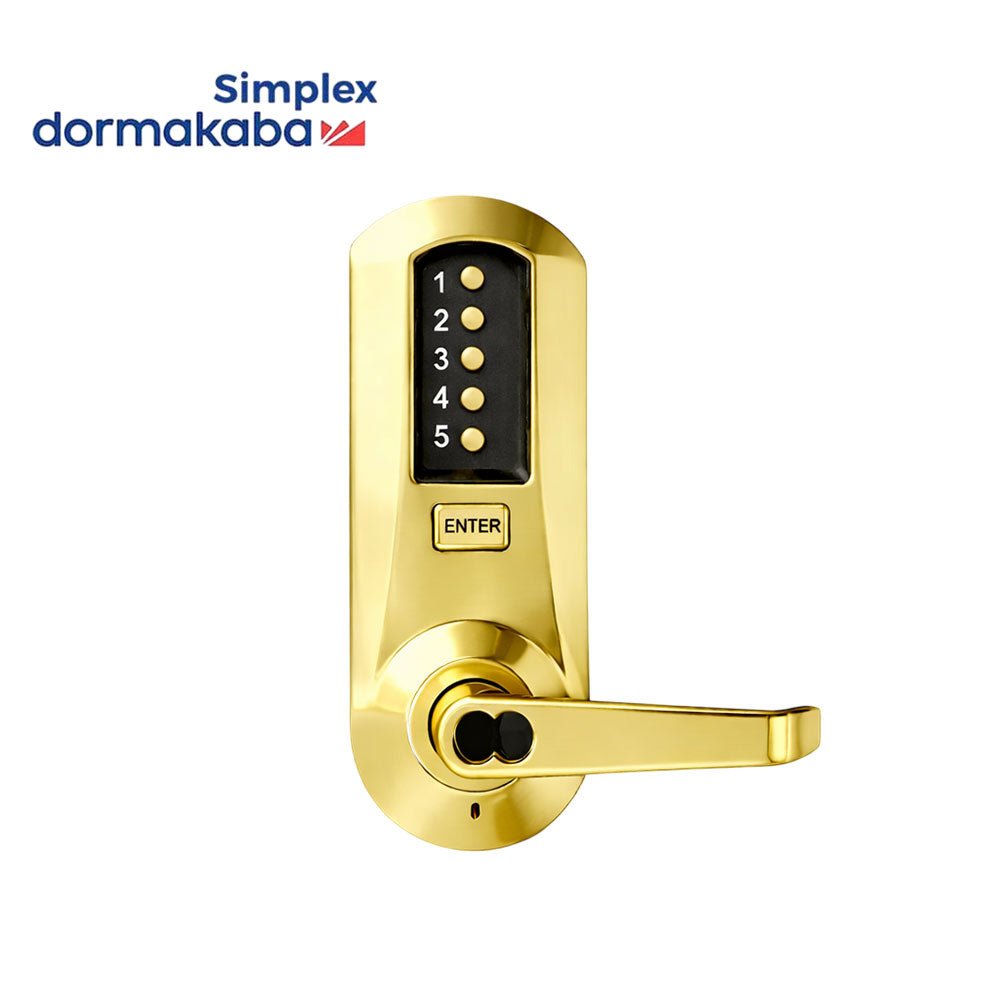

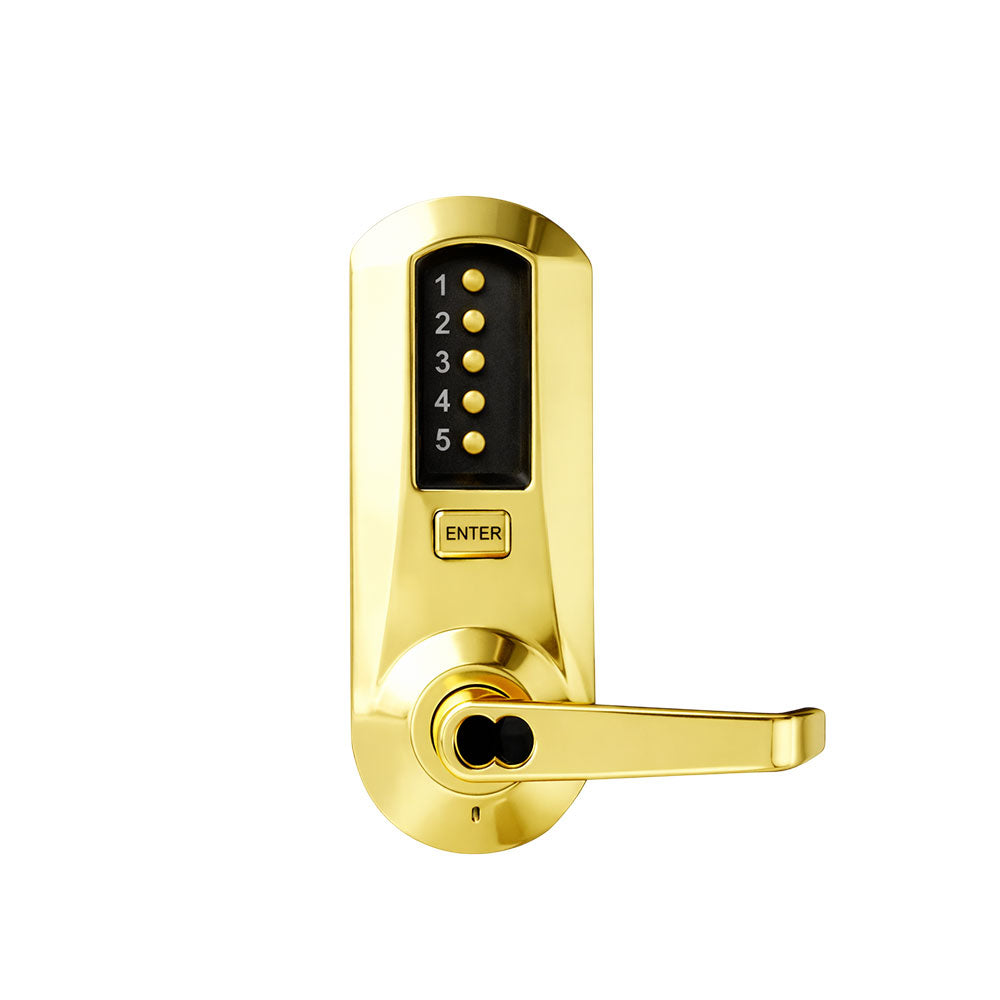

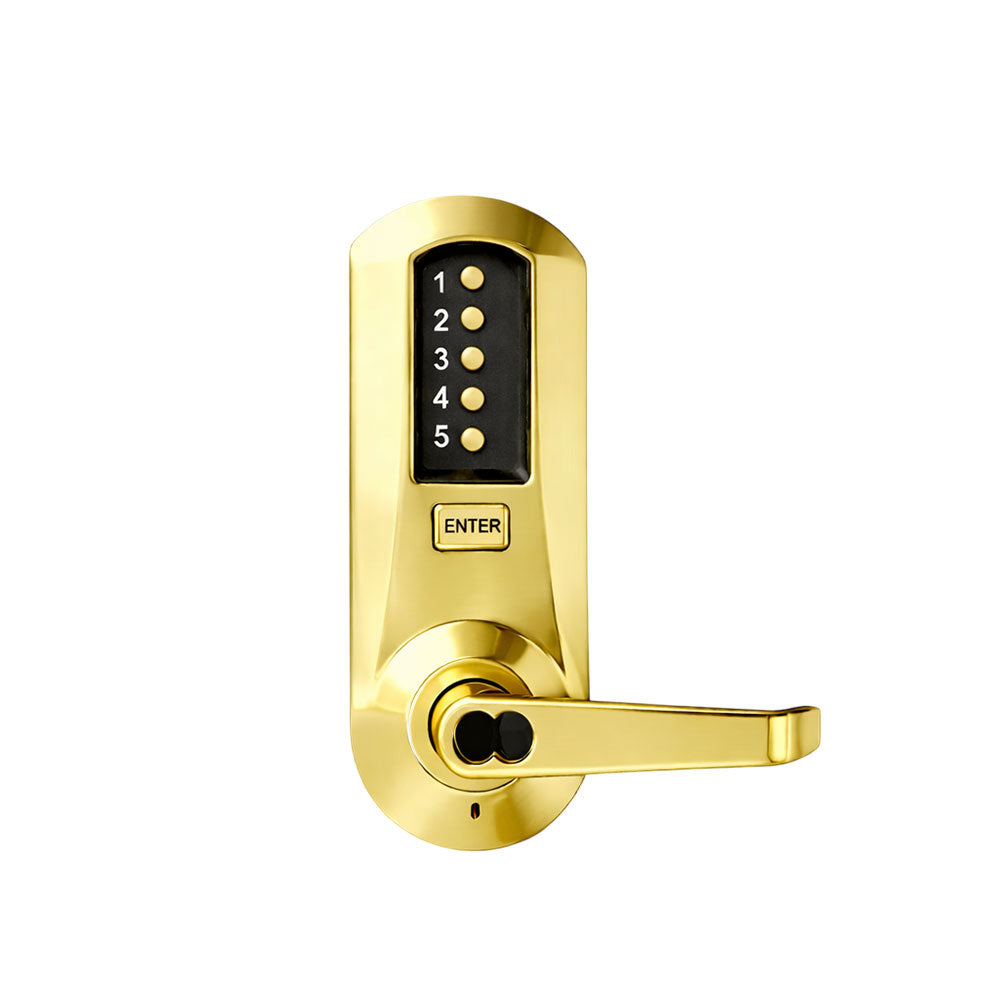

Simplex - 5010 - Mechanical Pushbutton Exit Trim with Combination Entry Function and Key Override - Winston Lever

Simplex - 5010 - Mechanical Pushbutton Exit Trim with Combination Entry Function and Key Override - Winston Lever

The Simplex 5000 Series offers secure exterior entry through a combination code while ensuring free exit from the inside. This fully mechanical lock operates with a single access code and can be programmed directly through the keypad without taking it off the door. It comes in multiple configurations to suit cylindrical and mortise locks, as well as rim exit device trim, and is available in a variety of architectural finishes. Additionally, it works with many exit devices produced by other manufacturers.

Features:

• Single access combination - one easy to manage combination for all users
• Lock is easily programmed via keypad without removing lock from the door
• Non-handed, pre-assembled for left-hand door installations- easily changed in the field
• Key override allows entry by key offered with a variety of key override options
• Passage - allows access without using the access combination. Feature activated from
  the inside with a thumbturn or key (included with all passage feature models)
• No batteries
• Locking device: cylindrical, mortise, and exit trim
• Americans with Disabilities Act (ADA)
• Weather-resistant
• 3 Year warranty
• DOD compliant model available

Key Override:

• B - SFIC, Best and Equivalents (6 or 7-pin length); core not included.
• C - LFIC, Corbin Russwin (6-pin length); core not included.
• M++ - LFIC, Medeco/ASSA/Yale/Abloy (5 or 6-pin length); core not included.
• R - LFIC, Sargent, core not included.
• S - LFIC, Schlage, core not included
• XK - K-I-L, Kaba Cylinder (Kaba 90 Keyway) included

• XS - K-I-L, Kaba Cylinder (Schlage C Keyway) included
