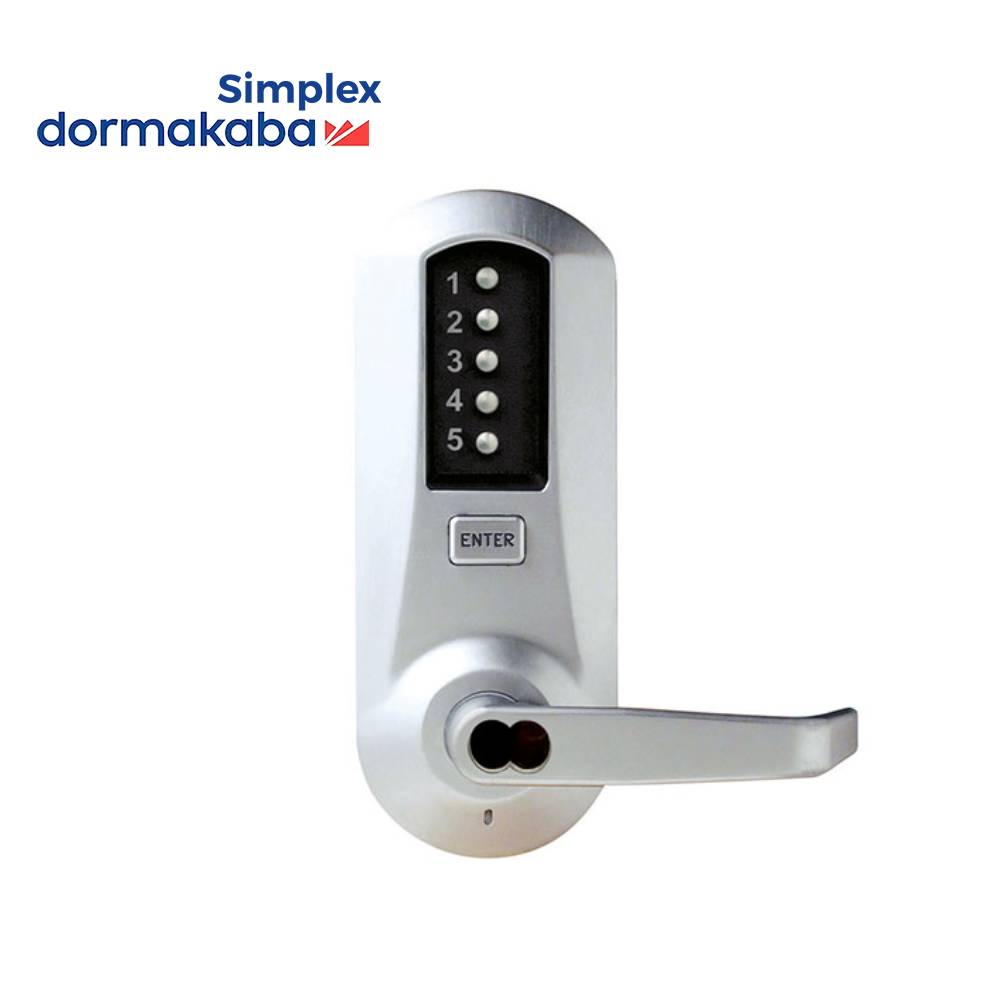

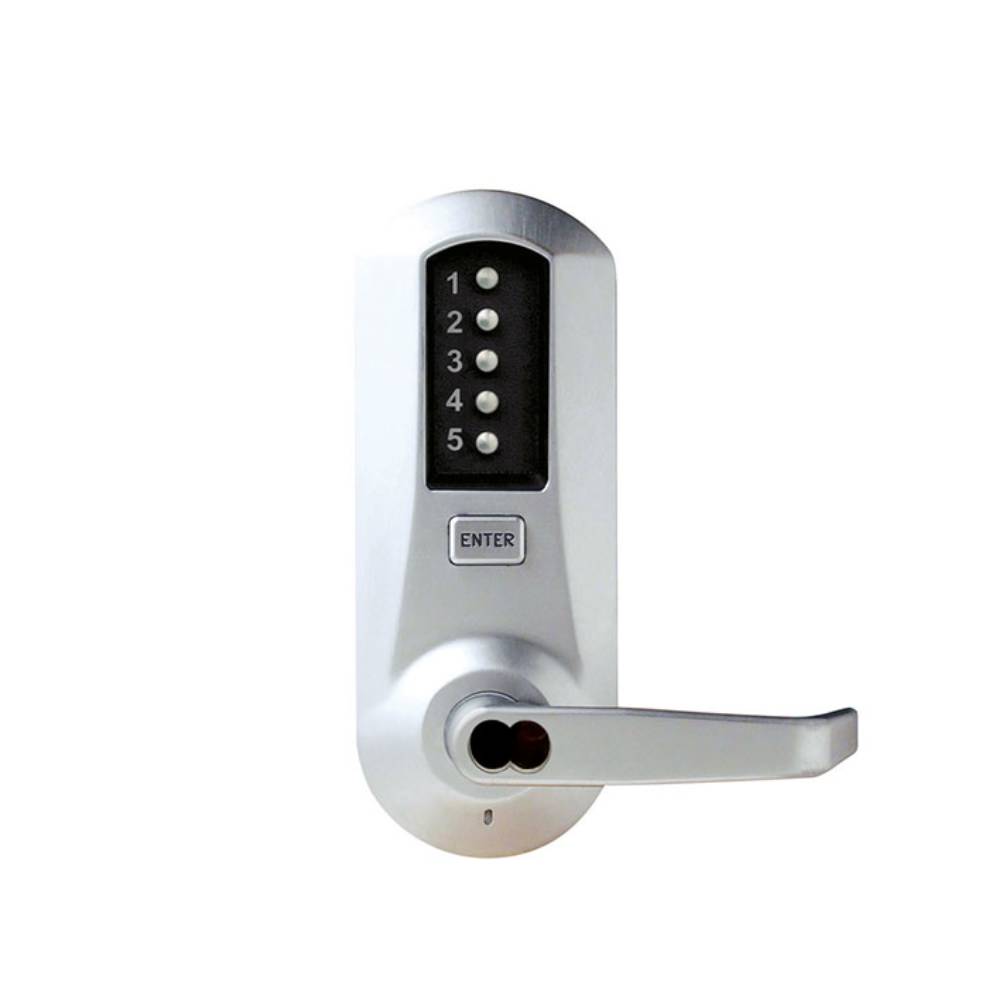

Simplex - 5031 - Mechanical Pushbutton Cylindrical Combination Lever Lock - 2-3/4 Inch Backset - Optional Keyway - 26D (Satin Chrome)
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 5 p.m. EST will be shipped next business day.
Learn more
Return Policy
Return Policy
At Locksmith Keyless, we prioritize your satisfaction and offer a simple return process. Returns are accepted within 30 days of purchase for unused items in original packaging. Certain items, including OEM keys, Lishi tools, and customized orders, are non-returnable. A restocking fee of up to 30% may apply. For a full list of non-returnable items and more details, please refer to our complete return policy.
For damaged, missing, or incorrect items, please contact us within 48 hours of delivery. All returns require an RMA number. Shipping costs for returns are the responsibility of the customer.
View Full Return Policy
Simplex - 5031 - Mechanical Pushbutton Cylindrical Combination Leve...
Description
Description
Simplex - 5031 - Mechanical Pushbutton Cylindrical Combination Lever Lock - 2-3/4″ Backset - Optional Keyway - 26D (Satin Chrome)
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
The Simplex 5000 Series provides exterior access by combination, while allowing free egress. This fully mechanical lock elimates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.
5031: Combination Entry, Key Override, Interior Combination Change, D.O.D. Compliant
Feature:
- Access Control: Mechanical pushbutton lock—eliminates problems and costs associated with issuing, controlling, and collecting keys and cards
- Number of Codes: Single access code—one easy-to-manage code for all users
- No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
- Programming: Lock is easily programmed via keypad without removing the lock from the door
- Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field
- Key Override: Key-in-lever cylinder, small format interchangeable core, large format removable core (cores sold separately on models prepped for interchangeable core)
- Accessibility Standard: Americans with Disabilities Act (ADA)
- Weather resistant: Wear tested for extensive use in indoor and outdoor applications
- D.O.D. Compliant: 5220.22M for supplemental access control
Key Override Options:
- B – Prepped for 6 or 7-pin SFIC (less core)
- C – Prepped for Corbin Russwin 6-pin LFIC core (less core)
- M – Prepped for Medeco/Yale/ASSA/Abloy LFIC core (less core)
- R – Prepped for Sargent LFIC core (less core)
- S – Prepped for Schlage FSIC core (less core)
- XS – Key in lever, Schlage C Keyway
Specifications:
| Brand | Dormakaba |
| Lock Function | Combination Entry Function with Key Override |
| Backset | 2-3/4" |
| Strike | 4-7/8” x 1-1/4” ASA/ANSI strike with curved lip to meet ANSI A115.2 door frame preparation |
| ADA Compliance | Meets ADA requirements – A117.1 Accessibility Code |
| Handing | Completely Reversible |
| Usage | Heavy Duty |
| Finish | US26D (626) Satin Chrome |
| Key Override | 5031B: Prepped for 6 or 7-pin SFIC, 5031C: Prepped for Corbin Russwin 6-pin LFIC, 5031M: Prepped for Medeco/Yale/ASSA/Abloy LFIC, 5031R: Prepped for Sargent LFIC, 5031S: Prepped for Schlage FSIC, 5031XS: KIL, Schlage C Keyway |
| Latch | 1/2" throw – 1-1/8" x 2-1/4" face |
| Fire Rating | UL and cUL Listed – up to 3 Hours |
| Door Thickness | 1-3/4" |
