Simplex | SKU:
SMLX-L8146B-26D-41
17% off

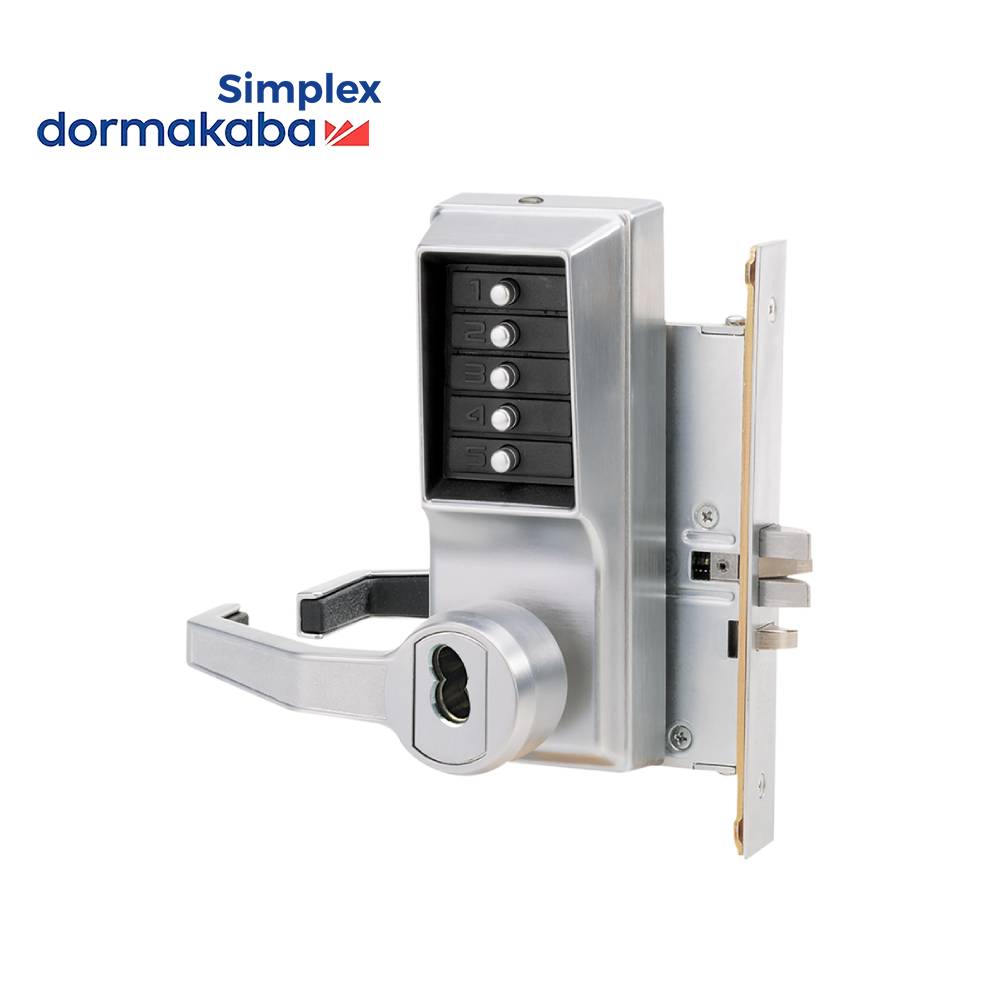

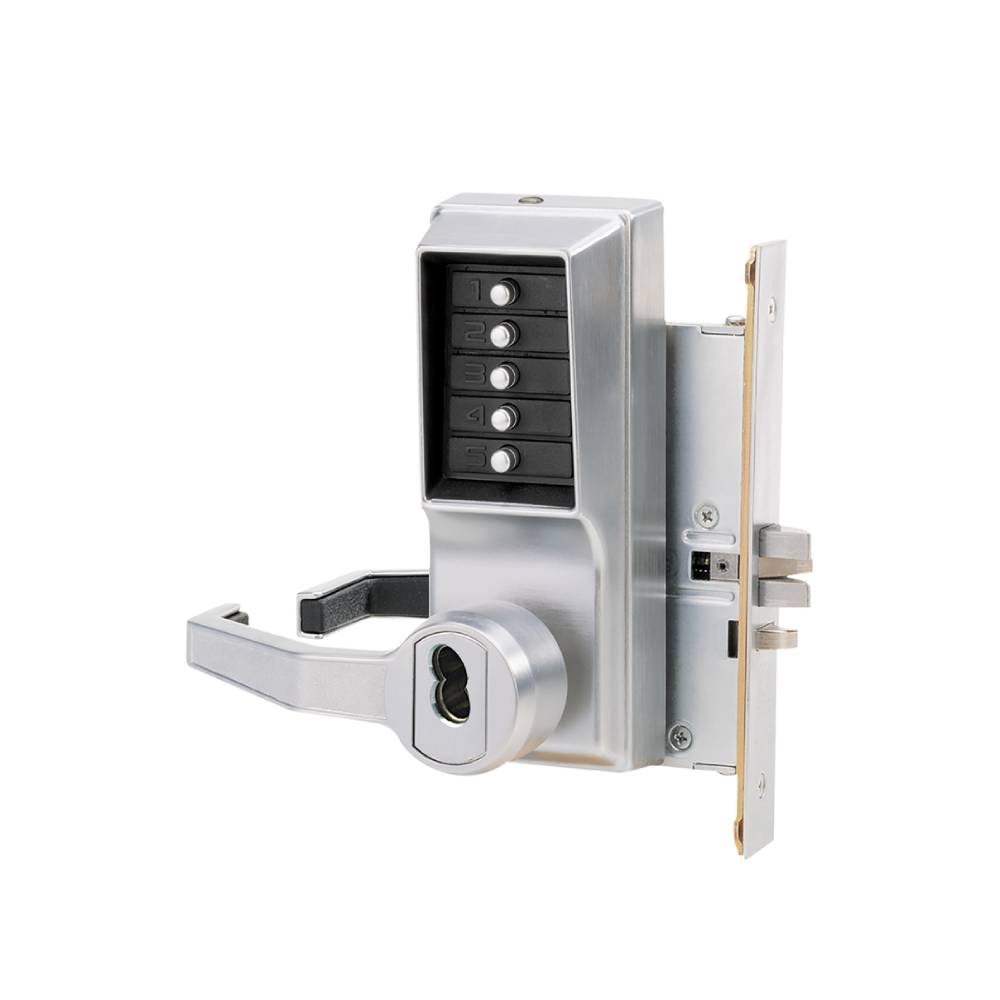

Simplex - L8146B - Mechanical Pushbutton Mortise Combination Lever Lock - Passage/Lockout - 6/7-Pin SFIC Prep - 26D (Satin Chrome)
$71280
$85536
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Simplex - L8146B - Mechanical Pushbutton Mortise Combination Lever ...
$71280
$85536
Unit price
/
Unavailable
Description
Description
Simplex - L8146B - Mechanical Pushbutton Mortise Combination Lever Lock - Passage/Lockout - 6/7-Pin SFIC Prep - 26D (Satin Chrome)
Simplex 8100 Series Provides exterior access by combination, while allowing free egress.
Feature:
- Construction: Cast front housing; unified trim plate; fixed ADA—compliant levers
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Backset: 2¾" (70 mm)
- Latch: ¾" (19 mm) two-piece anti-friction latch; 1" (25 mm) optional deadbolt
- Minimum Stile Recommended: 5" (127 mm)
- Strike: 4⅞" (124 mm) L x 1¼" (32 mm) W x ¼" (6 mm) D Deadbolt/Latch mortise strike plate
- Door Preparation: Easily installs on wood or metal doors. Standard (86) mortise preparation
- Door Thickness: 1¾" (44 mm) to 2¼" (57 mm)
- Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant levers
- Durability: Weather resistant
- Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
Product Specifications:
| Manufacturer | DormaKaba |
| SKU | L8146B-26D-41 |
| UID | SIM100L8146B26D41 |
| Unit of Measure | Each |
| Base Material | Brass or Bronze |
Technical Specifications:
| Series Name | Simplex |
| Lock Platform | Mortise Lock |
| Cylinder Type | SFIC Prep Less Core |
| Product Type | Mortise Locks with Keypad Trim |
