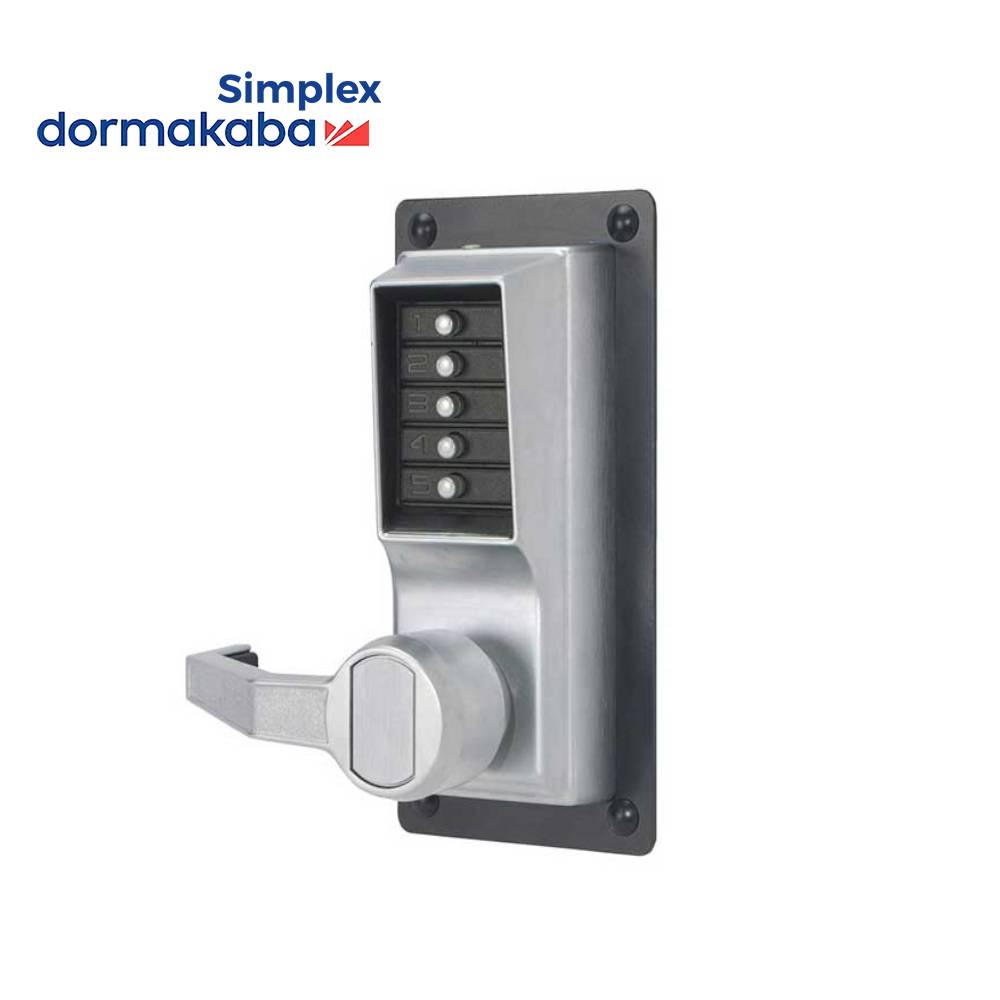

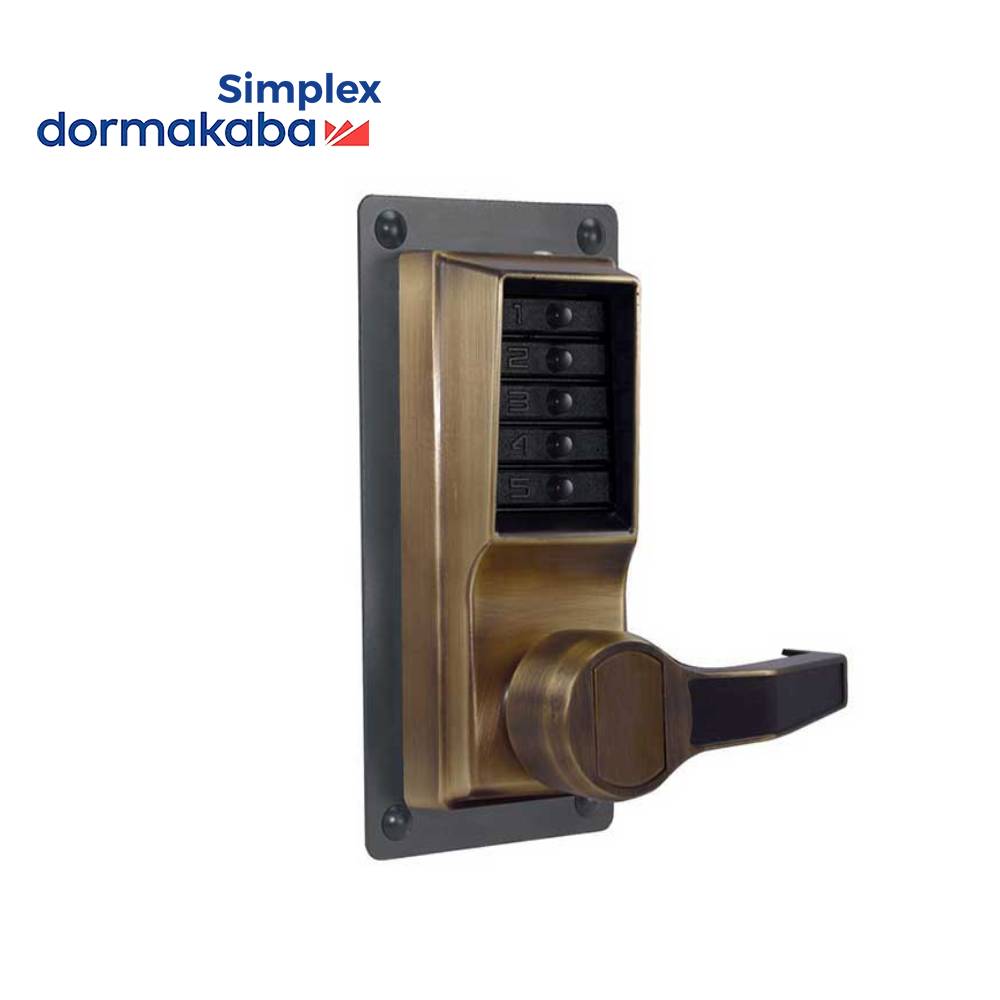

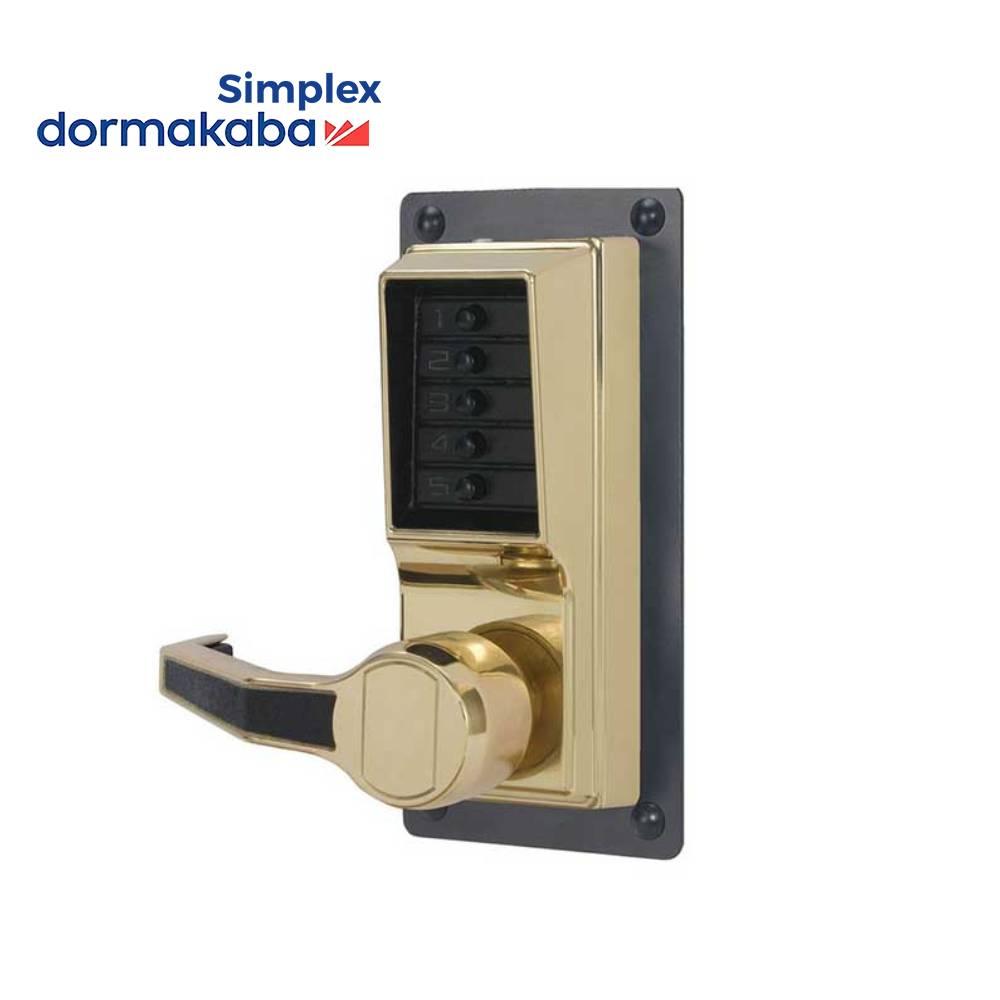

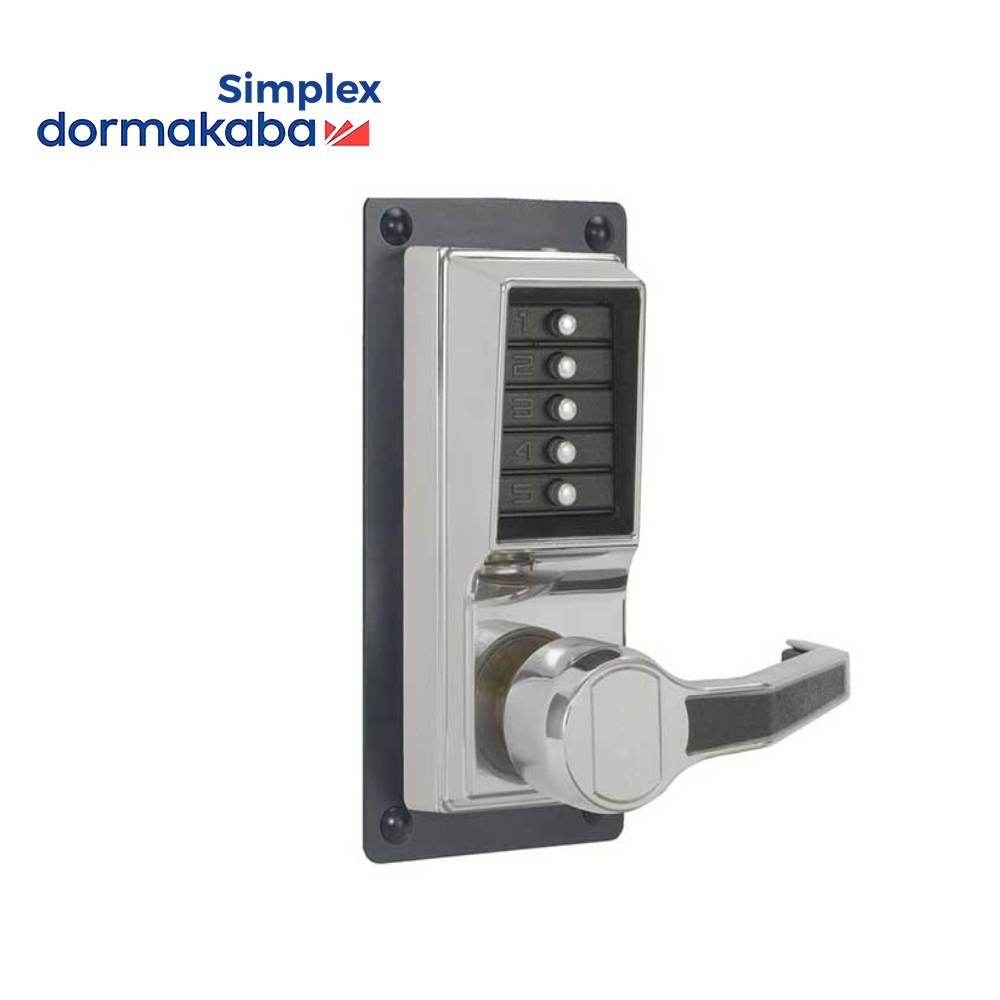

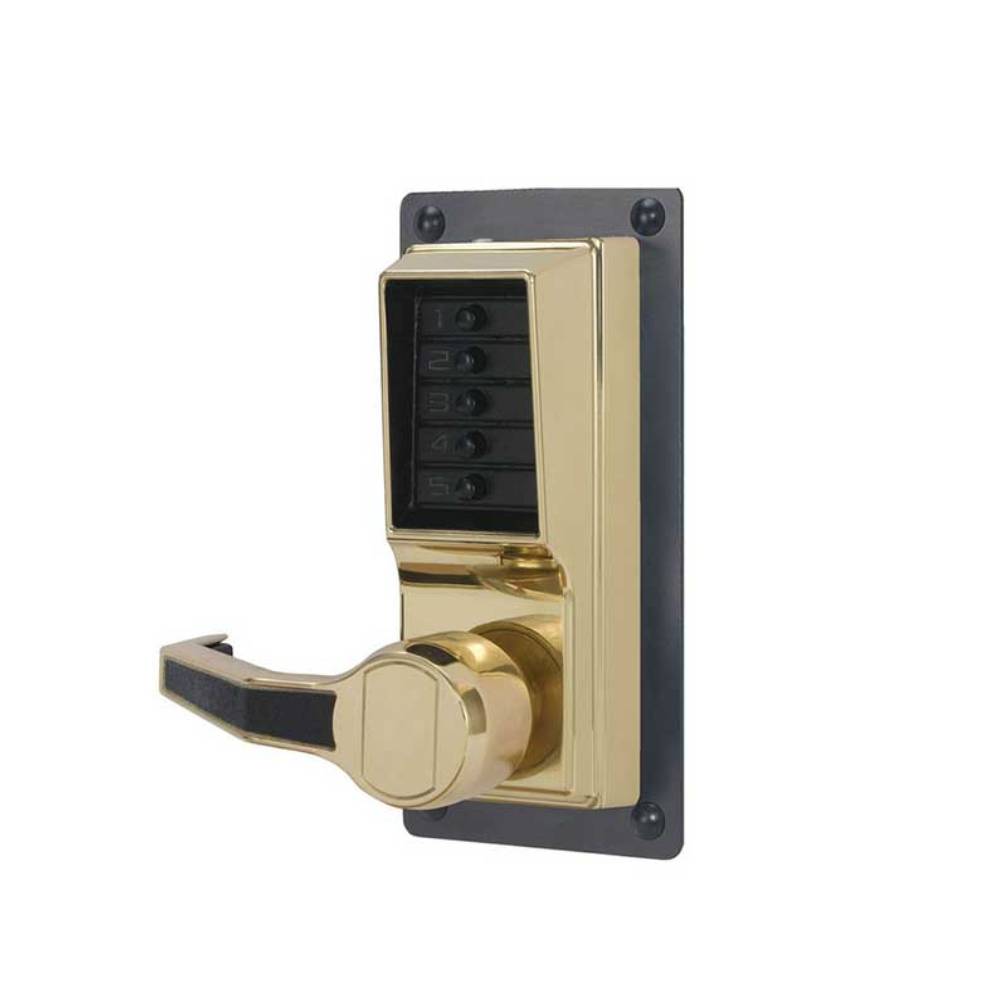

Simplex - LLP1010 - Mechanical Pushbutton Exit Device Lever Trim with Combination Entry Only - Optional Handed - Optional Color

Simplex - LLP1010 - Mechanical Pushbutton Exit Device Lever Trim with Combination Entry Only - Optional Handed - Optional Color

Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress with Exit Device (not supplied).

Feature:

• A cost-effective access control solution
• Pushbutton Access – Exit Device may be “dogged” without affecting the LP1010
• Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever
• Vandal-resistant, solid metal pushbuttons
• Factory-handed; not field reversible
• Latch & exit device not supplied (See list for compatibility above)
• Strike supplied with exit device exit device
• 3-hour UL/ULC fire rating for “A” labeled doors
• 5″ minimum stile recommended

Exit Device Compatibility:

• Von Duprin 22, 88 NL, 98, 99, 900, 2227, 9827, 9847, 9847 WDC, 9848, 9857, 9927, 9947, 9947WDC, 9948, 9957, 90027, 90047 WDC, 90057
• Dorma 9100, 9300
• Detex Advantex Series 10, 20, 21 40, 50, 51
• Cannot be used with mortise design or vertical rod Exit Devices

Specifications:
