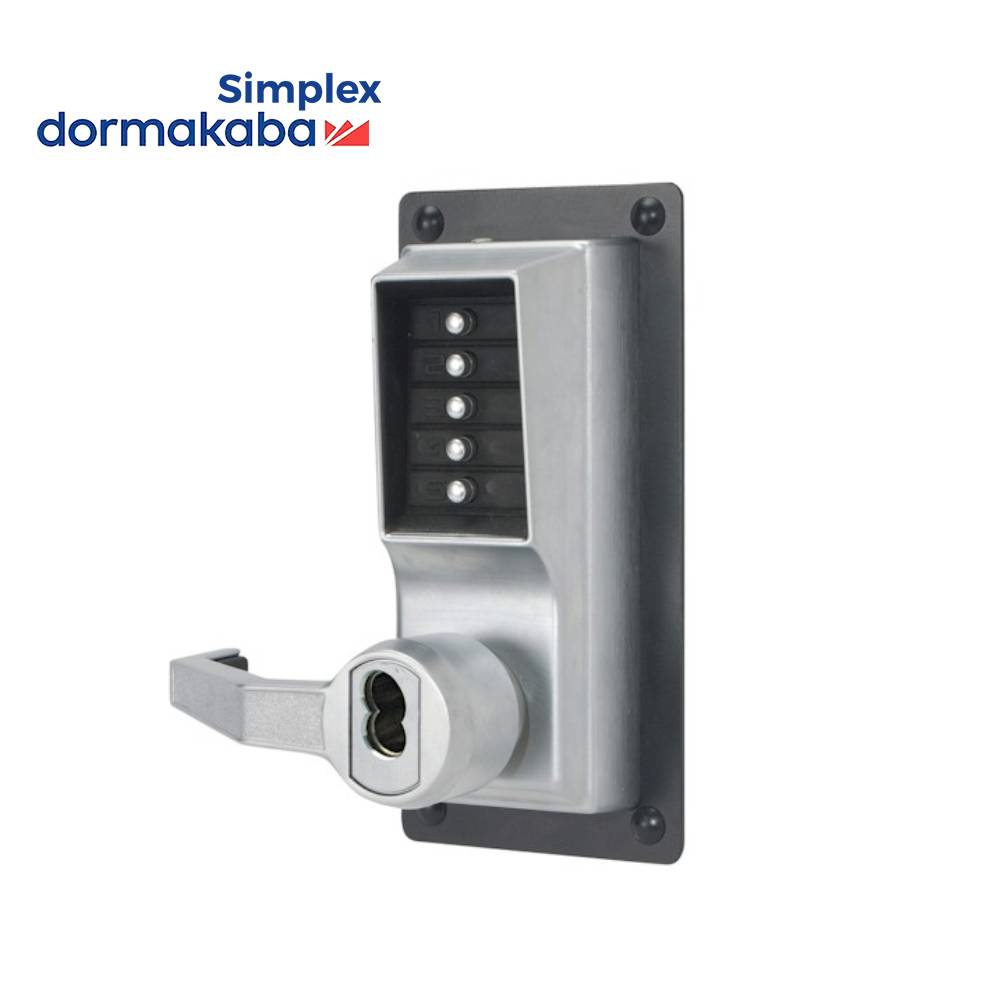

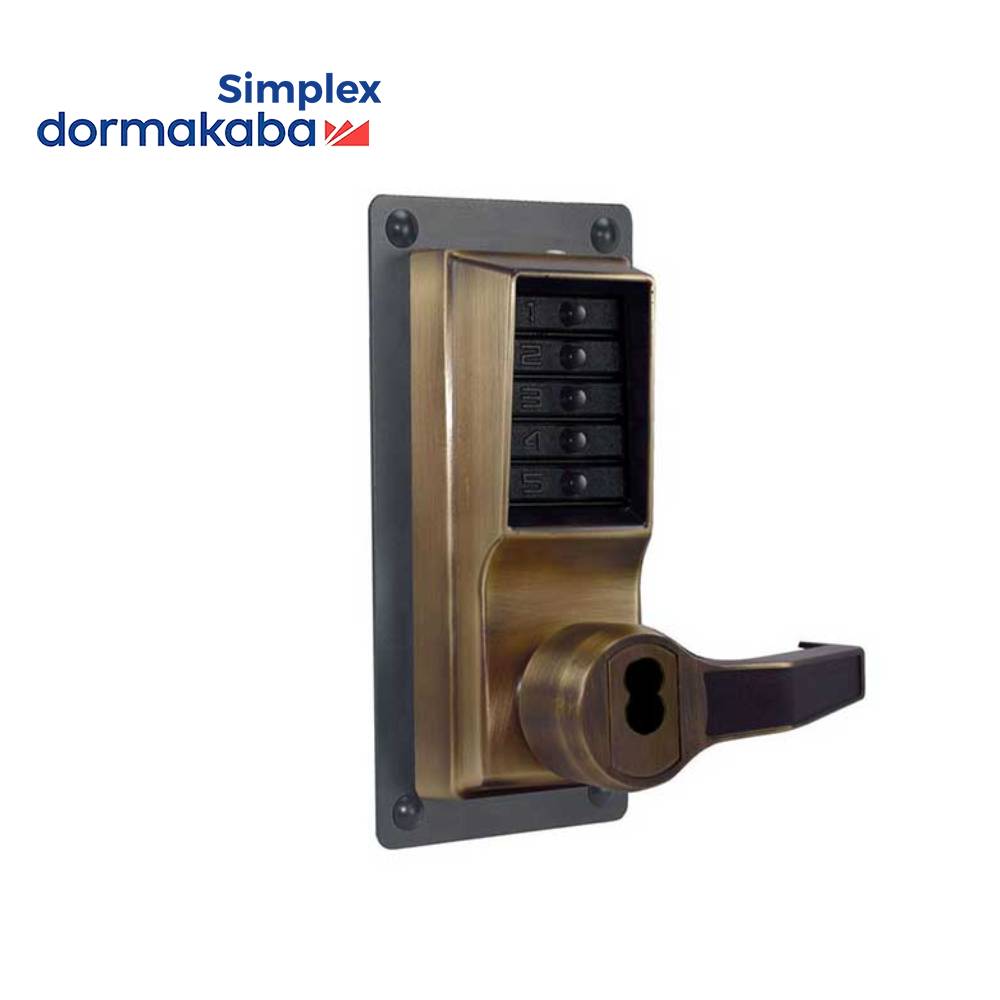

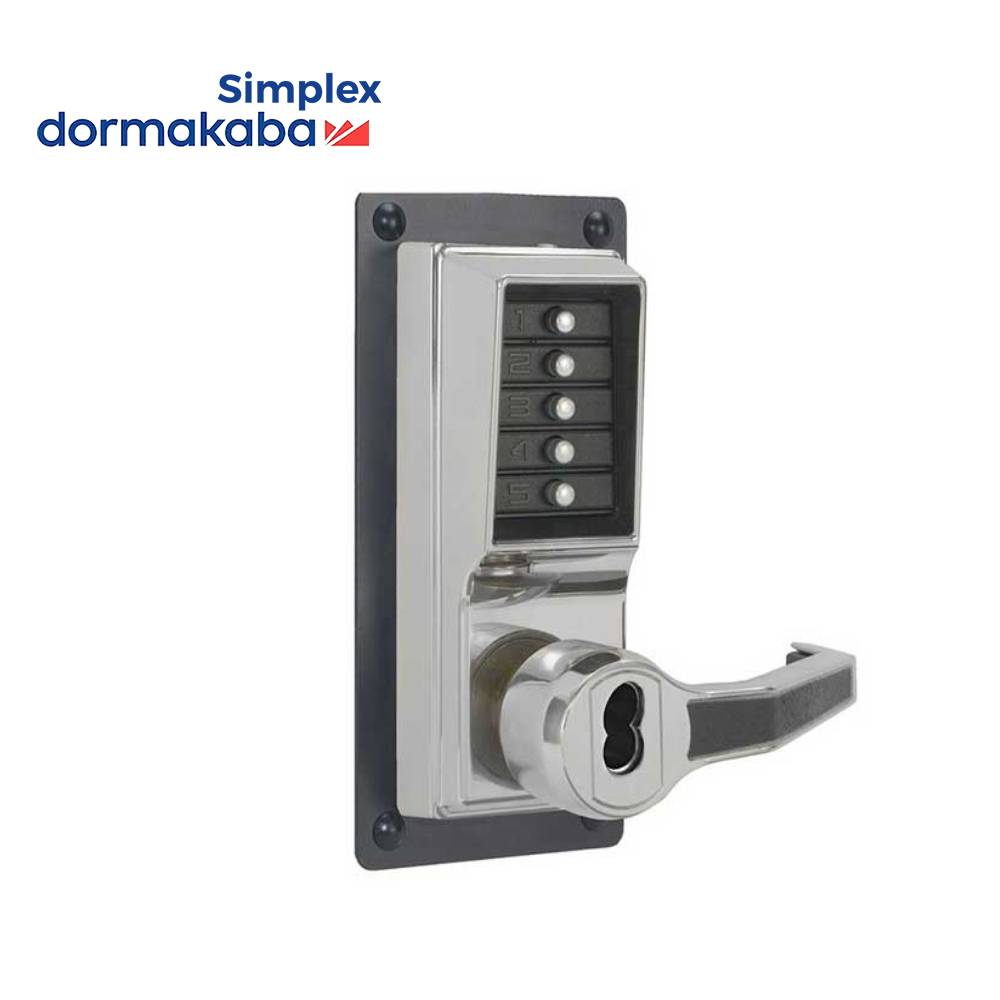

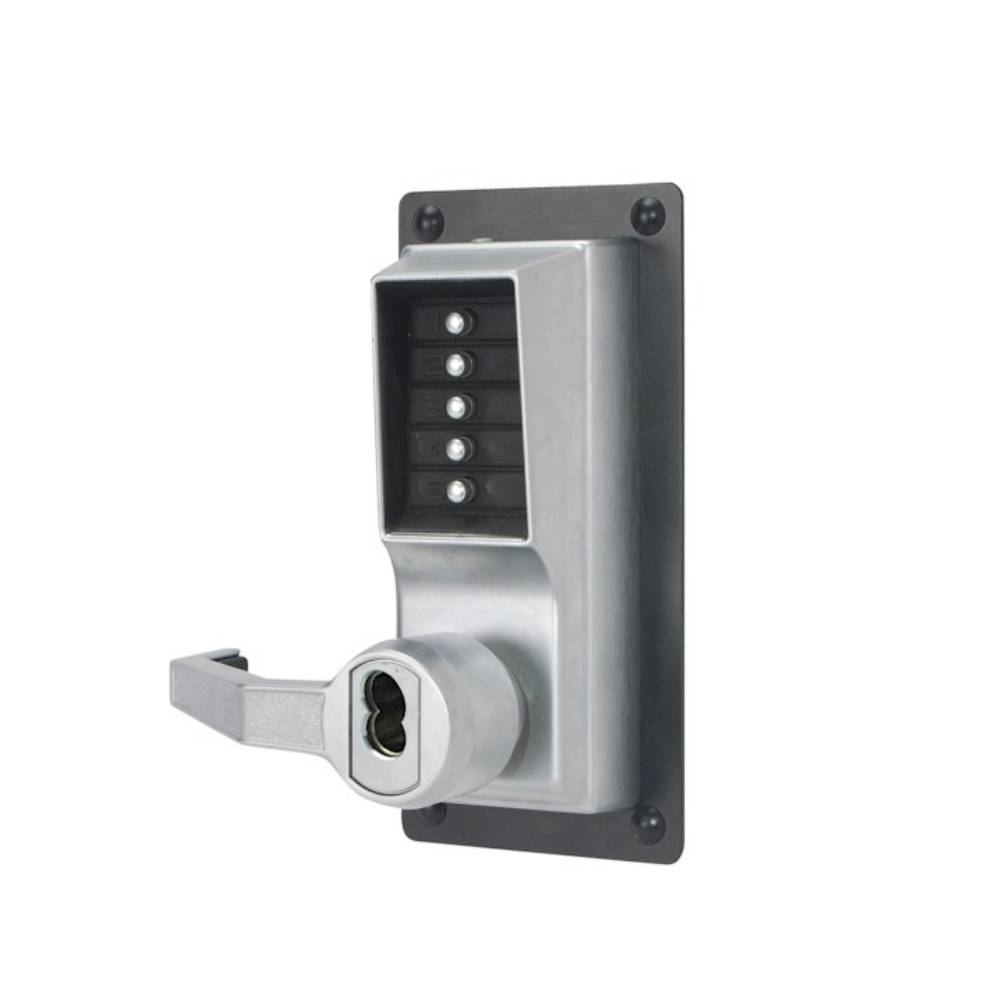

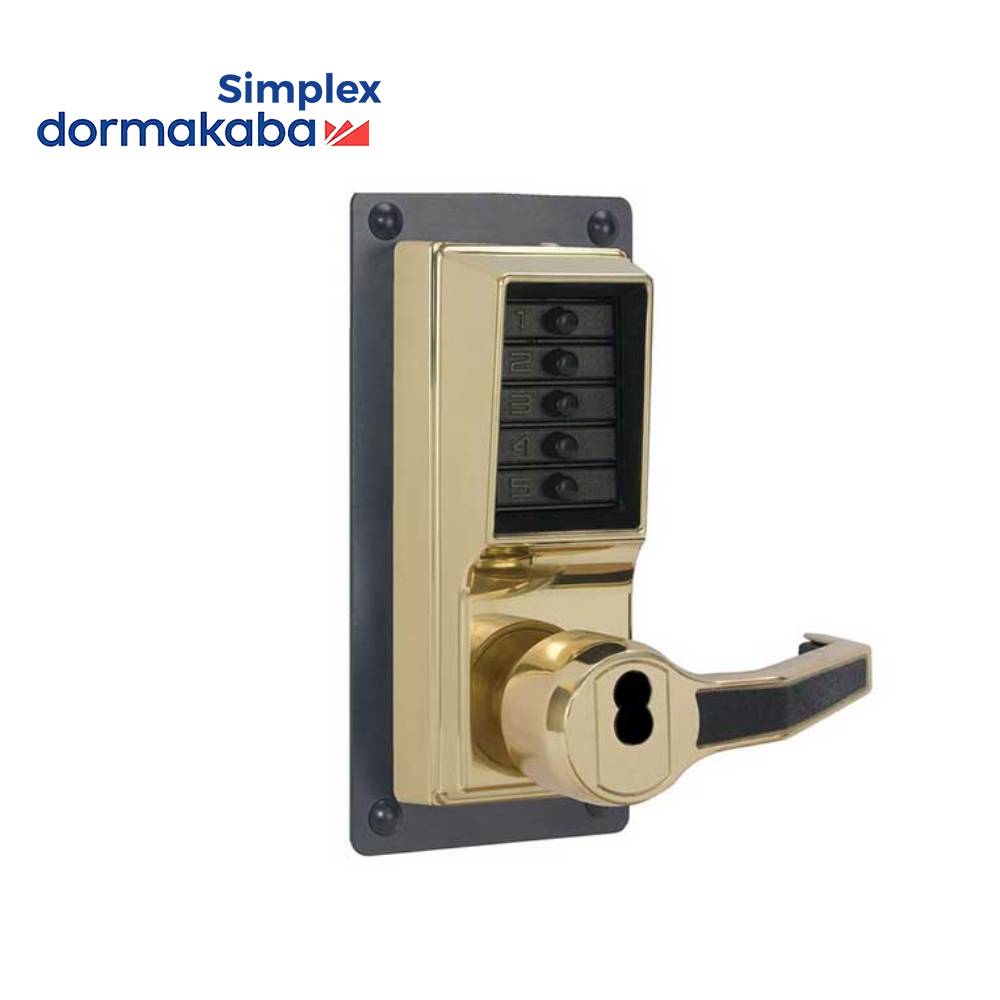

Simplex - LLP1020 - Mechanical Pushbutton Exit Trim Lever Lock with Combination and Key Override - Optional Handed - Optional Keyway - Optional Color

Simplex - LLP1020 - Mechanical Pushbutton Exit Trim Lever Lock with Combination and Key Override - Optional Handed - Optional Keyway - Optional Color

Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination, while allowing free egress with Exit Device (not supplied).

LP1020: Combination Entry. Egress with Exit Device (not supplied). Key Override (core not included). Exterior Combination Change (only)

Feature:

• A cost-effective access control solution
• Pushbutton Access – Exit Device may be “dogged” without affecting the LP1020
• Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever
• Vandal-resistant, solid metal pushbuttons
• Factory-handed; not field reversible
• Latch & exit device not supplied (See list for compatibility above)
• Strike supplied with exit device exit device
• 3-hour UL/ULC fire rating for “A” labeled doors
• 5″ minimum stile recommended

Exit Device Compatibility:

• Von Duprin 22, 88 NL, 98, 99, 900, 2227, 9827, 9847, 9847 WDC, 9848, 9857, 9927, 9947, 9947WDC, 9948, 9957, 90027, 90047 WDC, 90057
• Dorma 9100, 9300
• Detex Advantex Series 10, 20, 21 40, 50, 51
• Cannot be used with mortise design or vertical rod Exit Devices

Key Override Options:

• B – Prepped for 6 or 7-pin SFIC (less core)
• C – Prepped for Corbin Russwin 6-Pin LFIC (less core)
• M – Prepped for Medeco/Yale/ASSA/Abloy LFIC (less core)
• R – Prepped for Sargent LFIC (less core)
• S – Prepped for Schlage FSIC (less core)
