Softwares for Tango Transponder Programmer

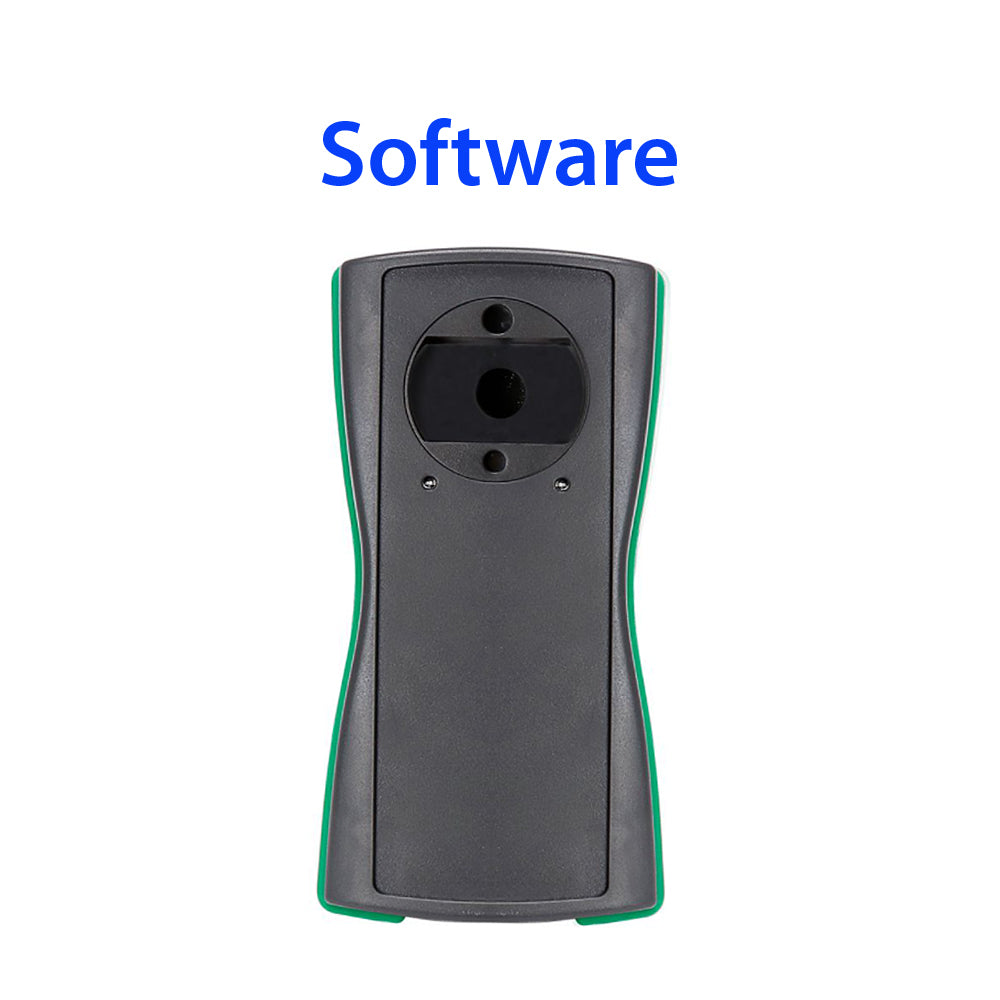

Tango Transponder Programmer

The device is intended for programming of transponders that are a part of automobile immobilizing systems.

FUNCTIONS AND FEATURES

1. Clonning of Toyota H-key [Blade](128bit) on LKP-04
2. Toyota/Lexus Smart Key Systems OBD Framework
3. Toyota G Immobilizers OBD Reset & Add Key (including EU type)
4. Toyota/Lexus H Keys Image Generation Page1 39, 59, 5A, 99 on TRPWS21 transponder
5. Toyota/Lexus G Keys Image Generation and Clonning Page1 19,36,56,96,37,57 on LKP-02,CN5
6. Toyota/Lexus/Subaru SmartKey Reset (40/80/128bit)
7. FREE Off-line Full Copy of TIRIS DST (ID60-70) onto TPX2,EH2,CN2,CN5,LKP-02
8. FREE Image generator ID70 on ID4D
9. Image generator ID67/68 on ID4D
10. Full FREE production of TP22, TP23, TP24, TP25
11. Free write Component Security 7 bytes Tool (Megamos 48)
12. Over 1142 Key Makers, 793 included with basic software
13. In-depth Manual and Technical Support Provided
14. Searching of the 7th byte by existing car's key(Megamos 48)
Unlike the previous model the Gambit, new model Tango is the two-band device that has allowed to add the list supported transponders with firm Texas Instruments products (Tiris ©).
The list of supported for the present moment transponders:

Chip	Features	Copy	Note
Atmel
Temic 11	Read	TK5551M, T5
Temic 12	Read	TK5551M, T5
Temic 8C	Read IDE, Authentication	TK5561A	2
TK5551M	Read, Write		1,3
TK5561A	Read, Write		1
Note1 Transponder is used as an Emulator automatically. Thus, there is no a separate tool   with registers- and bits access.
Note2 Authentication is available in autodetect mode depending on a brand. Automatic        calculation for Mazda, Proton.
Note3  Autodetect not supported.
ELMOS
ELMOS for BMW	Read, Write, Battery charging	n.a.
EM Microelectronic-Marin
Megamos 13	Read, Write	T5
Megamos 48	Read, Write, PIN-func., Authentication	n.a.
Megamos 8E	Read, Write	n.a.
JMA
TPX1	Read, Write	see Texas emulators	1
TPX2	Read, Write	see Texas emulators	1
Note1  Transponder used as an Emulator automatically. Thus, there is no a separate tool      with registers- and bits access.
Philips, NXP
PIT (PCF7930/31)	Read, Write
SECT (PCF7935)	Read, Write, Crypto calc.
HITAG2, HITAG2+	Password/Crypto mode		1
	Auto swap User/Remo
HITAG2+EE	Crypto mode		2
	Auto swap User/Remo
	EEPROM access (R/W)
HITAG2 Extended	Password/Crypto mode		1,2
	EEPROM access (R/W)
HITAG3	Read IDE, Authentication		3
HITAG Pro	Read IDE, Authentication,		3
	EEPROM access (R/W)
Custom HITAG-based transponders
HITAG2 for BMW	Password/Crypto mode		1
	EEPROM access (R/W)
	BMW Remote data
HITAG for VAG	Read IDE
	EEPROM access in Open mode
Note1 Password mode is FREE of charge. Crypto mode available in FULL version
Note2 FREE version supports EEPROM access only in open mode
Note3  Authentication is being supported only in FULL version.
LKP
LKP-02	Read, Write	see Texas emulators	1,2,3
LKP-04	Read, Write	see Texas emulators	1,2,3
Note1 Transponder used as an Emulator automatically. Thus, there is no a separate tool      with registers- and bits access.
Note2 Manual writing is automatic, depending on mode.
Note3 Transponder is reusable
Saab
Saab custom	Read	TK5551M, T5
Silca
EH2	Read, Write, Reset		1,2
Note1 Transponder used as an Emulator automatically. Thus, there is no a separate tool      with registers- and bits access.
Note2  Manual writing is automatic, depending on mode.
Scorpio-LK
SLK-01	Read, Write	see Tango Toyota+	1
SLK-02	Read, Write	see Tango Toyota+	1
SLK-03	Read, Write	see Tango Toyota+	1
SLK-04	Read, Write	see Tango Toyota+	1
SLK-05	Read, Write	see Tango Toyota+	1
Note1 Transponder used as an Emulator automatically. Thus, there is no a separate tool      with registers- and bits access.
Sokymat
T5	Read, Write		1,2,3
Note1 Transponder used as an Emulator automatically. Thus, there is no a separate tool      with registers- and bits access.
Note2 Manual writing is automatic, depending on mode.
Note3  AutoDetect not supported.
Texas
TIRIS 4C	Read	see Texas emulators
TIRIS DST 4D	Read, Write, Crypto calc.	see Texas emulators
TIRIS DST 4E	Read, Write, Crypto calc.	see Texas emulators
TIRIS DST+	Read, Write, Crypto calc.	see Texas emulators
TIRIS DST80	Read, Write	see Texas emulators	1
Texas TRPWS21	Read, Write
Note1  Combined with the TIRIS DST+ mode.
No name
CN2, YS01	Read, Write		1,2
Note1 Transponder used as an Emulator automatically. Thus, there is no a separate tool      with registers- and bits access.
Note2 Manual writing is automatic, depending on mode.

The product is in working out stages, therefore the list of the supported transponders will be developed later.
For the present moment Tango has the following built in makers and functions.
The device has ergonomic design with high mechanical characteristics of IP65 class according to the DIN EN 60529 standard. The device has following dimensions:

length 160 mm
width 80 mm
height 50 / 30 mm

The device enclosure is made of 3mm ABS-plastics with a rubber shock-proof damping seal which simultaneously is a decor element. The seal also prevents the device sliding on a work table surface.
Also as well as the Gambit, the device derives the power from USB and does not demand connection of an external power source. Difference is use of drivers of other type that allows to avoid conflicts to other devices working through virtual ports. USB2.0/3.0
Unlike the Gambit, the device has wide slot for keys of any size and two small holes of various depth for transponders of any sizes.
LED indication unlike Gambit is taken out on the upper cover of the case that is solution more convenient in using.
The program interface has the modern intuitive design favorably differing from the interface of Gambit.
Meeting modern requirements, Tango supports OS Vista that was not realized in Gambit. Supported versions of Windows:
Win 98
XP
Vista
Win 7
Win 8/8.1
Win 10
