Tell Manufacturing | SKU:
TELL-540-AL
17% off
17% off

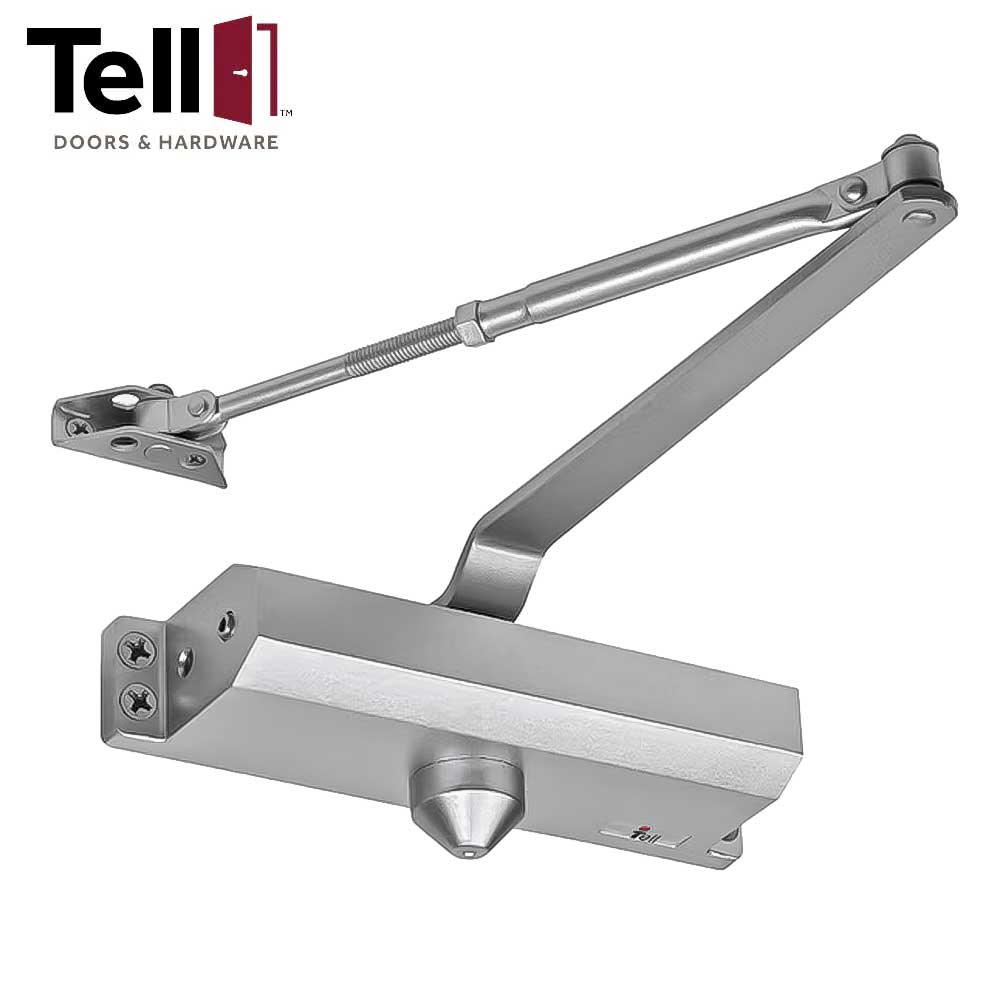

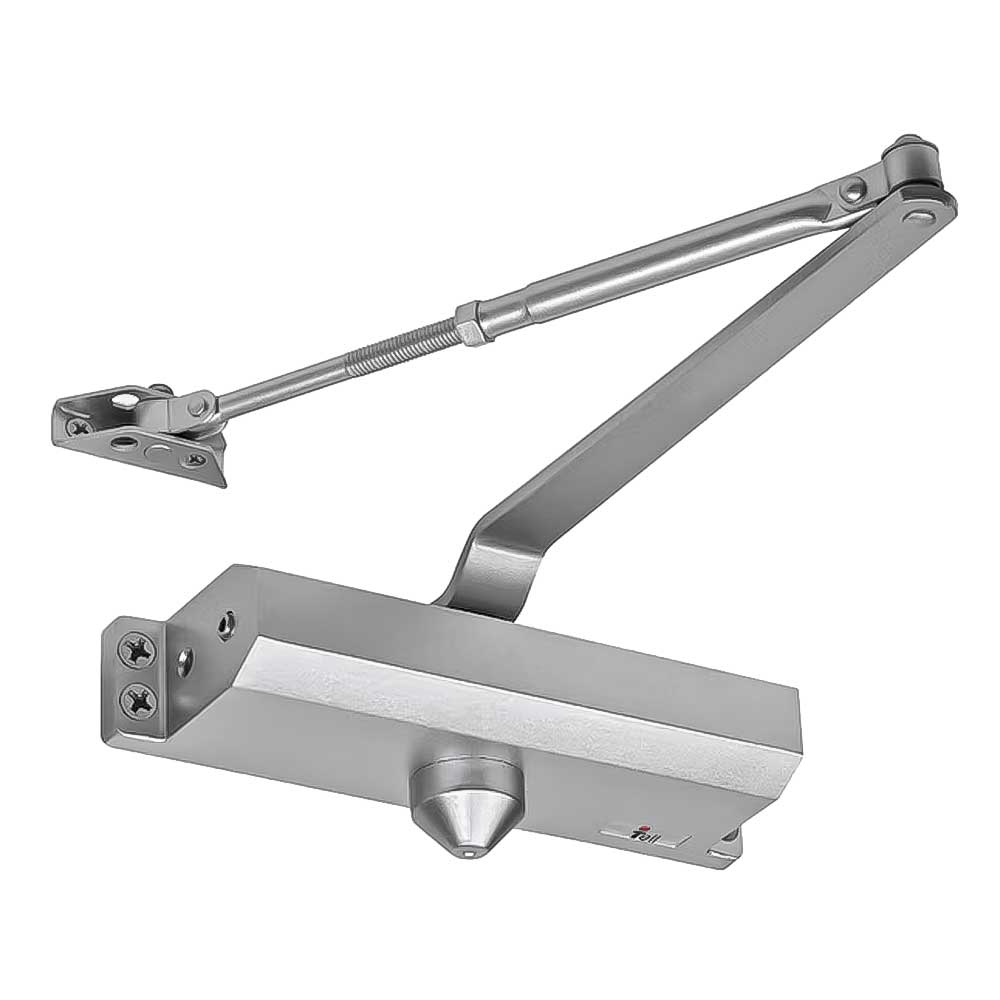

TELL 500 Series Light Duty Commercial Door Closer - Standard Arm - Grade 3 - Aluminum
$6160
$7392
Unit price
/
Unavailable
Shipping calculated at checkout.
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.
Learn more
Description
Description
TELL 500 Series Light Duty Commercial Door Closer - Standard Arm - Grade 3 - Aluminum
The 500 Series Door Closer is a grade 3, light duty cast aluminum surface applied door closer, designed for interior commercial use and comes with hardware for all installation applications. This closer complies with ANSI A156.4, UL/ULC listed up to three hours fire rated. It comes in a size 3 or size 4 for most standard door openings. Other finishes available.
Specifications:
| Performance | Complies with ANSI A156.4 Grade 3 – 500,000 cycles UL/ULC listed up to 3 hours fire rated |
| Chassis | Cast aluminum |
| Handing | Non-handed |
| Mounting | Tri-Pack – regular, top jamb and parallel arm applications |
| Arm | Stamped steel Accommodates up to 3 ¼" reveals Adjustable extension arm |
| Spring Power | Size 3 or Size 4, non-adjustable |
| Valves | Adjustable, independent Non-critical – sweep and latch Consistent closing speeds |
| Fasteners | Metal screws included for hollow metal and aluminum mounting applications Wood screws included for wood door mounting applications Thru-bolts optional |
| Door Range | Up to 180 degrees |
| Door Preparation | 9-1/16” horizontal x 3/4” vertical 4-Hole mounting location Retrofits traditional closer |
| Model | 540 - Standard arm, size adjustable 3 – 6 541 - Standard arm, size adjustable 1 – 4 542 - 545 - Standard arm single sized closer |
| Warranty | Lifetime limited |
