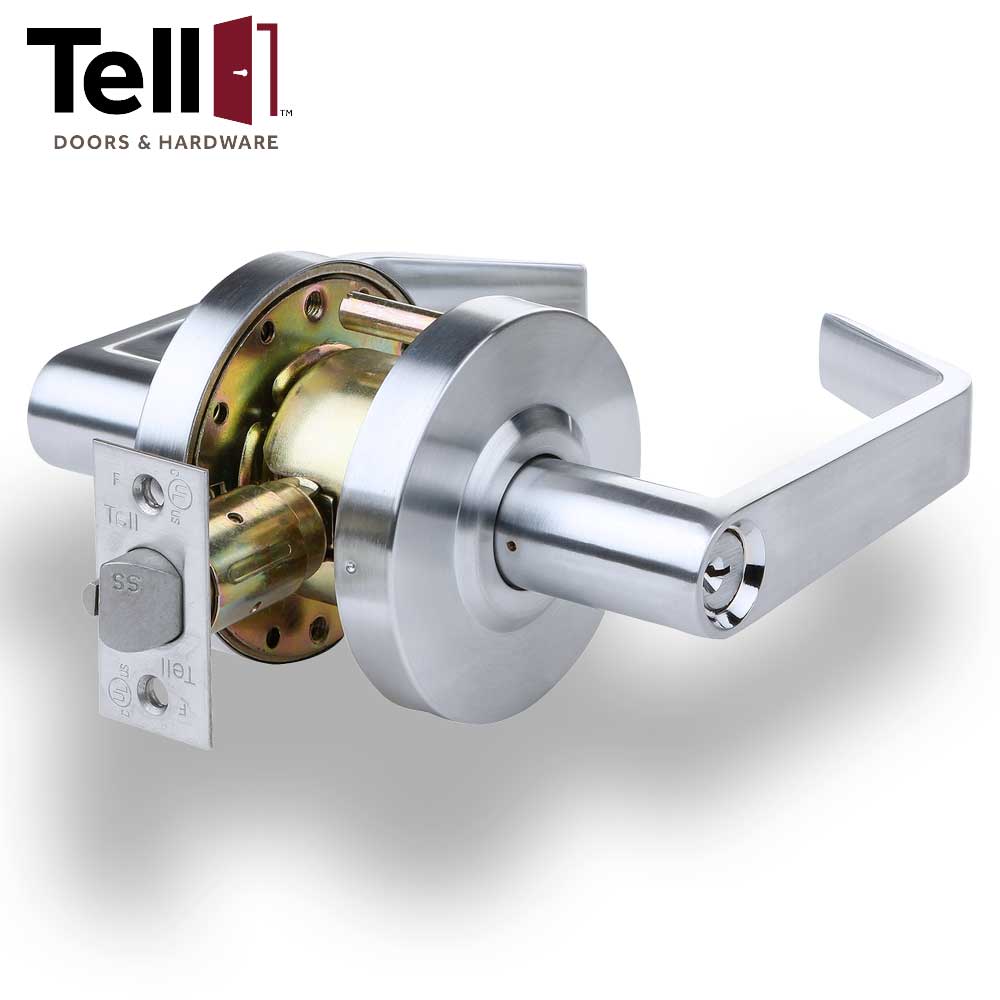

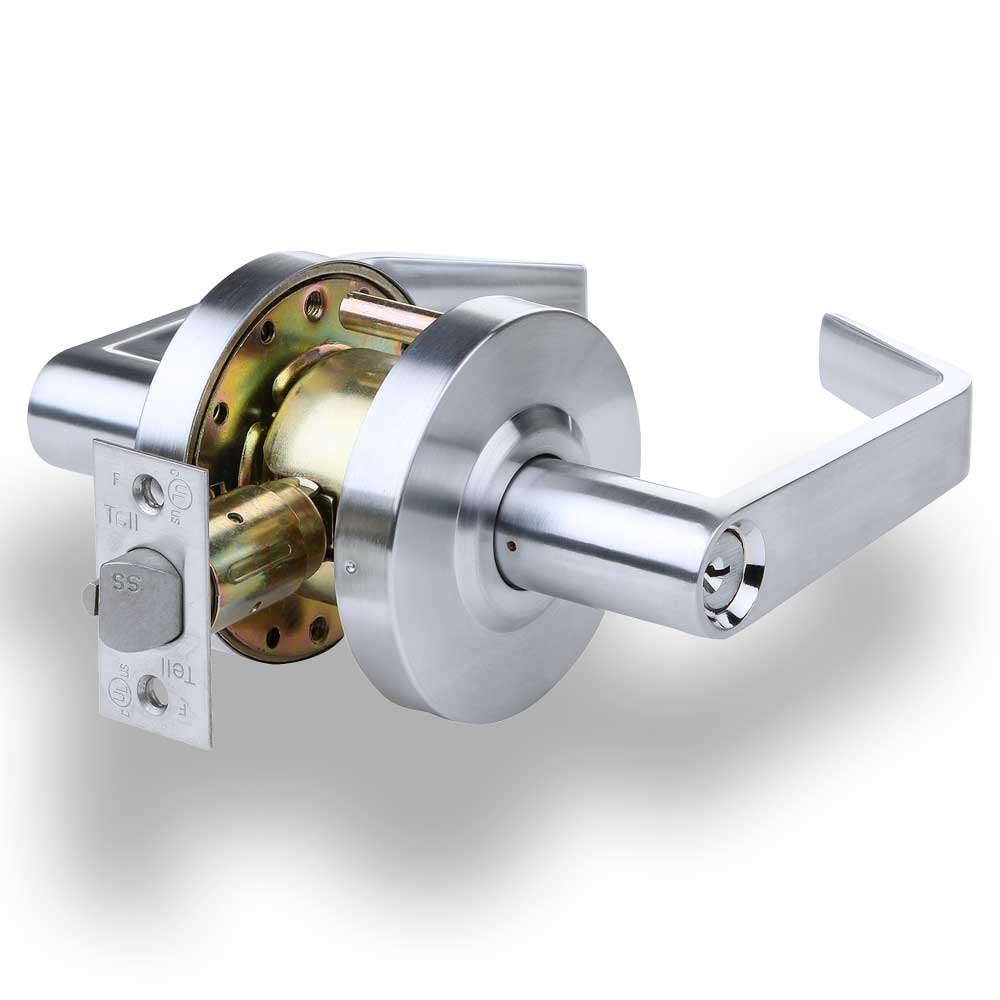

TELL LC2681 Cortland Lever (CLT) Freewheeling Clutch Standard Duty Cylindrical Leverset Brushed Chrome (US26D)- 2-3/4" Backset Grade 2 Entry
Secure transactionCouldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are shipped between 24 hours or less Monday through Friday from 9:00 am to 6:00pm. Orders placed after 4 p.m. EST will be shipped next business day.Â
Learn more
TELL LC2681 Cortland Lever (CLT) Freewheeling Clutch Standard Duty ...
Description
Description
TELL LC2681 Cortland Lever (CLT) Freewheeling Clutch Standard Duty Cylindrical Leverset Brushed Chrome (US26D)- 2-3/4" Backset Grade 2 Entry
Standard duty Entrance, always locked on outside great for commercial use of mechanical or storage roomsGrade 2, complies with ANSI A156.2, 400,000 cycles
Specifications:
| Function | Entrance - Inside Button, Outside Keyed |
| Finish | Satin Chrome |
| Chassis | Cylindrical, steel-coated w/ zinc dichromate (corrosion resistance) Optional Freewheeling Clutch |
| Lever | Non-handed |
| Latch | 1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel) |
| Rose | 3-1/4" diameter |
| Thru-bolts | Removable thru-bolts standard |
| Backset | 2-3/4 |
| Strike | Square corner 1-1/4" x 4-7/8" ANSI ASA Strike |
| Options |
OnlyFreewheeling Clutch. |
| Keys | Two nickel silver per lock lock |
| Door Range | 1-3/8" to 2" |
| Door Preparation | 2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep. |
| Fire Rated | UL/ULC listed for 3 hour fire door |
| Certifications | ANSI A156.2, Grade 2, 400,000 cycles, ANSI A117.1 accessibility (ADA) code |
| Manufacturer's Warranty | Limited Lifetime |
Notes:
- LC2600 Series comes with removable thru bolts.
- Locks furnished keyed different (KD) with Schlage C (SCC) keyway unless specified.
- Other keyways available no charge: Arrow AR1, Corbin 60/L4, Falcon/Weiser, Kwikset, Russwin D1, Sargent LA/RA, Yale 8.
Downloads:
Options:
- Thru-bolts: Removable thru-bolts standard
- Keying: 6-pin cylinders, can be pinned to 5-pin
- Cylinder Options: Arrow A (ARA), Corbin 59A1 (C059A1), Corbin 60 (C06), Corbin Russwin L4 (CL4), Options Kwikset (KW1), Russwin D1 (RD1), Sargent LA (SAL), Schlage E (SCE), Schlage F (SCF), Weiser E (WRE), Yale 8 (YA8), Yale GA (YGA)
- Tell Cylinder: Restricted Tell keyway cylinder can key both the cylinder and interchangeable core in one lock. The cylinders and IC cores are interchangeable. Tell keyway cylinder is available only keyed to 6-pin. Tell IC cylinder can be keyed to 6-pin or 7-pin interchangeable core (IC)
- IC Keyway Cylinder: Best A (BA), Best B (BB), Best C (BC), Best D (BD), Best E (BE), Best F (BF), Best G (BG), Best H (BH), Best J (BJ), Best K (BK), Best L (BL), Best M (BM), Best Q (BQ), Best U (BU), Black construction core (BLK), Less core (00), Not specified (XX)
- Keying Options: Grand master key (GMK), construction master key (CMK), master key (MK), keyed different (KD), keyed alike (KA), interchangeable core uncombinated (IC), 0-bitted (0BIT)
