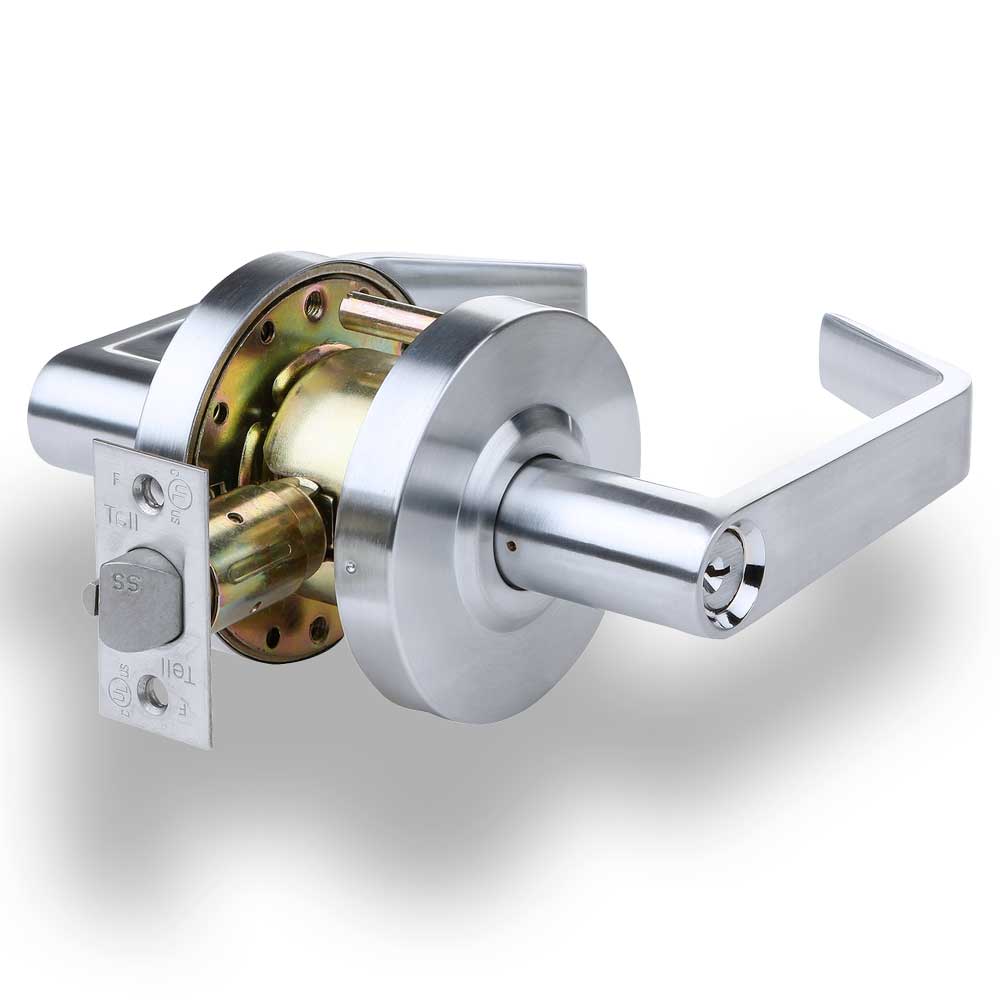

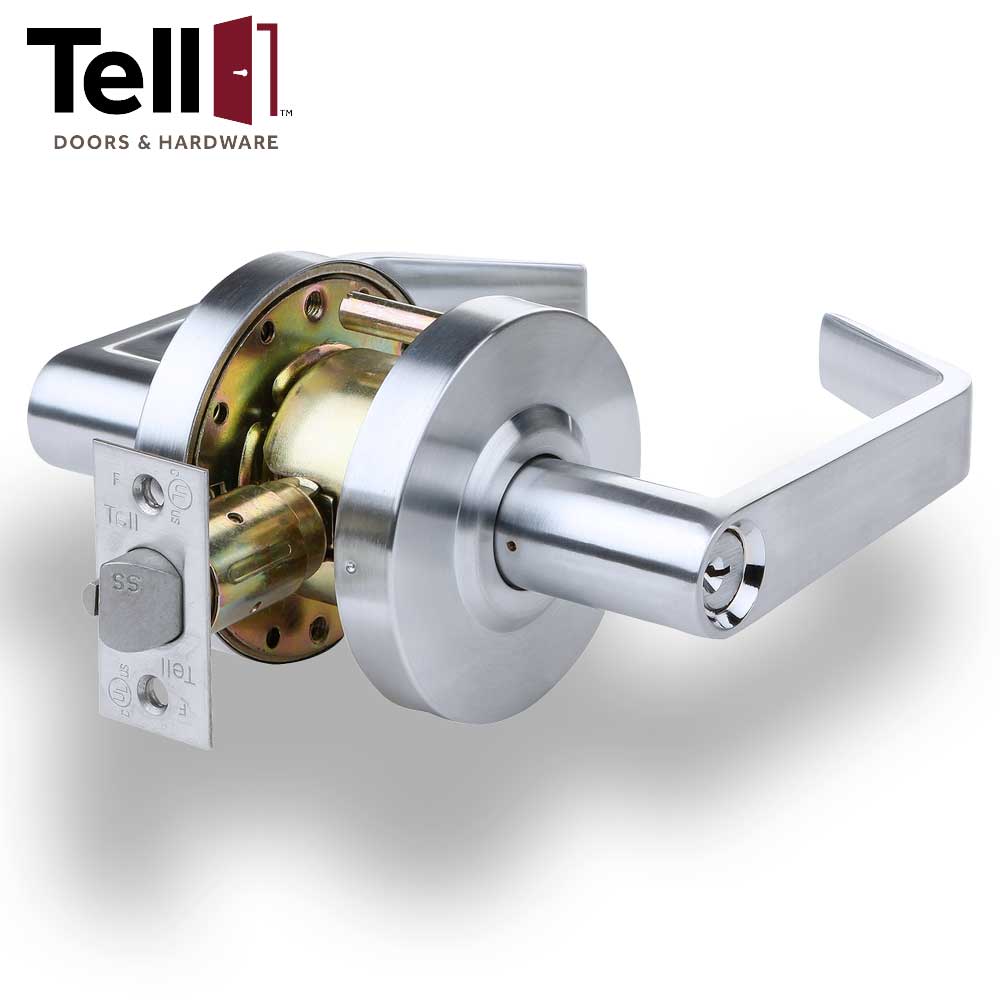

TELL LC2686 Cortland Lever (CTL) Standard Duty Cylindrical Leverset - IC Freewheeling Clutch - Satin Chrome (US26D) - 2-3/4" Backset - Grade 2 - Storeroom
The LC2600 Series Cortland Lever is a grade 2 cylindrical, standard-duty lever in a satin stainless steel finish that can be used for entry, storeroom, privacy, and/or passage. These levers can be used in new construction or replacement hardware fitting a standard 161 door prep. Other functions and finishes available.
Specifications:
| Function | Storeroom - Inside Always Unlocked, Outside Always Locked |
| Finish | Oil Rubbed Bronze |
| Chassis | Cylindrical, steel-coated w/ zinc dichromate (corrosion resistance) Optional Freewheeling Clutch |
| Lever | Non-handed |
| Latch | 1-1/8" x 2-1/4" square corner faceplate, 3/4" housing, 1/2" throw (stainless steel) |
| Rose | 3-1/4" diameter |
| Thru-bolts | Removable thru-bolts standard |
| Backset | 2-3/4 |
| Strike | Square corner 1-1/4" x 4-7/8" ANSI ASA Strike |
| Options | OnlyFreewheeling Clutch. |
| Keys | Two nickel silver per lock lock |
| Door Range | 1-3/8" to 2" |
| Door Preparation | 2-1/8" diameter for bore, 1" diameter latch bore. Fits standard 161 door prep. |
| Fire Rated | UL/ULC listed for 3 hour fire door |
| Certifications | ANSI A156.2, Grade 2, 400,000 cycles, ANSI A117.1 accessibility (ADA) code |
| Manufacturer's Warranty | Limited Lifetime |
Notes:
- LC2600 Series comes with removable thru bolts.
- Locks furnished keyed different (KD) with Schlage C (SCC) keyway unless specified.
- Other keyways available no charge: Arrow AR1, Corbin 60/L4, Falcon/Weiser, Kwikset, Russwin D1, Sargent LA/RA, Yale 8.
