THINKCAR THINKADAS ELITE USA (Package C) - Professional Advanced Driver Assistance System Automotive Diagnostic Equipment Tool Scanner

THINKCAR THINKADAS ELITE USA (Package C) - Professional Advanced Driver Assistance System Automotive Diagnostic Equipment Tool Scanner

Description:

The THINKCAR THINKADAS ELITE ADAS (Advanced Driving Assistance Systems) is fully foldable design including completely flat folded base, close-fitting foldable arms, and foldable crank handle with Multi-functional base integrates 360°rotating wheels, wheel locks, and fine-tuning height-adjustment to adapt to uneven ground. The equilateral triangle design of the base ensures a stable frame Digital distance laser shows the cross-bar height and makes sure it is equal to the standard value precisely. Five line laser and fine-tuning switch help to easy center the device and parallel to the vehicle and offer high precision calibrating. Special small target design makes it convenient to carry and store.

Features:

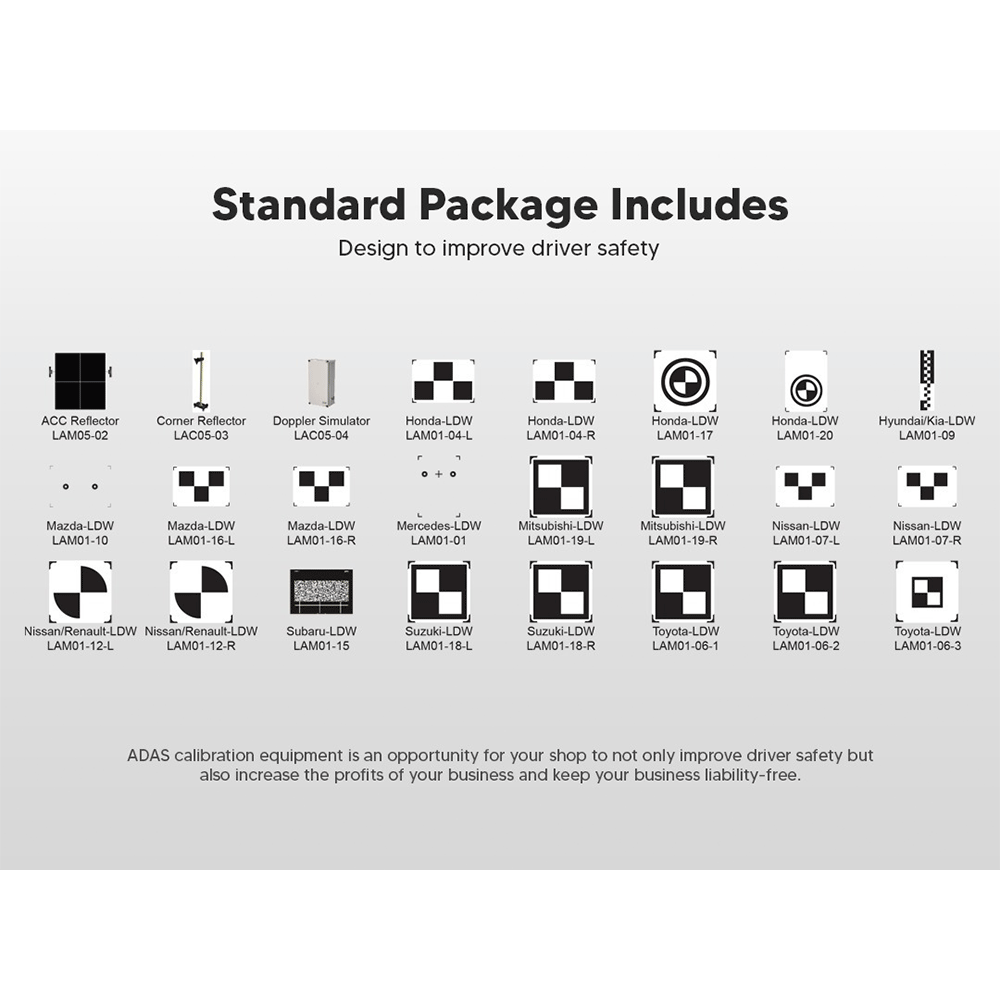

• 23-style manufacturer standard targets provide one-stop calibration service
• Compatible with AVM/ RCW/ BSD Targets of Thinkcar ADAS PRO
• Quick access to ADAS calibration

Understanding Package:

• Package A: Standard Package
• Package B: Asian Expanded Coverage
• Package C: American Manufacturers
• Package D: European Manufacturers

When is ADAS Calibration required?

• Windshield Replacement
• Suspension Repairs
• Wheel Alignment
• Tire Size Change
• Related DTC Is Present
• Sensor or Mounting Bracket Replacement
• Front Airbag Deployment If Deflected Off Windshield
• ADAS-Related TSBs/Manufacturer Position Statement Requirements*
• Mechanical Procedures Like Radiator And Condenser Repairs That Require Removal Of Front-Mounted Sensors
• ADAPTIVE CRUISE CONTROL (ACC): Adjusts vehicle speed to maintain a safe distance with vehicles ahead
• AROUND VIEW MONITORING (AVM): Provides 360-degree, bird’s-eye view to help with drivers park more easily
• BLIND SPOT DETECTION (BSD): Detects and warns driver of vehicles in either driver or passenger rear corners (blind spot)
• LANE DEPARTURE WARNING (LDW): Warns the driver when the vehicle drifts out of their lane
• LIGHT IMAGING DETECTION AND RANGING (LIDAR): Detects objects in vehicle vicinity to create a 3D map of objects and surroundings
• NIGHT VISION SYSTEM (NVS): Improves a driver’s vision in darkness on poor weather
• REAR COLLISION WARNING (RCW)

Warranty:

• 1 Year Limited

Product MPN: 3.07.01.0003
