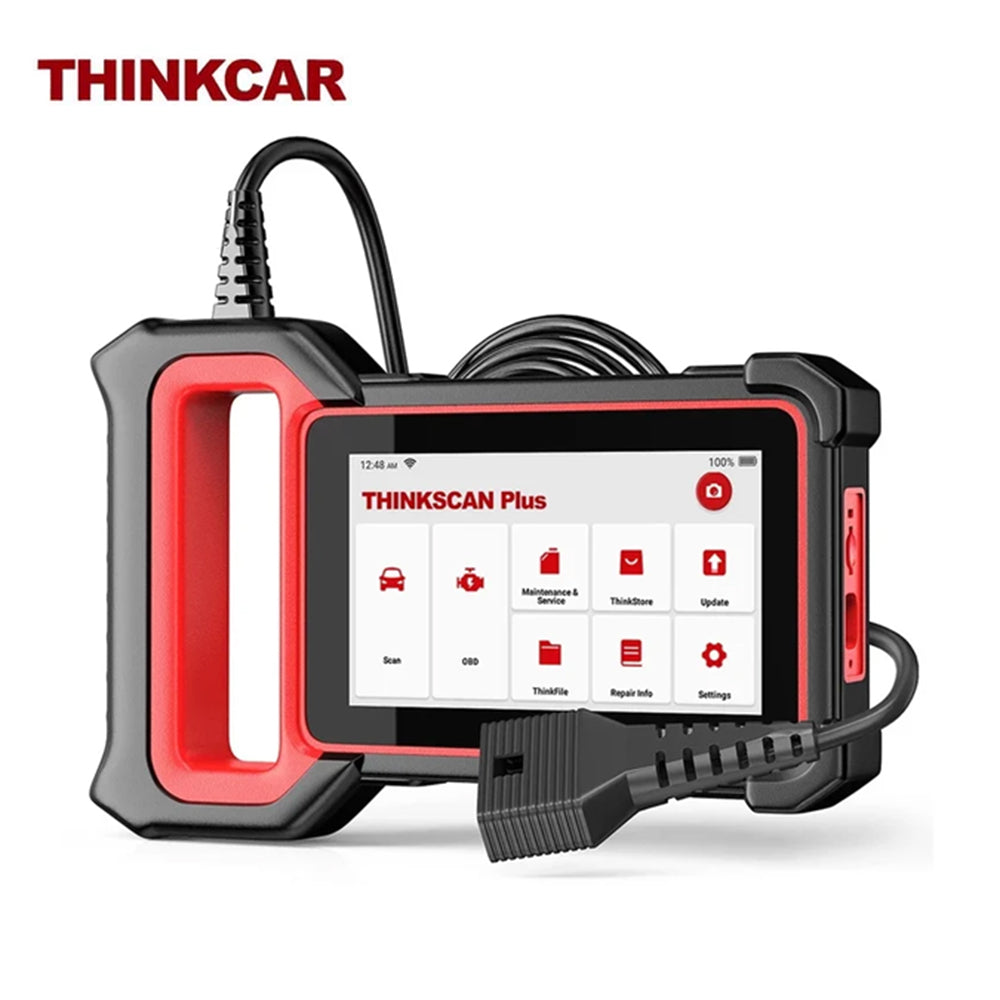

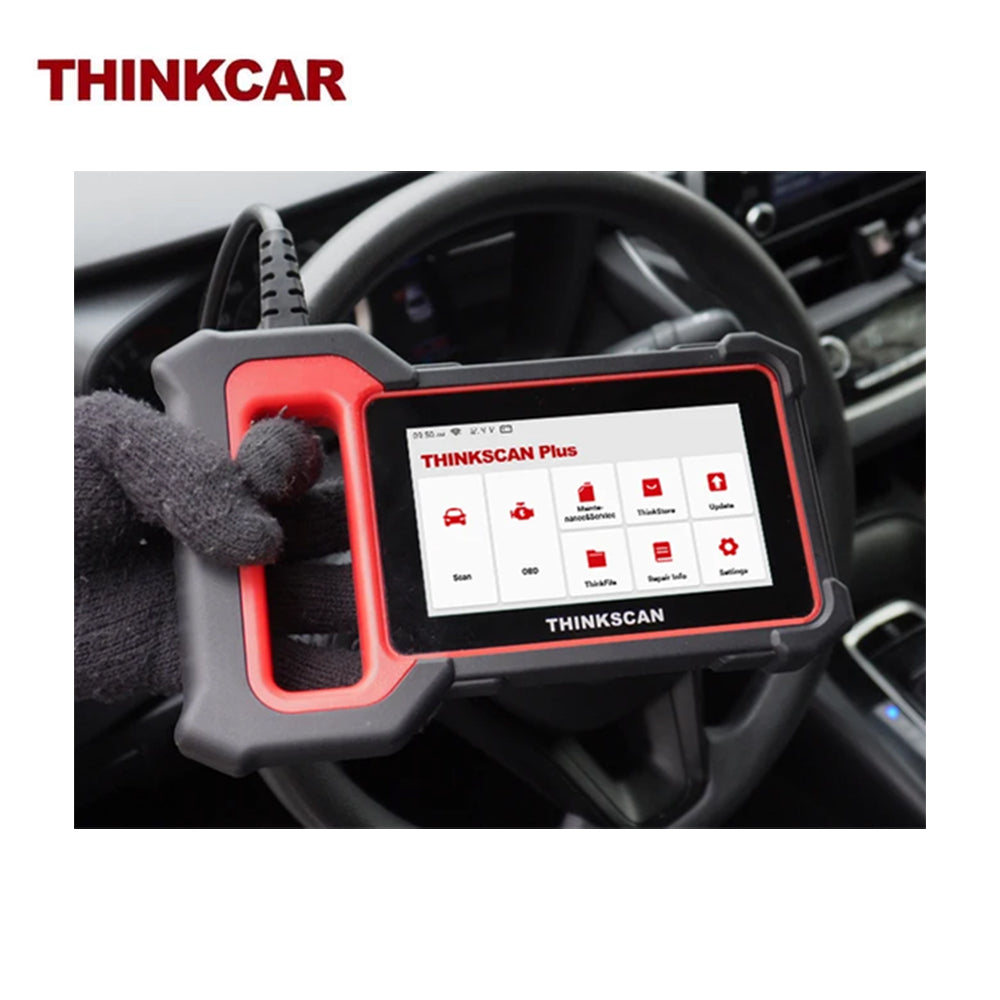

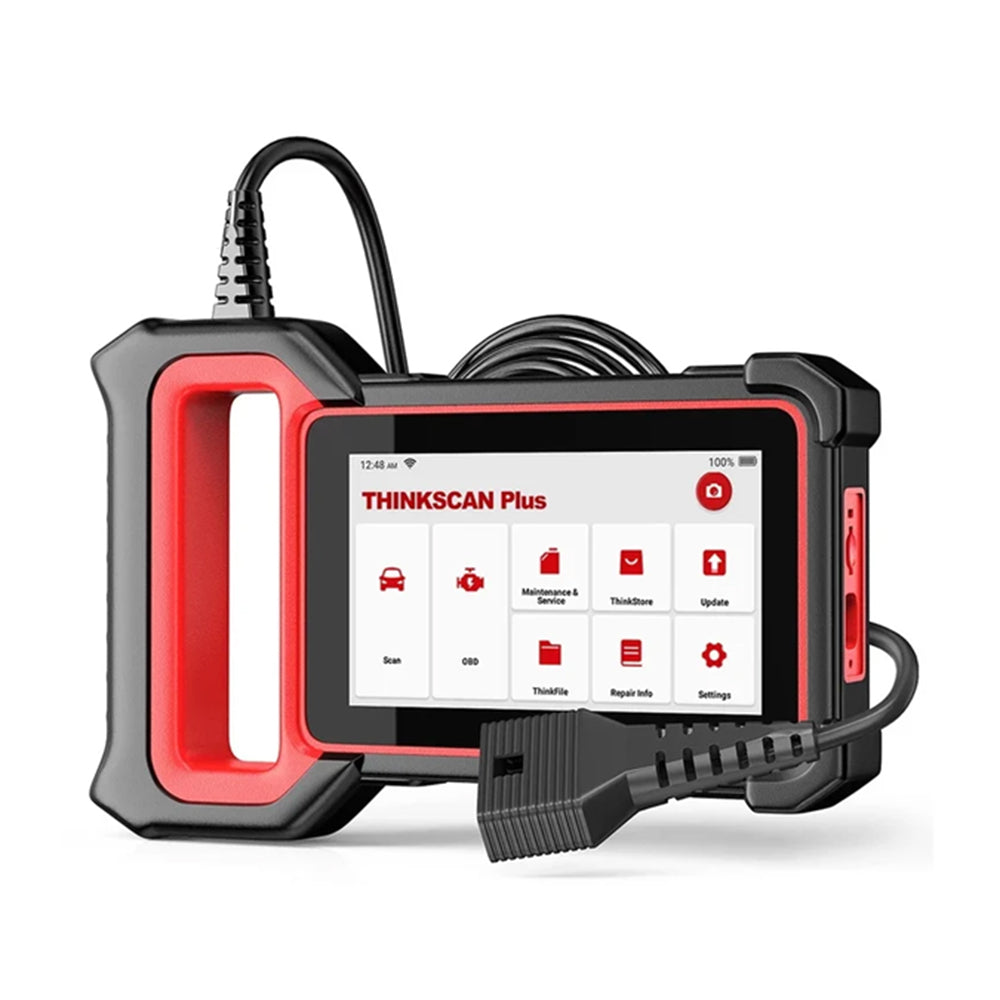

THINKCAR THINKSCAN PLUS S7 v2 - 5-Inch OBD2 Scanner Reset Code Reader and Scan Tool

THINKCAR THINKSCAN PLUS S7 v2 - 5-Inch OBD2 Scanner Reset Code Reader and Scan Tool

The THINKSCAN PLUS S7 is a 5-inch touchscreen OBD2 scanner with 7-system full coverage including Engine, Transmission, ABS, SRS, BCM, A/C, and Instrument Cluster. It offers 7 free maintenance reset services, live data graphing, Auto VIN, and lifetime free Wi-Fi updates. A powerful and affordable choice for shops and serious DIYers needing broad diagnostic coverage.

Features:

• ABS/SRS/Engine/Transmission/Body/AC/IC 7 System Diagnostic Scanner + FULL OBDII Functions: Experience the full capabilities of the THINKSCAN S7 car trouble code reader. This advanced device can comprehensively read codes from the main ECU's for Engine, ABS, and Airbag system. It allows for reading and erasing codes, live data streaming, and turning off system warning lights. The device also supports standard OBD/EOBD diagnostics, including Live Data Graphing and Vehicle Information. By using the S7, users can make informed decisions about maintenance and effectively save money and time.
• DIY 5 Resets Function from 28 Reset Services: You can select 5 resets special services for free (PS: Once you selected, you cannot switch them.), and if you need more, each additional reset feature costs $29.95/year. The THINKSCAN S7 OBD2 scanner support Oil, EPB Brake, TPMS Reset, SAS, DPF Regeneration, SUN Reset, ABS Bleeding, IMMO Reset, TPS, A/F, CKP, CVT, and so on. Totally, there are 28 reset functions in total.
• Readers & Scan Coverage Extensive Vehicle Multilingual: The THINKSCAN PLUS S7 ABS code scanner coverages all 120+ vehicle brands that supports the OBD2 protocol after 1996, for instance, the vehicle made in China Asian and Europe, like AUDI, BENZ, BMW, CHRYSLER, CITROEN, DACIA, DAEWOO, FIAT, GM, HOLDEN, HONDA, HYUNDAI, JAGUAR, TOYOTA, SEAFORD and so on. Support Multilingual: English, Spanish, Portuguese, French, Japanese, German, Italian.
• Battery & Alternator Test Wi-Fi One Click Lifetime Update: THINKSCAN PLUS S7 OBD2 trouble code reader diagnostic tool with the battery voltage test so that you are able to monitor the battery voltage timely. And the Wi-Fi One Click Update make you can use the newest software lifetime free.

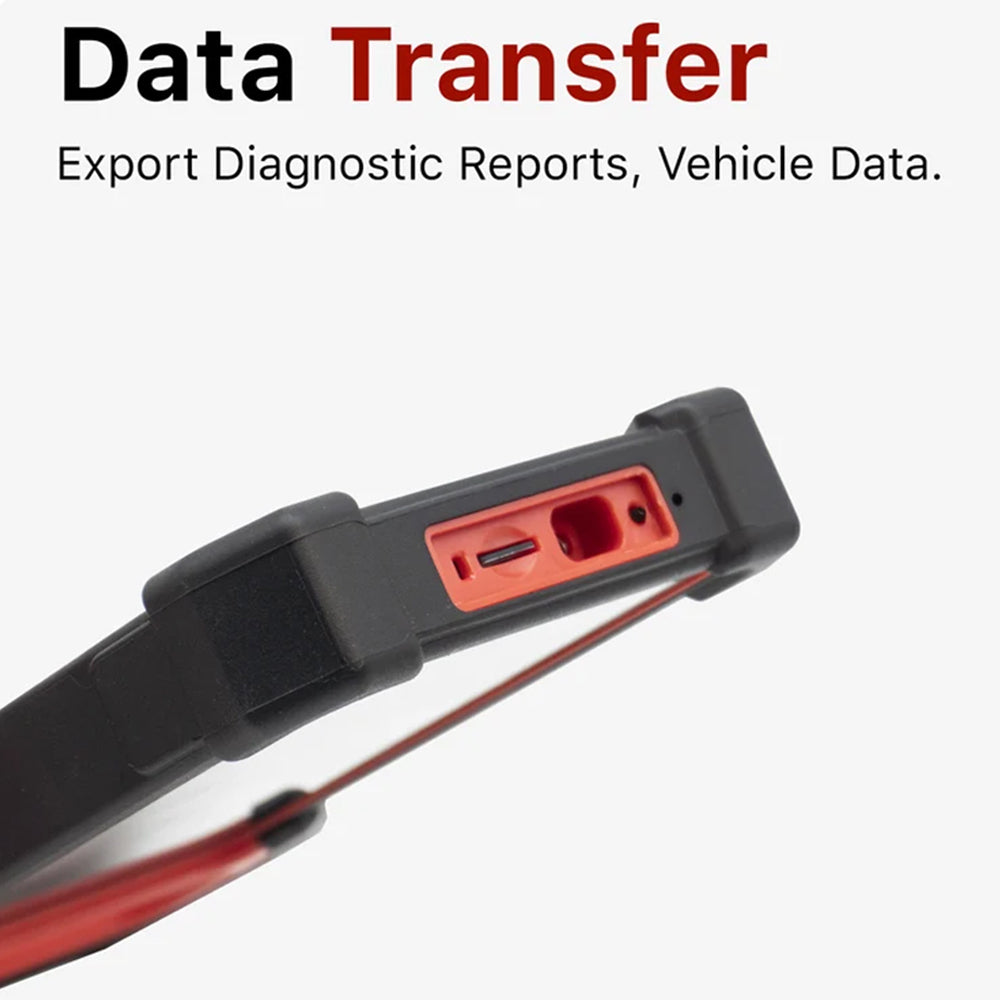

• Live date+2 IN 1 Graph+Scan QR Code Share&Print: The THINKSCAN S7 offers a unique feature called diagnosituatio live data, which allows you to combine up to 2 diagnose dates in a single graph. This feature provides a clearer understanding of the diagnose code and you can easily access the diagnose information of your car by scanning the QR code on your phone. By using this feature, you can save both time and labor costs.
• Newest Obd2 Scanner Enhanced Hardware: Based on Android 7. 0 systems , the obd2 code reader can avoid flashback issue; 5-inch touchscreen with 720p and can be held with one hand; 800 ma battery enables it to be used wirelessly for a long time.

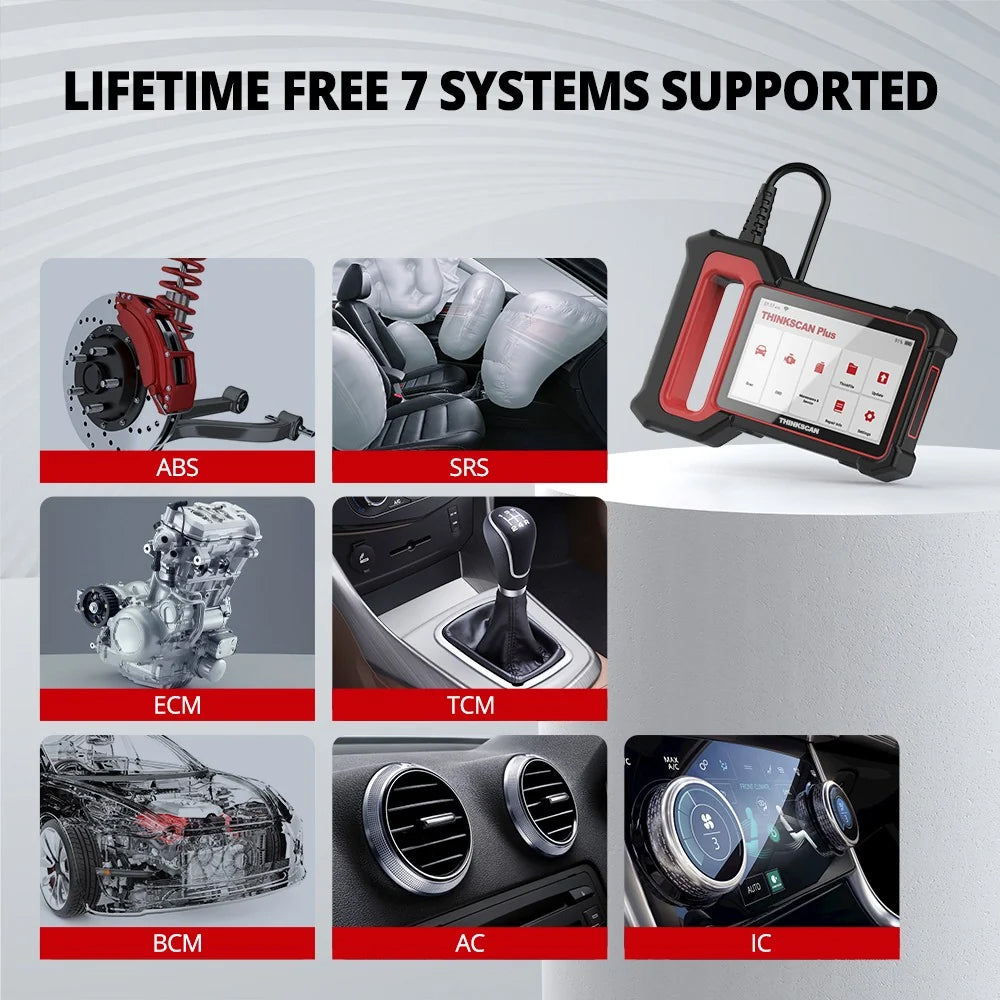

Support 7 System Diagnostic

1. ECM
2. TCM
3. ABS
4. SRS
5. BCM
6. AC
7. IC

• Diagnose ECM (Engine Control Module): quickly determine the cause of the Engine System, and turn off the warning light. It also retrieves current, permanent, and pending codes in the vehicle engine system, What's more, it also shows critical OBD2 standard extended data, such as fuel, emissions data, and other real-time manufacturer-specific parameters in the engine system.
• Diagnose ABS (Anti-lock Braking System): read and clear the ABS fault code and turn off the warning light. Retrieve ABS codes to make braking smoother, smoother, and safer. It also feeds real-time data streams into the ABS, allowing the user to monitor and diagnose critical ABS systems to ensure repairs to these critical system are effective and complete.
• Diagnose SRS (Supplementary Restraint System): a safety restraint system, is made up of impact sensors, a control module, and the airbags themselves, and ThinkScan Plus S7 car scanner can detect every electronic parameter to check its health status.
• Diagnose TCM(Transmission Control Module): some issues, like un-working electronic accessories and broken transmission computers, will keep your transmission light flashing. ThinkScan Plus S7 car scanner will assist you with fast scanning of your vehicle, and read the fault code easily, shutting down the warning light within minutes when you finish the repair.
• Diagnose BCM(Body Control Module): the BCM communicates with other modules in the vehicle to control functions such as lighting, power windows, door locks, and security systems. Troubles in this system can set off a chain of events that can incur large-scale damage to the car. Therefore, it is important to maintain a good state.
• Diagnose AC (Air Conditioning) System: diagnose the cooling, heating, ventilation, and air purification devices of the air in the cabin. Ensure that the vehicle has a comfortable environment, reduce the fatigue strength of the driver, and improve driving safety.
• Diagnose IC (Instrument) System: the car dashboard is a device that reflects the working conditions of the various systems of the vehicle: fuel indicator, cleaning fluid indicator, electronic throttle indicator, front and rear fog light indicator, and warning light.

Choose 5 from 28 Available Maintenance Functions

1. Air-to-Fuel Ratio Reset
2. AdBlue Reset
3. AFS Reset
4. Airbag Reset
5. ABS Bleeding Reset
6. Battery Match
7. Brake Reset
8. Coolant Bleed Reset
9. DPF Regeneration
10. EGR Adaptation
11. Elec Throttle Relearn
12. Gear relearn Reset
13. Gear Box Relearn
14. immobilizer Reset
15. Injector Reset
16. NOX Sensor Reset
17. Odometer
18. Oil Reset
19. SAS Reset
20. Seat Calibration
21. Stop & Start Reset
22. Sunroof Reset
23. Suspension Reset
24. TPMS Resets
25. Tire Refitting Reset
26. Window Calibration
27. Transport Mode
28. Language Change

Included Standard Resets

Mode 01 - Request Current Powertrain Diagnostic Data: Retrieves real-time data from the vehicle's engine and emission systems, such as engine RPM, vehicle speed, fuel trim, and more.

Mode 02 - Request Freeze Frame Data: Retrieves a snapshot of the vehicle's data at the time when a Diagnostic Trouble Code (DTC) was triggered, providing a valuable reference for diagnosis.

Mode 03 - Request Stored Diagnostic Trouble Codes: Retrieves the DTCs stored in the vehicle's computer memory, indicating specific issues or faults that have been detected.

Mode 04 - Clear/Reset Diagnostic Trouble Codes: Clears or resets the stored DTCs and turns off the Check Engine Light (MIL) after the related issues have been resolved.

Mode 05 - Request Oxygen Sensor Monitoring Tests: Monitors the operation and performance of the oxygen sensors in the vehicle's exhaust system, providing data on fuel mixture and emissions.

Mode 06 - Request On-Board Monitoring Tests Results: Provides access to the results of various self-tests conducted by the vehicle's onboard systems, including catalyst efficiency, evaporative system, and more.

Mode 07 - Request Pending Diagnostic Trouble Codes: Retrieves the DTCs that are pending and have not yet triggered the Check Engine Light, indicating potential issues that require attention.

Mode 08 - Request Control of On-Board Systems: Allows control and testing of certain vehicle systems or components, such as turning on/off specific actuators or performing system self-tests.

Mode 09 - Request Vehicle Information: Retrieves information about the vehicle's identification, calibration, and programming, including VIN (Vehicle Identification Number), ECU software version, and more.

Mode 10 - Request Permanent Diagnostic Trouble Codes: Retrieves any permanent DTCs that cannot be cleared by the vehicle's computer, indicating persistent issues that require further attention.

Compatibility

The Thinkcar THINKSCAN PLUS S7 features a standard OBD2 16-pin connector, which allows for seamless compatibility with most modern vehicles. The 16-pin connector is the industry standard interface found in vehicles manufactured after 1996, enabling easy and reliable access to the vehicle's onboard diagnostic system.

Note: The specific functionality and features may vary based on the vehicle make, model, and software capabilities.

Support 94+ Worldwide Vehicle Coverage

American cars were released in 1996 years, European cars were released in 2000 years and Asian cars were released in 2006 years, but doesn't support the 24v heavy-duty truck.

For America car models: FORD, LINCOLN, GM, BUICK, CADILLAC, CHEVROLET, CHRYSLER, DODGE, JEEP, HM

For Europe car models: BENZ, SMART, SPRINTER, BMW, VW, SKODA, AUDI, OPEL, LAMBORGHINI, PORSCHE, MAYBACH, EURO FORD, LANDROVER, DR, BENTLEYRollsRoyce, ROVER, MINI, VAUXHALL, FERRARI, FIAT, Abarth, LANCIA, Alfa, Romeo, Maserati, BUGATTI, PEUGEOT CITROEN, RENAULT, SAAB, VOLVO, OPEL, Dacia, SEAT

For Malaysia car makes: PERODUA(PERODUA), PROTON

For IRAN car makes: IKCO, MVM, SAIPA

For Australian car makes: Austford, Holden

For India car makes: TATA, MARUTI, MAHINDRA, India HM

For Russia car makes: GAZ, VAZ

For Brazil car makes: FIAT, GM

For ASIAN CAR makes: SAMSUNG, DAEWOO, SSANYYONG, HYUNDAI, KIA, HONDA, Acura, TOYOTA, SCION, LEXUS MAZDA, NISSAN, Infiniti, JPISUZU, TLISUZU, DAIHATSUSUZUKI, MITSUBISHI, SUBARU, CHANGCHENG, HUACHEN, ZHONGXING, JACTY, QIRUI_TY, ISUZU, JINLONG, CHANGAN, LIUWEI_TY, XINKAI, JPISUZU, ZHONGSHUN, HAOQING, HAFEI, XIALI, CHANGHE, ZHONGTAI, Kowloon, Brilliance, LIFAN, WEILI, FLYER, SSANGYONG, JIAO, WEILI, LUXGEN.BYD, HERY.ZOTYE. etc.

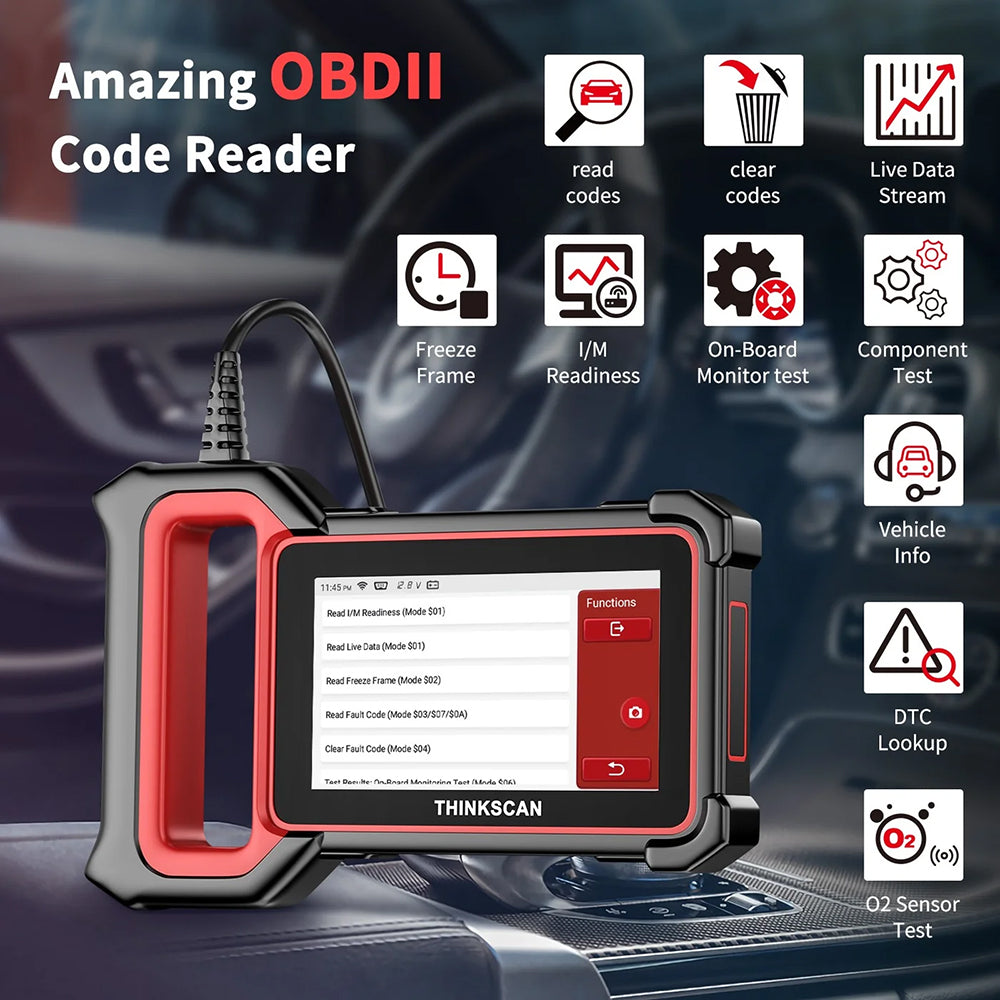

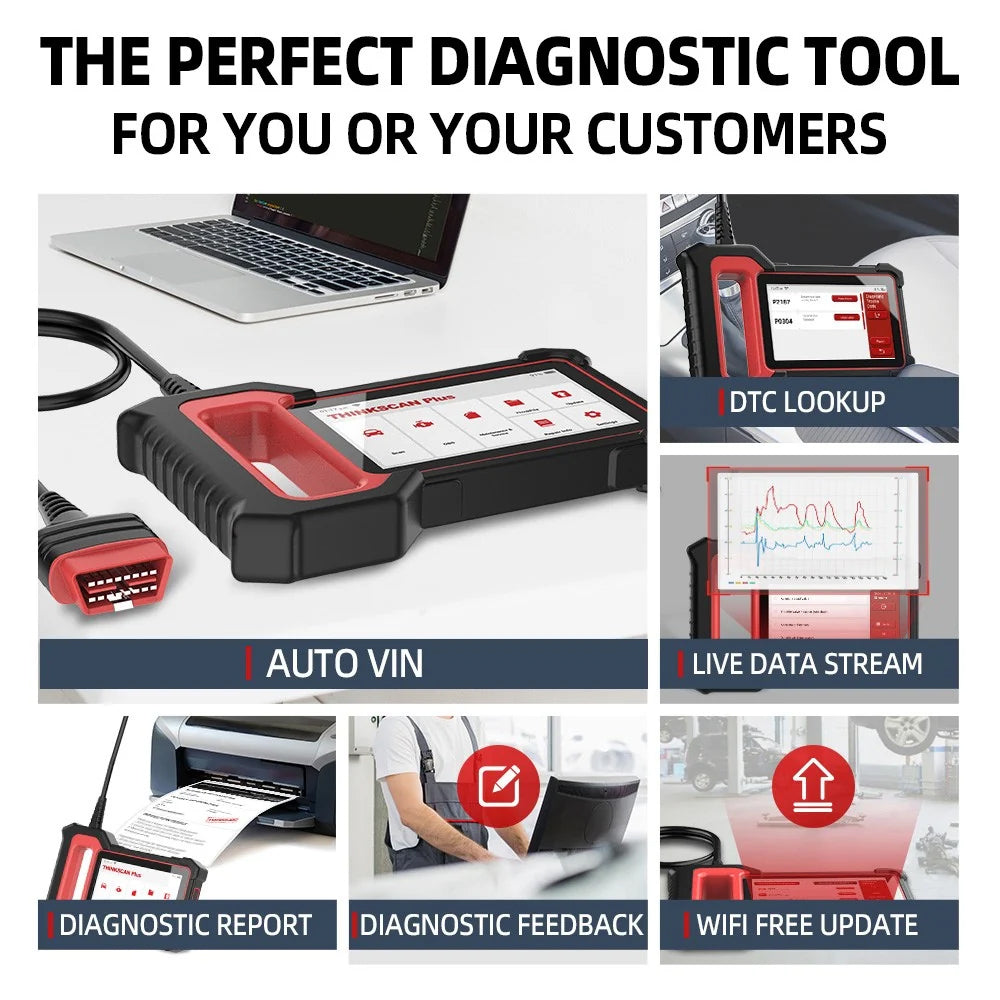

Full OBDII Diagnostic Functions

• Read extensive current, pending, and permanent codes in the OBD system quickly
• Clear detected fault codes and turn off the Check Engine Light efficiently
• View graphical live data of vehicle's computer module(s) for easy analyses
• View the vehicle's operating parameters at the moment a DTC is detected
• Read I/M readiness status to have a vehicle inspected for state emissions compliance
• Perform O2 sensor test to check fuel efficiency and vehicle emissions
• Read the results of on-board diagnostic monitoring tests for specific components/systems
• Perform the component Test by initiating a leak test for the vehicle's EVAP system
• Retrieve the vehicle information of VIN, CINs, and CVNs completely
• Built-in DTC lookup library with cause analysis

Why Choose THINKSCAN PLUS S7?

• ThinkScan Plus S7 Support 7 System Diagnostic ECM/TCM/ABS/SRS/BCM/AC/IC, lifetime free
• Choose 5 Reset Services from 28 Reset Services, lifetime free
• Support Full OBD2 Diagnostic Functions
• No subscription fees for device updates
• Wide vehicle coverage. cover up to 94 major vehicle manufacturers, more models are updating
• Supports 10 languages: English, French, German, Italian, Spanish, Portuguese, Japanese, Russian, Polish and Turkish
• Support AutoAurth for FCA SGW (Need to buy FCA SGWA account)

Specifications:

• Coverage: Passenger Vehicle Auto Coverage
• Operating System: Android 7.0
• Memory: 1G
• Storage: 8G
• Screen Size: 5-Inch/TFT(IPS)
• Connection: Wi-Fi/Bluetooth

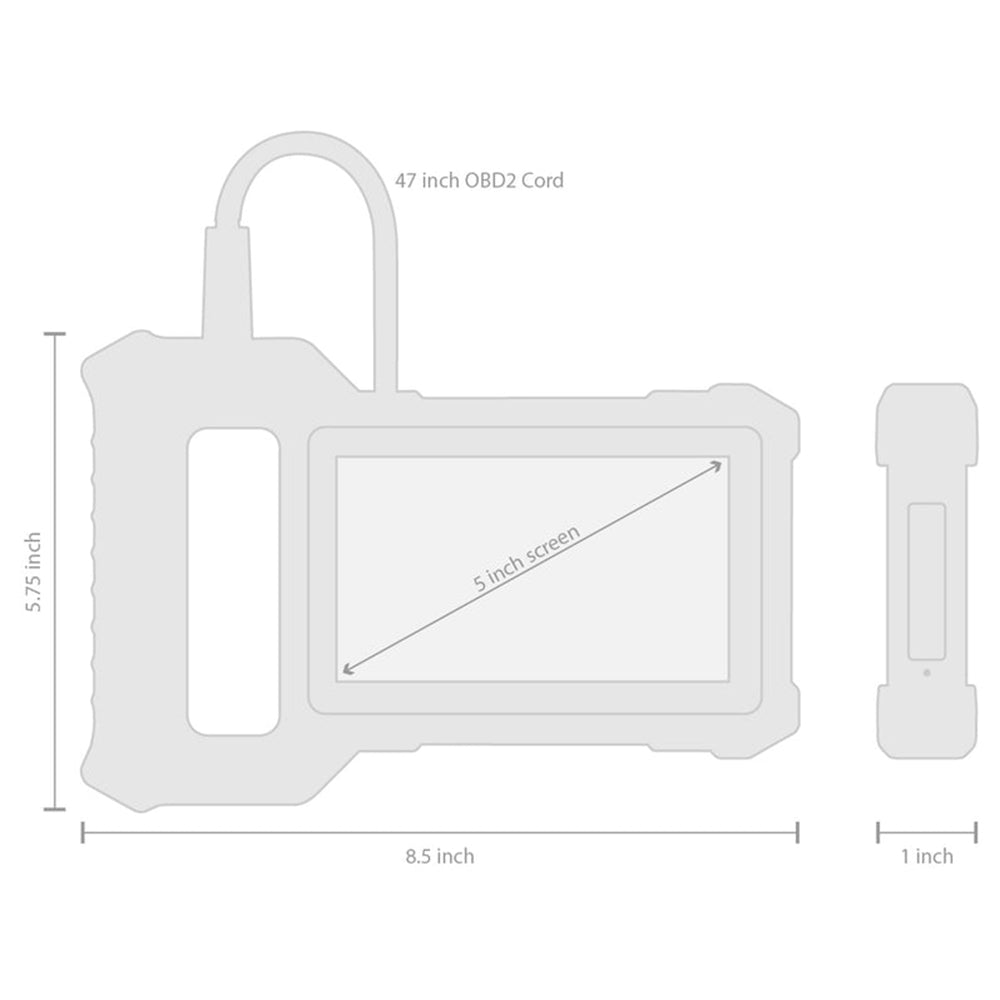

• Overall size: 210mm*140mm*25mm
• Battery Capacity: 600mAh/3.8V
• Manufastures Warranty: 12 months

Does not cover Heavy Duty Vehicle Software Coverage

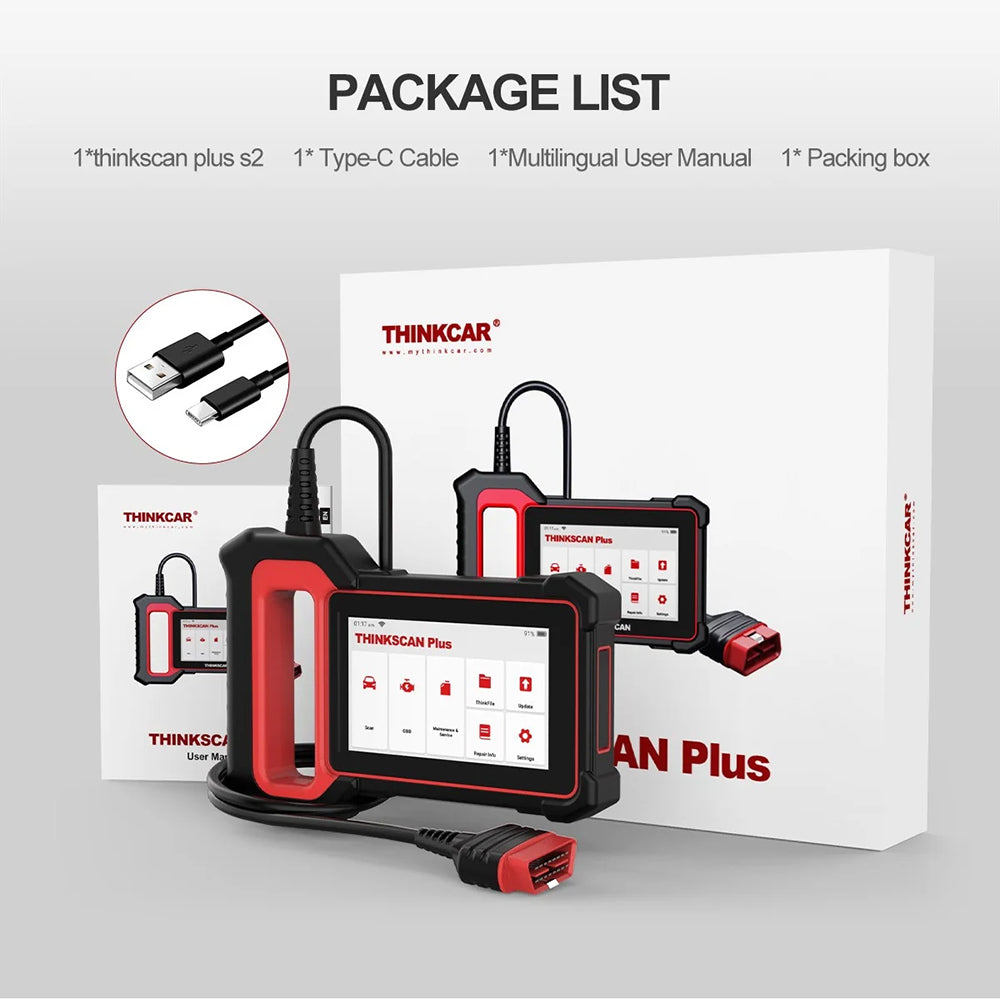

Packing list:

• 1 x Thinkcar Thinkscan Plus S7
• 1 x Diagnostic dongle
• 1 x Charging cable
