THOR THMS3000 3000 Watt Power Inverter W/ USB 2.1

THOR THMS3000 3000 Watt Power Inverter W/ USB 2.1

Powers up to 30 Amps

Includes:

- USB 2.1
- Full Output Power: 3000 Watts
- High Surge
- High Speed Low Noise Cooling Fan
- Ground Fault Sensing

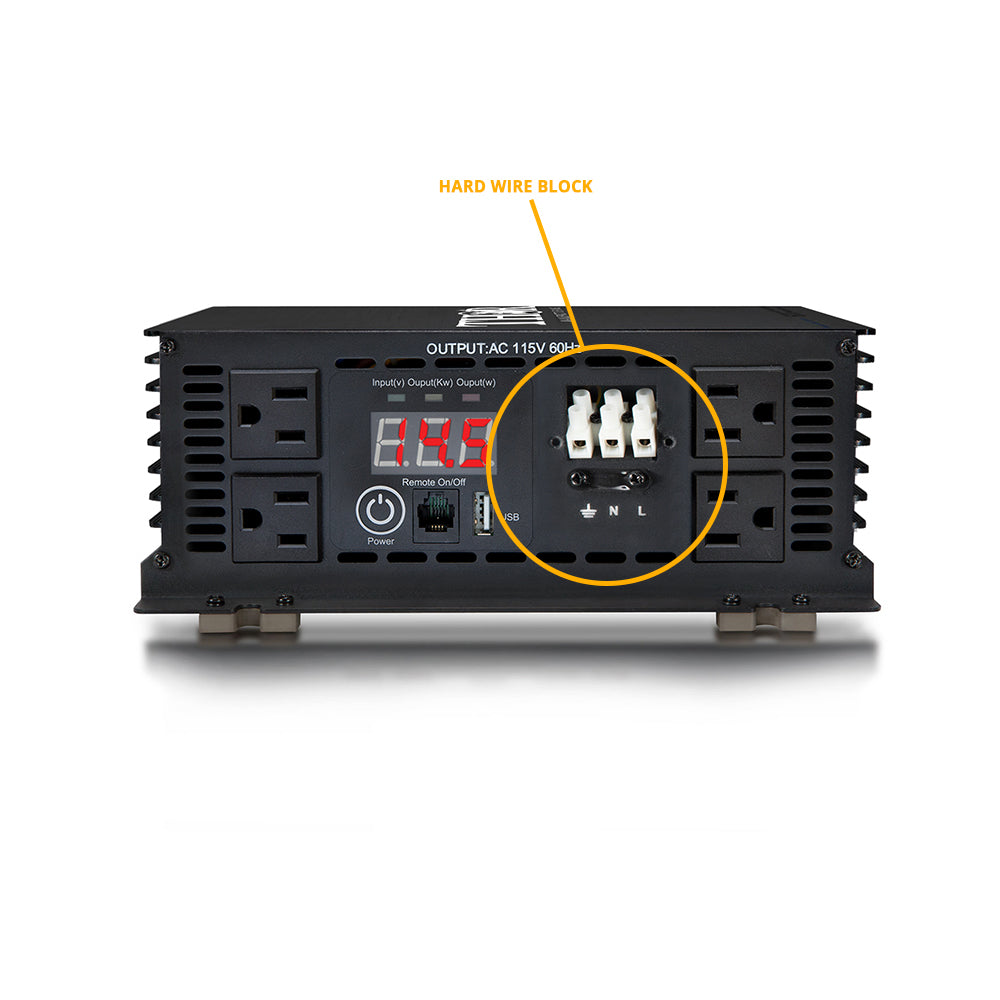

- New Hard Wire Block

Specifications:

- Continuous output power: 3000 Watts
- Surge power capability (peak power): 6000 Watts
- DC input / operating voltage: 10.5 to 17 Volts
- Output voltage: 120 Volts ac / Output frequency: 60 Hz / Output wave form: modified sine wave
- Battery low voltage shutdown: 10.5 +/- 0.5 Volts High input voltage protection: 15V
- No load current: < 0.8 Amps
- Full load efficiency: >85%
- AC Output Socket Type: 4, Type 2 -3 prong
- Fuse protection

Electronic Circuit Protection:

- Overload Protection – Inverter will automatically shut down if load exceeds inverter rating.
- Smart Surge Control – Inverter will attempt to start loads above the continuous rating for up to 10 milliseconds.
- Voltage Protection – Whenever the input exceeds 17 volts DC or is less than 9.5 volts, the inverter will automatically shutdown.
- Short Circuit Protection – Automatically shuts down until short circuit is removed.
- Thermal Cutoff – Automatically shuts down if internal temperature exceeds safe design parameters.

Product Summary:

- Bar Code Number: 853003006285
- Packaging: Box
- Dimensions: 17.32L x 8.5W x 3.34H
- Product Gross Weight: 14.25 lbs

Downloads:

Product Spec Sheet (Click here)

Technical Data (Click here),

Mechanical Drawing (Click here)

Watch Features Video (Click here)
