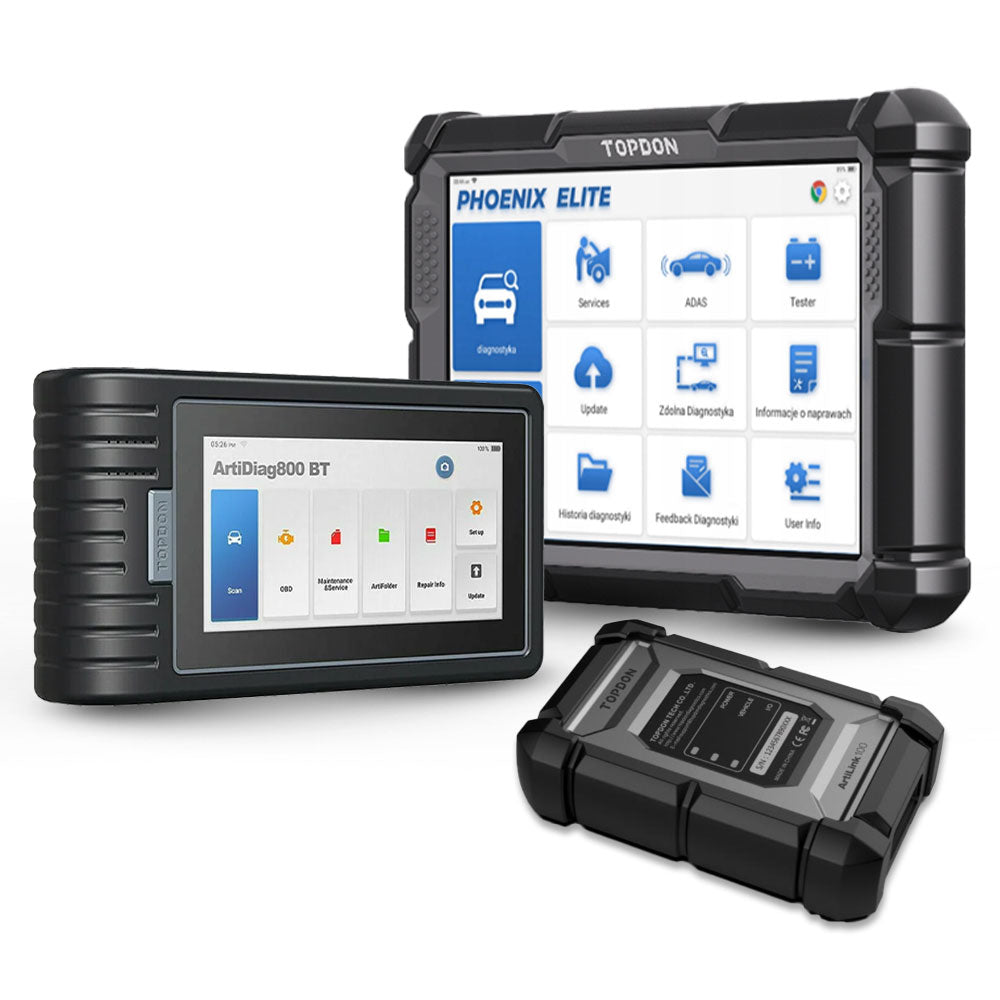

TOPDON Phoenix Elite Diagnostic System with ARTIDIAG 800 BT All System Car Diagnostic Scanner

TOPDON Phoenix Elite Diagnostic System with ARTIDIAG 800 BT All System Car Diagnostic Scanner

Includes:

• Phoenix Elite Diagnostic Scanner
• ARTIDIAG 800 BT All System Car Diagnostic Scanner

TOPDON - Phoenix Elite - Professional Diagnostic Scanner

The Phoenix Elite is a professional-grade diagnostic scanner that offers OE-level quality. This tool provides fast and precise diagnostic capabilities with an LCD 10.1” screen, 4-Core 2.0 GHz Processor, and Android 10.Its topology feature lets technicians have a clear picture of the automobile’s systems and quickly find communication issues or identify trouble codes.

Features:

Connect to the newest vehicles and technology. The Phoenix Elite meets all the latest requirements for vehicle network communication.

• The Phoenix Elite comes with an updated VCI compatible with the CANFD protocol, making this a must-have device to work on the most modern cars.

All Data in One View

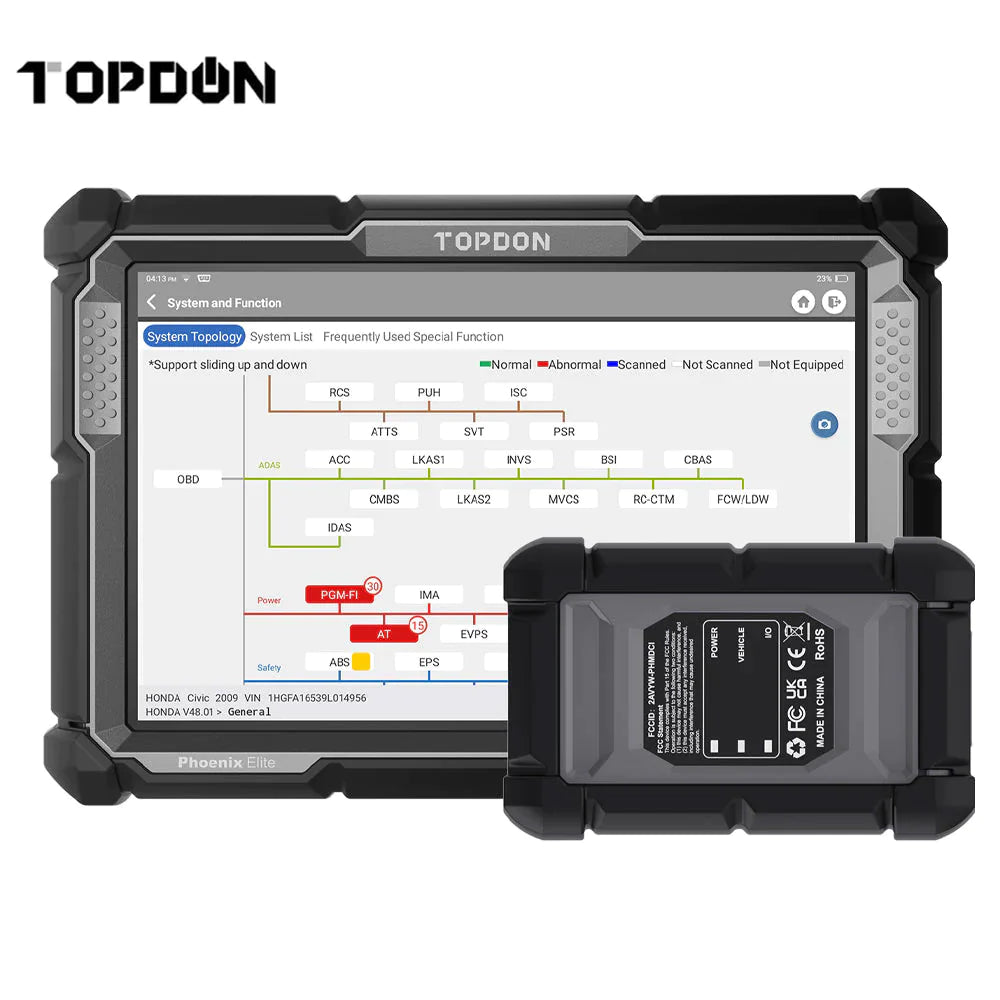

• Topology map granting a clear picture of related vehicle systems and status-Clearly defined CAN network layout
• Diagnose communication issues in one glance
• Color-coded mapping of each module communication status
• Active tests, special functions, coding, initialization, and memory resets.

Guided Functions for VAG vehicles

• Step by step guided diagnostics process, based on code, for VW and Audi Group Vehicles.

Expand Coverage to Include ADAS Calibrations

• Not just a diagnostics tool, The Phoenix Elite allows you to expand your abilities. By upgrading your tablet with ADAS calibration and adding the necessary targets you can turn your high-performance scan tool into a ADAS system Calibration station. Creating a whole new revenue stream for your shop.

Pre-scan and Post-scan Reporting

• Show and Prove the before and after reports. The Phoenix Elite Pre-Scan and Post Scan feature allows the technician the ability to record the codes prior to repair. This allows submission to the customer or insurance company for repair approval. Once the repair is complete the codes can be cleared, and a Post Scan report can be ran to show all codes are clear and the vehicle has a clean bill of health.

Vehicle Auto VIN and Autodetect

• No longer do you need to select the Year-Make-and Model. The Phoenix Elite can automatically capture the vehicles VIN number and determine all relevant information to auto populate the vehicle. Saving the technician time, and preventing mistakes.

Technical Specifications:

• Display: LCD 10.1-Inch, 1280 * 800
• CPU: 4-Core Processor, 2.0 GHz
• System: Android 10.0
• RAM: 4G, ROM 64G
• Battery: 12000 mAh / 3.8V
• Operating Voltage: 9~18V
• Storage Temperature: -20℃~60℃（-4℉~140℉
• Working Temperature: 0℃~50℃（32℉~122℉
• Dimension: 278*191*48 mm（10.94*7.52*1.89"
• Package size: 468*320*143 mm(18.43*12.60*5.63")
• Net Weight: 3.45 lb (1566.5g)
• Multilingual Support: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian, Korean, Chinese (traditional), Hungarian, Dutch, Turkish, Polish, Finnish

Technical Specifications of VCI Connector:

• Working Temperature: -10℃ to 50℃（14℉ to 122℉
• Operating Voltage: 9 to 18 V
• Working Current: ≦ 150 mA
• Dimension: 127 x 82 x 36mm（5 x 3.22 x 1.42”
• New protocol supported: CANFD

Packing List:

• 1 Phoenix Elite
• 1 VCI Dongle
• 1 OBDI Adapter BOX Transfer Line
• 1 OBDII Extension Cable
• 1 Cigarette Lighter Cable
• 1 Type-C to USB Cable
• 1 Battery Clamps/Cable Set
• 1 Power Adaptor
• 1 User Manual
• 1 Password Envelope
• 10 Non-16pin Adaptor Cable Kit (NN-14+16, BZ-38, TA-17, TA-22, G/V-12, B-20, CR-6, HA-3, M/H-12+16, FT-3)
• 4 Fuse (φ5*20mm)
• 2 Fuse (φ6*30mm)
• 1 BMW F-Chassis Programming Cable

Download:

• User Manual

Warranty and Updates:

• Two Years Warranty
• Two Years of Update

Warranty Continues with Customer's Subscription

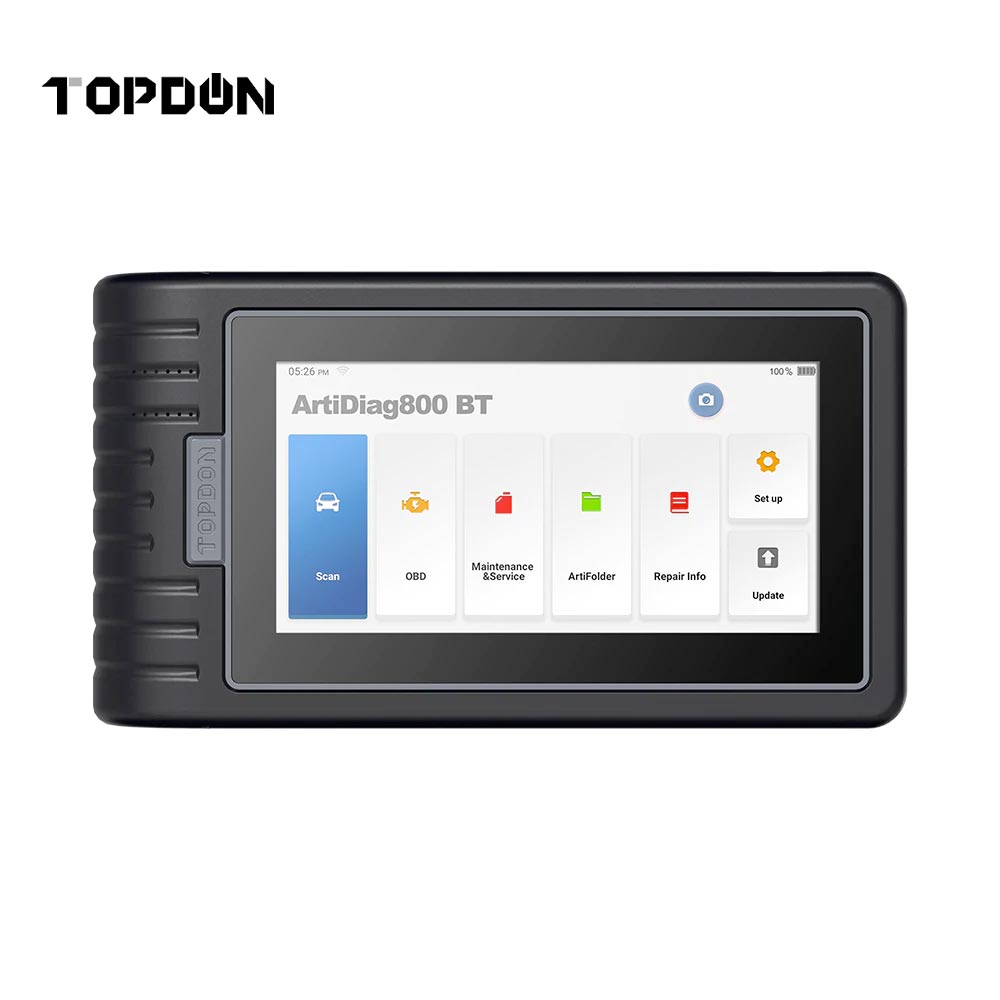

TOPDON ARTIDIAG 800 BT - All System Car Diagnostic Scanner

The ArtiDiag800 BT is an automotive diagnostics tool perfect for those who need detailed, accurate information that regular diagnostics tools cannot provide. The ArtiDiag800 BT offers AutoVIN tech, the most essential computer resets, and live data graphing. By combining full OBDII functions, 16 maintenance service functions, and vehicle info reading, the ArtiDiag800 BT gives serious technicians like you unparalleled insight and capabilities to fix automotive computer issues.*Requires a Windows Computer for Setup.

Features:

• Full system diagnostics for 54 Makes
• AutoVin Technology
• Bluetooth VCI Communications
• Read Vehicle and Version Information
• Read codes & Clear codes
• Live data/Graph live data
• One-click lifetime free upgrade
• Online Feedback

OBDII Functions:

• Read & Clear DTCs
• Live Data
• I/M Readiness Monitor Status
• View Freeze Frame Data
• O2 Sensor Test
• On-board Monitor Test
• Evap Test (Mode $8)
• Read Vehicle Information

Special Functions:

• Oil Reset
• SAS Reset
• EPB Reset
• BMS Reset
• DPF Service
• ABS Bleeding
• Immobilizer
• Sunroof Reset
• Suspension Reset
• Gearbox Reset
• AFS Headlamp Reset
• Injector Coding
• Gear Learning
• EGR Reset
• TPMS Reset
• Throttle Adaptation

*Not all make support these functions

Specifications:

• Display: 6" TFT (IPS) 1024x600
• OS: Android
• Processor: 1.3 GHz Quad-Core
• RAM: 2G, ROM 16G
• Operating Voltage: 9~18V
• Battery: 3100 mAh
• Storage Temp: -20°C~70°C (-4°F~158°F)
• Working Temp: -10°C~50°C (14°F~122°F)
• Net Weight: 21.16 oz.
• Multilingual Support: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian

Package List:

• 1 ArtiDiag800 BT Tablet
• 1 Bluetooth VCI
• 1 AC Wall Charger
• 1 USB C Cable
• 1 User Manual
• 1 Password Envelope
• 1 Carry Case

Warranty and Updates:

• One Year Warranty
• Free Update
