TOPDON TS004 Pro Thermal Monocular Camera with 19 mm Focal Length
Description
Description

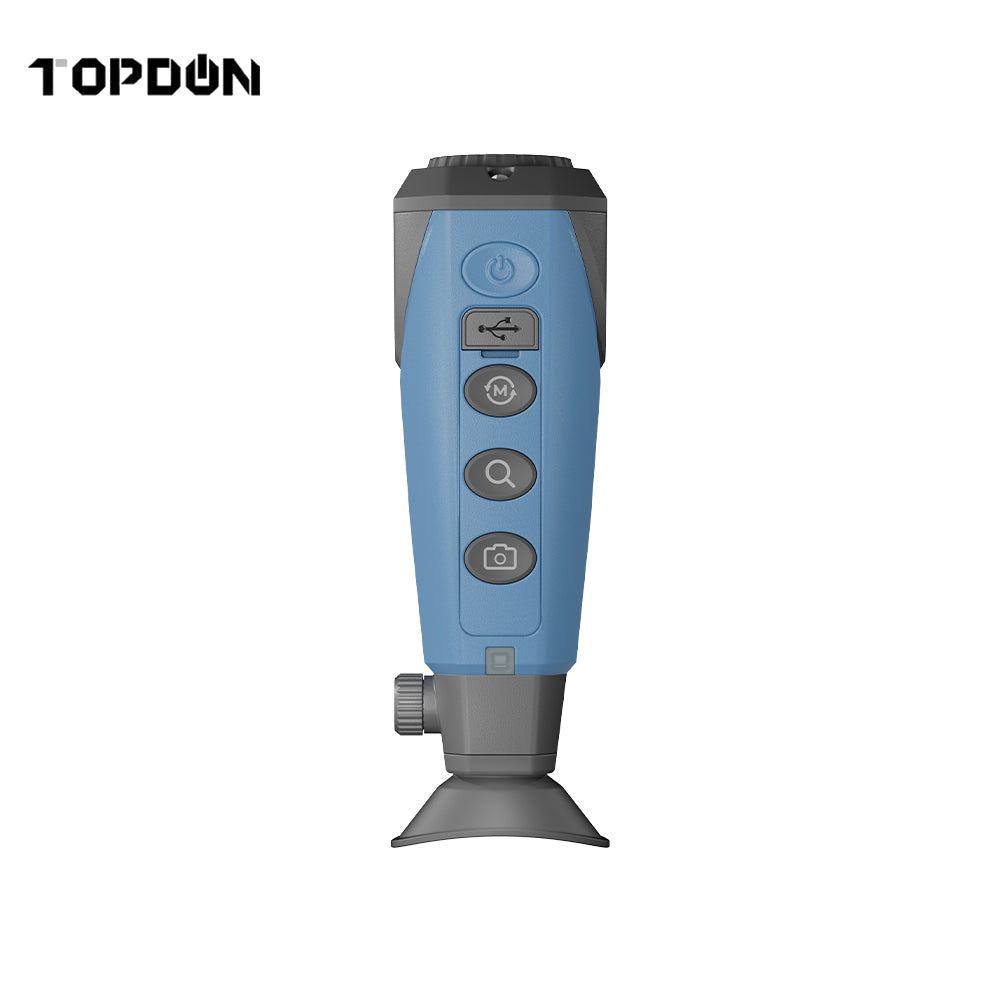

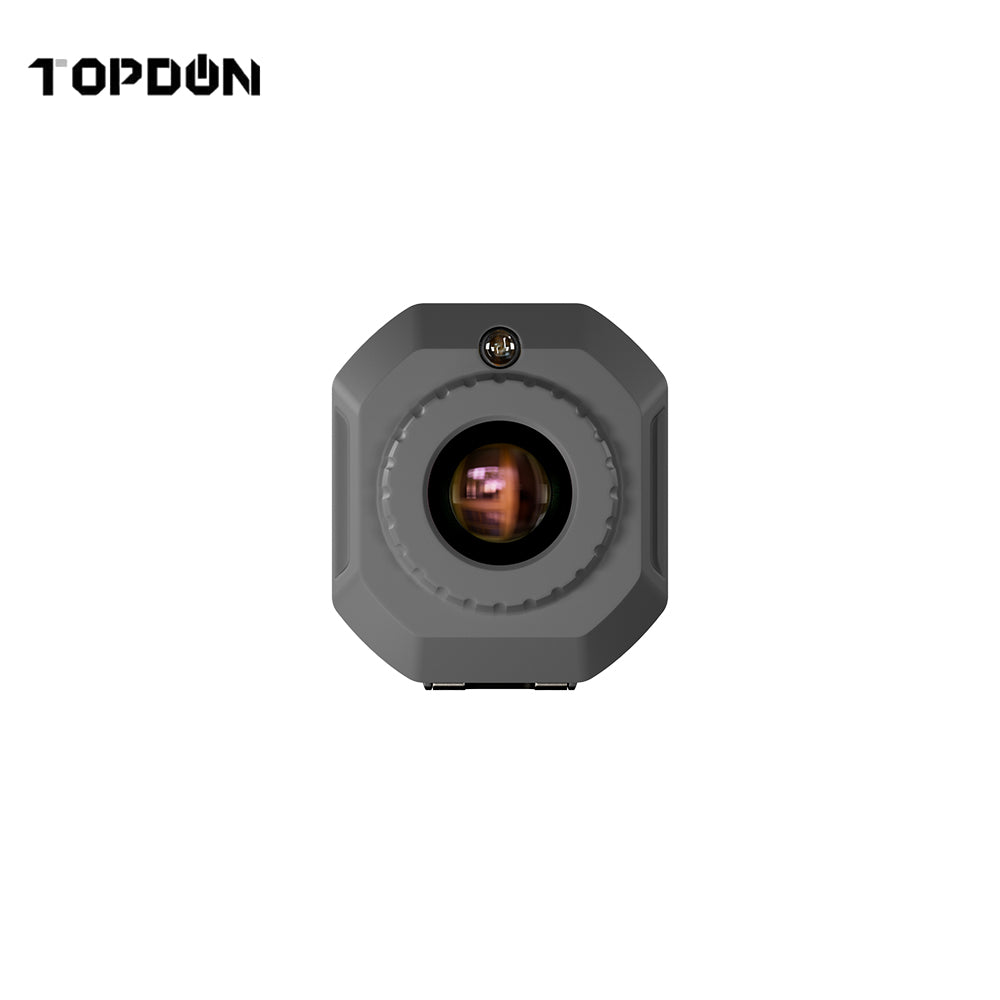

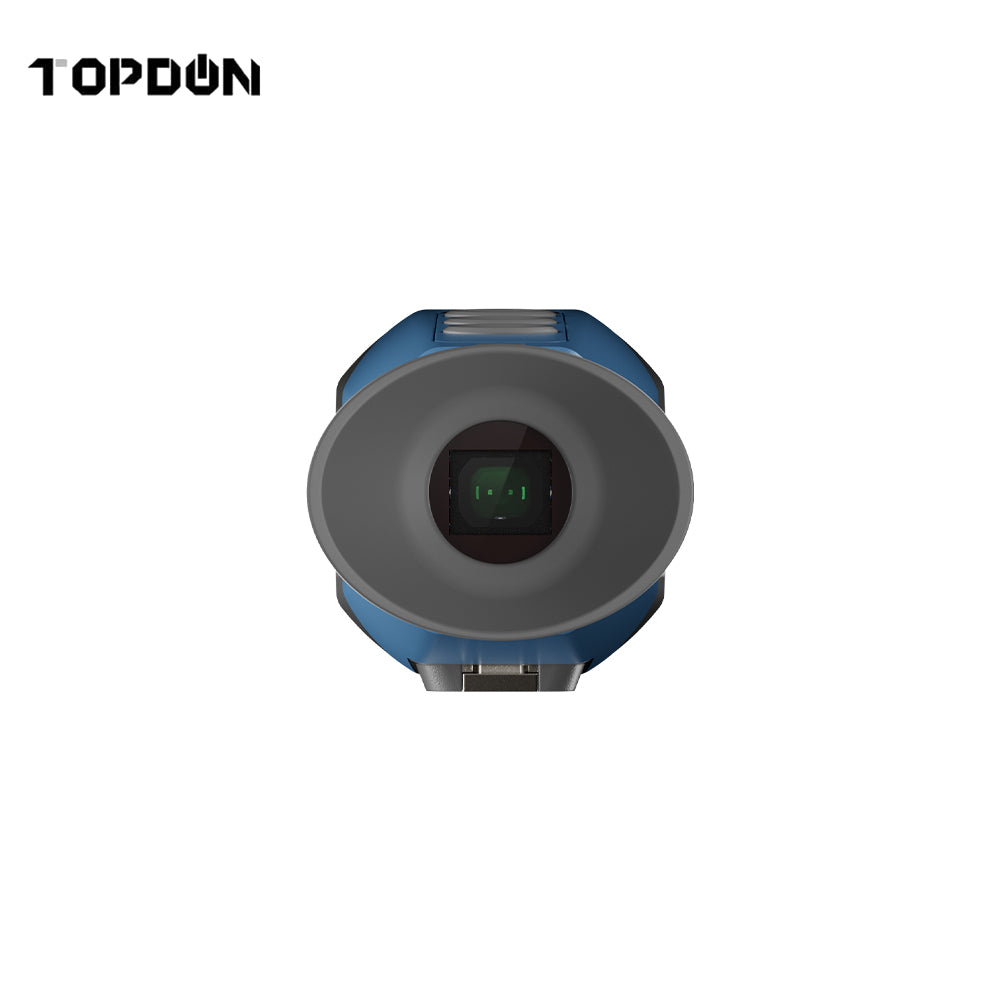

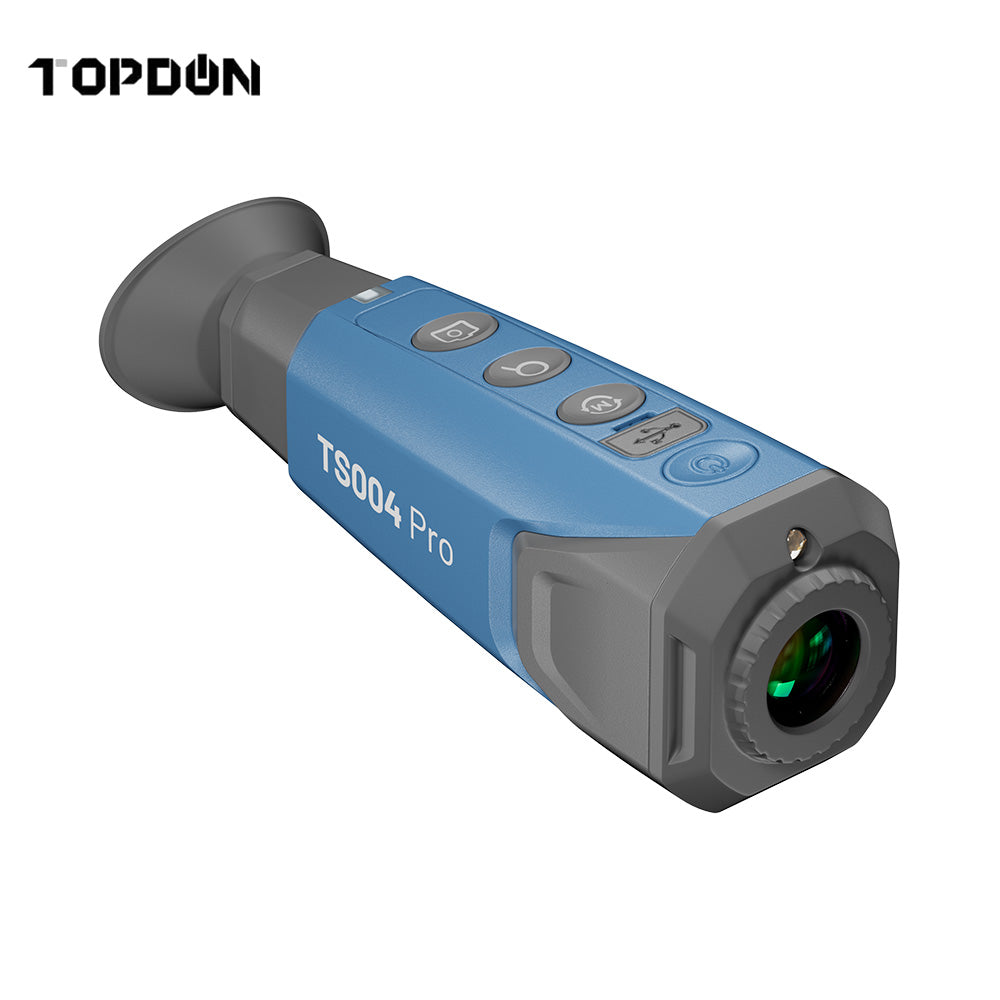

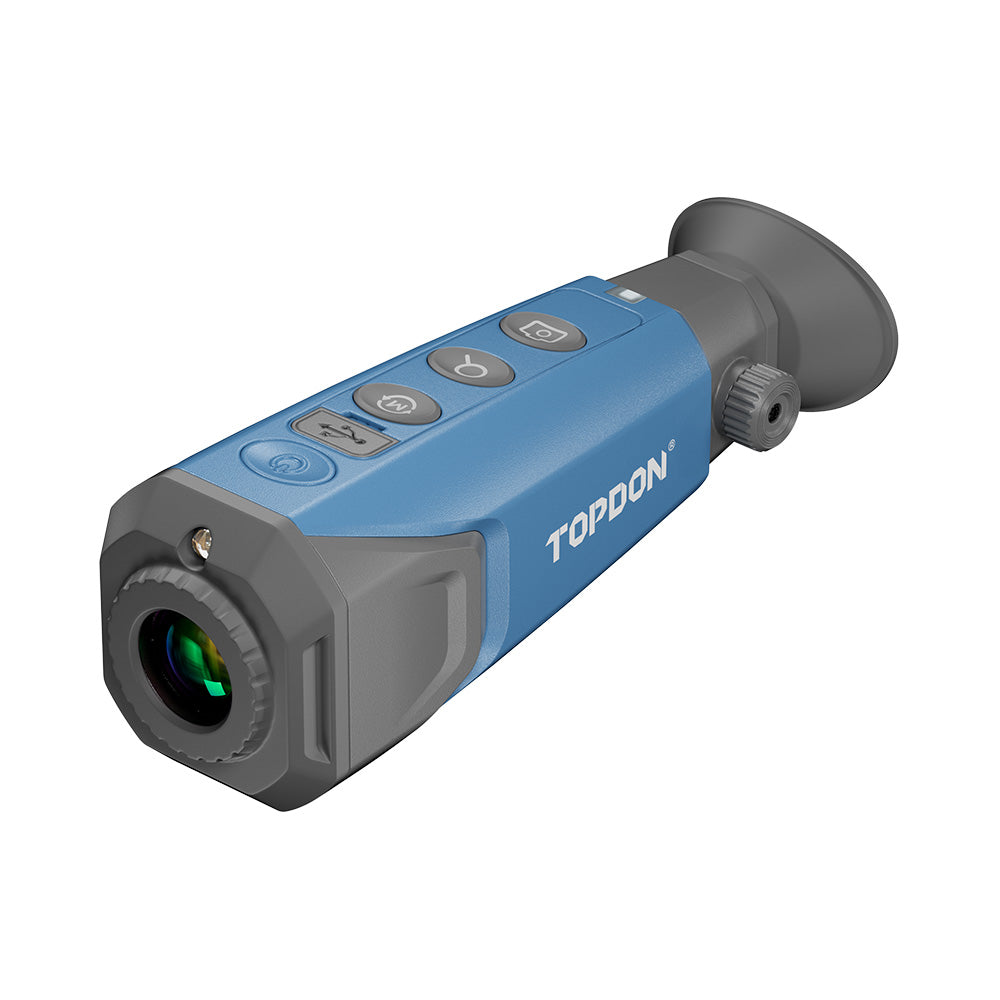

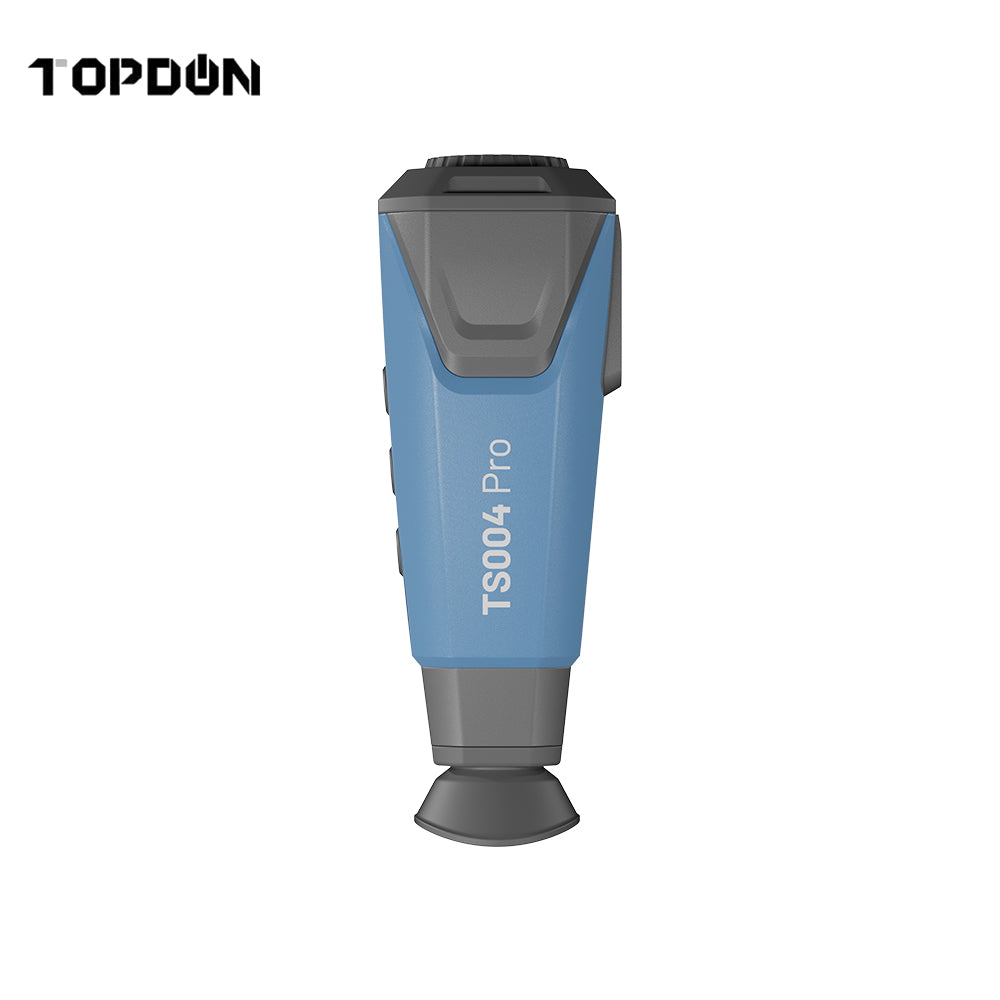

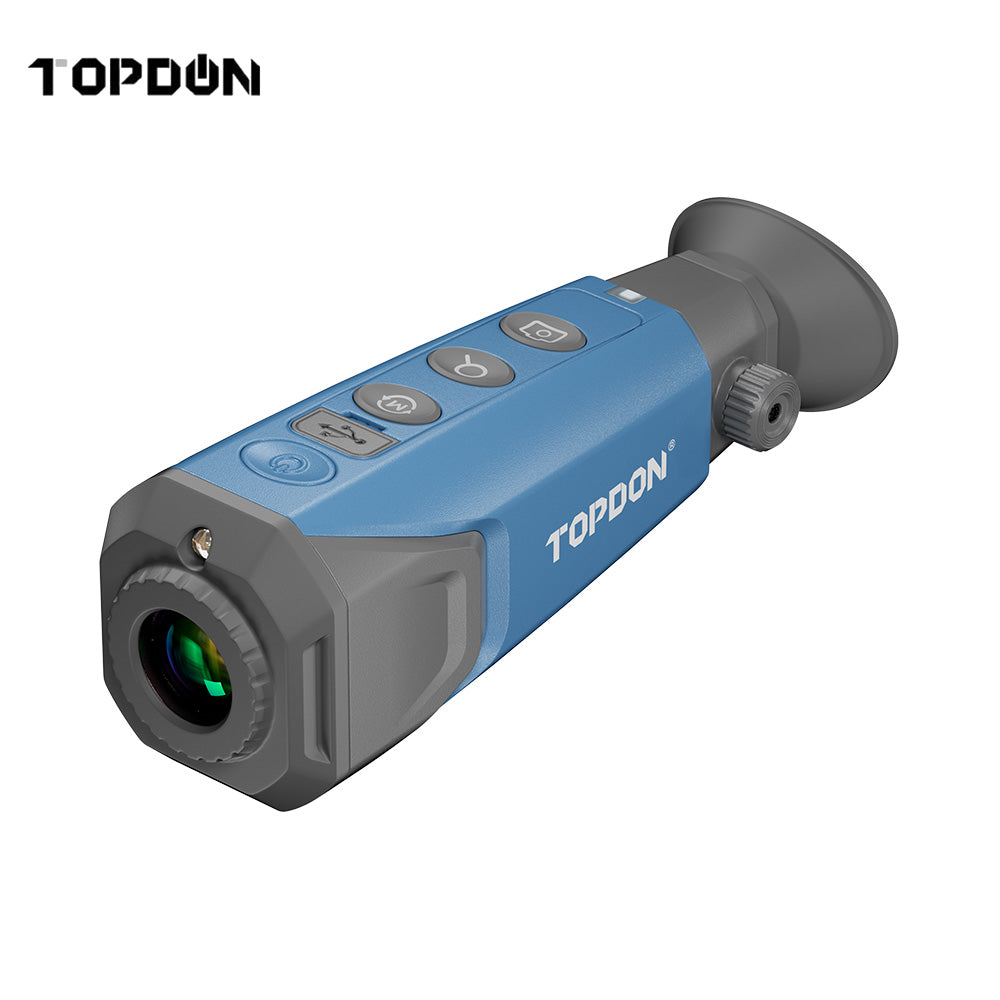

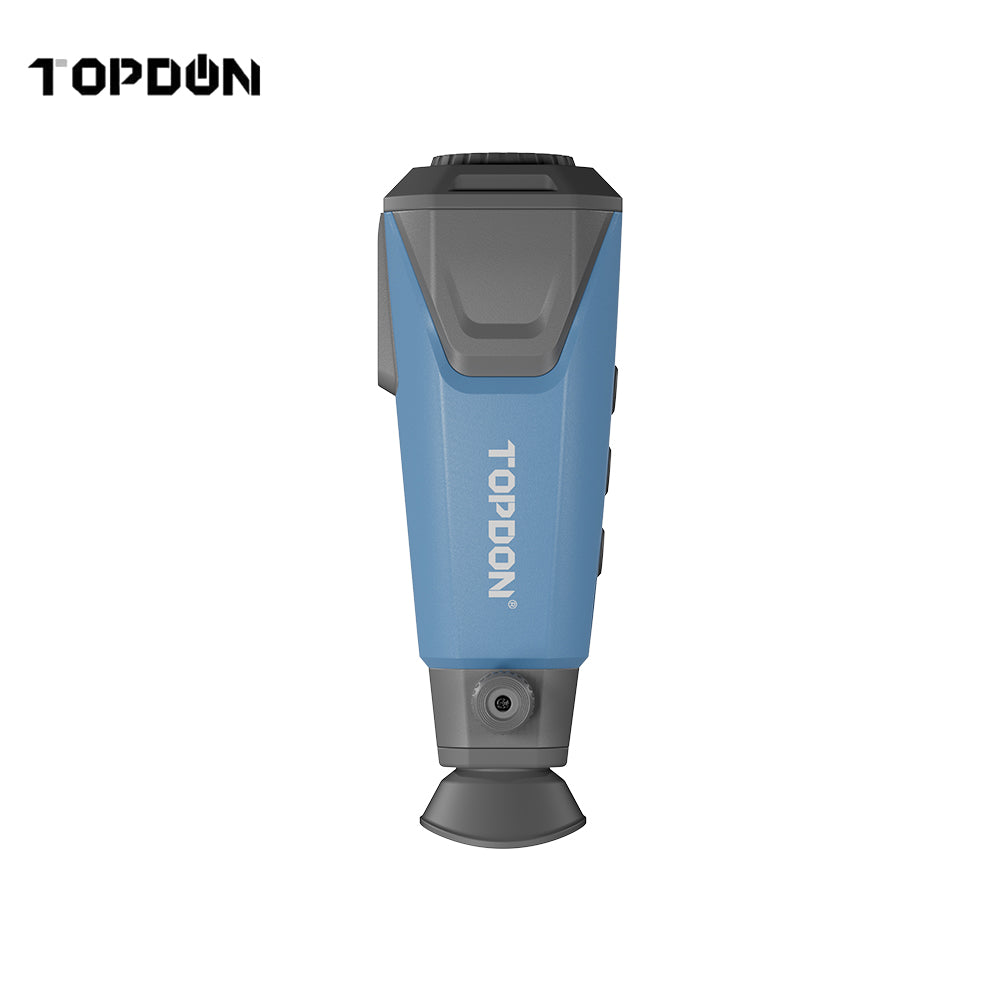

TOPDON TS004 Pro Thermal Monocular Camera with 19 mm Focal Length

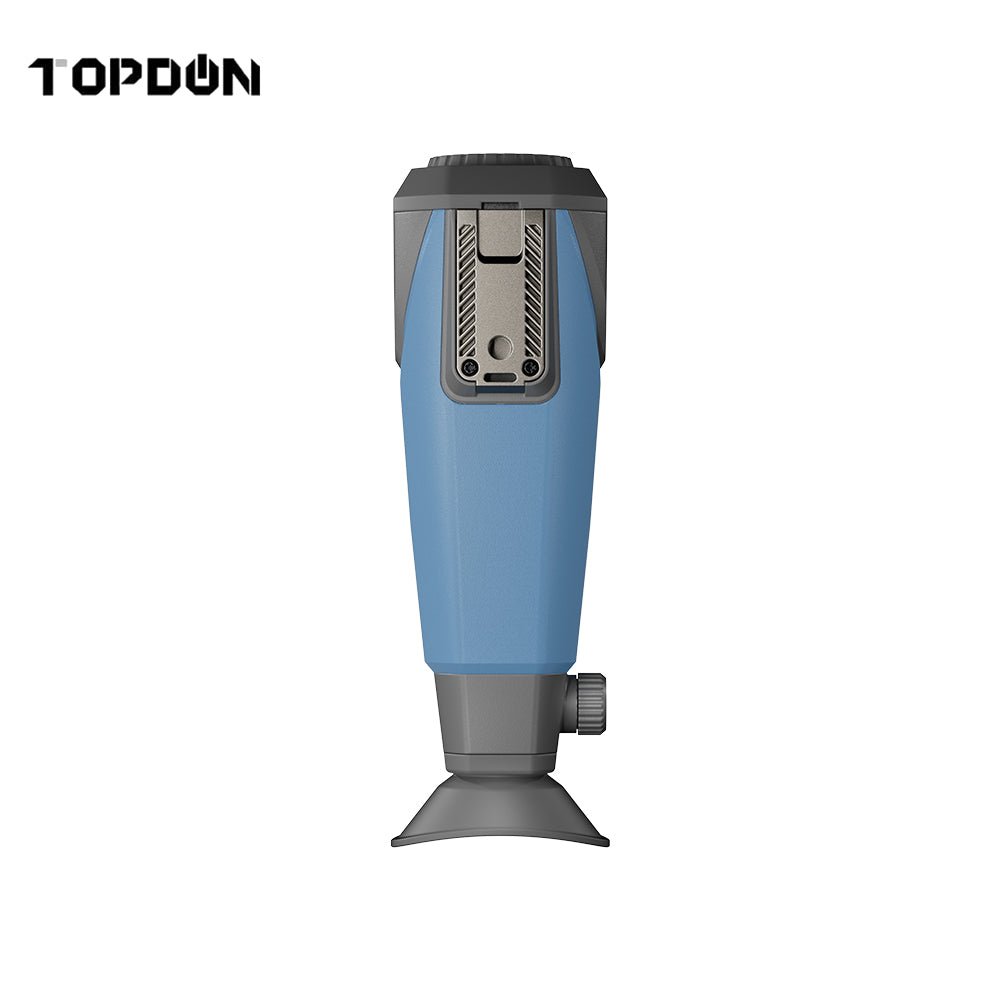

The TOPDON TS004 Pro is a rugged thermal monocular designed for reliable long-range performance. With a 384 x 288 resolution sensor, smooth 50 Hz refresh rate, and detection up to 650 yards, it delivers clear thermal imaging to help you spot and track targets with confidence in any condition.
Features:

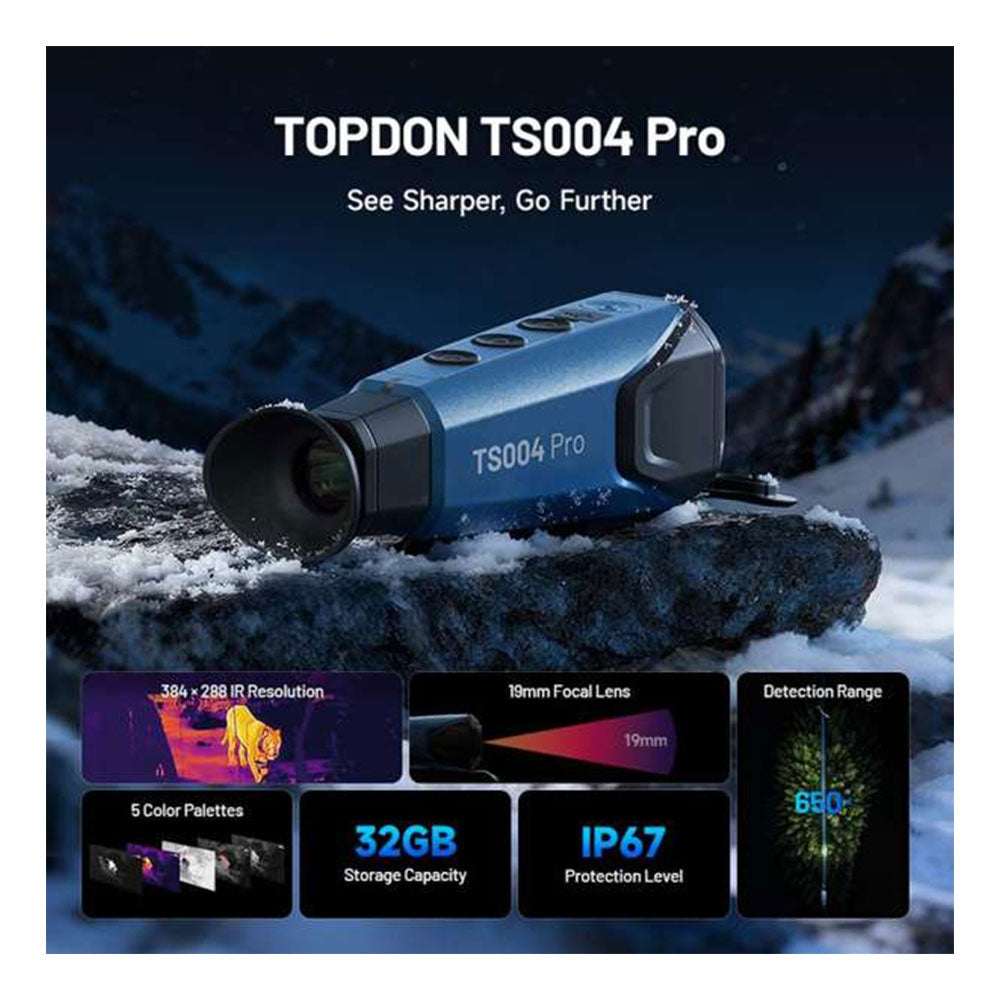

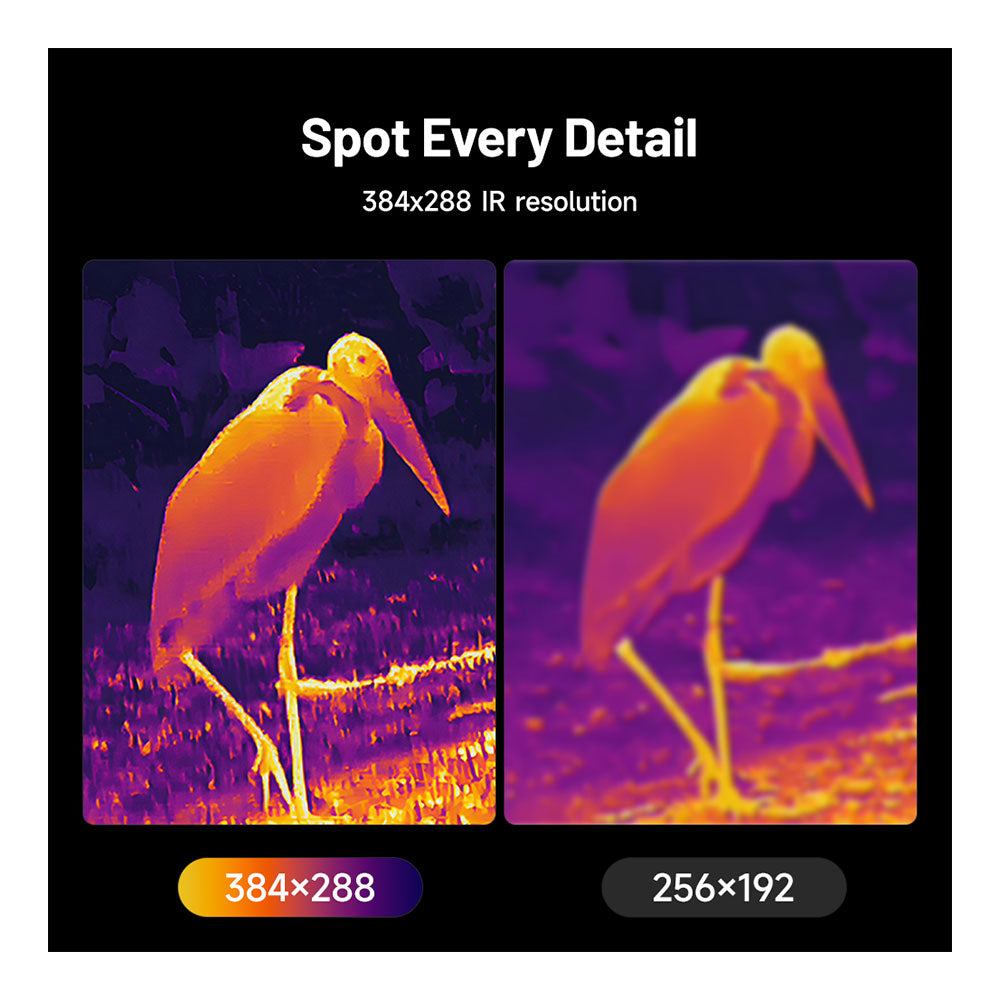

- Long-Range Thermal Clarity: Featuring a 19mm lens and 384x288 IR resolution with TISR image enhancement, the TS004 Pro delivers sharp, detailed thermal images-even in total darkness. Detect heat signatures up to 650 yards away with confidence.
- Rugged & IP67 Weatherproof: Built for demanding outdoor use, the TS004 Pro is rated IP67 for superior protection against rain, dust, and harsh environments. Operates reliably from -10°C to 45°C (14°F-113°F).
- Wireless App Control & OTA Updates: Connect via the TopInfrared mobile app for remote control, photo and video capture, and advanced settings. OTA firmware updates keep your device optimized with improved performance over time.
- Long-Lasting 5000 mAh Battery: Powered by a high-capacity rechargeable battery, the TS004 Pro provides up to 10 hours of continuous operation. Spend more time observing and less time recharging.
- 32 GB Built-In Storage: Store up to 270,000 thermal images or hours of video recording with ample internal memory. Capture every critical moment without worrying about space.
- Adjustable Brightness & Built-In LED Light: Customize screen brightness with 1-10 levels for clear viewing day or night. The integrated LED light doubles as a practical flashlight for added convenience.
- Digital Zoom, Color Palettes & PIP Mode: Switch between 1x, 2x, 4x, and 8x digital zoom and choose from five color palettes to match your environment. Use Picture-in-Picture (PIP) mode for a 4x magnified center view while maintaining full-field awareness.
- Lightweight & Tripod-Ready Design: Weighing just 310g, the TS004 Pro is compact and easy to carry in the field. Tripod compatibility ensures stable, hands-free viewing whenever needed.
Specifications:
| Operating System | Linux |
| Battery Capacity | 5000mAh |
| Display Screen | 0.32 inch 800 x 600 OLED Display |
| Operating Voltage | 5V |
| Charging Time | 4h |
| Battery Life | 10h |
| Storage | 32GB |
| LED Flashlight | Yes |
| Calibration Temperature Measurement Distance | NA |
| Identification Distance | 133m/145yd |
| Recognition Distance | NA |
| Detection Distance | 594m/650yd |
| Measurement Accuracy | NA |
| Infrared Light Resolution | 384 x 288 |
| Focal Range | 19mm |
| FOV | 13.8° x 10.4° |
| Spectral Range | 7.5 - 14µm |
| NETD | <40mK |
| Temperature Resolution | NA |
| Frame Rate | 50Hz |
| AI Algorithm | Can identify people and vehicles |
| Image Algorithm | Yes |
| Measurement Range | NA |
| Professional Function | Outdoor |
| Digital Zoom | 1x/2x/4x/8x (Manual focus usable without glasses for low myopia) |
| Image Modes | Thermal Imaging, Dual Fusion |
| Measuring Modes | NA |
| Video Recording | Video Transfer via USB |
| WIFI | Yes |
| PC-Based Analysis Software | NA |
| Visible Light Camera Lens | NA |
| Pseudo Color Bar | Bird, white hot, black hot, red hot, fusion |
| High/Low Temperature Alarms | YES |
| Automatic Power-off Time | NA |
| Temperature Units | NA |
| Operating Temperature | -10°C to 50°C |
| Tripod Screw Hole | Yes |
| Drop, Impact, and Vibration | 1.0m |
| IP Rating | IP67 |
| Certifications | NA |
| Gross Weight (g) | 800g |
| Device Weight (g) | 310g / 0.68lbs |
| Package Size (mm) | 190mm x 64mm x 54mm (7.1 in x 2.5 in x 2.1 in) |
| Languages Supported | English, French, German, Spanish, Japanese, Simplified Chinese |
| Updates | App Updates |
Box Contents:
- TS004 Pro
- USB-A to USB-C Cable
- Wrist Strap
- EVA Carrying Case
- User Manual
