TownSteel - CDC-109-S - Commercial Lever Set Handle - Clutch Lever Set - 2-3/4 Backset - Satin Chrome - Entrance / Office - Grade 1

TownSteel - CDC-109-S - Commercial Lever Set Handle - Clutch Lever Set - 2-3/4 " Backset - Satin Chrome - Entrance / Office - Grade 1

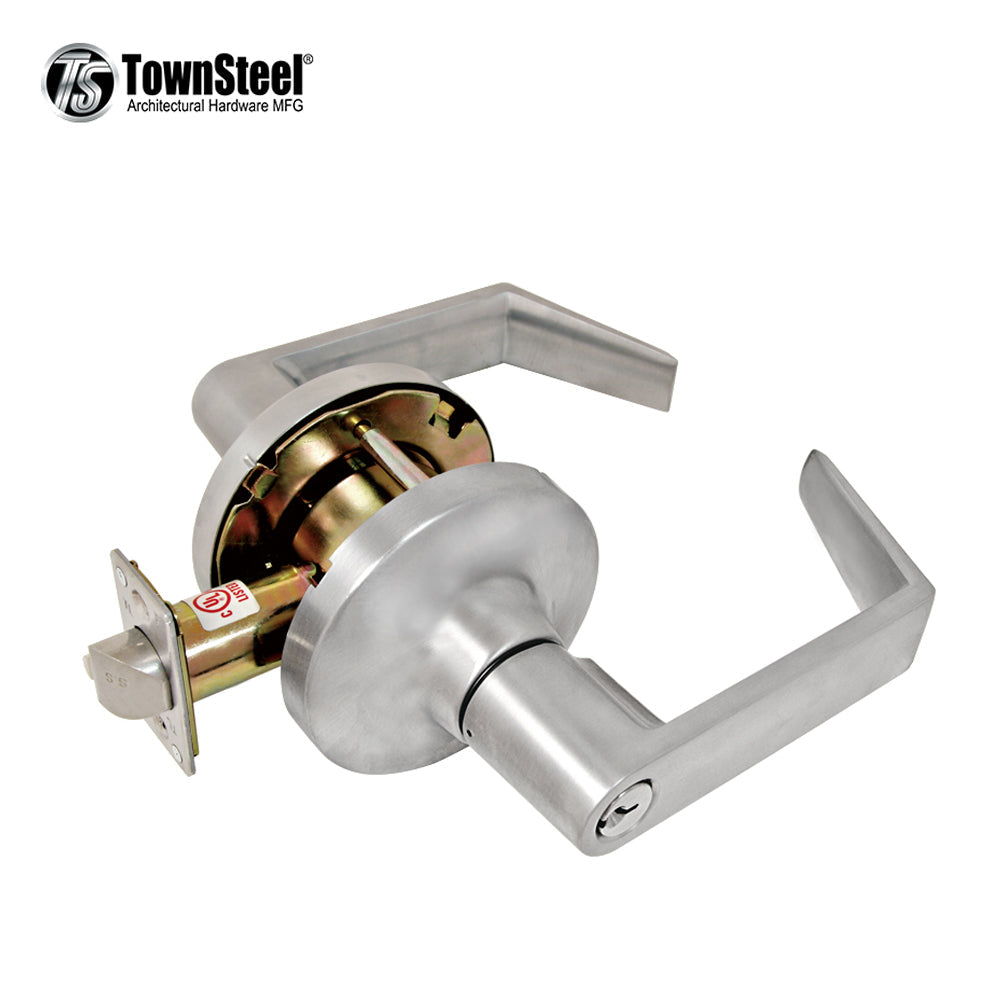

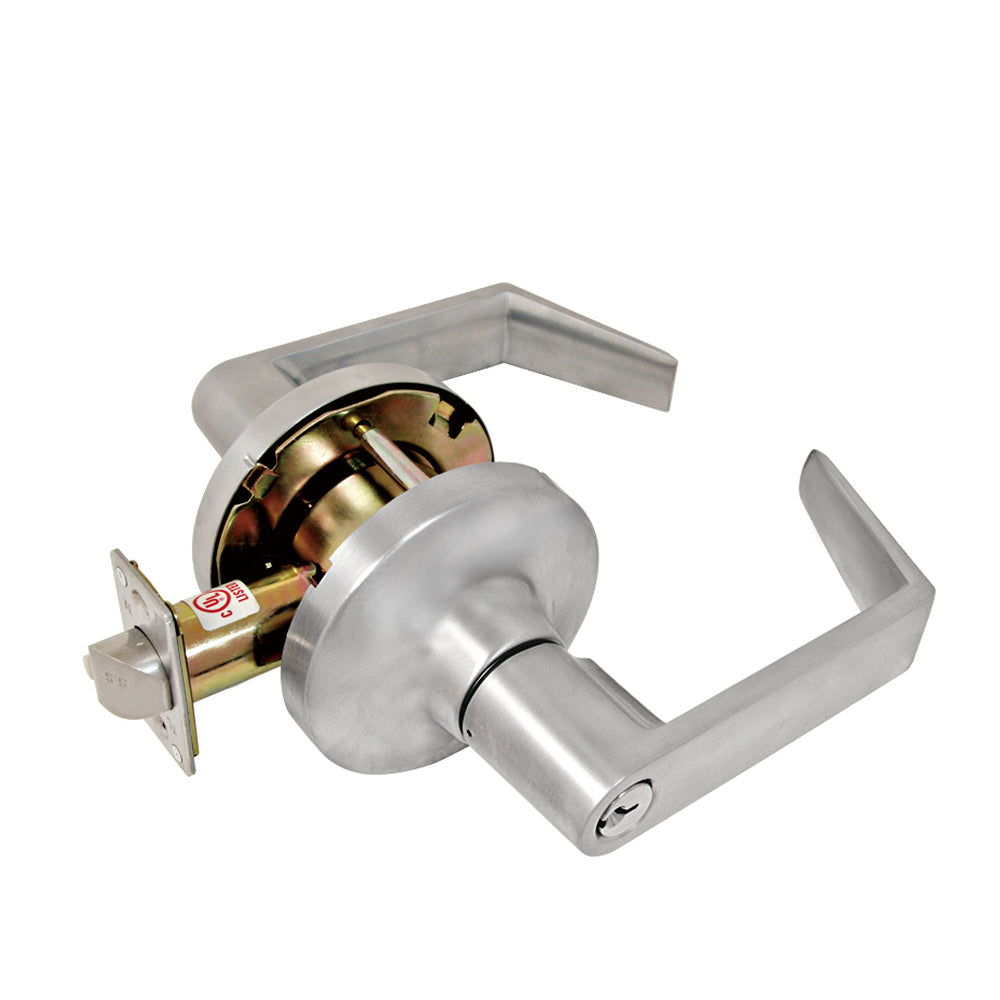

The CDC109S Series Cylindrical Lockset is ANSI/BHMA A156.2-2011 Grade 1 certified and UL 10C 3-Hour rated Clutched lever trim. Independent torsion spring design provides effective lever support. Most BHMA functions are available. Easy installation

Specifications

Lock Function	ANSI F109 Entrance Office
Handling	Non-Handed
Door Thickness	1-3/8″-2″
Backset	2-3/4″ standard,
Faceplate	Stainless Steel, 1-1/8″ x 2-1/4″
Latch Bolt	Stainless steel, 1/2″ throw, deadlocking on keyed functions
Strike	ASA, 1-1/4″ x 4-7/8″ x 1-5/16″ standard
Cylinder	6 pin brass, Schlage “C” keyway, 2 keys per cylinder
Keying	Keyed different - KD (standard)
Trim Style	Sentinel(S)
Finish	626 - 26D - Satin Chrome
Certifications	ANSI/BHMA - A156.2-2011 4000 Series Grade 1 Certified UL - UL 10C 3-Hour Rated ADA - Meet Requirements of The Americans with Disabilities Act BAA - Meet Guidelines of The Buy American Act CSFH - Sentinel and Quest Lever Designs meet California State Reference Code (CSFH)
Manufacturer Warranty	1-year limited for electronic 5-year limited for finish 10-year limited for mechanical

Template and Installation Guide
