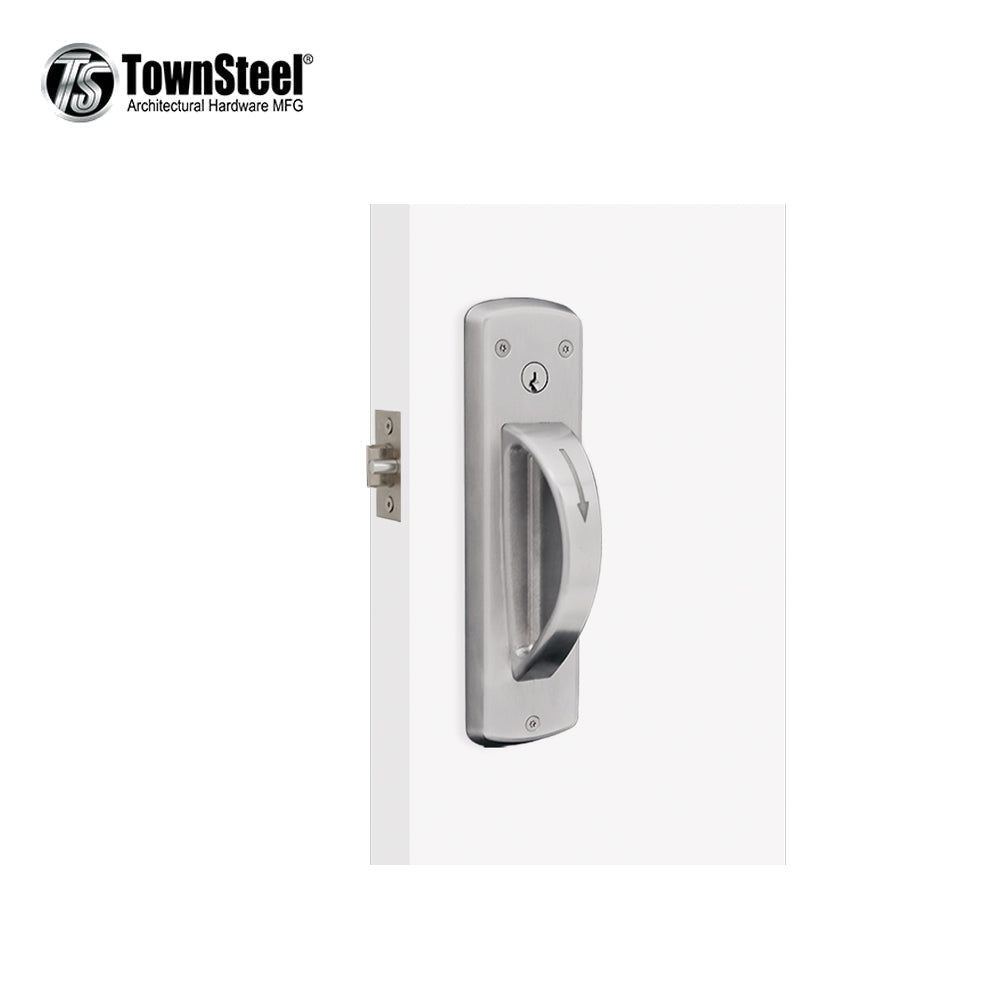

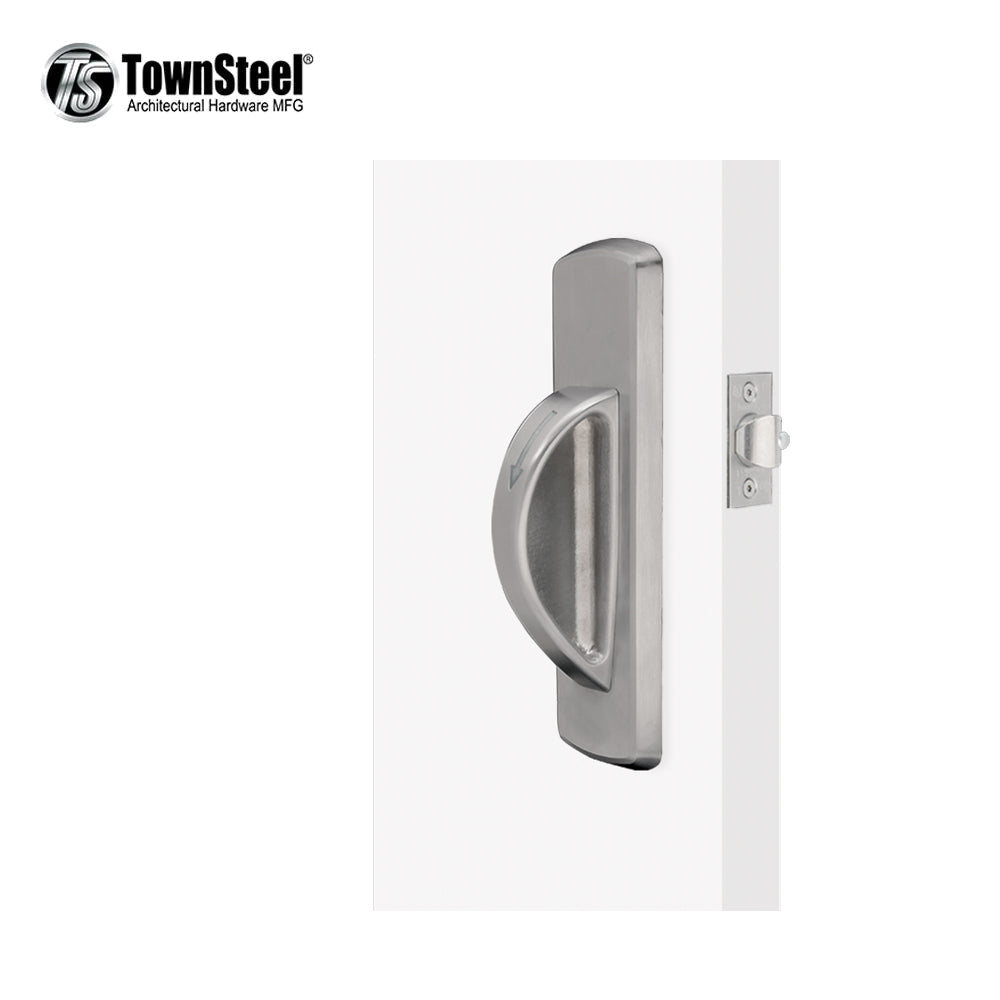

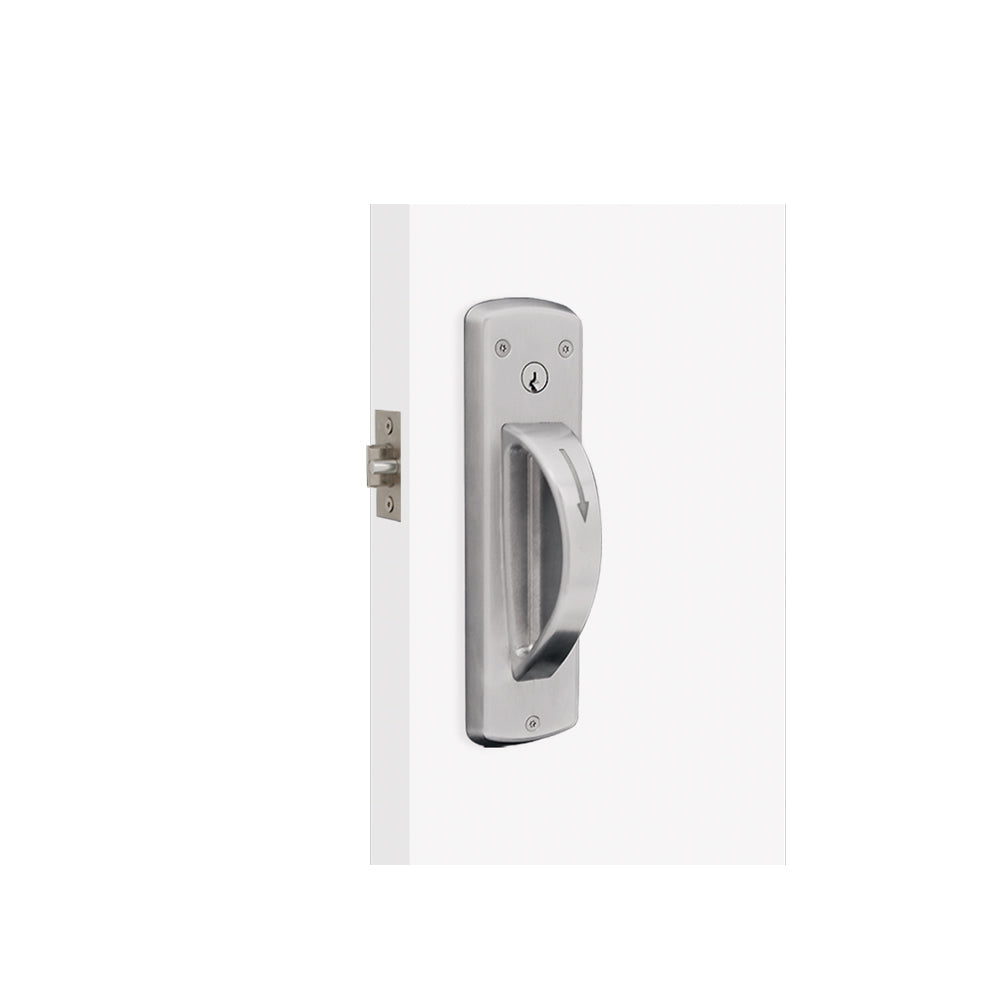

TownSteel - CRX-A-IC - Heavy Duty 5-Point Ligature Resistant Arch Trim Cylindrical Lockset - SFIC Prep - Classroom (84) Keyed - Grade 1 - Satin Stainless Steel-630
The CRX-A is an ANSI Grade 1 Cylindrical Lock with Ligature Resistant Trim-Arch. CRX-A is recommended for high-risk areas in facilities housing patients at risk. This product is equipped with a 5-point ligature-resistant stainless steel arch trim and tamper-resistant mounting screws. The CRX-A can be mounted on both a wood and metal door.
Feature:
- Equipped with a 5 point ligature resistant arch trim
- Meets all ligature resistant requirements
- Heavy-duty Grade 1
- Various cylinder and keying options
- Through-bolt mounting with tamper-resistant screws
Specification:
| Series | CRX |
| BHMA/ANSI Grade | Grade 1 Certified, ANSI/BHMA A156.2 |
| Lockbodies | Rigid |
| Handings | RHR LH RH LHR |
| Backsets | 2-3/4″ 5″ |
| Faceplate | 1-1/8" x 2-1/4", square corner |
| Door Thickness | 1-3/4" |
| Strike | ASA strike standard |
| Latch Bolt | ½" throw, stainless steel |
| Door Prep | Standard 161 |
| Mounting | Though-bolt, tamper resistant mounting screws, for wood and metal door |
| Escutcheon | Stainless steel, 9-5/8" x 2-13/16 |
| Arch Trim | Stainless steel, 2-5/8" projection |
| Cylinder Specifications | Small Format Interchangeable Core (SFIC) Prepped for (SFIC) Small Format Interchangeable Core (less core) |
| Finishes | Satin Stainless Steel - 630 |
| Function | Classroom (84) |
| Compliance | Ligature Resistant Americans with Disabilities Act Compliant UL 10C Compliant |
| Certifications | ANSI/BHMA Grade 1, UL Listed. Meets BAA and ADA requirements. |
Additional Charge Will Apply For The Available Cylinders:
- 6-pin IC core with Best® “A” Keyway
- 7-pin IC core with Best® “A” Keyway
- Corbin® Large Format IC less core available, for 6 pin core
- Schlage® Large Format IC less core available
- High security 6 pin cylinder with TownSteel “L” keyway
