TownSteel - CSRC-75-S - Commercial Lever Set Handle - Clutch Lever Set - 2-3/4 Backset - Satin Chrome - Passage - Grade 2

TownSteel - CSRC-75-S - Commercial Lever Set Handle - Clutch Lever Set - 2-3/4 " Backset - Satin Chrome - Passage - Grade 2

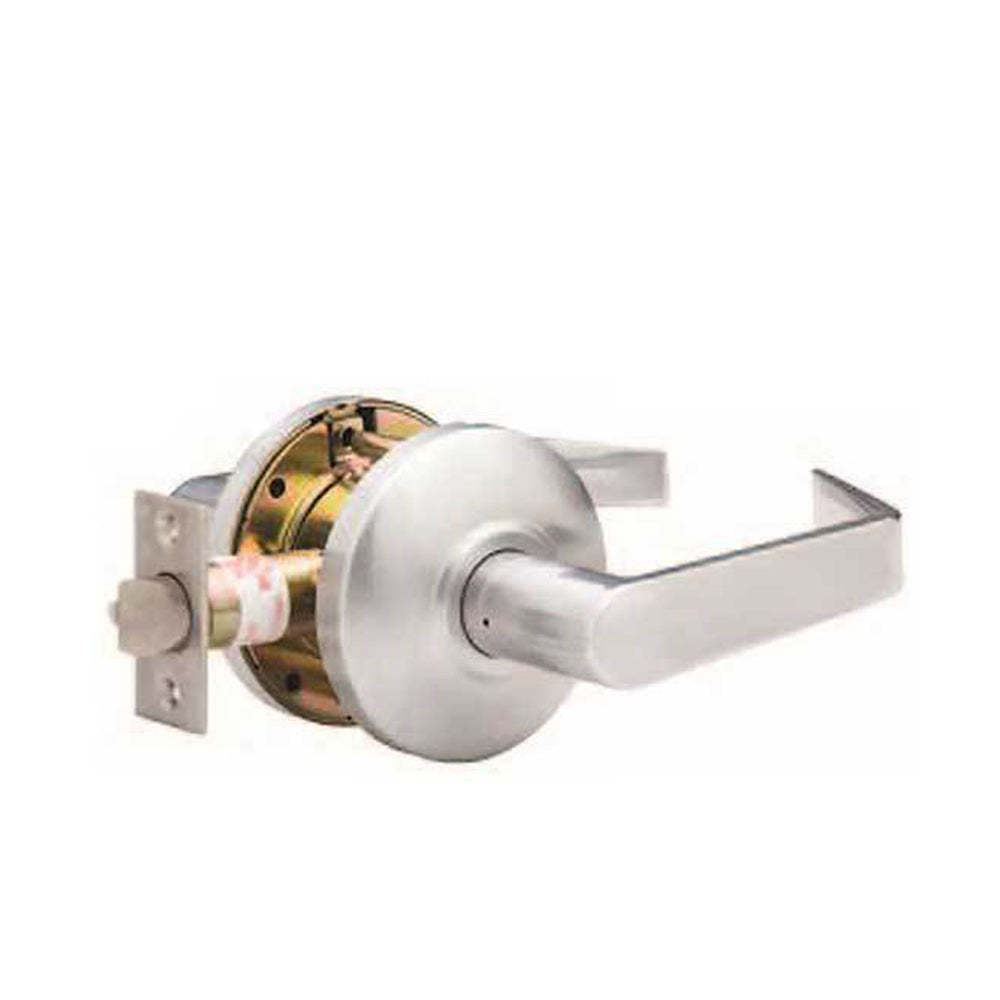

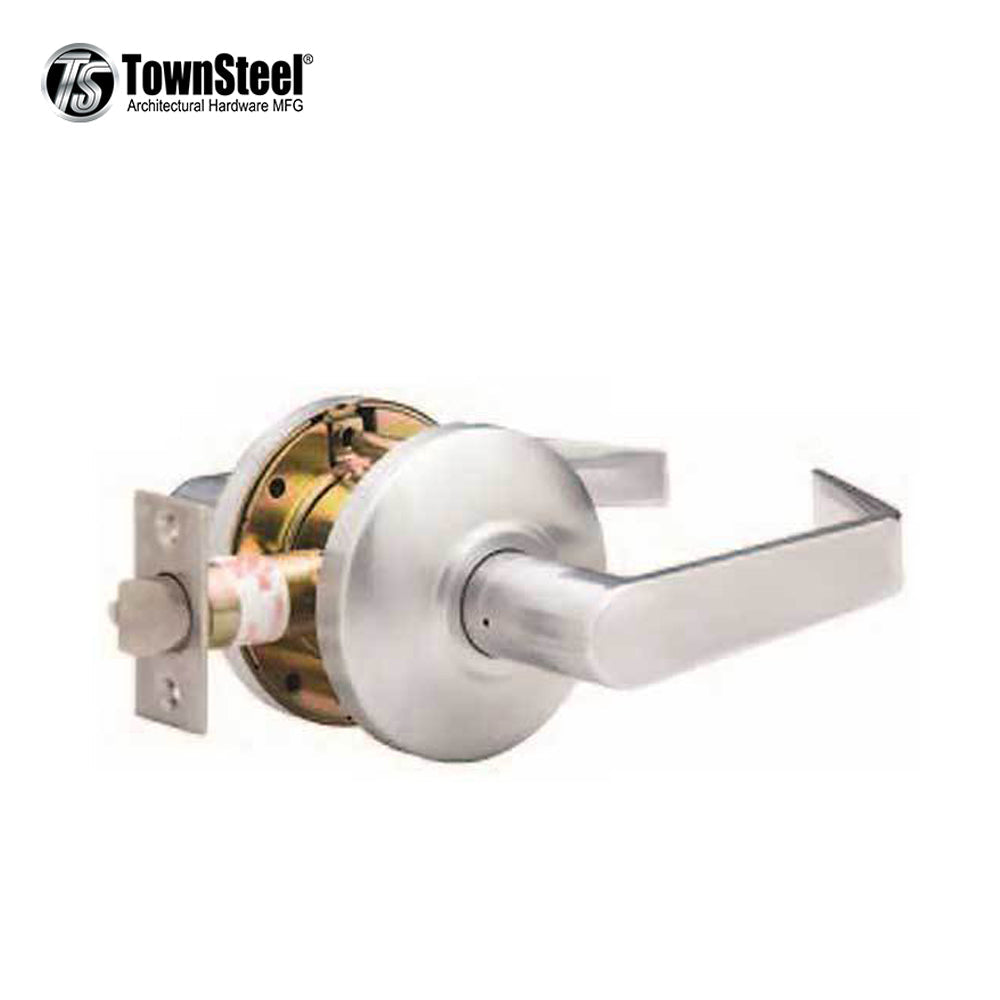

The CSRC75S Series sylindrical lockset is heavy duty grade 2, and UL 10C 3-hour rated. It offers flat rose featuring clutched lever trims.

Specifications

Lock Function	ANSI F75 Passage
Handling	Non-Handed
Door Thickness	1-3/8″-2″
Backset	2-3/4″ standard,
Faceplate	1-1/8” x 2-1/4” (28.4mm x 57mm) , square corner
Latch Bolt	Stainless steel with ½” (12.7mm) throw
Strike	ASA, 1-1/4″ x 4-7/8″ x 1-5/16″ standard
Cylinder	6-pin solid brass cylinder, Schlage “C” keyway
Keying	Keyed different - KD (standard)
Trim Style	Sentinel(S)
Finish	626 - 26D - Satin Chrome
Certifications	ANSI/BHMA Meets or exceeds all Grade 2 requirements of A156.2-2003 UL Listed 3-hour fire rating ADA Meet Requirements of The Americans with Disabilities Act BAA Meet Guidelines of The Buy American Act
Manufacturer Warranty	1-year limited for electronic 5-year limited for finish 10-year limited for mechanical

Installation Guide
