TownSteel - CSRC-86-S - Commercial Lever Set Handle - Clutch Lever Set - 2-3/4 Backset - Satin Chrome - Storeroom - Grade 2

TownSteel - CSRC-86-S - Commercial Lever Set Handle - Clutch Lever Set - 2-3/4 " Backset - Satin Chrome - Storeroom - Grade 2

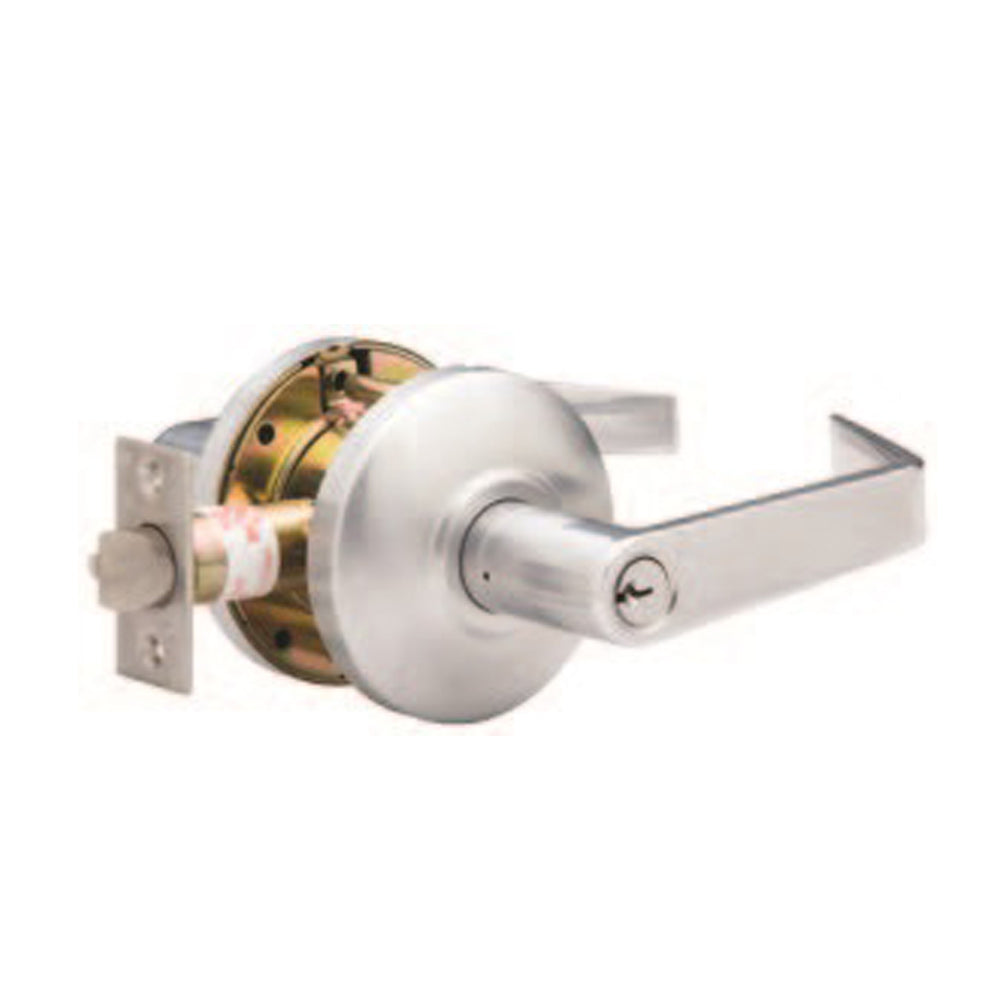

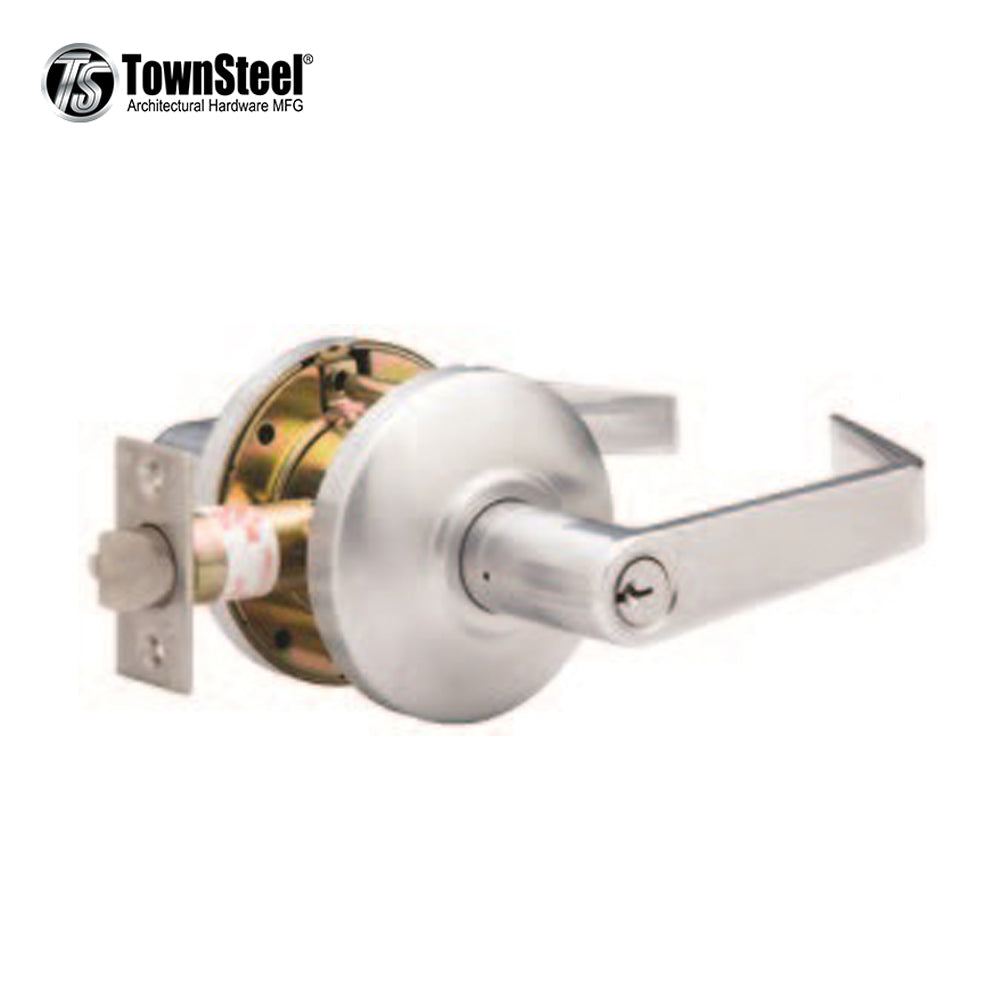

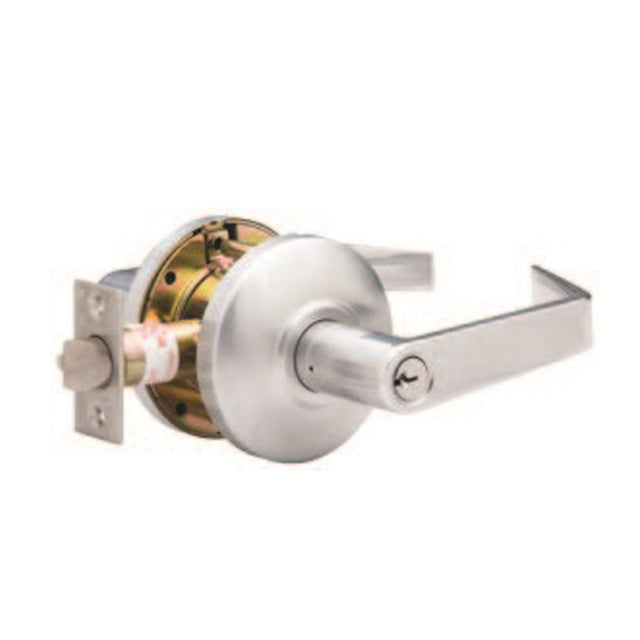

The CSRC-86-S Series cylindrical lockset is heavy duty grade 2, and UL 10C 3-hour rated. It offers flat rose featuring clutched lever trims.

Specifications

Lock Function	ANSI F86 Storeroom
Handling	Non-Handed
Door Thickness	1-3/8″-2″
Backset	2-3/4″ standard,
Faceplate	Stainless Steel, 1-1/8″ x 2-1/4″
Latch Bolt	Stainless steel, 1/2″ throw, deadlocking on keyed functions
Strike	ASA, 1-1/4″ x 4-7/8″ x 1-5/16″ standard
Cylinder	6 pin brass, Schlage “C” keyway, 2 keys per cylinder
Keying	Keyed different - KD (standard)
Trim Style	Sentinel(S)
Finish	626 - 26D - Satin Chrome
Certifications	ANSI/BHMA Meets or exceeds A156.2-2011 4000 Series Grade 2 requirements UL Listed 3-hour fire rating ADA Meet Requirements of The Americans with Disabilities Act BAA Meet Guidelines of The Buy American Act CSFH Sentinel and Quest Lever Designs meet California State Reference Code (CSFH)
Manufacturer Warranty	1-year limited for electronic 5-year limited for finish 10-year limited for mechanical

Installation Guide
